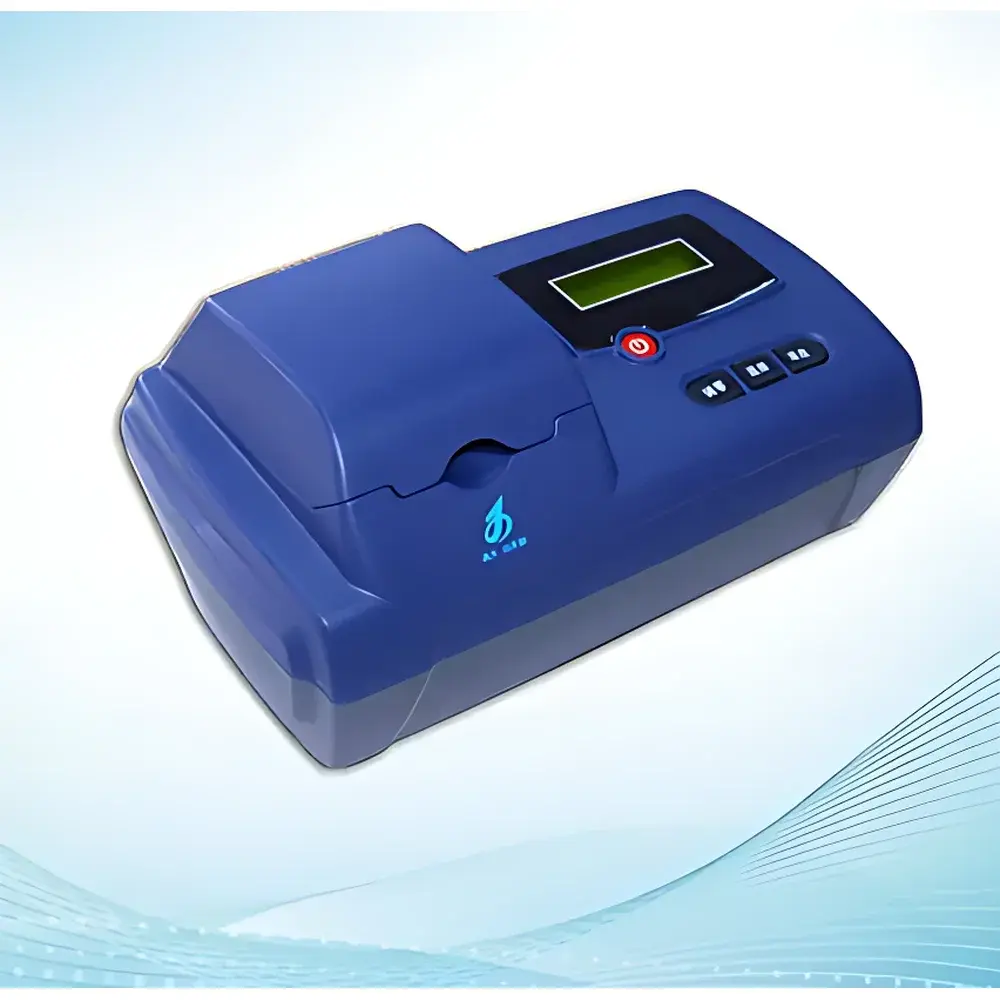

Cyanide Analyzer GDYS-102SQ by Jilin University Xiaotian’e

Overview

The GDYS-102SQ Cyanide Analyzer is a portable, field-deployable photometric analyzer engineered for rapid, quantitative determination of free and total cyanide in water samples. It operates on the principle of colorimetric detection via the pyridine-barbituric acid (PBA) reaction—where cyanide ions react under acidic distillation or direct alkaline digestion (depending on sample matrix) to form a chromophore with absorbance peak at 638 nm. This method conforms to core elements of ISO 6703-2:2022 (Water quality — Determination of cyanide — Part 2: Spectrophotometric method using pyridine-barbituric acid) and aligns with EPA Method 9010B (Cyanide by Colorimetry) for screening-level compliance. Designed for environmental laboratories, municipal water utilities, industrial effluent monitoring stations, and emergency response teams, the GDYS-102SQ delivers laboratory-grade quantification without requiring centralized instrumentation or trained spectroscopists.

Key Features

• Field-ready operation: Integrated LED-based photometer with temperature-stabilized optical path ensures consistent absorbance measurement across ambient conditions (10–35 °C).
• Pre-calibrated reagent system: Each single-use test kit contains lyophilized reagents, standardized calibration standards, and reaction vials—eliminating manual reagent preparation and minimizing operator-induced variability.
• Rapid turnaround: Full analytical cycle—from sample introduction to digital concentration readout—completed within 30 minutes, supporting time-critical regulatory reporting and incident response.
• Digital traceability: Built-in microprocessor stores up to 500 test records with timestamp, operator ID (optional), and batch-coded reagent lot numbers—supporting GLP-aligned documentation practices.
• Robust architecture: IP65-rated enclosure, shock-absorbing silicone housing, and rechargeable lithium-ion battery (≥8 hours continuous use) enable reliable operation in outdoor, mobile, or unconditioned environments.

Sample Compatibility & Compliance

The GDYS-102SQ accepts raw, filtered, or clarified aqueous samples—including surface water, groundwater, wastewater, leachate, and treated drinking water. For samples containing interfering species (e.g., sulfides, thiocyanates, or high turbidity), built-in pretreatment protocols—such as cadmium column distillation (for total cyanide) or manual filtration (for free cyanide)—are referenced in the operational manual per ISO 6703-1 guidance. The analyzer’s performance validation meets the repeatability (RSD ≤5%) and recovery (85–115%) criteria specified in ISO/IEC 17025:2017 for routine environmental testing. While not FDA 21 CFR Part 11 certified out-of-the-box, audit trails and user-access controls can be configured to support GMP-aligned workflows during third-party validation.

Software & Data Management

Data export is supported via USB-C interface to standard CSV format, compatible with LIMS platforms (e.g., LabWare, STARLIMS) and spreadsheet-based QA/QC review. Optional Bluetooth 5.0 module enables wireless synchronization with the companion desktop application “Xiaotian’e AquaTrack”, which provides automated calibration curve generation, trend analysis across sampling events, and customizable report templates compliant with local environmental authority submission formats (e.g., China MEP Form HJ 91.1–2019, US EPA Form 3320). All firmware updates are delivered through digitally signed packages to ensure integrity and version control.

Applications

• Regulatory compliance monitoring at wastewater treatment plants discharging to sensitive aquatic ecosystems.
• Emergency assessment following industrial spills involving electroplating, mining, or chemical synthesis facilities.
• Baseline and periodic surveillance of groundwater near landfills, hazardous waste sites, or gold extraction operations.
• Verification of cyanide destruction efficiency in advanced oxidation or hydrogen peroxide-based detoxification systems.
• Educational use in university environmental science laboratories for method validation and inter-laboratory comparison exercises.

FAQ

What cyanide species does the GDYS-102SQ measure?
It quantifies both free cyanide (CN⁻) and total cyanide (after distillative liberation), depending on selected sample pretreatment protocol.
Is operator training required to achieve stated accuracy?
Yes—users must complete a 4-hour competency module covering reagent handling, interference mitigation, and instrument calibration verification, as outlined in the ISO/IEC 17025-compliant SOP bundle.
Can the analyzer be used for saline or seawater samples?
Not without matrix-matched calibration; high chloride concentrations suppress chromophore formation—users must validate recovery using spiked marine reference materials (e.g., NIST SRM 1640m) prior to deployment.
How often does the optical system require recalibration?
Factory calibration remains stable for 12 months under normal use; annual verification with NIST-traceable neutral density filters is recommended and documented in the maintenance log.
Are replacement reagent kits supplied with lot-specific certificates of analysis?
Yes—each GDYS-102SQ reagent kit includes a CoA listing assay sensitivity, blank absorbance, and stability data under accelerated aging conditions (40 °C / 75% RH for 90 days).
