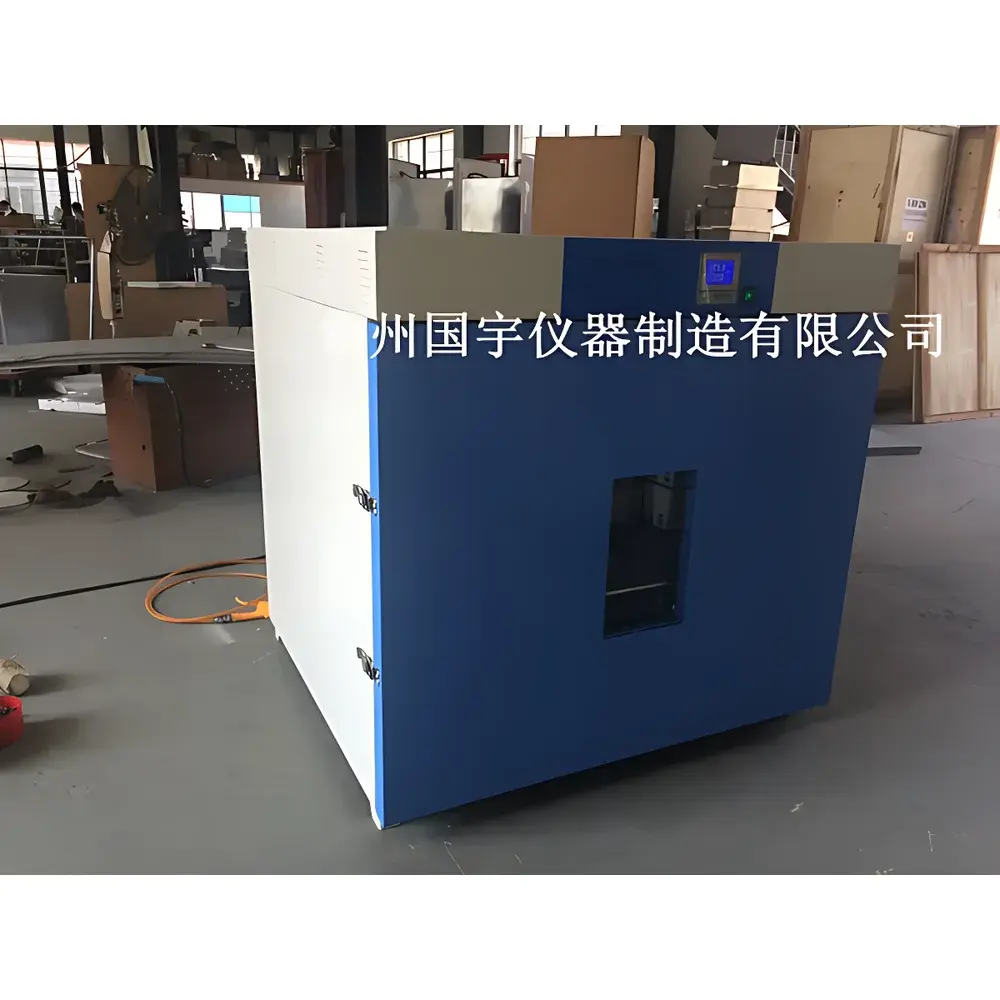

CZGY 101-4A Forced-Air Precision Drying Oven

Overview

The CZGY 101-4A Forced-Air Precision Drying Oven is an industrial-grade laboratory drying system engineered for consistent thermal processing of samples requiring uniform heat distribution and stable temperature maintenance over extended durations. It operates on the principle of forced convection—where heated air is actively circulated via a rear-mounted blower assembly across a thermally insulated chamber—ensuring rapid thermal equilibration and minimizing vertical and horizontal temperature gradients. Unlike bottom-heated ovens that pose elevated fire risk due to direct contact between heating elements and flammable residues or solvents, the 101-4A employs a rear-positioned heating bank integrated into a dedicated airflow duct. This architecture isolates heat generation from the chamber floor, significantly enhancing operational safety, simplifying heater replacement, and reducing long-term maintenance overhead. Designed for routine drying, baking, sterilization, moisture loss determination, and pre-conditioning of materials in QC labs, pharmaceutical manufacturing environments, and academic research facilities, the unit complies with foundational thermal stability requirements outlined in ISO 17025-accredited calibration practices and supports traceable process documentation under GLP-compliant workflows.

Key Features

• Rear-mounted heating system with dedicated air ducting—eliminates floor-level ignition hazards and improves serviceability

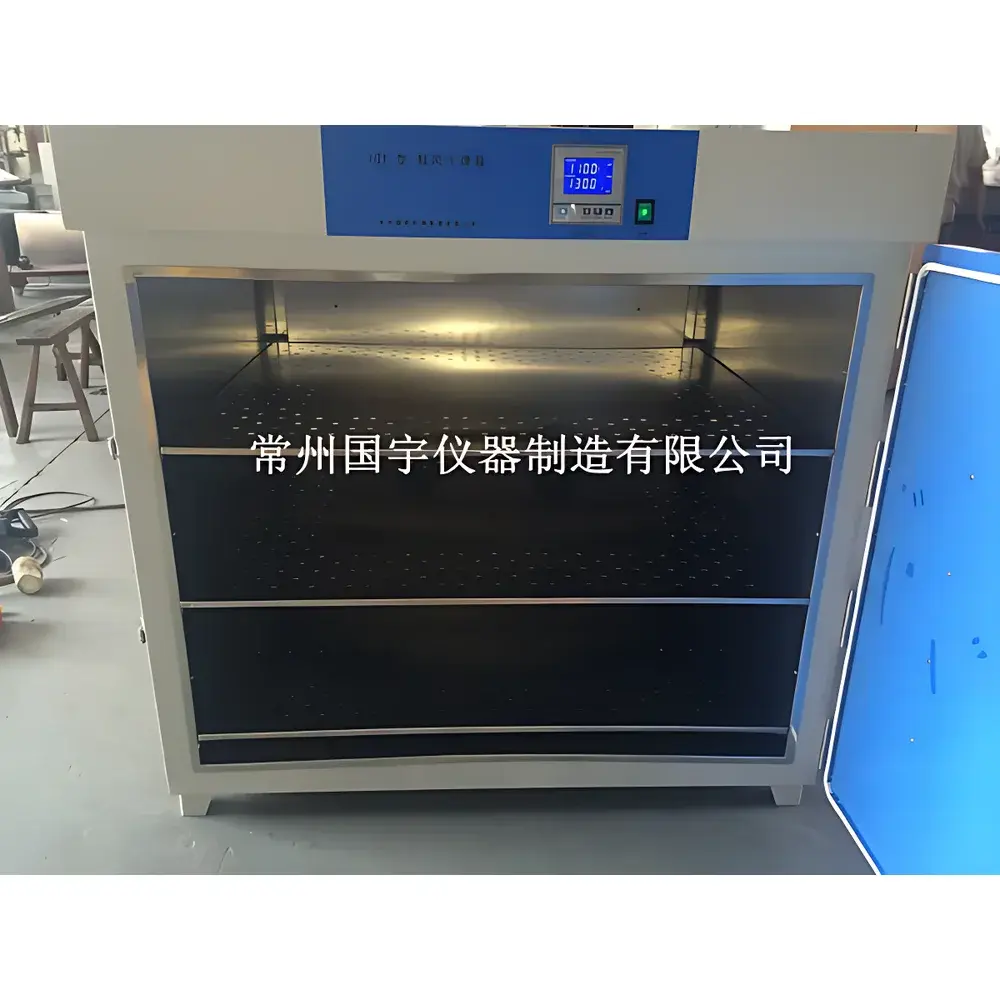

• Stainless steel (SUS304) interior chamber with seamless welded corners for corrosion resistance and ease of cleaning
• Mineral wool (rockwool) insulation layer between inner and outer walls—optimized for thermal retention and energy efficiency

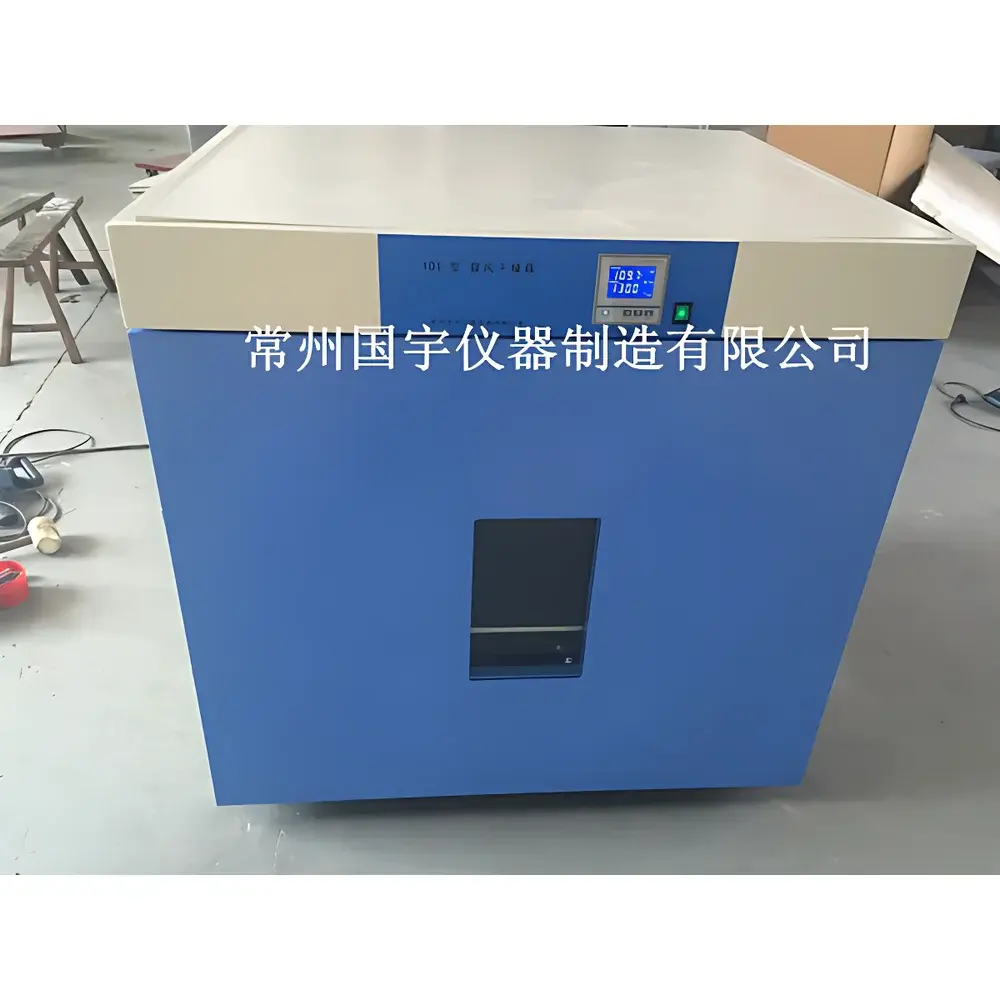

• High-temperature tempered glass observation window centered on the door—enables real-time visual monitoring without opening the chamber
• Fuzzy PID temperature control algorithm with 0.1°C resolution and ±1°C fluctuation tolerance—delivers high reproducibility across repeated cycles
• Adjustable multi-speed blower motor—supports fine-tuned airflow management for sensitive or volatile samples
• Segment-type LCD controller with intuitive interface—displays setpoint, actual temperature, timer status, and error codes simultaneously
• Programmable timer (0–9999 min/h)—supports unattended operation with automatic shutdown and audible alert

Sample Compatibility & Compliance

The 101-4A accommodates bulk samples, stacked trays, ceramic crucibles, metal pans, and polymer-coated substrates within its 640 L internal volume. Its RT+10°C to 300°C operating range meets ASTM E145-22 (Standard Specification for Gravity Convection and Forced-Ventilation Ovens) and aligns with common thermal validation protocols for residual solvent removal (e.g., ICH Q5C), active pharmaceutical ingredient (API) drying, and polymer curing. The stainless steel chamber satisfies USP material compatibility expectations for non-reactive contact surfaces. While not intrinsically rated for hazardous area use (e.g., Class I Div 1), the rear-heating design inherently mitigates risks associated with solvent-laden atmospheres—a critical consideration when drying ethanol-, acetone-, or hexane-washed specimens. Units are supplied with CE-marked power input modules and comply with IEC 61010-1:2010 safety standards for laboratory electrical equipment.

Software & Data Management

The 101-4A operates as a standalone instrument with embedded firmware; no external PC connection or proprietary software is required for basic operation. However, optional RS485 serial output (available upon request) enables integration with SCADA systems or centralized lab data loggers compliant with FDA 21 CFR Part 11 Annex 11 requirements—supporting electronic audit trails, user access controls, and time-stamped temperature logging. Internal event memory records up to 100 cycle logs—including start/stop timestamps, peak temperature deviations, and alarm triggers—accessible via menu navigation. For GMP-regulated environments, third-party validation packages (IQ/OQ/PQ templates) can be provided to support installation qualification and performance verification against defined URS criteria.

Applications

• Moisture content analysis per AOAC 950.46 and ISO 5519 for food, feed, and agricultural commodities
• Drying of filter papers, gravimetric crucibles, and ash-free filters prior to weighing in analytical chemistry workflows
• Curing of epoxy-coated substrates, printed circuit boards, and composite laminates in materials R&D
• Pre-drying of hygroscopic reagents (e.g., LiAlH₄, P₂O₅) and desiccant regeneration in synthetic organic laboratories
• Baking of ceramic green bodies and sintering pre-heat cycles in metallurgy and ceramics labs
• Stabilization of reference standards and calibration weights under controlled thermal history

FAQ

What safety advantages does rear-mounted heating provide compared to bottom-heated ovens?
Rear-mounted heating eliminates direct exposure of flammable residues or spilled solvents to live heating elements—significantly reducing fire risk during high-temperature drying of organic solvents or volatile samples.
Is the 101-4A suitable for use in a GMP-compliant pharmaceutical lab?
Yes—the unit’s stable temperature uniformity (±2°C), programmable timer, and optional data logging interface support process validation and documentation requirements under EU GMP Annex 15 and FDA guidance on equipment qualification.
Can the oven be customized for special voltage or plug configurations?
Yes—CZGY offers OEM configuration options including 110 V / 60 Hz variants, NEMA or Schuko plug adapters, and custom insulation thicknesses for extreme ambient conditions.
Does the stainless steel chamber meet USP material requirements?
Yes—the SUS304 inner chamber conforms to USP for non-reactive, non-leaching metallic surfaces used in pharmaceutical processing equipment.
What is the expected service life of the heating elements and blower motor?
Under normal operation (≤250°C continuous use), the nickel-chromium alloy heating elements and IP54-rated centrifugal blower typically exceed 15,000 operating hours before scheduled replacement.
