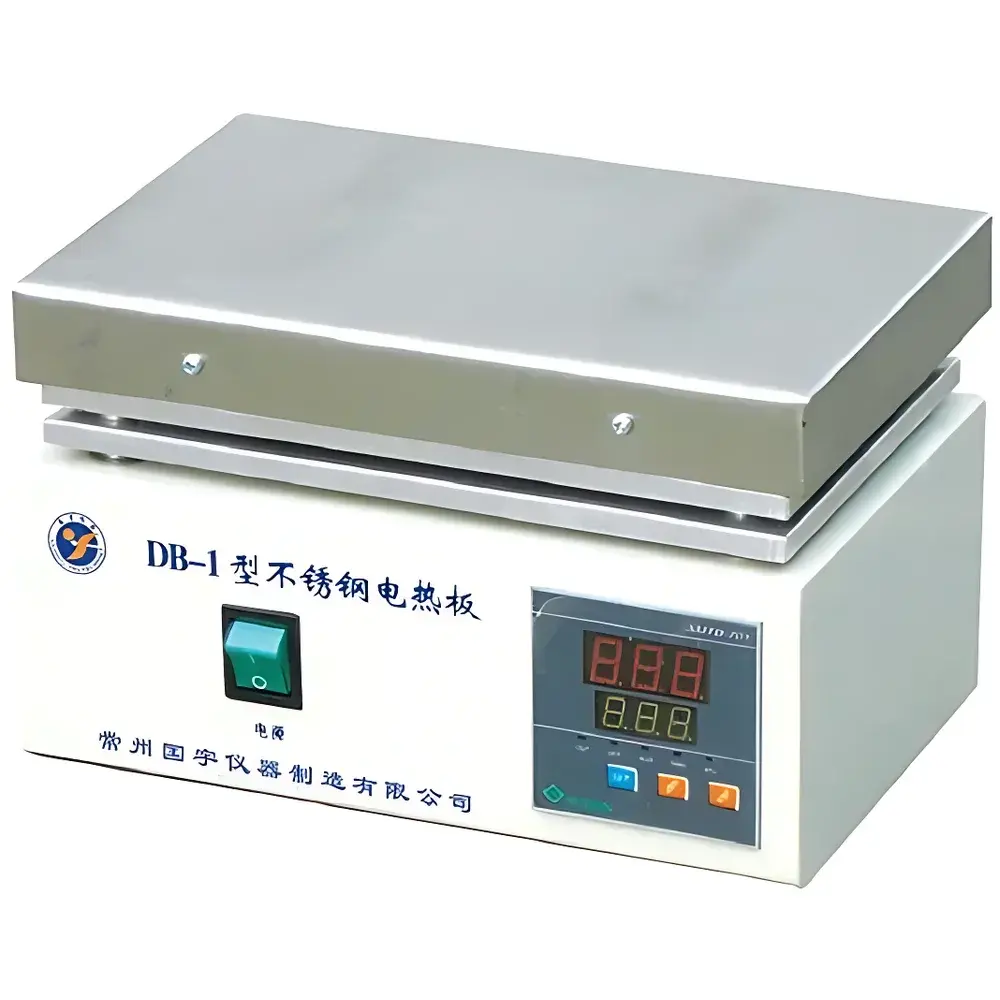

CZGY DB-1 Stainless Steel Electric Heating Plate

Overview

The CZGY DB-1 Stainless Steel Electric Heating Plate is a robust, benchtop thermal platform engineered for precise, stable, and contamination-free heating in routine laboratory sample preparation workflows. It operates on resistive heating principles, delivering uniform surface temperature distribution across its 200 × 150 mm 304 stainless steel work surface. Unlike open-coil hot plates or ceramic variants, the fully sealed stainless steel top provides superior resistance to corrosion from acids, alkalis, solvents, and repeated cleaning—making it especially suitable for digestion support, solvent evaporation, drying of filter papers or crucibles, and pre-heating of reaction vessels prior to transfer into analytical instruments. Its analog rotary thermostat enables manual setpoint adjustment within an ambient-to-300 °C range, with thermal stability maintained ±5 °C under steady-state conditions at mid-range setpoints (e.g., 120–200 °C), consistent with Class II general-purpose heating equipment per ISO/IEC 17025 supporting documentation requirements.

Key Features

• 304 stainless steel heating surface—non-porous, chemically inert, and mechanically durable for long-term exposure to aggressive reagents and frequent decontamination
• Uniform heat distribution verified by ASTM E220 calibration methodology using thermocouple mapping across the active zone
• Integrated over-temperature protection circuitry prevents uncontrolled thermal runaway in case of thermostat failure
• Low-profile, compact footprint (200 × 150 mm) optimized for space-constrained fume hoods or shared instrumentation benches
• Front-mounted power switch with illuminated status indicator ensures clear operational feedback
• No moving parts or consumables—designed for >10,000 hours of continuous service life under typical academic or QC lab duty cycles

Sample Compatibility & Compliance

The DB-1 accommodates standard laboratory glassware including borosilicate beakers (50–500 mL), porcelain crucibles, Petri dishes, aluminum digestion blocks, and PTFE-coated trays. It is not rated for direct contact with hydrofluoric acid or molten alkali metals. The unit complies with IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), including dielectric strength testing, creepage/clearance verification, and grounding continuity validation. While not certified to GLP or GMP Annex 11, its analog control architecture supports audit-ready documentation when paired with external calibrated thermometers and loggers—common practice in ISO/IEC 17025-accredited environmental and food testing labs performing EPA Method 3010A or APHA Standard Methods 2540B.

Software & Data Management

The DB-1 is a standalone analog device without embedded firmware, digital interface, or data logging capability. This design prioritizes operational simplicity, electromagnetic compatibility (EMC), and regulatory transparency—eliminating software validation burdens associated with 21 CFR Part 11 compliance. Users are advised to integrate external NIST-traceable temperature sensors (e.g., PT100 probes with handheld readouts) for documented thermal profiling during method development or equipment qualification (IQ/OQ). Calibration records should include date, operator ID, reference standard ID, observed vs. setpoint deviation, and pass/fail determination against internal SOP tolerances—typically ±3 °C for non-critical drying steps and ±1 °C for gravimetric residue protocols.

Applications

• Pretreatment of solid environmental samples (soils, sediments) prior to acid digestion per EPA SW-846 Method 3050B
• Drying of quantitative filter papers after suspended solids (TSS) filtration in wastewater analysis
• Controlled evaporation of organic extracts in pesticide residue screening workflows (AOAC 2007.01)
• Pre-warming of HPLC vials and autosampler trays to minimize condensation-induced injection variability
• Thermal conditioning of polymer films and composite coupons before tensile or DMA testing (ASTM D638, D790)
• Support heating for open-vessel microwave-assisted digestion systems where auxiliary thermal stabilization is required

FAQ

Is the DB-1 suitable for use inside a fume hood?

Yes—the fully sealed stainless steel construction and absence of exposed wiring or ventilation grilles allow safe operation in ventilated enclosures. Ensure adequate clearance (≥5 cm) around all sides for convective cooling.
Can it be used for closed-vessel digestion?

No. The DB-1 is not rated for pressurized or sealed digestion applications. It is intended only for open-vessel heating, drying, or pre-conditioning tasks.
What maintenance is required?

Wipe the surface with ethanol or dilute nitric acid after each use; avoid abrasive pads. Inspect power cord integrity quarterly. No lubrication or recalibration is needed due to analog thermostat design.
Does it meet FDA or ISO 13485 requirements?

It is not a medical device nor intended for in vitro diagnostic use; therefore, it does not carry FDA 510(k) clearance or ISO 13485 certification. However, its construction and safety compliance align with ancillary equipment expectations in regulated biopharma QC environments.
Is custom sizing available?

Yes—CZGY offers OEM engineering support for non-standard dimensions, voltage configurations (e.g., 110 V / 60 Hz), and optional digital controller retrofits upon formal technical specification submission.
