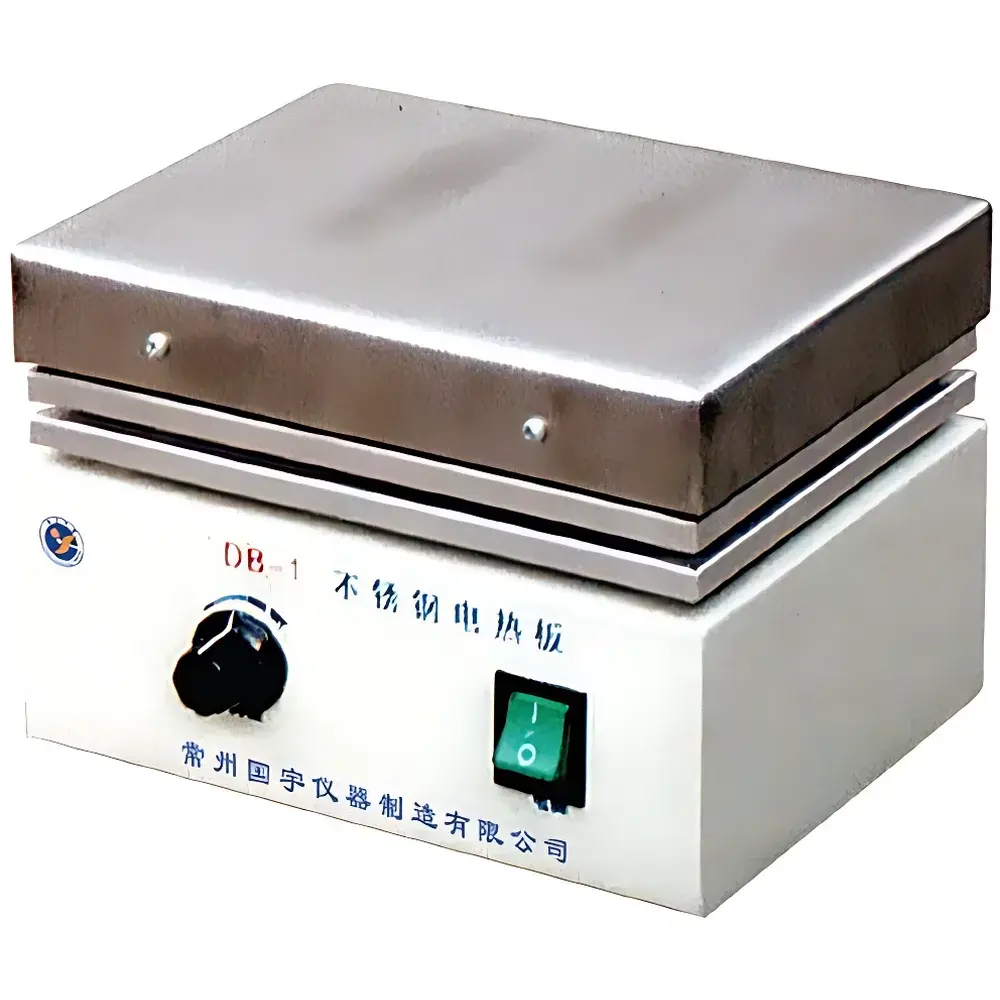

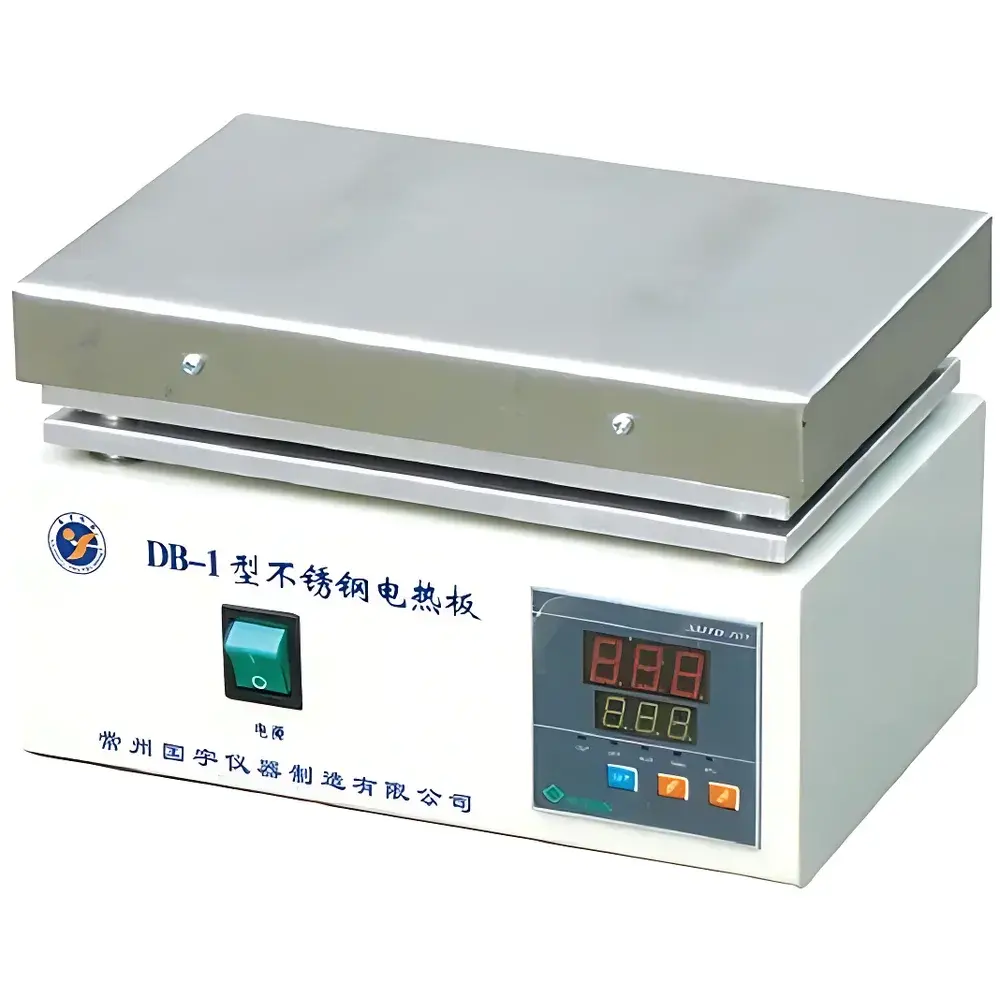

CZGY DB-1A Digital Stainless Steel Electric Heating Plate

Overview

The CZGY DB-1A Digital Stainless Steel Electric Heating Plate is a precision-engineered laboratory heating platform designed for consistent, controllable thermal treatment of samples during sample preparation, digestion, evaporation, drying, and pre-heating protocols. Utilizing resistive heating elements embedded beneath a seamless 304 stainless steel working surface, the DB-1A delivers uniform heat distribution across its 200 × 150 mm active zone—minimizing thermal gradients and ensuring reproducible results in routine analytical workflows. Its digital PID temperature controller enables stable setpoint maintenance within ±1 °C across the full 0–300 °C operating range, making it suitable for applications requiring defined thermal profiles without overshoot or drift. Unlike open-coil hotplates or ceramic variants, the solid stainless steel top provides superior chemical resistance against acids, alkalis, and organic solvents commonly encountered in wet digestion (e.g., HNO₃/HF/H₂O₂ mixtures) and environmental sample processing.

Key Features

• 304 stainless steel heating surface—non-porous, corrosion-resistant, easy to clean, and compliant with ISO 8573-1 cleanliness requirements for lab-grade surfaces
• Digital LED display with intuitive single-button SET/△/▽ interface for rapid temperature setting and real-time monitoring
• PID-based closed-loop temperature regulation ensures minimal steady-state error and fast thermal recovery after sample loading
• 500 W rated power output optimized for moderate thermal loads—ideal for beakers (50–500 mL), crucibles, Petri dishes, and digestion vessels
• Over-temperature protection circuitry (hardware-limited cut-off at 320 °C) integrated into control logic per IEC 60335-1 safety standards
• Low electromagnetic emissions design—meets IEC 61000-6-3 (Emission) and IEC 61000-6-2 (Immunity) for co-location with sensitive instrumentation

Sample Compatibility & Compliance

The DB-1A accommodates standard laboratory glassware and PTFE/Teflon-lined digestion vessels up to 150 mm in diameter. Its flat, rigid surface supports even contact for borosilicate glass, quartz, and ceramic containers used in EPA Method 3050B, ASTM D5175, and ISO 11466 soil digestion procedures. While not certified for Class I Div 1 hazardous locations, the unit conforms to general-purpose laboratory electrical safety guidelines under GB 4793.1–2019 (equivalent to IEC 61010-1:2010). It supports Good Laboratory Practice (GLP) documentation through manual log entry of setpoints and duration; optional RS232 output (available on DB-1A Pro variant) enables timestamped data export for 21 CFR Part 11–compliant audit trails.

Software & Data Management

The base DB-1A operates via standalone digital controls—no software installation required. However, its firmware architecture includes embedded calibration offset adjustment (SC parameter, ±50 °C range), enabling traceable sensor verification using NIST-traceable reference thermometers (e.g., Fluke 1523). For labs requiring automated recordkeeping, the optional DB-1A-DataLink module (sold separately) provides ASCII-formatted serial output at 9600 baud, compatible with LabArchives ELN, MATLAB data acquisition toolboxes, and custom Python scripts using PySerial. All calibration adjustments are non-volatile and retained after power cycling—supporting ISO/IEC 17025 clause 6.4.10 instrument verification requirements.

Applications

• Acid digestion of environmental matrices (soil, sediment, sludge) prior to ICP-OES or AAS analysis
• Drying of filter papers and gravimetric residues in wastewater compliance testing (e.g., EPA 160.1)
• Pre-concentration of aqueous extracts in pesticide residue analysis (AOAC 2007.01)
• Controlled evaporation of solvent layers during SPE cartridge conditioning
• Temperature staging in polymer solubility studies and pharmaceutical excipient drying (USP <1210>)
• Heating bath support for reflux condensers in organic synthesis teaching labs

FAQ

Can the DB-1A be used for open-vessel acid digestion with hydrofluoric acid?
Yes—the 304 stainless steel surface resists HF attack at concentrations ≤5% and temperatures ≤120 °C for short durations. For prolonged HF exposure, we recommend optional PTFE-coated inserts (accessory part #DB-PTFE-150).
Is the temperature sensor calibrated at the factory?
Each unit ships with a factory calibration certificate (traceable to CNAS-accredited lab), including as-found/as-left readings at 100 °C and 250 °C using a Fluke 1524 thermometer.
Does the DB-1A meet FDA requirements for pharmaceutical QC labs?
While not 21 CFR Part 11–validated out-of-the-box, its hardware design supports validation protocols—including IQ/OQ documentation templates available upon request for GMP environments.
What is the expected service life under continuous operation?
Rated for >10,000 hours MTBF when operated within 80% of max temperature (i.e., ≤240 °C) and maintained per Section 3 of the user manual (cleaning frequency, ventilation clearance ≥5 cm).
