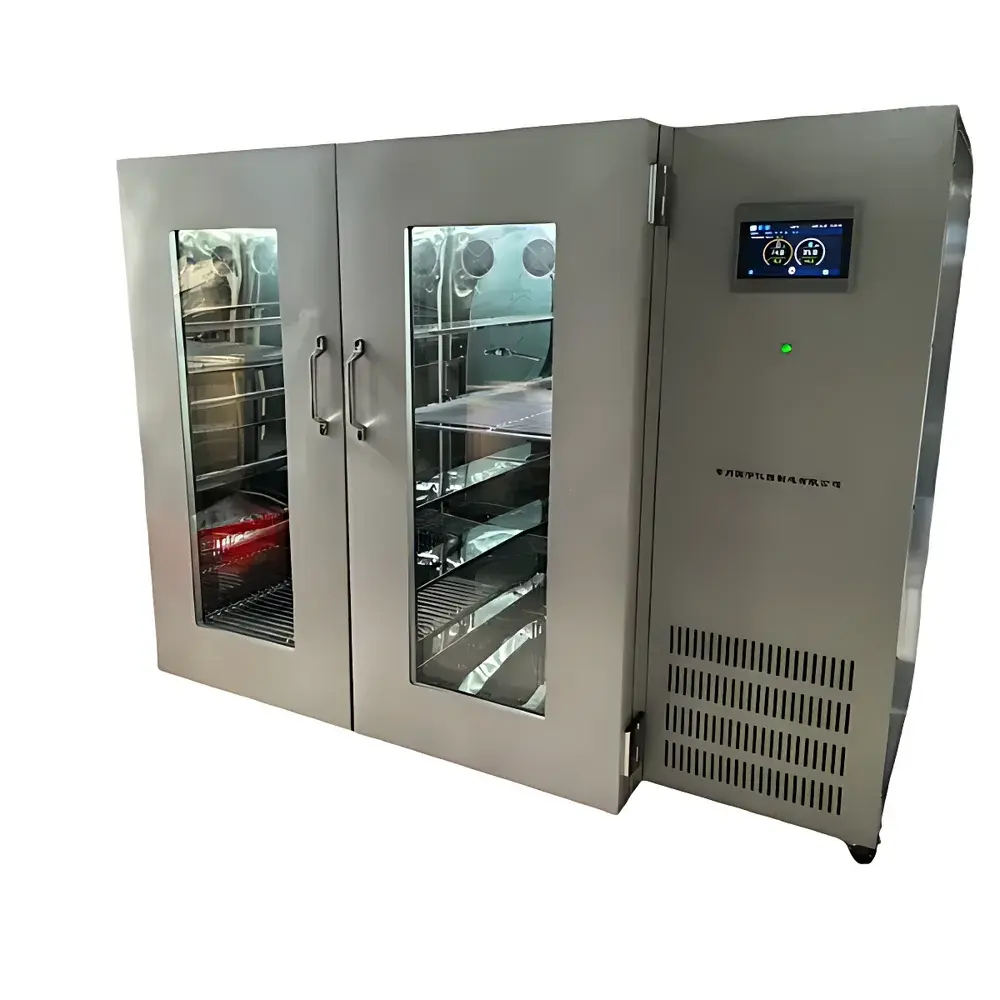

CZGY GY-1000YPZ Drug Stability Testing Chamber

Overview

The CZGY GY-1000YPZ Drug Stability Testing Chamber is a purpose-built environmental simulation system engineered to meet the stringent requirements of ICH Q1–Q5 guidelines and current Good Manufacturing Practice (cGMP) frameworks. It provides precise, long-term control of temperature and relative humidity—critical parameters for conducting ICH-compliant long-term stability studies (e.g., 25°C/60% RH) and accelerated testing protocols (e.g., 40°C/75% RH for 6 months). Unlike general-purpose climate chambers, the GY-1000YPZ employs a balanced heating–cooling–humidification–dehumidification architecture, eliminating thermal overshoot and minimizing chamber inertia. Its dual independent Danfoss compressor system—integrated with high-precision electronic expansion valves—ensures stable operation under continuous 24/7 duty cycles, essential for multi-month stability trials where data integrity cannot be compromised by system drift or downtime.

Key Features

• True 1000 L working volume with optimized air circulation design achieving ±2.0°C temperature uniformity across the entire chamber space, validated per ISO 14644-3 and ASTM E2875.
• Microprocessor-based control system featuring a 7-inch full-color resistive touchscreen interface supporting both fixed-setpoint and multi-segment programmable operation—up to 5 distinct programs, each configurable with 100 time–temperature–humidity segments.
• Integrated 15 L capacity humidifier with automatic water feed, level sensing, and dry-run prevention—eliminating manual refilling during unattended operation.
• Dual independent hermetic refrigeration units with automatic load-balancing and failover switching, ensuring uninterrupted operation even if one compressor requires maintenance.
• Robust chamber construction: exterior cold-rolled steel with epoxy–polyester powder coating; interior 304 stainless steel with electropolished mirror finish and seamless arc-welded corners; shelves made from 304 stainless steel with chromium plating for corrosion resistance in high-humidity environments.
• Comprehensive safety architecture including independent mechanical over-temperature limiter, power-failure memory retention, auto-resume functionality, and real-time alarm logging with event timestamps.

Sample Compatibility & Compliance

The GY-1000YPZ accommodates standard ICH-compliant sample configurations—including nested trays, stacked blister packs, vials on aluminum racks, and primary packaging in cartons—without airflow obstruction. Its chamber geometry and forced-air convection system comply with WHO TRS 992 Annex 7 and USP recommendations for uniform environmental exposure. All operational parameters—including temperature setpoints, humidity targets, run durations, and alarm thresholds—are fully traceable and auditable. The system supports 21 CFR Part 11–compliant data integrity practices when paired with optional external validation packages and electronic signature modules. Calibration certificates (NIST-traceable) are available for temperature (PT100 sensors) and humidity (capacitive hygrometers) sensors upon request.

Software & Data Management

Data acquisition is performed at user-selectable intervals (1–60 minute resolution) and stored locally on removable USB flash drives in CSV format—compatible with LIMS, ELN, and statistical analysis platforms such as JMP or Minitab. The embedded controller maintains an internal event log capturing all parameter changes, alarm triggers (e.g., door open, compressor fault, humidity deviation), and operator actions. Optional RS232/RS485 interfaces enable integration into centralized facility monitoring systems (FMS) using Modbus RTU protocol. For regulated environments, optional audit trail software add-ons provide immutable records of user logins, method edits, and data exports—fully aligned with ALCOA+ principles and EU Annex 11 requirements.

Applications

• ICH Q1A(R2) long-term and accelerated stability testing of active pharmaceutical ingredients (APIs) and finished dosage forms.
• Photostability pre-screening (when used with optional YPZ-series illumination modules).
• Excipient compatibility studies under controlled hygrothermal stress conditions.
• Package integrity evaluation—including moisture vapor transmission rate (MVTR) correlation studies.
• Method suitability verification for dissolution, assay, and impurity profiling under defined environmental aging.
• Supporting regulatory submissions to FDA, EMA, PMDA, and NMPA with documented chamber qualification (IQ/OQ/PQ) packages.

FAQ

Does the GY-1000YPZ comply with ICH Q1 guidelines for long-term stability testing?

Yes—the chamber maintains 25°C ±2°C and 60% RH ±5% RH continuously for ≥12 months, with documented performance qualification reports available.
Can humidity be controlled independently of temperature?

Yes—its balanced modulation system decouples humidity actuation from thermal cycling, enabling stable RH control across the full 0–65°C operating range.
Is the unit suitable for GMP-regulated environments?

It meets core infrastructure requirements for Annex 11 and 21 CFR Part 11 when deployed with validated procedures, access controls, and audit trail configuration.
What validation documentation is provided?

Factory acceptance test (FAT) report, sensor calibration certificates (NIST-traceable), and IQ/OQ templates are included; PQ support is available upon request.
How is temperature uniformity verified across the 1000 L chamber volume?

Using 9-point thermocouple mapping per ISO 14644-3, with spatial deviation confirmed within ±2.0°C at steady state.
