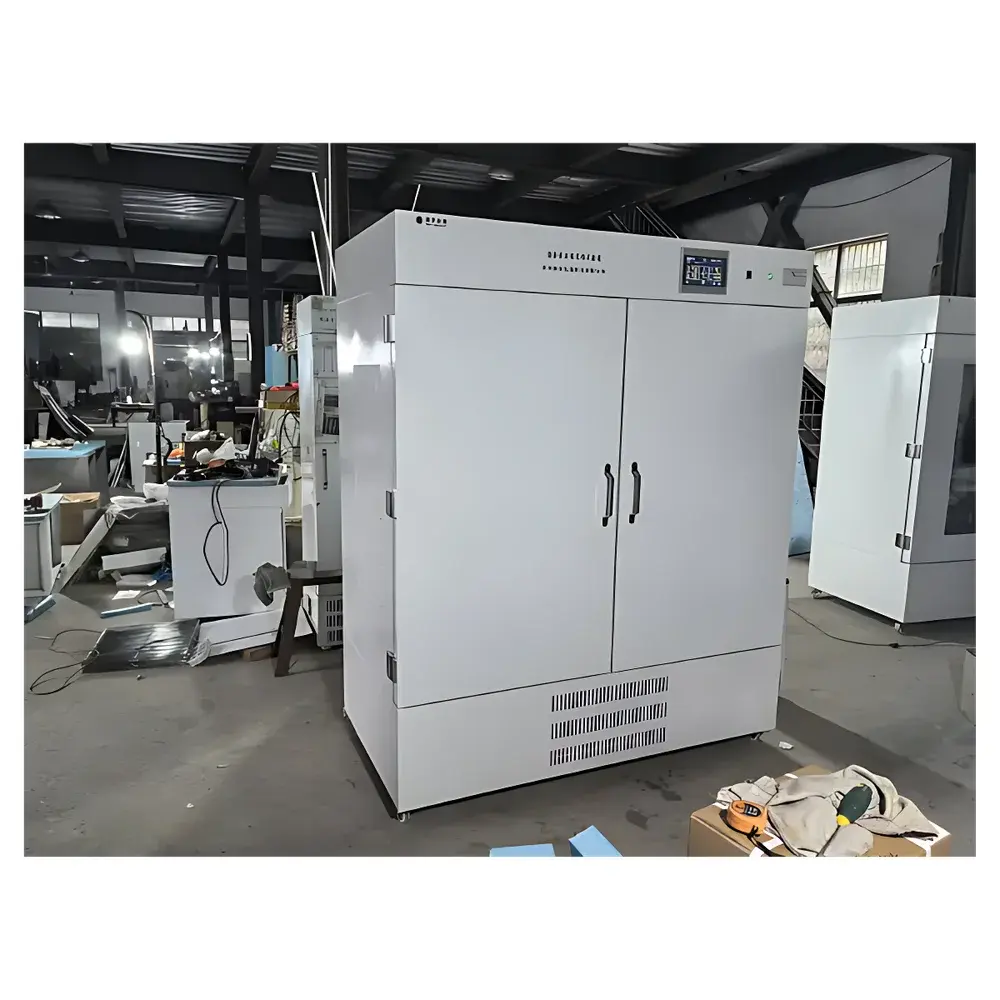

CZGY GY-1000YPZPLUS Comprehensive Drug Stability Testing Chamber

Overview

The CZGY GY-1000YPZPLUS Comprehensive Drug Stability Testing Chamber is an ICH-compliant environmental simulation system engineered for long-term stability studies of pharmaceutical products under controlled temperature, humidity, and photostability conditions. Designed in accordance with ICH Q1A(R2), Q1B, Q5C, and aligned with USP , ISO 14644-1, and FDA 21 CFR Part 11 requirements, this chamber enables accelerated and real-time stability testing per regulatory protocols for registration dossiers, shelf-life determination, and post-approval change management. Its dual-mode thermal architecture—combining Danfoss refrigeration with precision resistive heating—and balanced humidity control ensure minimal spatial gradients (<±0.5 °C temperature uniformity, ±5 %RH fluctuation) across the full working volume (1.07 m³ internal capacity). The integrated photostability subsystem meets ICH Q1B Option 1 (near-UV) and Option 2 (visible light) criteria through calibrated LED arrays and traceable dual-sensor feedback (illuminance + UV irradiance), delivering reproducible exposure dosing essential for photodegradation kinetics analysis.

Key Features

• Robust chamber construction: Cold-rolled steel outer casing with electrostatic powder coating; 304 stainless-steel interior chamber resistant to corrosion and cleaning agents used in GMP environments.

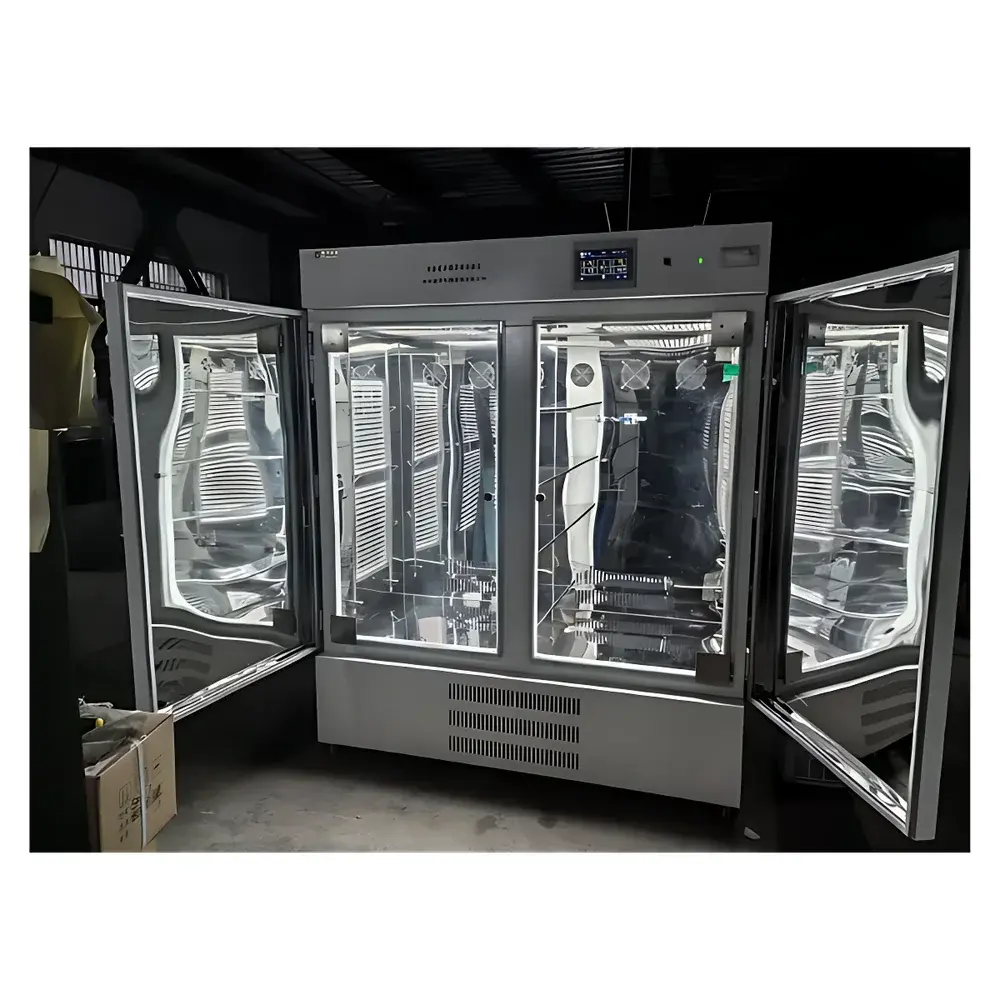

• Dual-door observation system: Outer insulated door and inner tempered glass door enabling non-intrusive visual monitoring without compromising environmental integrity.
• Advanced air management: Six independently driven circulation fans with optimized duct geometry ensure laminar airflow distribution and eliminate thermal stratification.
• Intelligent climate regulation: Balanced heating/cooling/humidification/dehumidification control using PT100 platinum resistance thermometers and anti-condensation capacitive humidity sensors for high repeatability.
• Pharmaceutical-grade lighting: Seven ICH-qualified LED panels providing uniform 4500 lx ±500 lx visible illumination and programmable near-UV output (≥200 W·hr/m²), monitored in real time by dual photometric and radiometric probes.
• Regulatory-ready software architecture: Three-level role-based access control (administrator, supervisor, operator), full electronic audit trail, and 21 CFR Part 11–compliant signature logging.
• Connectivity and data integrity: Wi-Fi-enabled remote supervision with configurable alarm escalation (email/SMS); USB data export; built-in thermal printer for immediate hard-copy reporting.

Sample Compatibility & Compliance

The GY-1000YPZPLUS accommodates a wide range of pharmaceutical dosage forms—including tablets, capsules, injectables (in vials or syringes), ointments, suspensions, and lyophilized powders—within its large-volume chamber. Its interior dimensions (1450 × 610 × 1180 mm) support standard ICH stability storage trays and allow for multi-tier shelving configurations without impeding airflow. All materials in contact with test samples conform to USP Class VI biocompatibility standards. The system supports ICH Q5C biologics storage conditions (2–8 °C, 15–25 °C, 30 °C/65 %RH) and photostability testing per Q1B Annexes. Full validation documentation (IQ/OQ/PQ templates), calibration certificates traceable to NIM (China National Institute of Metrology), and material compliance declarations are provided upon delivery.

Software & Data Management

The embedded 7-inch true-color touchscreen runs a deterministic real-time OS supporting both constant-value and multi-segment programmable operation (up to 5 programs × 100 segments × 999 hours/minutes per segment). All operational parameters—including setpoints, actual readings, alarm events, user actions, and sensor diagnostics—are timestamped and stored locally with automatic rollover. Data export via USB adheres to CSV and PDF formats compatible with LIMS integration. The audit trail captures user ID, timestamp, parameter changed, pre-change value, and post-change value—fully satisfying ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity principles. Optional cloud synchronization enables centralized fleet monitoring for multi-site pharmaceutical QA/QC laboratories.

Applications

• ICH Q1A(R2) long-term, intermediate, and accelerated stability studies for new drug applications (NDAs) and marketing authorization applications (MAAs).
• Photostability assessment per ICH Q1B to identify light-sensitive degradation pathways and inform packaging selection.
• Bracketing and matrixing study execution for multi-strength/multi-formulation product families.
• Real-time stability monitoring of commercial batches under GMP storage conditions.
• Forced degradation studies (thermal, oxidative, photolytic) supporting analytical method development and validation.
• Stability-indicating assay qualification and reference standard storage verification.

FAQ

Does the GY-1000YPZPLUS comply with 21 CFR Part 11 requirements?
Yes—the system implements role-based electronic signatures, immutable audit trails, and secure user authentication meeting all core technical and procedural controls specified in FDA 21 CFR Part 11.
Can the chamber perform simultaneous temperature, humidity, and light stress testing?
Yes—its integrated control logic coordinates all three environmental variables in real time, enabling concurrent ICH Q1A + Q1B protocols without manual intervention.
Is calibration documentation included with shipment?
Yes—factory calibration certificates for temperature, humidity, illuminance, and UV sensors are supplied, each traceable to national metrology standards.
What is the maximum allowable load volume without compromising performance?
The chamber maintains specified uniformity and stability with up to 70% volumetric loading (e.g., 12 standard stability trays), provided airflow paths remain unobstructed.
How is data integrity ensured during power interruption?
Configurable power-loss memory retains all active program states and sensor logs; auto-resume functionality restores operation at the exact point of interruption upon power recovery.
