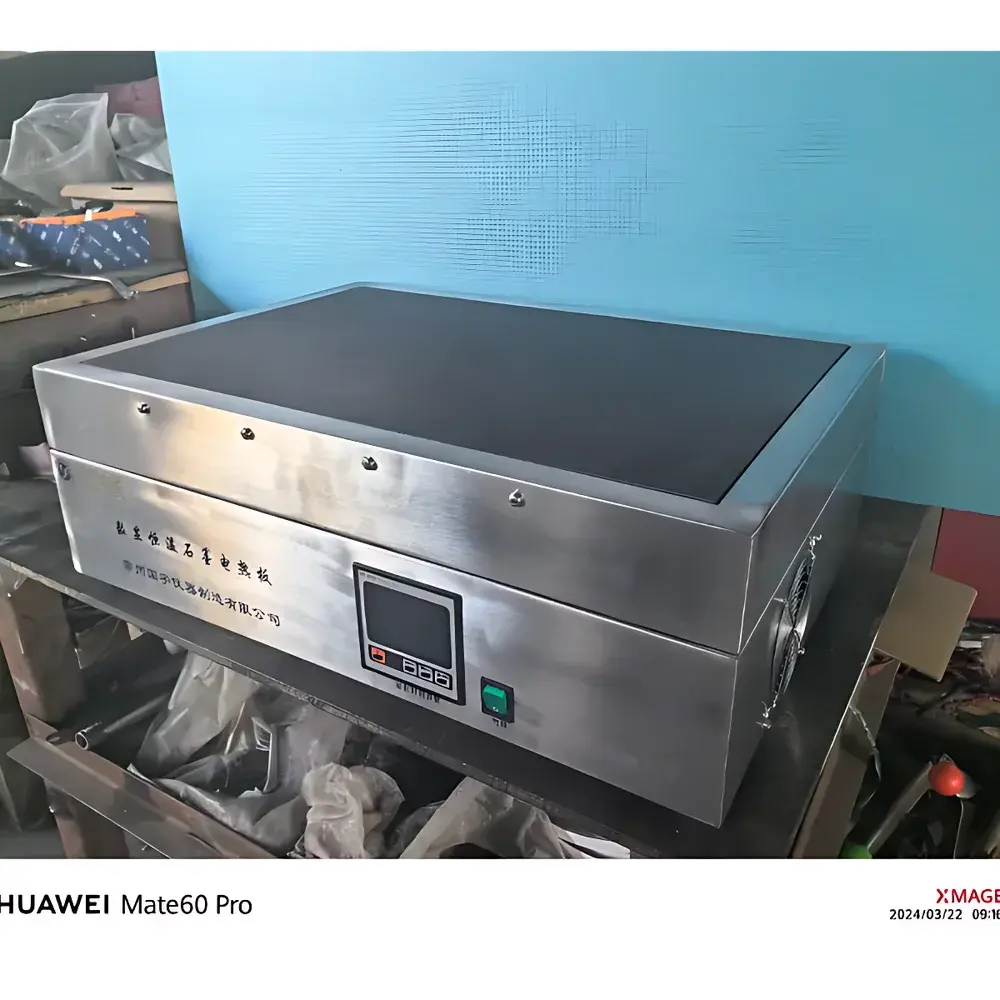

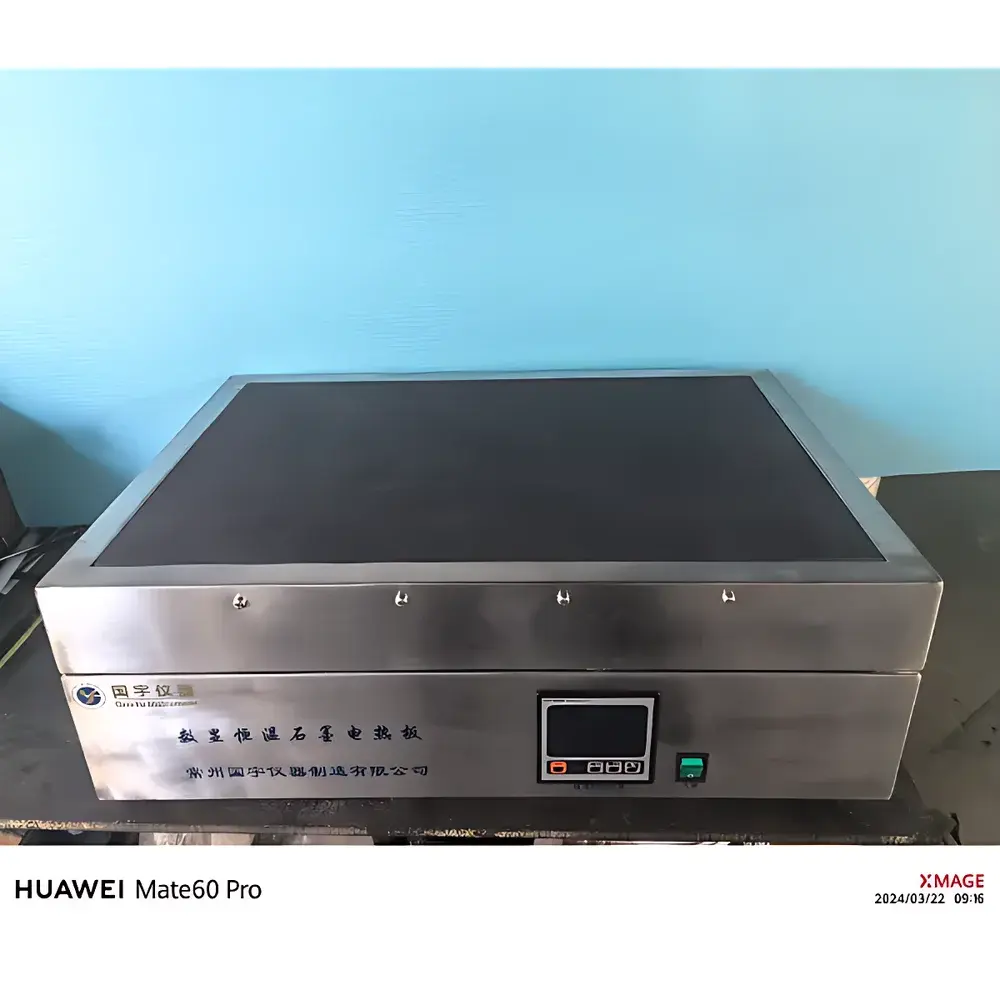

CZGY GY-DB6040D Digital Programmable Graphite Heating Block

Overview

The CZGY GY-DB6040D Digital Programmable Graphite Heating Block is a precision-engineered laboratory heating platform designed for controlled thermal treatment of samples during sample preparation workflows. Unlike conventional stainless-steel hotplates, this unit integrates a monolithic high-purity graphite heating surface—chemically inert, thermally stable, and highly resistant to corrosion from strong acids (e.g., HNO₃, HCl, HF, H₂SO₄) and alkalis commonly used in open-vessel digestion protocols. Its operation is based on resistive heating via embedded tubular elements, coupled with PID feedback control to maintain setpoint stability across the entire 600 × 400 mm active zone. The device is optimized for applications requiring prolonged exposure at elevated temperatures—including acid digestion, solvent evaporation, boiling point determination, and standardized wet-ashing procedures per EPA Method 3050B, ISO 11466, and GB/T 22105.2–2008.

Key Features

• High-stability graphite surface (30 mm thickness) ensuring uniform thermal mass distribution and minimizing edge cooling effects
• PID-controlled temperature regulation with ±1 °C uniformity across the full heating area and 1 °C resolution
• Embedded heating elements integrated within the graphite block—eliminating hot-spot formation and improving thermal efficiency
• Ceramic fiber (alumina-silica) insulation layer beneath the graphite plate, reducing heat loss and enhancing energy conservation
• Stainless steel 304 housing with rounded edges and non-porous finish for easy decontamination and compliance with GLP lab hygiene standards
• Large backlit LCD interface supporting real-time temperature display, timer countdown, and programmable ramp-hold profiles
• Extended timer range (0–9999 minutes) enabling unattended overnight digestion cycles without manual intervention
• Robust thermal management system including passive convection vents and internal thermal cutoffs aligned with IEC 61000-6-3 EMC immunity requirements

Sample Compatibility & Compliance

The GY-DB6040D accommodates standard digestion vessels—including 50 mL to 500 mL polypropylene (PP), PTFE, quartz, and borosilicate glass beakers—as well as custom-sized crucibles placed directly on the graphite surface. Its chemical resistance allows direct contact with concentrated mineral acids during EPA-compliant soil and sediment digestion workflows. The unit meets CE marking requirements for electrical safety (EN 61010-1) and electromagnetic compatibility (EN 61326-1). While not intrinsically rated for Class I Div 1 environments, it is suitable for use in ISO 17025-accredited laboratories conducting routine QA/QC testing in environmental, agricultural, and food safety labs. All operational parameters are fully loggable for audit readiness under FDA 21 CFR Part 11 when integrated with compliant data capture systems.

Software & Data Management

This model operates as a standalone instrument with no proprietary software dependency. Temperature and timer settings are stored in non-volatile memory and persist through power cycling. For laboratories requiring electronic recordkeeping, the unit supports optional RS-232 or USB-to-serial interface modules (sold separately), enabling integration with LIMS platforms or custom Python/Excel-based logging scripts. Timestamped event logs—including setpoint changes, timer starts/stops, and overtemperature alerts—can be exported for traceability in GLP/GMP environments. No cloud connectivity or remote access capabilities are included, preserving data sovereignty and aligning with institutional IT security policies.

Applications

• Open-vessel acid digestion of soils, sediments, sludge, and plant tissues prior to ICP-OES or AAS analysis
• Controlled evaporation of aqueous extracts in pesticide residue and heavy metal testing workflows
• Standardized boiling procedures for COD (Chemical Oxygen Demand) and BOD (Biochemical Oxygen Demand) sample conditioning
• Pre-concentration of trace analytes in water quality monitoring programs compliant with ISO 5667 series
• Thermal pretreatment of biological matrices in veterinary drug residue screening per EU Commission Decision 2002/657/EC
• Calibration verification of thermocouples and RTDs using fixed-point reference materials at defined plateau temperatures

FAQ

Is the graphite surface resistant to hydrofluoric acid (HF)?
Yes—the high-purity graphite used in the GY-DB6040D exhibits excellent resistance to HF up to 20% v/v at temperatures ≤150 °C; extended exposure above this threshold requires validation per ASTM D4293.

Can the unit be used under a fume hood?
Yes—it is routinely deployed inside Class II A2 and B2 fume hoods; ensure minimum clearance of 100 mm around all sides for adequate airflow and thermal dissipation.

Does it support multi-step temperature programming?
No—this model implements single-setpoint PID control only; multi-ramp profiles require external programmable controllers or third-party relay interfaces.

What maintenance is required for long-term accuracy?
Annual verification using NIST-traceable thermocouple probes at three spatial points (center, front-left, rear-right) is recommended; graphite surface cleaning should be performed with deionized water and lint-free wipes only—no abrasive agents.
