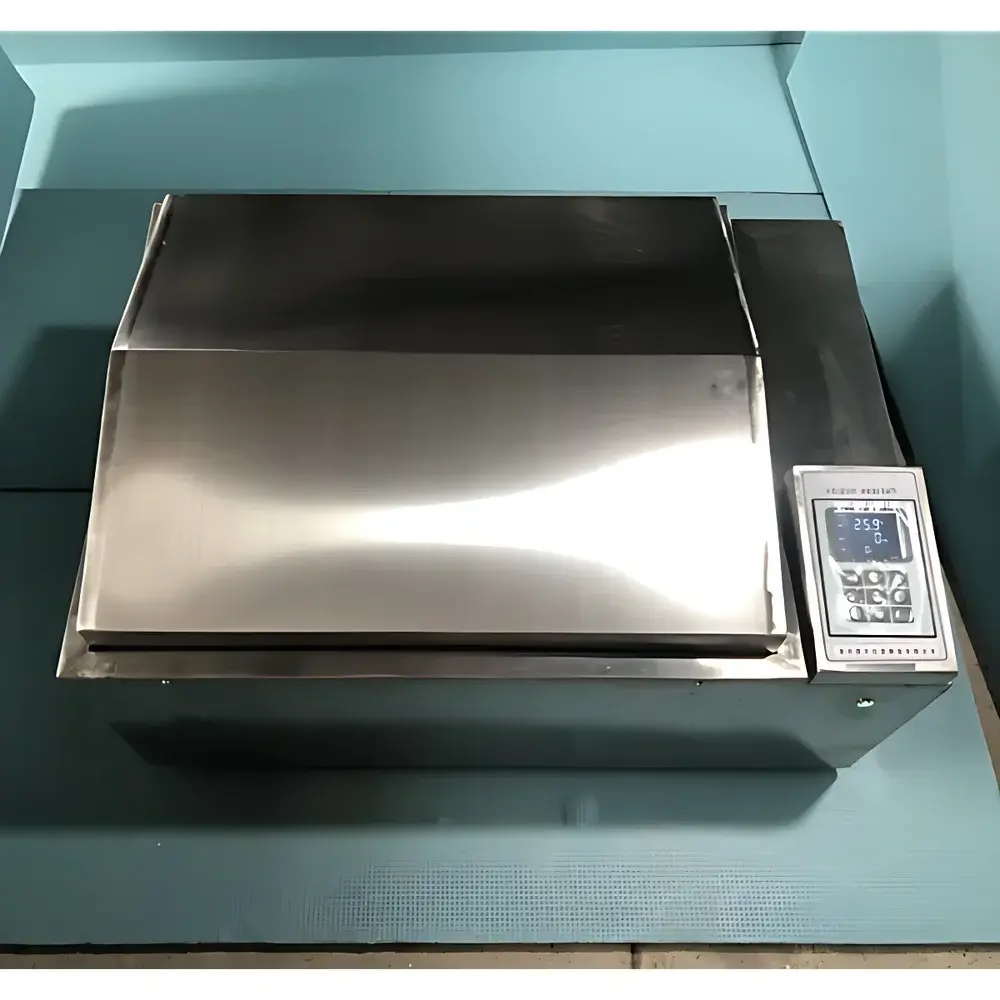

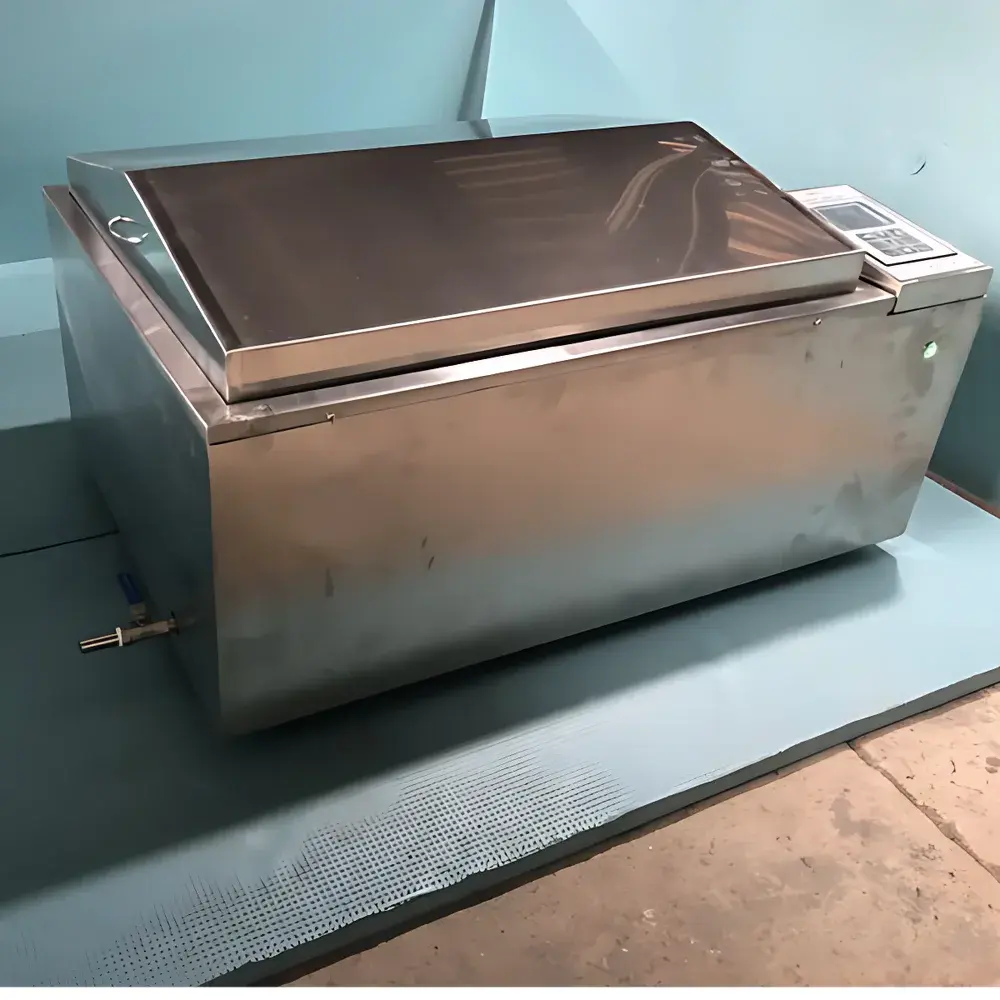

CZGY GYYC-S30 Water Bath Orbital Shaker

Overview

The CZGY GYYC-S30 Water Bath Orbital Shaker is an engineered platform for precise temperature-controlled agitation of liquid samples in life science, pharmaceutical, and biotechnology laboratories. It operates on a reciprocating orbital motion mechanism—distinct from rotary or linear shaking—enabling uniform thermal distribution across the water bath while maintaining consistent mechanical energy transfer to vessels. The unit integrates a high-stability servo motor drive system coupled with a crankshaft-dual linkage-four roller transmission architecture, delivering low-vibration, high-reproducibility oscillation at frequencies ranging from 10 to 300 rpm. Its stainless steel (304) water bath chamber ensures corrosion resistance, long-term integrity under repeated thermal cycling, and compliance with laboratory hygiene standards. With a temperature control range spanning ambient +5°C to 100°C and a resolution of 0.1°C, the GYYC-S30 supports applications requiring strict thermal regulation—including enzyme kinetics, cell culture maintenance, solubility studies, and immunoassay incubation.

Key Features

• Reciprocating orbital motion design enhances water convection and minimizes thermal stratification, achieving ±0.1°C temperature uniformity across the bath volume.
• Servo motor-driven actuation provides silent operation, zero-maintenance performance, and stable torque output over extended duty cycles—critical for overnight or multi-day experiments.
• Integrated PID temperature controller with LCD interface enables intuitive setting of both temperature setpoints and oscillation parameters; supports fixed-value mode, timed operation, auto-stop, and instant start/stop functions.
• Dual-sensor feedback loop: PT100 platinum resistance thermometer for high-accuracy thermal monitoring and Hall-effect speed sensor for real-time rotational verification.
• Comprehensive safety architecture includes over-temperature alarm, stall protection during motor overload, and power-failure memory that restores prior settings after unexpected shutdowns.
• Front-accessible, powder-coated cold-rolled steel housing with 304 stainless steel interior facilitates cleaning, resists chemical exposure, and meets general lab equipment durability requirements.

Sample Compatibility & Compliance

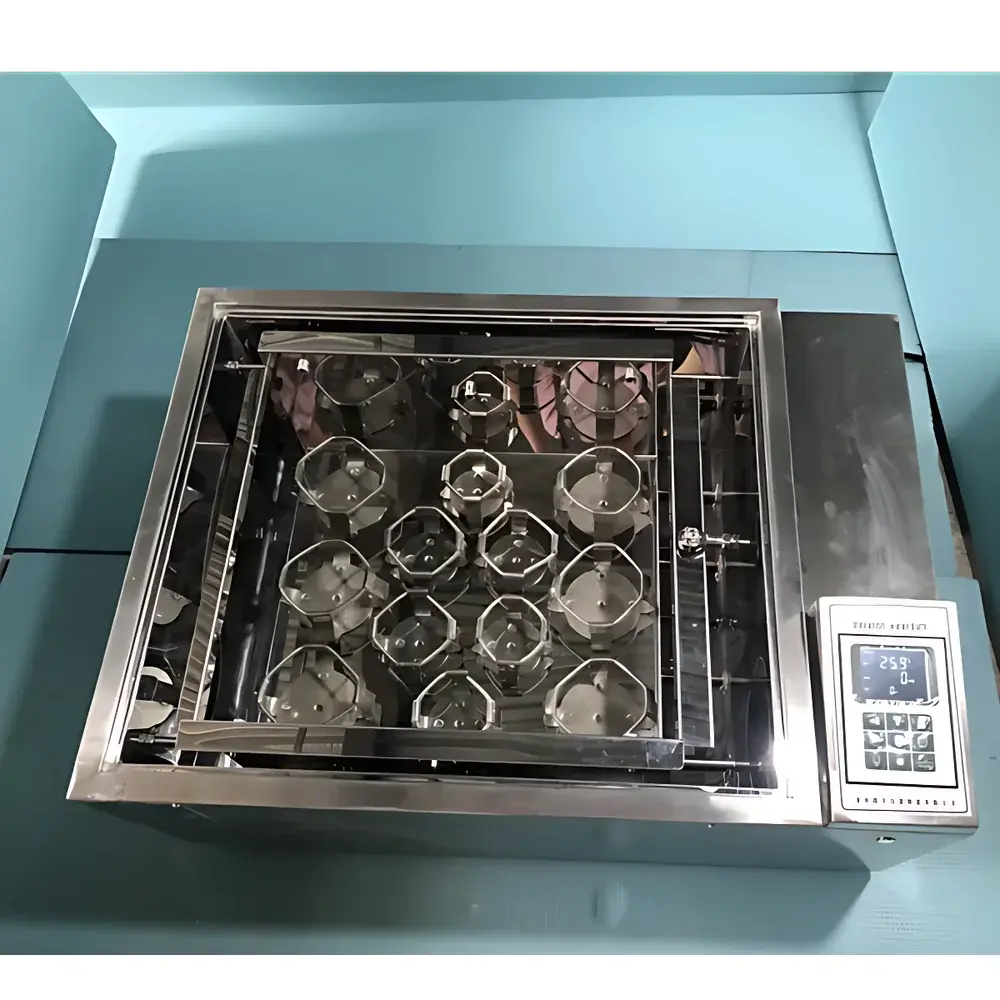

The GYYC-S30 accommodates standard laboratory glassware and plastic vessels up to 1000 mL capacity (four units per run), secured via universal spring clamps—custom fixture configurations are available upon request. Its 31 L chamber volume and 400 × 310 mm platform support multi-vessel parallel processing without compromising thermal homogeneity. All materials in direct contact with water or samples comply with ISO 8573-1 (compressed air purity) and USP Class VI biocompatibility guidelines for non-invasive lab equipment. While not certified for GMP manufacturing environments, the instrument’s PID-based control logic, calibrated sensor suite, and audit-ready operational logs (via optional RS232/USB data export) align with GLP documentation practices for preclinical research and QC testing workflows.

Software & Data Management

The GYYC-S30 operates as a standalone benchtop device with no embedded operating system or cloud connectivity. However, its 9-key tactile interface and dual-channel LCD display provide real-time visualization of current temperature, target temperature, oscillation speed, elapsed time, and remaining timer duration. Optional analog/digital output ports (RS232 or USB-to-serial adapter) allow integration with third-party data acquisition systems for time-stamped logging of temperature and speed profiles. When used in regulated environments, users may configure external software (e.g., LabVIEW, MATLAB, or custom Python scripts) to record and archive operational parameters—supporting traceability requirements under FDA 21 CFR Part 11 when paired with appropriate electronic signature and audit trail protocols.

Applications

• Temperature-sensitive biochemical reactions requiring simultaneous heating and gentle mixing—such as protein denaturation studies, antigen-antibody binding assays, and DNA hybridization protocols.
• Maintenance of microbial cultures (e.g., E. coli, yeast) under controlled thermal and agitation conditions for growth curve analysis and metabolite production optimization.
• Extraction efficiency enhancement in solid-liquid sample preparation workflows—including plant tissue maceration, soil leaching, and environmental pollutant recovery.
• Calibration and validation of analytical instruments where reference standards must be equilibrated at defined temperatures prior to measurement (e.g., UV-Vis spectrophotometry, HPLC autosampler vial conditioning).
• Educational laboratory use for teaching thermodynamics, fluid dynamics, and biosystem engineering principles through observable heat transfer and mass transport phenomena.

FAQ

What is the maximum load capacity of the shaking platform?
The platform supports up to 15 kg distributed evenly across its 400 × 310 mm surface.
Does the unit support programmable ramping of temperature or speed?
No—the GYYC-S30 implements stepwise setpoint control only; it does not offer gradient or profile-based programming.
Is the water bath compatible with corrosive or organic solvents?
The 304 stainless steel chamber is resistant to aqueous solutions and mild acids/bases; however, prolonged exposure to halogenated or strong oxidizing solvents is not recommended.
Can the timer be configured in both minutes and hours?
Yes—users may select either minute or hour units during timer setup, with a maximum span of 9999 in the chosen unit.
What type of maintenance is required for long-term reliability?
Routine cleaning of the water bath and inspection of clamp integrity are advised; the servo motor requires no lubrication or scheduled servicing under normal operating conditions.
