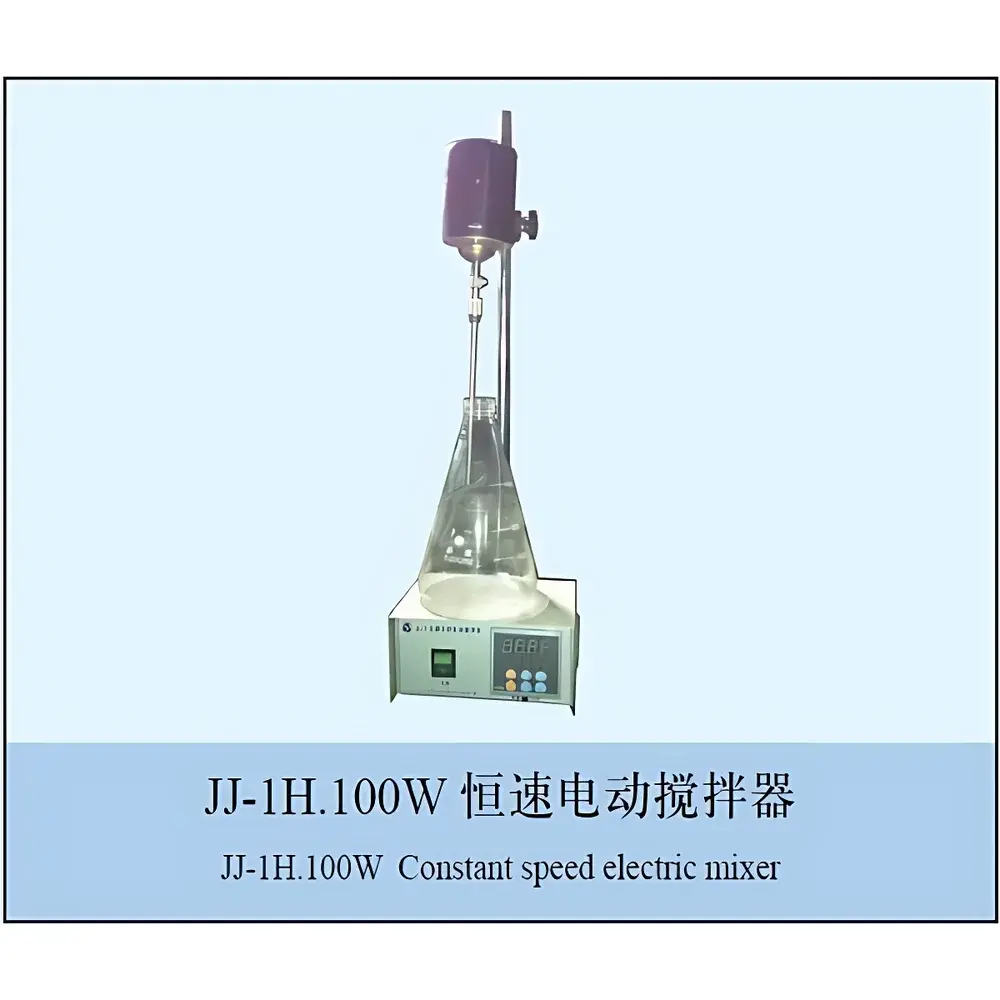

CZGY JJ-1H Constant-Speed Electric Stirrer

Overview

The CZGY JJ-1H Constant-Speed Electric Stirrer is an engineered laboratory mixing solution designed for reproducible, low-vibration agitation across a broad range of viscous and low-viscosity liquid samples. Utilizing a brushed DC motor paired with a proprietary torque-boost speed control circuit, the JJ-1H delivers stable rotational output even at low speeds (down to 200 rpm), where conventional AC motors typically exhibit torque drop and instability. Its constant-speed architecture—implemented via closed-loop electronic feedback—ensures minimal speed drift (<±1 rpm) under variable load conditions, making it suitable for applications requiring precise kinetic control, such as dissolution testing, buffer preparation, reagent homogenization, and pre-analytical sample conditioning. Unlike basic on/off stirrers, the JJ-1H integrates digital speed setting, real-time display, and programmable timing—features aligned with GLP-compliant laboratory workflows where operational traceability and repeatability are essential.

Key Features

• Digital constant-speed control with ±1 rpm accuracy across full 200–3000 rpm range
• Seven interchangeable motor power options (40 W to 300 W) to match viscosity, volume (up to 20 L), and impeller load requirements
• Torque-optimized brushed DC motor with enhanced low-speed performance—no cogging or stalling below 500 rpm
• Programmable electronic timer (0–9999 minutes) with independent start/stop logic; time entry disabled during active operation to prevent unintended reset
• Ergonomic vertical column design with dual-axis adjustment (vertical height + horizontal reach), secured via knurled locking screws for repeatable probe positioning
• Integrated LED status indicators and intuitive keypad interface (↑/↓ for parameter adjustment, RUN/STOP for operation control)
• Compliance-ready construction: non-corrosive anodized aluminum support frame, chemically resistant polymer housing, and isolated motor compartment to prevent liquid ingress

Sample Compatibility & Compliance

The JJ-1H accommodates standard laboratory glassware including beakers (50 mL–5000 mL), graduated cylinders, Erlenmeyer flasks, and custom reaction vessels up to 20 L capacity. Compatible with stainless steel, PTFE-coated, and glass stirring rods (diameter ≤10 mm). The unit operates without heating or cooling functionality and is intended solely for mechanical agitation. It meets general electrical safety requirements per IEC 61010-1 for laboratory equipment and is constructed to support ISO/IEC 17025-aligned quality systems. While not intrinsically rated for hazardous environments, its sealed electronics and drip-resistant layout facilitate use in standard chemical laboratories adhering to OSHA and CLSI guidelines. No regulatory certification (e.g., CE, UL) is claimed unless explicitly supplied with region-specific compliance documentation.

Software & Data Management

The JJ-1H operates as a standalone instrument with no embedded firmware connectivity (e.g., USB, Bluetooth, or Ethernet). All operational parameters—including set speed, elapsed time, and total run duration—are displayed locally on a 4-digit LED screen. No data logging, export, or remote monitoring capability is provided. However, the device supports audit-trail–compatible usage when integrated into documented SOPs: operators record speed, duration, and vessel configuration manually in lab notebooks or LIMS entries. For laboratories subject to FDA 21 CFR Part 11, the JJ-1H may be used in conjunction with validated procedural controls—such as mandatory dual-operator verification of settings prior to RUN activation—to fulfill electronic record integrity requirements.

Applications

• Preparation of homogeneous aqueous and organic solutions for titration, spectrophotometry, and chromatography sample introduction
• Stirring of cell culture media, buffers, and agarose gels under non-thermal conditions
• Dispersion of nanoparticles, pigments, and suspensions where shear-sensitive aggregation must be avoided
• Supporting ASTM D1209 (color measurement), USP (dissolution apparatus qualification), and ISO 8573-1 (compressed air particulate sampling preparation)
• QC/QA workflows requiring fixed-duration agitation cycles—for example, pH electrode calibration solution equilibration or standard reference material reconstitution

FAQ

Does the JJ-1H include temperature control?
No. This model provides only mechanical stirring and does not incorporate heating or cooling elements.
Can the timer be adjusted while the motor is running?
No. Timer values can only be set before initiating operation; input is locked during active rotation to prevent accidental modification.
What is the maximum recommended viscosity for reliable operation at 200 rpm?
For continuous duty at minimum speed, use with liquids up to 5,000 mPa·s (e.g., 1% carboxymethyl cellulose solution); higher viscosities require ≥400 rpm or upgraded motor variants (160 W and above).
Is the unit compatible with corrosive solvents such as concentrated acids or halogenated organics?
The motor housing and control panel are not chemically rated for direct exposure; users must ensure splash protection and proper ventilation per SDS guidelines.
What maintenance is required to sustain ±1 rpm speed accuracy over time?
Annual inspection of carbon brushes and recalibration of the speed feedback circuit using a certified tachometer is recommended for long-term metrological consistency.
