Dansensor CheckMate 4 SV Headspace Gas Analyzer

Overview

The Dansensor® CheckMate 4 SV Headspace Gas Analyzer is a benchtop analytical instrument engineered for high-precision, non-destructive headspace gas analysis in regulated packaging environments—particularly pharmaceutical primary packaging, sterile medical device pouches, coffee capsules, blister packs, and modified atmosphere packaging (MAP) for sensitive biologics and diagnostics. Unlike traditional extractive sampling systems requiring gas withdrawal and external conditioning, the CheckMate 4 SV employs dual optical sensor configurations—fluorescence-based oxygen detection (O₂ Sensor A and B)—that enable direct, in-situ measurement inside sealed containers without compromising package integrity. This principle leverages oxygen-quenched luminescence of immobilized ruthenium complexes, where emitted light intensity and lifetime are inversely proportional to partial pressure of O₂. For CO₂ quantification, the system integrates a temperature-compensated dual-beam infrared (IR) detector operating at 4.26 µm, minimizing cross-sensitivity to water vapor and hydrocarbons. The zirconia and electrochemical O₂ sensor variants remain available for legacy or specific application validation requirements, though the optical platform is specified as standard for the SV variant due to its zero-consumable operation, immunity to CO/ethanol interference, and absence of drift over extended calibration intervals.

Key Features

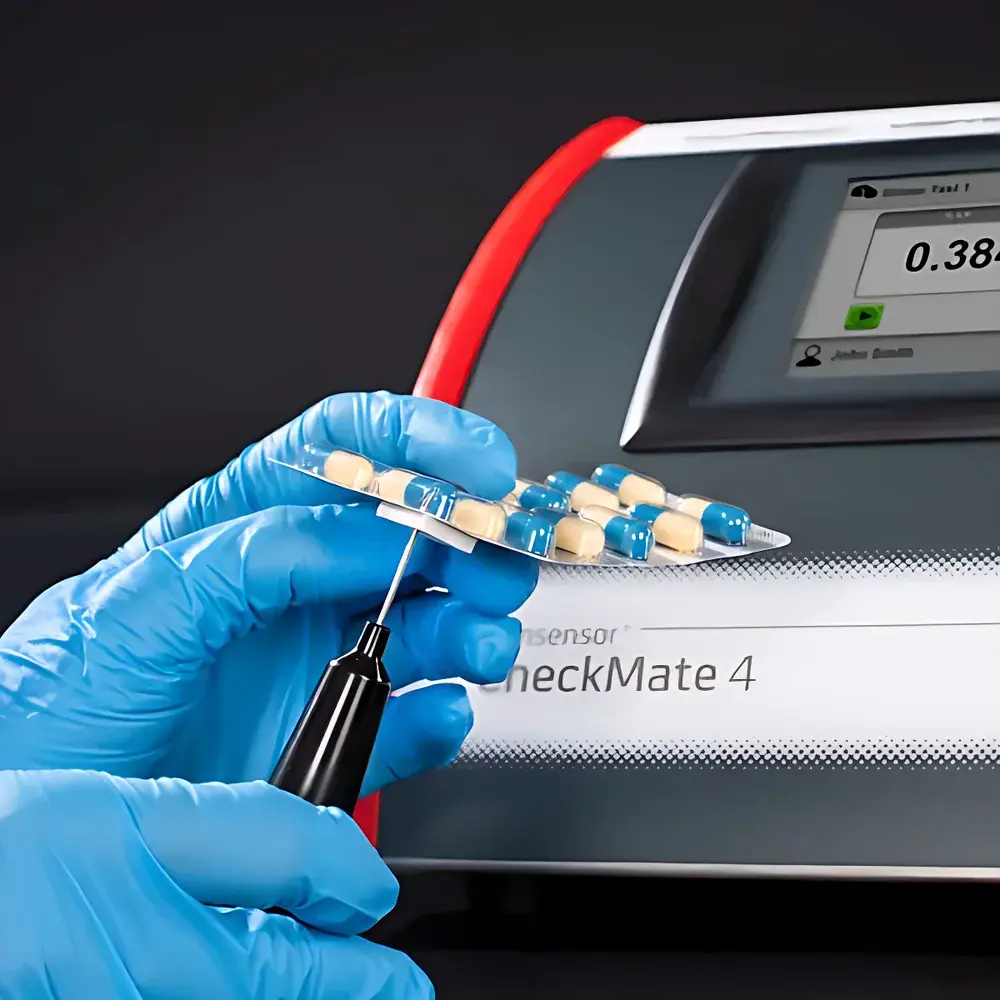

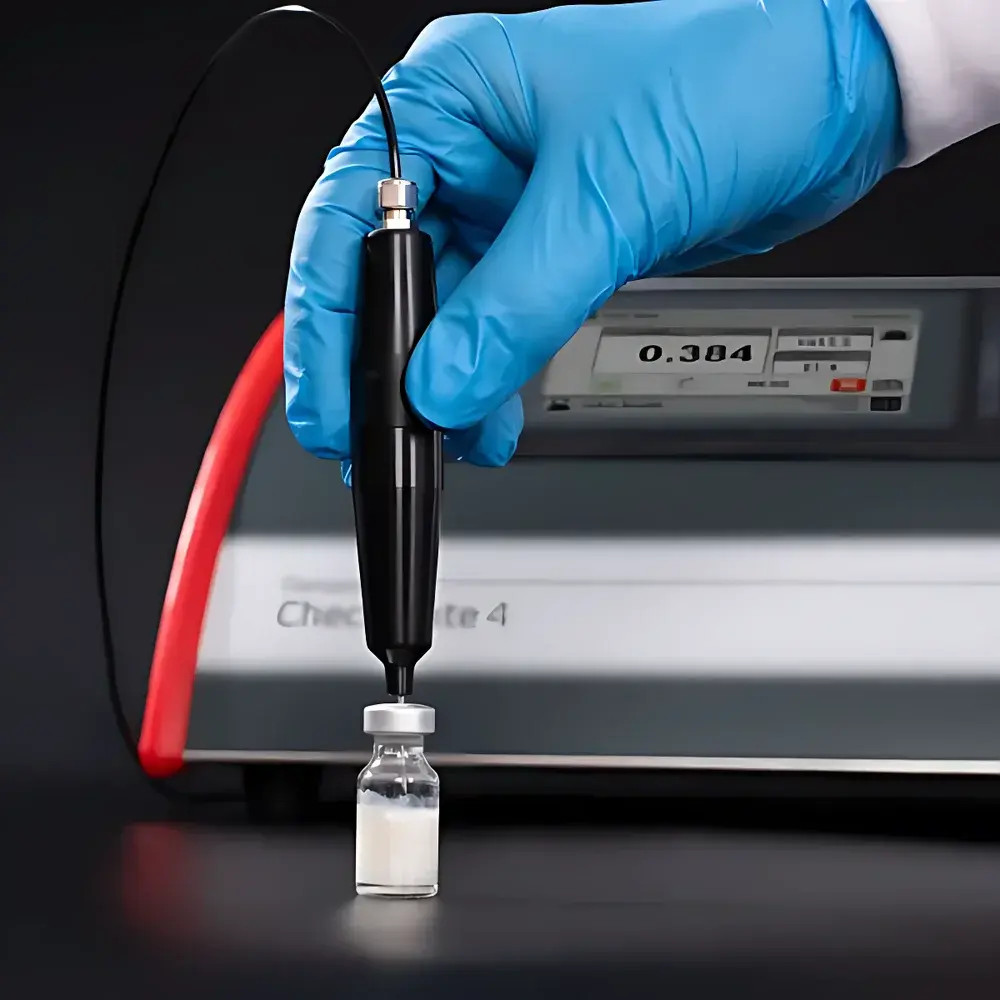

• Optical fluorescence O₂ sensing with surgical-grade micro-probe (Sensor A) or shallow-penetration needle probe (Sensor B), enabling accurate headspace analysis in vials, syringes, pre-filled pens, and shallow blister cavities without risk of puncture or contamination
• Modular sensor architecture: field-replaceable optical sensor cartridges with embedded calibration certificates; full module swap completed in under 90 seconds without tools or recalibration
• Capacitive multi-touch interface supporting 10 languages (English, German, French, Spanish, Italian, Portuguese, Polish, Chinese, Japanese, Korean), reducing operator training time and minimizing input errors
• User-level access control with individual login credentials, role-based permissions, and encrypted local database ensuring data integrity and compliance with ALCOA+ principles
• Real-time data logging with automatic timestamping, operator ID, method ID, and environmental metadata (ambient T/P); exportable in CSV, PDF, or XML formats compatible with LIMS integration
• Integrated flow monitoring with visual and audible alarms for abnormal sampling pressure or leak detection during needle-based assays
• Energy-efficient design featuring adaptive sleep mode and USB-C charging port rated for industrial-grade durability and IP54-rated enclosure

Sample Compatibility & Compliance

The CheckMate 4 SV accommodates rigid and semi-rigid packaging across diverse geometries—including glass vials (2–50 mL), plastic ampoules, aluminum-coated sachets, thermoformed blisters (depth ≥1.5 mm), and aluminum-plastic cold-form foil packs. Its optical probe configuration eliminates dependence on headspace volume, making it uniquely suitable for ultra-low-volume headspaces (<0.1 mL) common in lyophilized drug products. The instrument meets functional requirements of ISO 8573-1:2010 (compressed air purity), ASTM F2714-18 (standard test method for O₂ and CO₂ in pharmaceutical packaging), and USP “Packaging Integrity Evaluation – Sterile Products.” When paired with Dansensor Insight™ software, the system supports 21 CFR Part 11-compliant electronic records—including audit trails, electronic signatures, and immutable data archiving—fulfilling GMP/GLP documentation mandates for QC laboratories undergoing regulatory inspection.

Software & Data Management

Onboard firmware provides real-time pass/fail decision logic based on user-defined specification limits, with immediate visual feedback via color-coded status indicators. All measurements are stored locally with cryptographic hashing to prevent tampering. Optional Dansensor Insight™ PC software enables centralized management of up to 32 instruments across multiple production lines, offering trend analysis, SPC charting (X̄/R, Cpk), deviation alerts, and automated report generation for internal audits or regulatory submissions. Raw data files include embedded calibration history, sensor health metrics (e.g., signal-to-noise ratio, baseline stability), and environmental compensation logs—ensuring full traceability from measurement to certificate of analysis.

Applications

• Pharmaceutical: Residual O₂ quantification in lyophilized vials, prefilled syringes, and combination products per ICH Q5C stability protocols
• Biologics & Vaccines: Headspace CO₂ monitoring in cold-chain transport packaging to verify CO₂ buffering capacity
• Medical Devices: Seal integrity verification of sterilized peel-packs using O₂ ingress rate modeling
• Diagnostic Kits: O₂ exposure assessment in enzyme- or antibody-sensitive lateral flow devices
• Specialty Food: MAP validation for coffee capsules and ready-to-eat meals where O₂ < 0.05% is critical for shelf-life extension

FAQ

Does the CheckMate 4 SV require gas calibration standards for daily use?

No—optical O₂ sensors are factory-calibrated with NIST-traceable reference gases and do not require daily span checks. A single annual verification using certified zero (N₂) and span (air or custom mix) gases satisfies ISO/IEC 17025 metrological requirements.

Can the instrument validate both O₂ and CO₂ simultaneously in one measurement cycle?

Yes—the dual-sensor configuration (optical O₂ + IR CO₂) performs concurrent, independent measurements with synchronized timestamping and co-located sampling geometry.

Is the optical probe compatible with gamma-irradiated packaging materials?

Yes—fluorescent sensor chemistry and fused silica probe tips are radiation-stable up to 50 kGy, maintaining performance post-sterilization without recalibration.

How is data security enforced during remote software updates?

Firmware updates are digitally signed by MOCON and validated via embedded public-key cryptography prior to installation; no unsigned code execution is permitted.

What maintenance intervals are recommended for the integrated sampling pump?

The brushless DC pump requires no scheduled maintenance; lifetime exceeds 20,000 operating hours under typical QC lab duty cycles (≤50 tests/day).
