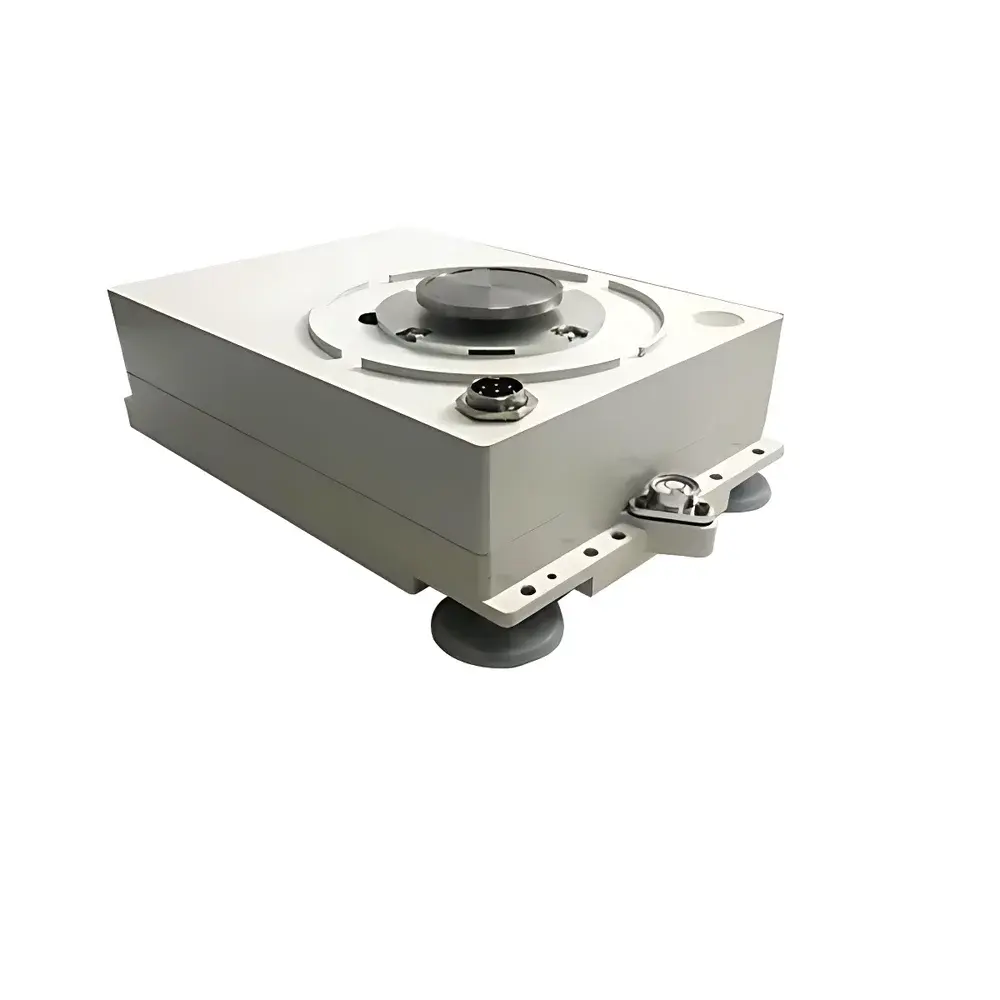

Dante ES-LMZ Series Coal Quality Analysis Balance

Overview

The Dante ES-LMZ Series Coal Quality Analysis Balance is an industrial-grade precision laboratory balance engineered specifically for coal testing laboratories, quality control departments, and automated coal sample preparation systems. Designed in accordance with the operational and environmental demands of ASTM D3172, ISO 11722, and GB/T 211–2017 (Chinese standard for coal moisture determination), this balance integrates a proprietary monolithic super-cell sensor architecture to deliver high-speed, high-stability mass measurement under variable thermal and mechanical conditions typical in coal handling facilities. Unlike general-purpose analytical balances, the ES-LMZ series features reinforced environmental resilience—including IP54-rated dust and moisture resistance, corrosion-resistant housing materials, and 360° mechanical overloading protection—ensuring long-term metrological integrity in high-particulate, high-humidity, or mildly corrosive atmospheres common in power plants, coking labs, and coal trading QA/QC centers. Its core function is to support gravimetric procedures critical to proximate analysis (moisture, ash, volatile matter), calorific value calibration, and sulfur content reference sample preparation.

Key Features

• Monolithic super-cell sensor technology: Delivers exceptional linearity, low temperature drift (5 ppm/K), and rapid stabilization (≤2.5 s), minimizing thermal hysteresis effects during sequential coal sample weighing.
• isoCAL fully automatic internal calibration: Triggered by time intervals or ambient temperature shifts (±1 °C), ensuring traceable accuracy without manual intervention—compliant with GLP audit requirements for calibration documentation.
• Four-level anti-vibration design: Dynamically configurable damping profiles allow adaptation to floor-mounted, benchtop, or integrated conveyor-based installation environments, maintaining repeatability even on non-isolated surfaces.
• Modular weighing platform: Standard Φ48 mm pan; optional custom pans (e.g., ceramic, stainless steel with raised rims) available for crucible or ash-dish compatibility.
• Robust enclosure: Sealed housing meets IP54 ingress protection; resistant to coal dust accumulation, sulfur dioxide traces, and condensation—extending sensor service life and reducing maintenance frequency.
• Dual-interface digital output: RS232 and RS485 ports support direct integration into LIMS, PLC-controlled sample handling robots, or automated coal pulverizing and drying stations using MODBUS-RTU or proprietary DAT protocols.

Sample Compatibility & Compliance

The ES-LMZ series accommodates standard coal test containers—including porcelain crucibles (15–30 mL), aluminum moisture dishes (Φ40 mm), and ash pans—without requiring recalibration. All models comply with OIML R76-1 (2021) for Class I and II balances, and meet the repeatability and linearity tolerances specified in USP for analytical weighing applications where measurement uncertainty must remain below 0.1% of nominal load. For regulatory submissions (e.g., EPA Method 19, ISO 1928), the balance supports 21 CFR Part 11-compliant electronic records when paired with validated Dante BalanceLink software (optional). Calibration certificates are issued with NIST-traceable references and include as-found/as-left data per ISO/IEC 17025 requirements.

Software & Data Management

The ES-LMZ communicates via ASCII-based DAT232/DAT485 protocols, enabling seamless parsing of weight data, timestamp, stability status, and calibration logs into third-party laboratory information management systems (LIMS) or custom SCADA platforms. Optional Dante BalanceLink software provides real-time statistical process control (SPC) dashboards, automatic GUM-compliant uncertainty calculation per EURACHEM/CITAC Guide, and audit-trail generation for calibration events, user logins, and configuration changes—fully aligned with FDA 21 CFR Part 11 and EU Annex 11 validation expectations. Raw data export supports CSV, TXT, and XML formats with embedded metadata (operator ID, method ID, environmental readings).

Applications

• Gravimetric moisture determination (ASTM D3173, ISO 589)
• Ash content analysis via muffle furnace residue weighing (ASTM D3174, ISO 1171)
• Volatile matter quantification with pre- and post-heating mass differential tracking
• Calorimeter standardization using benzoic acid reference material weighing
• Automated coal sample division and sub-sampling system integration
• QA/QC batch release testing in coal blending facilities and port laboratories

FAQ

Is the ES-LMZ series compliant with ISO/IEC 17025 for accredited testing laboratories?
Yes—when used with documented calibration procedures, environmental monitoring, and validated software interfaces, the ES-LMZ satisfies clause 6.4.10 (measurement equipment) and 6.5.2 (traceability) requirements.
Can the balance be integrated into a fully automated coal analysis line?
Yes—RS485 MODBUS support enables bidirectional communication with PLCs, allowing remote tare, zero, print, and data request commands synchronized with sample transport timing.
What is the recommended calibration frequency under continuous operation?
Per ISO 9001 and internal QA policies, daily isoCAL verification is advised; full external calibration every 3–6 months depending on usage intensity and environmental stability.
Does the balance support draft shield compatibility for ultra-low-mass coal fines weighing?
Yes—models with 0.01 mg readability (e.g., ES-L55-MZ) are compatible with optional acrylic or glass draft shields designed for DIN 55302-compliant micro-weighing environments.
Are firmware updates available for enhanced protocol support or regulatory alignment?
Yes—Dante provides quarterly firmware releases via secure download portal, including updates for new MODBUS register mappings, enhanced error logging, and expanded 21 CFR Part 11 audit trail fields.
