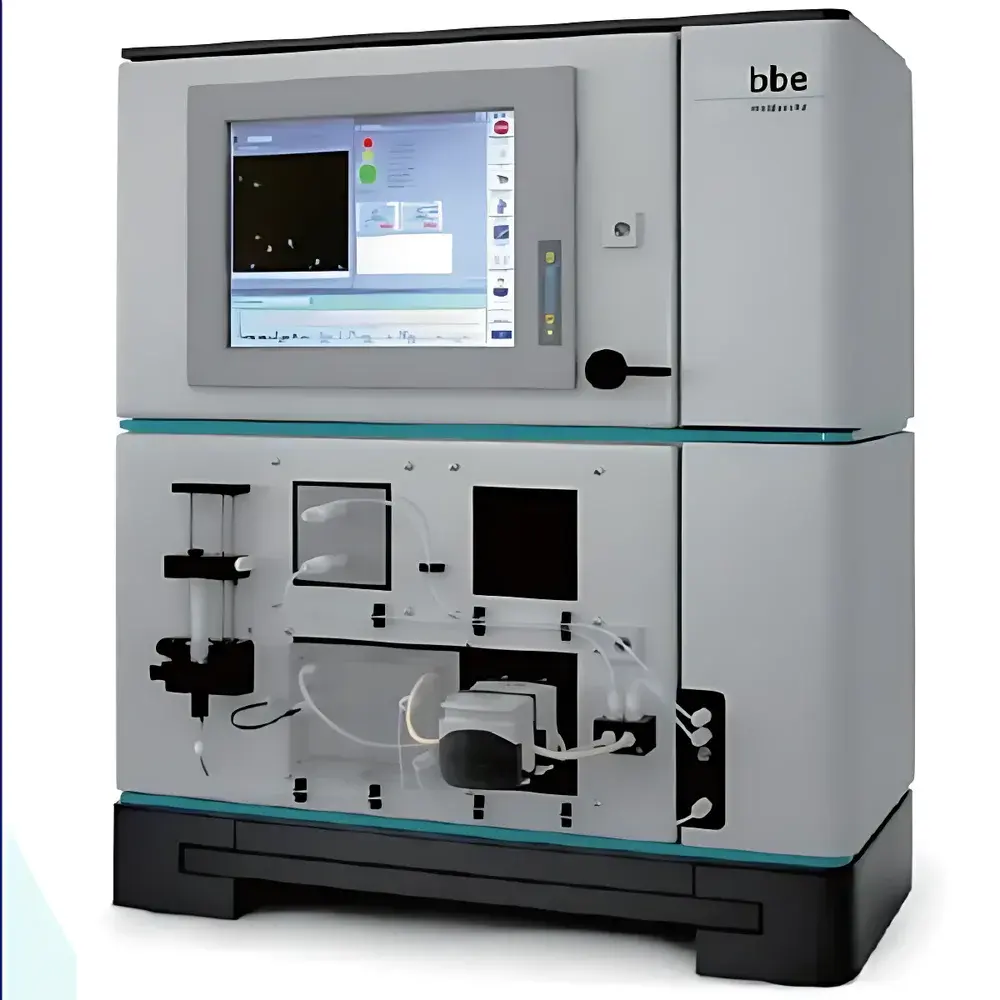

Daphnia Toximeter II by BBE Moldaenke
| Brand | BBE Moldaenke |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | Daphnia Toximeter II |
| Instrument Type | Online Toxicity Monitor |
| Test Organism | Daphnia magna (water flea) |
| Operating Temperature Range | 0–35 °C |
| Reagent Storage Temperature | 0–30 °C |
Overview
The Daphnia Toximeter II by BBE Moldaenke is an automated, online biological early-warning system designed for real-time assessment of acute aquatic toxicity in water matrices. It implements the standardized static Daphnia magna immobilization test according to DIN 38412-Part 30 (German standard equivalent to ISO 6341 and OECD 202), which defines exposure durations of 24, 48, or 72 hours under controlled conditions. Unlike conventional endpoint-based assays relying solely on mortality counts, the Daphnia Toximeter II employs high-resolution digital video microscopy to continuously monitor behavioral parameters—including swimming velocity, trajectory curvature, vertical distribution, and activity frequency—providing a dynamic, sub-lethal toxicity index with significantly enhanced sensitivity and temporal resolution. The system is engineered for unattended operation in both field-deployed monitoring stations and laboratory-based toxicological research environments.
Key Features
- Continuous, non-invasive optical monitoring via industrial-grade CMOS camera with adjustable frame rate (up to 30 fps) and auto-focus optics optimized for low-light, high-contrast imaging of Daphnia in transparent flow cells.
- Real-time behavioral analytics engine running on embedded Linux platform; computes >12 motion-derived parameters per organism per second using adaptive background subtraction and centroid tracking algorithms.
- Automated sample introduction via peristaltic pump with programmable flow rate (0.1–2.0 L/h), integrated temperature-controlled measurement chamber (0–35 °C), and optional UV sterilization module for biofouling mitigation.
- Configurable alarm logic with user-defined toxicity thresholds; generates visual (red LED + GUI alert), acoustic, and protocol-compliant digital outputs (Modbus TCP, OPC UA, or SNMP) within 1–30 minutes of toxicant exposure onset.
- Self-calibrating reference mode: includes built-in control channel with parallel culture of healthy Daphnia to normalize inter-batch variability and compensate for ambient drift (e.g., temperature, light intensity).
Sample Compatibility & Compliance
The Daphnia Toximeter II accepts raw surface water, drinking water, wastewater effluents, and treated industrial process streams without pre-filtration (particle size limit: <100 µm). It complies with regulatory frameworks governing environmental monitoring in the EU and North America, including compliance-ready data logging aligned with GLP principles. All toxicity indices are traceable to DIN 38412-L30 and ISO 6341 reference methods. Audit trails, electronic signatures, and user-access controls meet requirements for data integrity under FDA 21 CFR Part 11 when deployed in regulated water utilities or contract laboratories.
Software & Data Management
The instrument is operated via BBE’s proprietary ToxiSoft v4.x software suite, installed on an integrated industrial PC or accessible remotely via secure HTTPS interface. Software features include time-series visualization of behavioral metrics, toxicity trend analysis with moving-average smoothing, export of raw video clips (H.264), and CSV/Excel-compatible toxicity reports compliant with ISO/IEC 17025 documentation standards. All measurement metadata—including timestamps, environmental sensor readings (temperature, conductivity), and operator annotations—are stored in SQLite databases with automatic daily backup to external NAS or cloud storage (optional SFTP integration).
Applications
- Early-warning monitoring at drinking water intakes and reservoirs for accidental or intentional contamination events.
- Compliance verification of wastewater discharge permits through continuous effluent toxicity screening.
- Toxicity profiling during wastewater treatment optimization (e.g., activated sludge toxicity mapping, bioreactor health assessment).
- Acute ecotoxicological evaluation of chemical formulations, pharmaceutical residues, and nanomaterials in R&D laboratories.
- Educational use in university-level environmental toxicology courses for hands-on demonstration of bioassay principles and digital phenotyping techniques.
FAQ
What Daphnia species does the system use?
The Daphnia Toximeter II is calibrated and validated exclusively for Daphnia magna, strain BB02 (certified axenic culture available from BBE’s partner biobank).
Can the system operate without a dedicated lab technician?
Yes—fully autonomous operation is supported for up to 72 hours with pre-loaded cultures and buffer solutions; routine maintenance intervals are defined at 14-day intervals.
Is the toxicity index quantitatively correlated to chemical concentration?
No—the index is a relative, multi-parameter biomarker of physiological stress; it provides rapid hazard indication rather than absolute EC50 values. For quantitative dose-response modeling, follow-up static-renewal tests per OECD 202 are recommended.
How often must the Daphnia culture be replenished?
Standard operational protocol requires fresh culture introduction every 5–7 days; automated culture exchange modules are available as optional accessories.
Does the system support remote diagnostics and firmware updates?
Yes—via encrypted TLS-secured connection; remote access requires prior authorization and conforms to IEC 62443-3-3 cybersecurity guidelines for industrial control systems.
