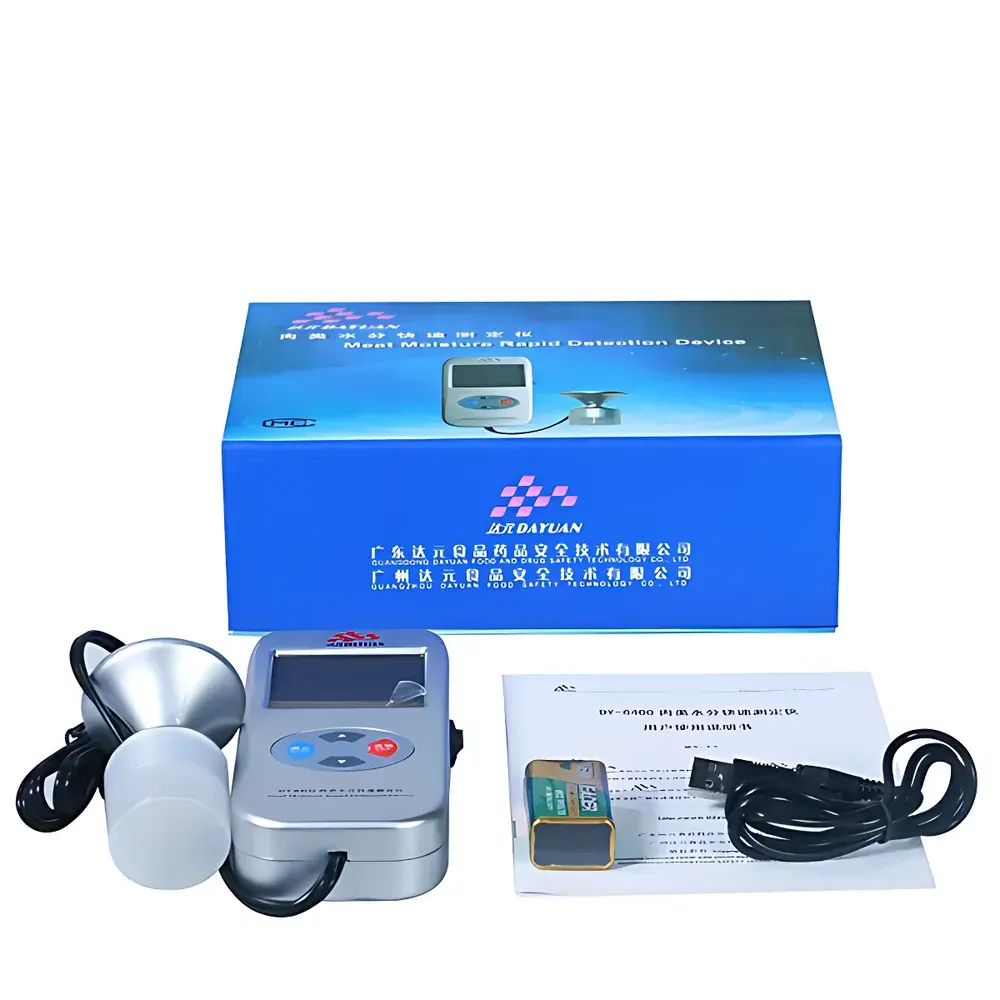

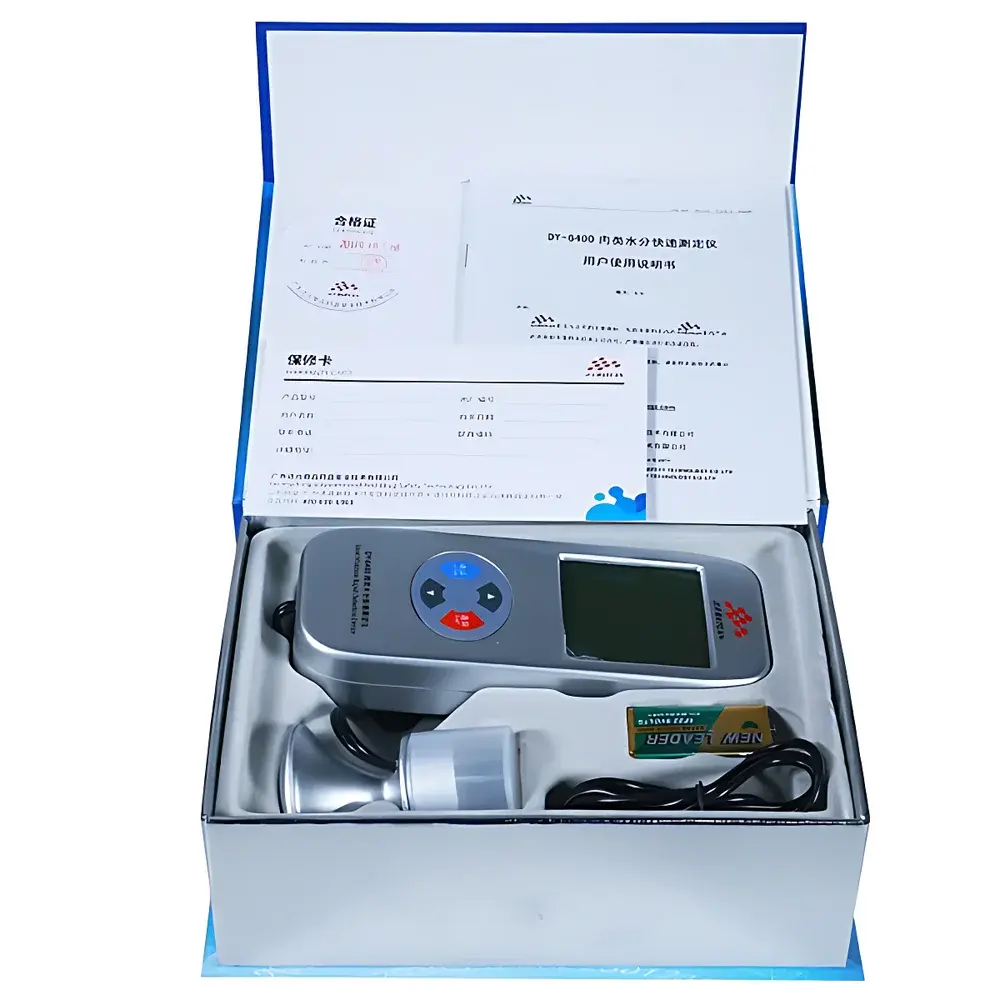

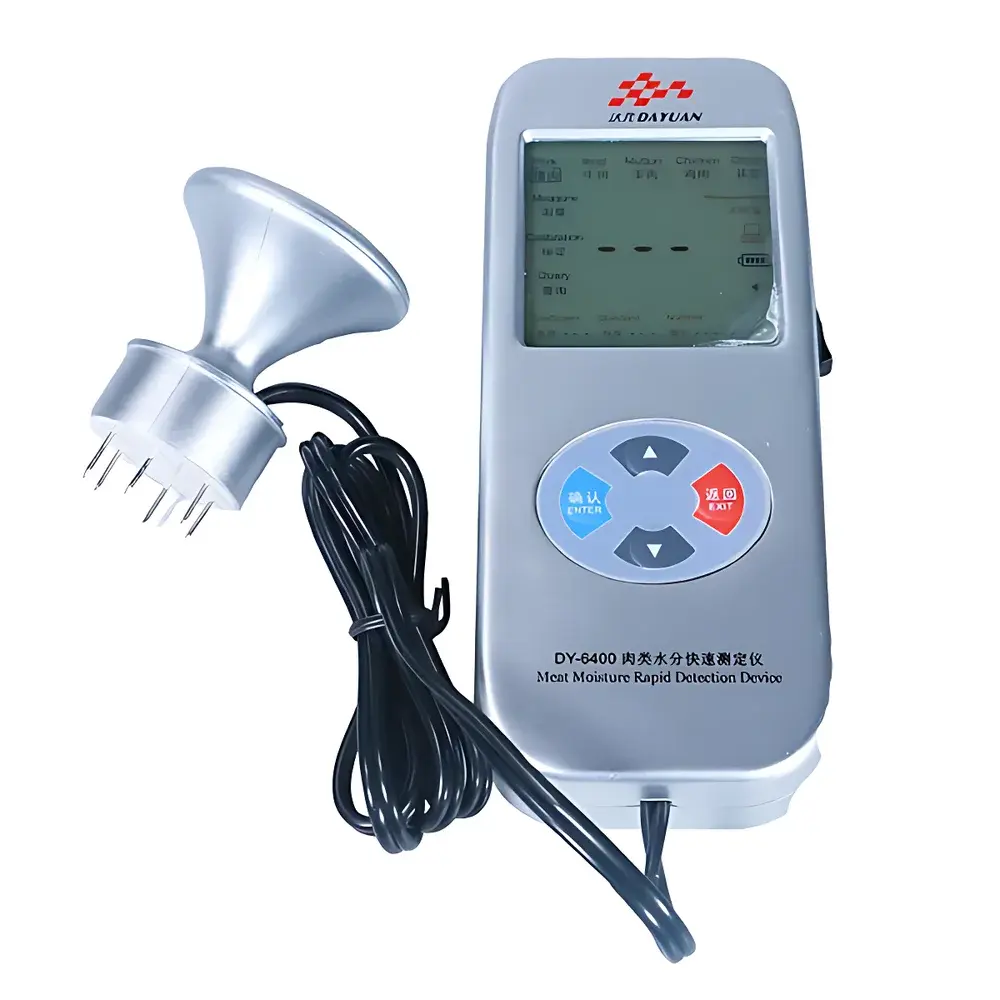

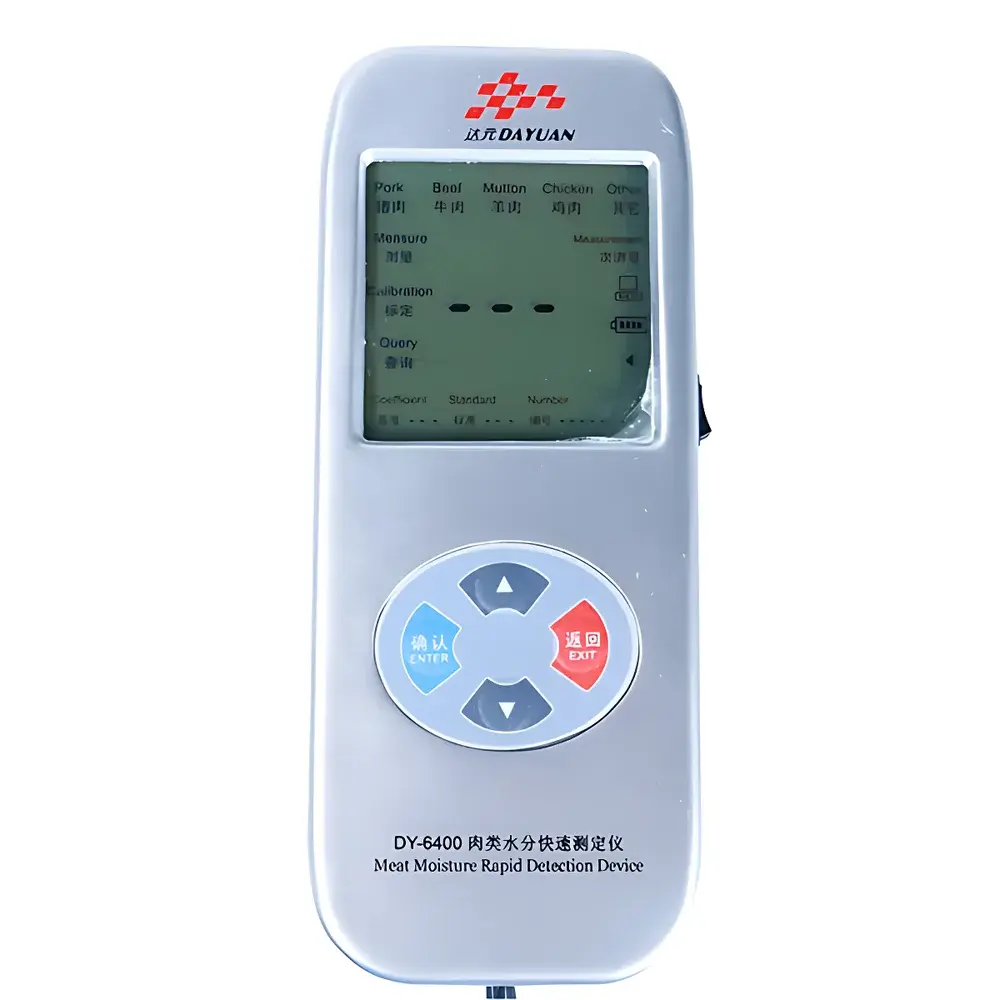

DAYUAN DY-6400 Rapid Meat Moisture Analyzer

Overview

The DAYUAN DY-6400 Rapid Meat Moisture Analyzer is a portable, non-destructive moisture measurement instrument engineered for on-site quantitative analysis of water content in fresh and processed meat products—including pork, beef, mutton, and poultry. It operates on the principle of dielectric constant measurement, leveraging high-frequency capacitance sensing to correlate changes in electrical permittivity with moisture concentration in biological tissue. This method provides rapid, repeatable results without sample preparation or chemical reagents—making it suitable for real-time process monitoring and regulatory screening in accordance with GB 18394–2020 “Limits for Moisture Content in Livestock and Poultry Meat”. Designed for field deployment, the analyzer delivers stable readings within 60–90 seconds per measurement and maintains calibration integrity across ambient temperatures from 5 °C to 40 °C and relative humidity up to 85% RH (non-condensing).

Key Features

• Dual-threshold judgment logic: Enables user-defined upper/lower moisture limits per meat species (e.g., ≤77.0% for pork, ≤78.0% for beef), aligned with GB 18394–2020 compliance thresholds.
• Real-time acoustic-optical alert system: Triggers audible beep and LED flash when measured moisture exceeds preset regulatory limits.
• Battery health monitoring: Displays remaining voltage of two stacked 9 V alkaline cells; initiates low-power warning at ≤16.5 V DC to ensure measurement continuity.
• On-device data management: Stores ≥5,000 measurement records with timestamp, sample ID, moisture value (% w/w), and pass/fail status—retained for ≥10 years under normal storage conditions.
• Calibration reference storage: Allows saving of up to 10 user-defined baseline values derived from reference oven-drying (AOAC 950.46) or Karl Fischer titration verification.
• USB-C interface: Supports bidirectional communication with Windows-based PCs for batch export (CSV/Excel), audit log generation, and firmware updates.

Sample Compatibility & Compliance

The DY-6400 accommodates intact muscle tissue samples with minimum dimensions of 30 mm × 30 mm × 15 mm (L × W × H). It is validated for use on chilled, frozen-thawed, and vacuum-packaged meats—but not recommended for heavily marinated, cured, or mechanically deboned products due to ionic interference. Instrument performance meets the repeatability requirement of ±0.3% moisture (RSD < 1.2%) across five consecutive measurements on homogeneous pork loin samples (n = 15, 25 °C). While not certified to ISO/IEC 17025, its measurement protocol is traceable to national standards via GB/T 9695.15–2008 (“Methods for Analysis of Meat and Meat Products – Determination of Moisture Content”). The device supports GLP-aligned workflows through timestamped data logging, operator ID entry, and password-protected configuration access.

Software & Data Management

The included PC software (DY-Link v3.2) enables secure data aggregation from multiple instruments, customizable report templates (PDF/Excel), and automated flagging of out-of-specification results. Audit trail functionality logs all user actions—including parameter edits, calibration events, and data deletions—with immutable timestamps. Exported datasets include full metadata: instrument serial number, firmware version, measurement date/time, environmental temperature/humidity (if external sensor connected), and operator credentials. Software complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with Windows domain authentication and encrypted local storage.

Applications

• Pre-slaughter screening at abattoirs to identify hyper-hydrated carcasses prior to processing.
• In-line quality control during sausage, jerky, and minced meat production to verify formulation consistency.
• Market surveillance by municipal food safety bureaus conducting unannounced inspections at wet markets and cold-chain distribution hubs.
• Third-party certification laboratories performing routine verification against GB 18394–2020 and provincial food safety regulations.
• Research applications in meat science labs studying post-mortem water-holding capacity (WHC) kinetics under varying chilling regimes.

FAQ

Does the DY-6400 require daily calibration?
No—factory calibration remains valid for 12 months under standard operating conditions. Users should perform a verification check using a certified reference material (e.g., dried gelatin standard at 65.0 ± 0.5% moisture) before each shift.
Can the instrument measure moisture in ground meat or emulsified products?
It is not recommended for ground or homogenized samples due to inconsistent dielectric response from particle size variation and fat dispersion. Use only on solid, anatomically intact cuts.
Is USB data transfer compatible with macOS or Linux systems?
The DY-Link software is Windows-only (Windows 10/11, 64-bit); however, exported CSV files are platform-agnostic and importable into any spreadsheet or LIMS environment.
What is the warranty coverage and service support structure?
DAYUAN provides a 24-month limited warranty covering parts and labor. Field service engineers are available across Guangdong, Jiangsu, and Shandong provinces; international customers receive remote diagnostics and authorized third-party calibration support.
How does the instrument handle temperature drift during extended field use?
An integrated NTC thermistor continuously monitors probe head temperature and applies real-time compensation coefficients derived from thermal validation studies conducted between 10 °C and 35 °C.
