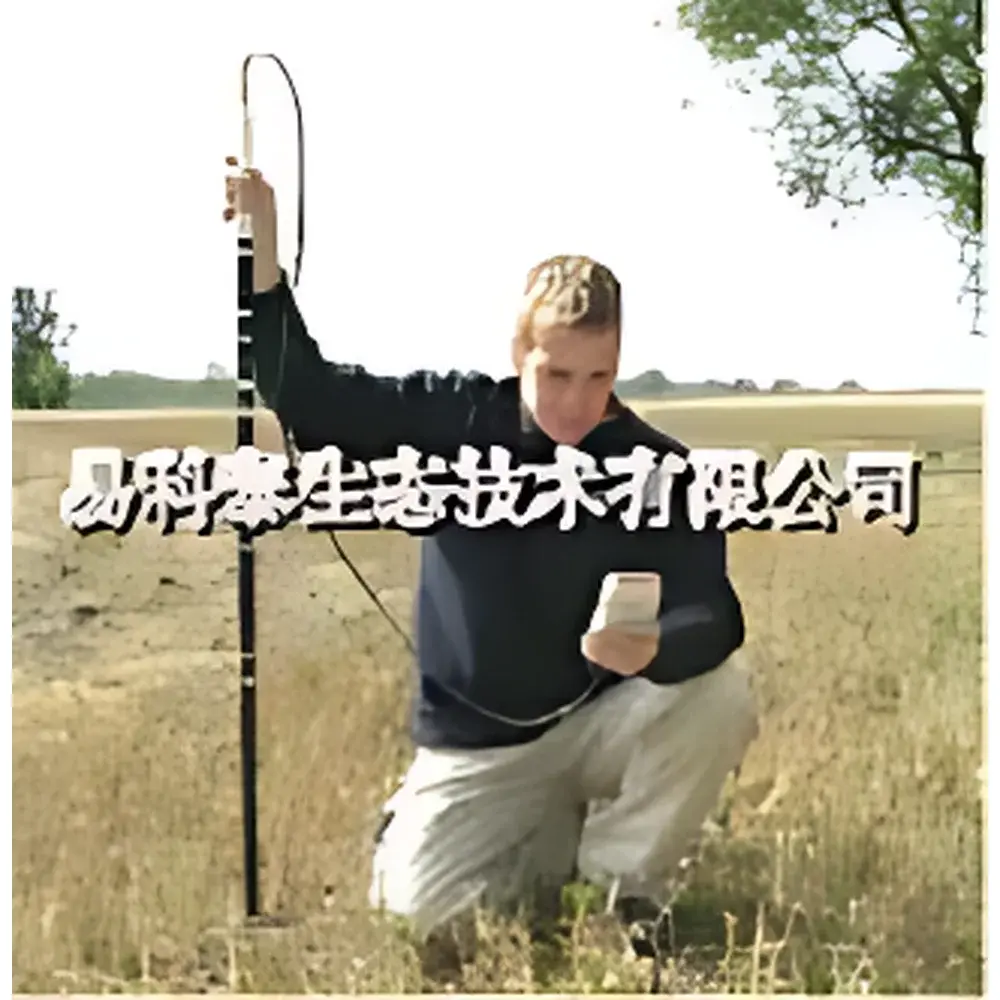

Delta-T Devices PR2 Profile Soil Moisture Sensor

Overview

The Delta-T Devices PR2 Profile Soil Moisture Sensor is a research-grade, multi-depth capacitive sensor engineered for in-situ, high-reproducibility measurement of volumetric water content (θ_v) across defined soil horizons. Unlike single-point probes, the PR2 employs patented frequency-domain reflectometry (FDR) technology integrated into a rigid, segmented probe structure—enabling simultaneous, co-located measurements at discrete depths without requiring multiple independent installations. Its calibrated dielectric response accounts for soil-specific permittivity–moisture relationships, delivering absolute θ_v values traceable to gravimetric standards. Designed for long-term field deployment or rapid mobile surveying, the PR2 operates within the internationally accepted 0–0.4 m³·m⁻³ range (equivalent to 0–40% vol), with validated accuracy of ±0.04 m³·m⁻³ under typical agricultural and ecological soil conditions (0–40 °C). The sensor’s robust mechanical architecture—including polycarbonate housing, stainless-steel reinforcement, and IP67-rated body—ensures structural integrity and environmental resilience in unattended outdoor applications.

Key Features

• Multi-depth profiling: PR2/4 measures at 4 discrete depths (standard configuration up to 40 cm); PR2/6 extends to 6 depths (up to 100 cm), enabling vertical moisture gradient analysis without probe repositioning.
• Soil-specific calibration: Factory-applied, soil-type-optimized calibration curves reduce systematic bias—particularly critical in heterogeneous or clay-rich profiles where generic calibrations degrade accuracy.
• High salinity tolerance: Validated performance up to 600 mS·m⁻¹ pore water electrical conductivity, supporting reliable operation in irrigated, coastal, or fertilized soils where ionic interference commonly affects capacitance-based sensors.
• Low-power analog output: 4–6 independent 0–1 V analog channels (each linearly scaled to 0–0.6 m³·m⁻³), compatible with industry-standard data loggers (e.g., DL6, DL2e) and eliminating need for protocol translation or firmware updates.
• Rapid response & stability: Sub-second dielectric response time ensures capture of transient infiltration or evaporation events; thermal drift is minimized through internal temperature compensation across −20 to +70 °C operating range.
• Field-deployable mechanical design: 27 mm pilot hole requirement minimizes soil disturbance during installation; M12 IP68 connectors and shielded 9-conductor cabling support modular extension up to 100 m without signal degradation.

Sample Compatibility & Compliance

The PR2 is validated for use across mineral soils (sandy loam to heavy clay), organic-rich topsoils, and structured subsoils—provided bulk density remains within typical field ranges (1.1–1.6 g·cm⁻³). It is not intended for saturated peat, highly conductive mine tailings, or frozen ground. Calibration adherence follows ISO 11274:2022 (soil physical properties — determination of water retention characteristics) and aligns with USDA NRCS soil moisture monitoring protocols. When integrated with DL2e data loggers, the system supports GLP-compliant audit trails, timestamped metadata logging, and configurable sampling intervals—facilitating compliance with long-term environmental monitoring programs governed by EPA Method 9080B or EU INSPIRE Directive Annex III requirements.

Software & Data Management

Data acquisition is fully hardware-agnostic: raw voltage outputs from the PR2 are converted to θ_v using manufacturer-provided calibration coefficients (supplied in CSV and Excel-compatible formats). The HH2 handheld meter provides immediate field visualization, on-device storage of 1100 readings with depth-stamped metadata, and direct export to Microsoft Excel via USB. For continuous monitoring, DL6 and DL2e loggers enable synchronized multi-sensor deployments—including air temperature, precipitation, and soil temperature—via shared analog input banks. All Delta-T loggers generate timestamped, comma-delimited ASCII files compliant with FAO WaPOR database ingestion standards and support automated FTP upload for cloud-based dashboards. No proprietary software licenses or subscription fees are required for basic data retrieval or post-processing.

Applications

• Irrigation scheduling and deficit irrigation optimization in precision agriculture systems.
• Root-zone water balance modeling for crop water productivity assessments (e.g., AquaCrop, SWAP).
• Long-term ecohydrological monitoring in watershed-scale studies (e.g., Critical Zone Observatories).
• Validation of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1 SAR backscatter).
• Soil hydraulic property estimation via inverse modeling of infiltration experiments.
• Climate change impact studies on vadose zone dynamics in arid and semi-arid ecosystems.

FAQ

Can the PR2 be installed in rocky or compacted soils?
Yes—its rigid polycarbonate–stainless construction allows insertion into moderately compacted soils using a manual or powered auger; however, pre-drilling a 27 mm pilot hole is mandatory to avoid probe bending or sensor misalignment.
Is factory recalibration required after extended field deployment?
No—PR2 sensors exhibit long-term dielectric stability; annual verification against gravimetric samples is recommended for research-grade applications, but routine recalibration is not necessary under normal operating conditions.
Does the PR2 meet FDA 21 CFR Part 11 requirements for regulated environmental data?
While the PR2 itself is a passive transducer, when paired with DL2e loggers configured with electronic signatures, audit logs, and user-access controls, the full system satisfies ALCOA+ principles and supports Part 11 compliance in GxP-aligned environmental monitoring workflows.
Can existing HH2 meters be upgraded to read PR2 data?
Yes—all HH2 units manufactured after 2012 support PR2 connectivity via firmware update (v3.2 or later); no hardware modification is needed.
What is the maximum recommended cable length between PR2 and DL2e logger?
100 meters—achieved using Delta-T’s certified shielded extension cables with M12 IP68 terminations; signal integrity is maintained due to low-impedance analog output and built-in noise rejection circuitry.
