DesTest TS-SG4400L 4.4 GHz Compact RF Signal Generator

Overview

The DesTest TS-SG4400L is a compact, benchtop-grade RF signal generator engineered for precision and repeatability in laboratory, educational, and production test environments. Operating across a continuous frequency range of 35 MHz to 4.4 GHz, it delivers stable, low-phase-noise sinusoidal outputs suitable for characterizing receivers, validating front-end components, and supporting electromagnetic compatibility (EMC) pre-compliance testing. Its architecture leverages a temperature-compensated crystal oscillator (TCXO) with ±2.5 ppm stability, ensuring reliable reference integrity without external 10 MHz synchronization—though an MCX reference input is provided for system-level phase alignment in multi-instrument setups. Unlike arbitrary waveform generators or vector signal sources, the TS-SG4400L functions as a pure analog CW and swept-tone source, optimized for spectral purity, amplitude linearity, and rapid frequency agility—key requirements in RF component validation, antenna tuning, and wireless protocol verification workflows.

Key Features

• Compact aluminum chassis with matte black powder coating—designed for thermal stability and EMI shielding in dense rack or benchtop configurations

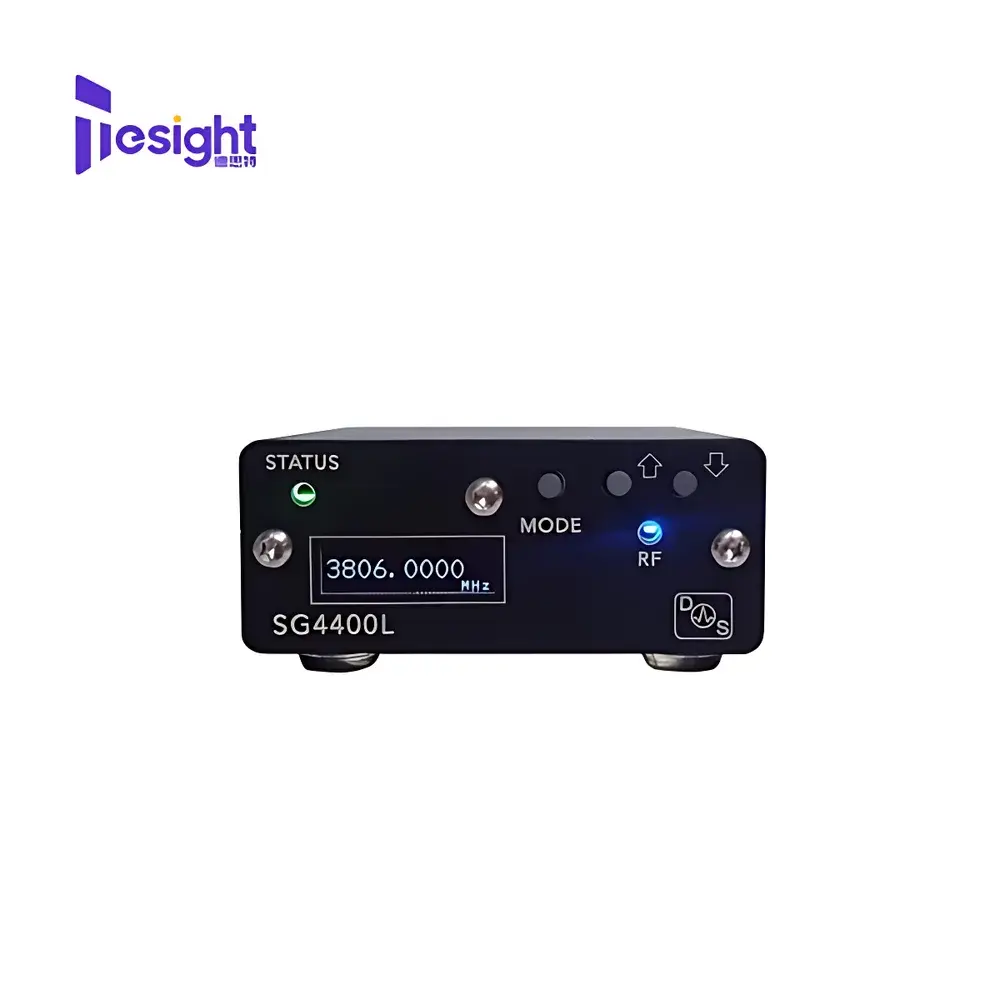

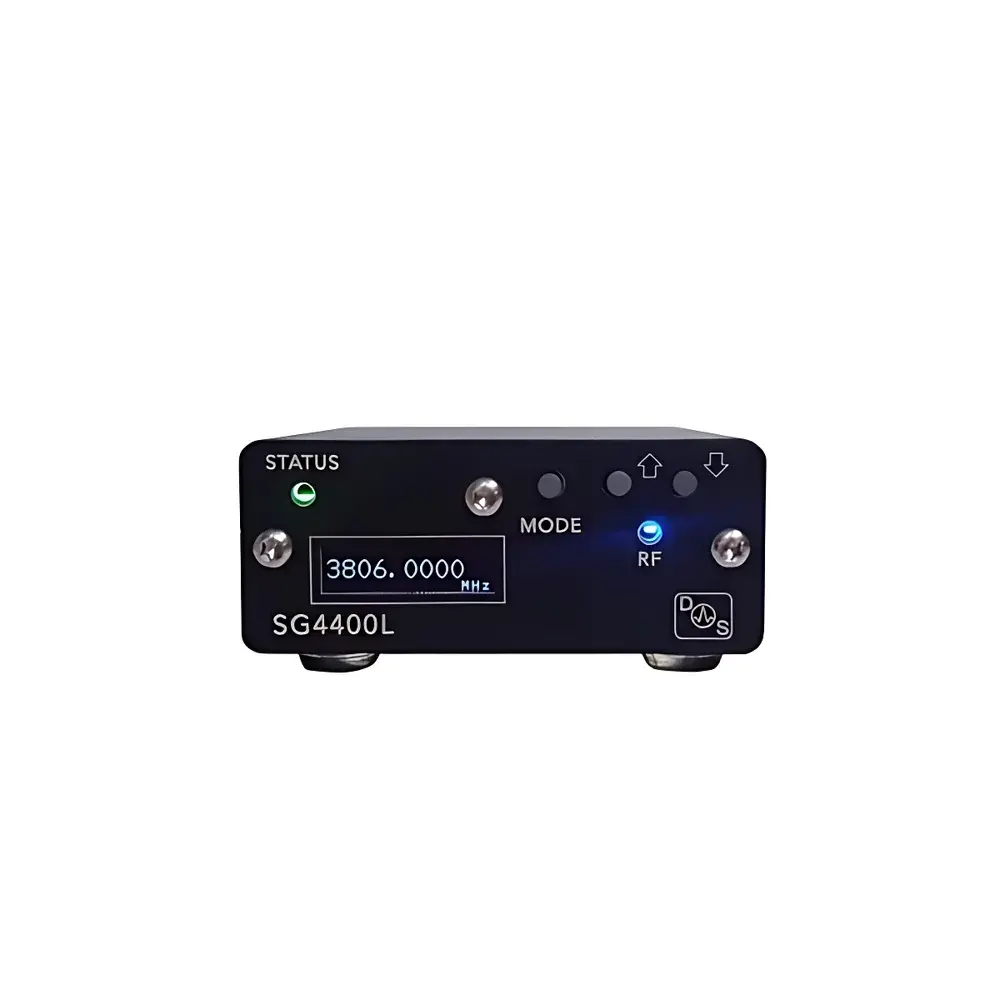

• Bright monochrome OLED display with real-time parameter feedback (frequency, power level, sweep status, reference lock indicator)
• Front-panel frequency step buttons and rotary encoder for intuitive local operation—enabling rapid manual tuning without host software

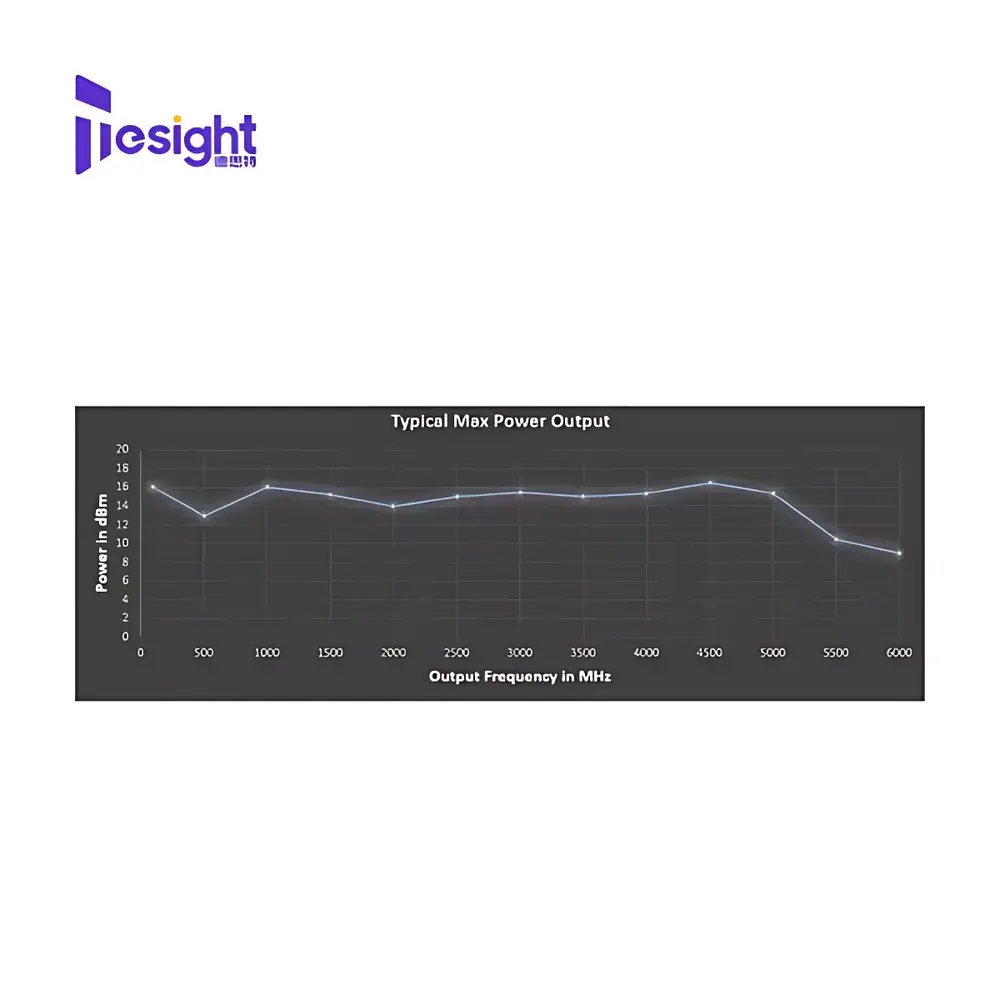

• 0.5 dB power step resolution across a calibrated range of –20 dBm to +10 dBm; extended uncalibrated range down to –35 dBm and up to +13 dBm (typical)
• Integrated SCPI command set compliant with IEEE 488.2 and IVI-C specifications—enabling seamless integration into LabVIEW, Python (PyVISA), MATLAB, and Keysight PathWave test sequences
• Optional Ethernet interface (introduced in 2019 firmware revision) supports LXI Class C compliance for remote control over LAN, including socket-based TCP/IP and HTTP API endpoints
• Low phase noise performance of –85 dBc/Hz at 10 kHz offset from a 2.4 GHz carrier—superior to entry-level synthesizers and critical for adjacent-channel rejection testing

Sample Compatibility & Compliance

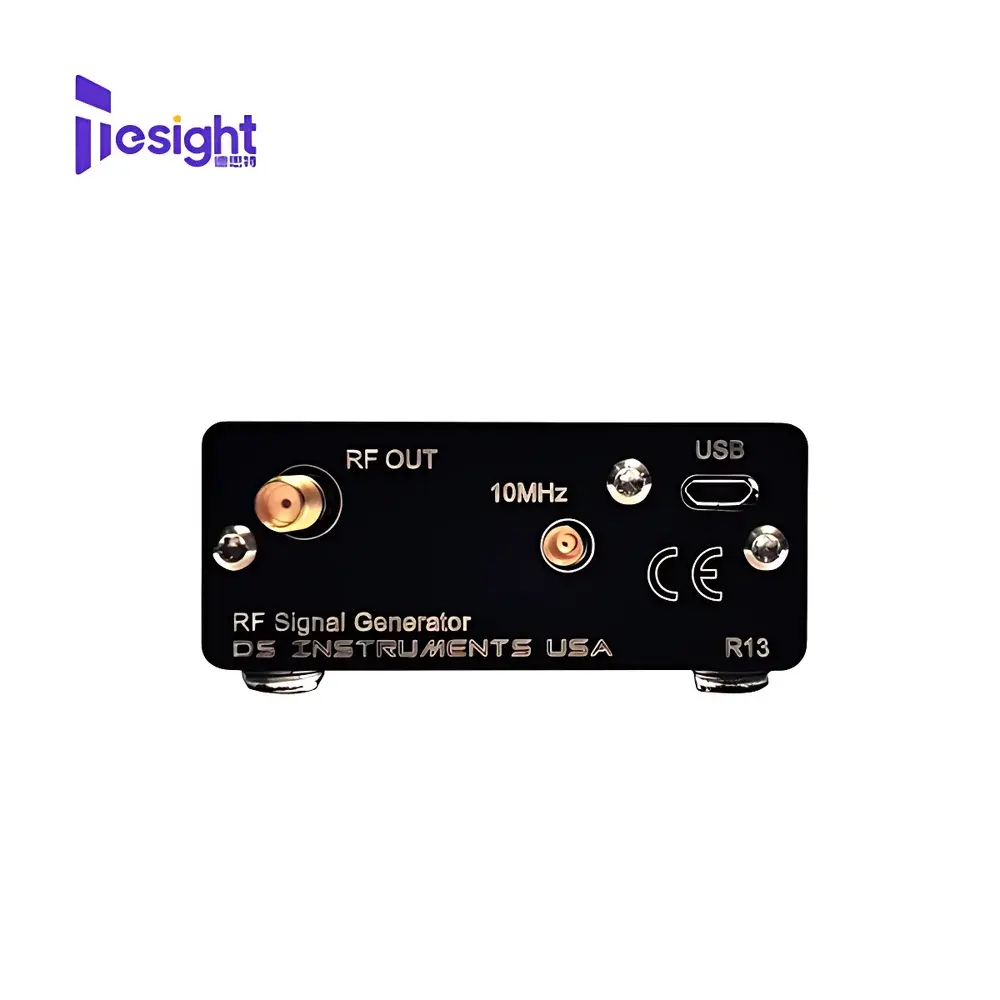

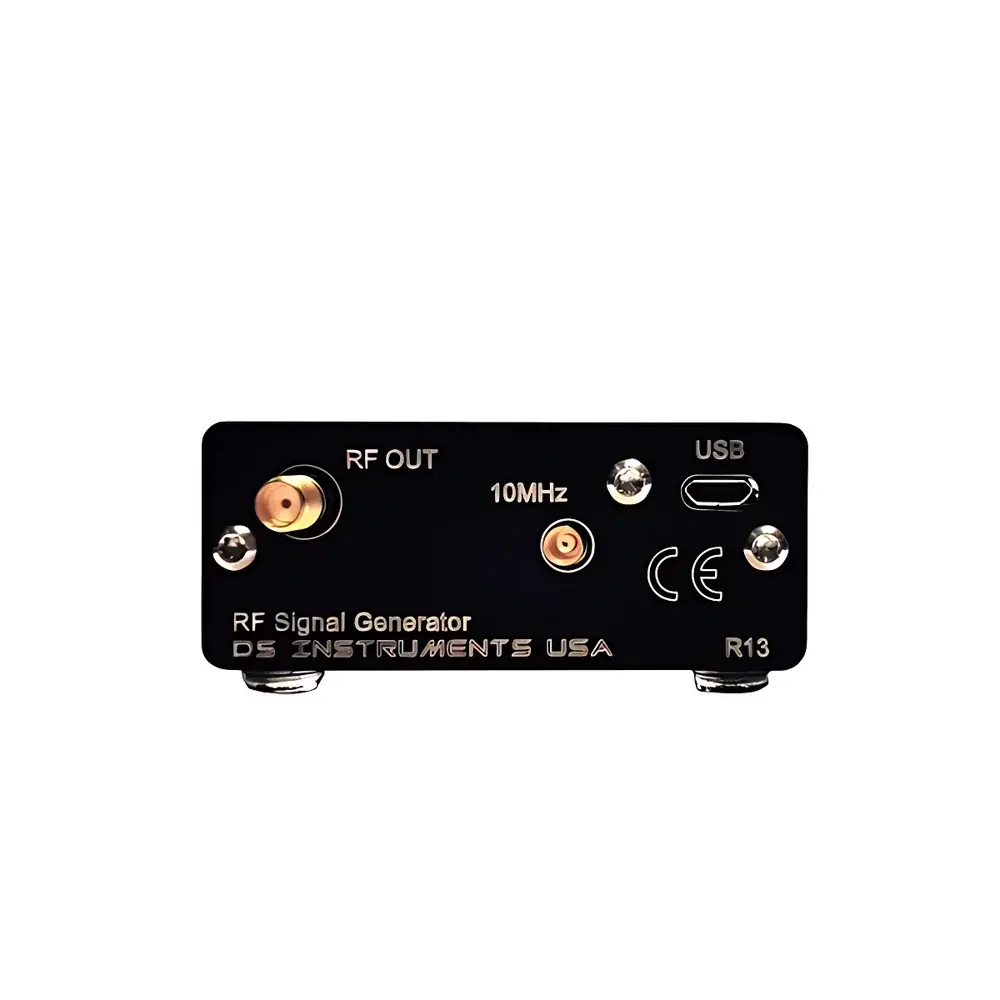

The TS-SG4400L is compatible with standard 50 Ω RF systems and interfaces directly with spectrum analyzers, vector network analyzers (VNAs), power meters, and receiver test sets via its 18 GHz-rated SMA output port. Its output impedance match (<1.25:1 VSWR across full band) minimizes reflection-induced measurement uncertainty in calibrated setups. The instrument meets IEC 61000-3-2 (harmonic current emissions) and IEC 61000-3-3 (voltage fluctuations) for conducted emissions in laboratory environments. While not certified to MIL-STD-461 or DO-160, its robust mechanical construction and thermal design support deployment in aerospace R&D labs under controlled ambient conditions. For regulated industries, the device supports audit-ready operation when paired with traceable calibration certificates (NIST-traceable options available upon request) and maintains full SCPI logging capability for GLP/GMP-aligned test records.

Software & Data Management

DesTest provides a native Windows GUI application—TS-Control Suite—with drag-and-drop sweep configuration, real-time power/frequency monitoring, and CSV export of sweep logs. All USB and Ethernet communications are stateless and fully scriptable via SCPI commands (e.g., :FREQ:CW 2.45E9, :POW:LEV -15.0, :SWE:GEN LIN). Firmware updates are delivered through signed binary packages with SHA-256 checksum verification. No cloud connectivity or telemetry is enabled by default; all data remains on-premise unless explicitly routed through user-defined network infrastructure. The Ethernet option includes configurable DHCP/static IP assignment, DNS resolution, and TLS 1.2 support for encrypted command sessions—meeting baseline requirements for FDA 21 CFR Part 11–aligned validation protocols where electronic signatures and audit trails are mandated.

Applications

• Automated receiver sensitivity and blocking tests in 802.11ac/ax, Bluetooth 5.x, and Zigbee PHY validation
• Local oscillator substitution in mixer and filter characterization workflows
• Antenna pattern measurement using rotating stage synchronization via TTL trigger output
• EMC pre-scan testing per CISPR 16-1-1, including narrowband emission sweeps from 30 MHz to 1 GHz
• Production line go/no-go testing of LNA modules, SAW filters, and PA bias networks
• Undergraduate and graduate RF engineering laboratories—supporting hands-on instruction in Smith chart analysis, impedance matching, and noise figure estimation
• Field-deployable reference source for portable spectrum analyzer calibration checks

FAQ

Is the TS-SG4400L compatible with third-party test automation frameworks?
Yes—it implements standard SCPI commands over USBTMC and raw TCP sockets (Ethernet), enabling integration with National Instruments TestStand, Keysight BenchLink, and open-source frameworks such as PyMeasure and QCoDeS.
Does the instrument support external frequency reference locking?
Yes—the MCX 10 MHz reference input accepts sine or CMOS-level signals and automatically switches to external lock mode when detected; internal TCXO remains active as fallback.
What is the typical warm-up time to specified amplitude and frequency accuracy?
Less than 15 minutes from cold start to meet datasheet specifications for output level (±0.8 dB) and frequency accuracy (±0.1 ppm after warm-up).
Can the TS-SG4400L generate modulated signals (AM/FM/PM)?
No—it is a continuous-wave and swept-frequency source only. For modulation capability, consider the TS-SG4400L-M variant (available under custom order with analog modulation inputs).
Is NIST-traceable calibration documentation included with shipment?
A factory calibration report is included; NIST-traceable certification with uncertainty budgets is available as an add-on service at time of order.
