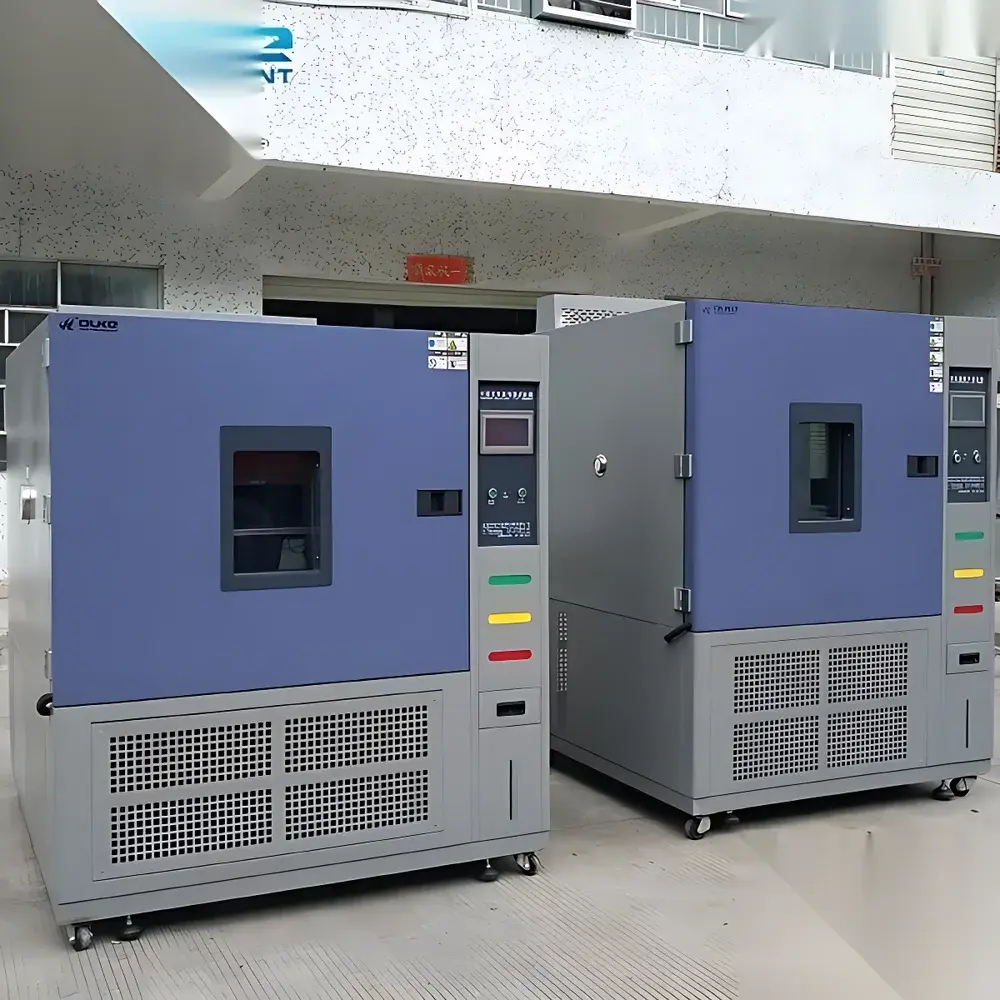

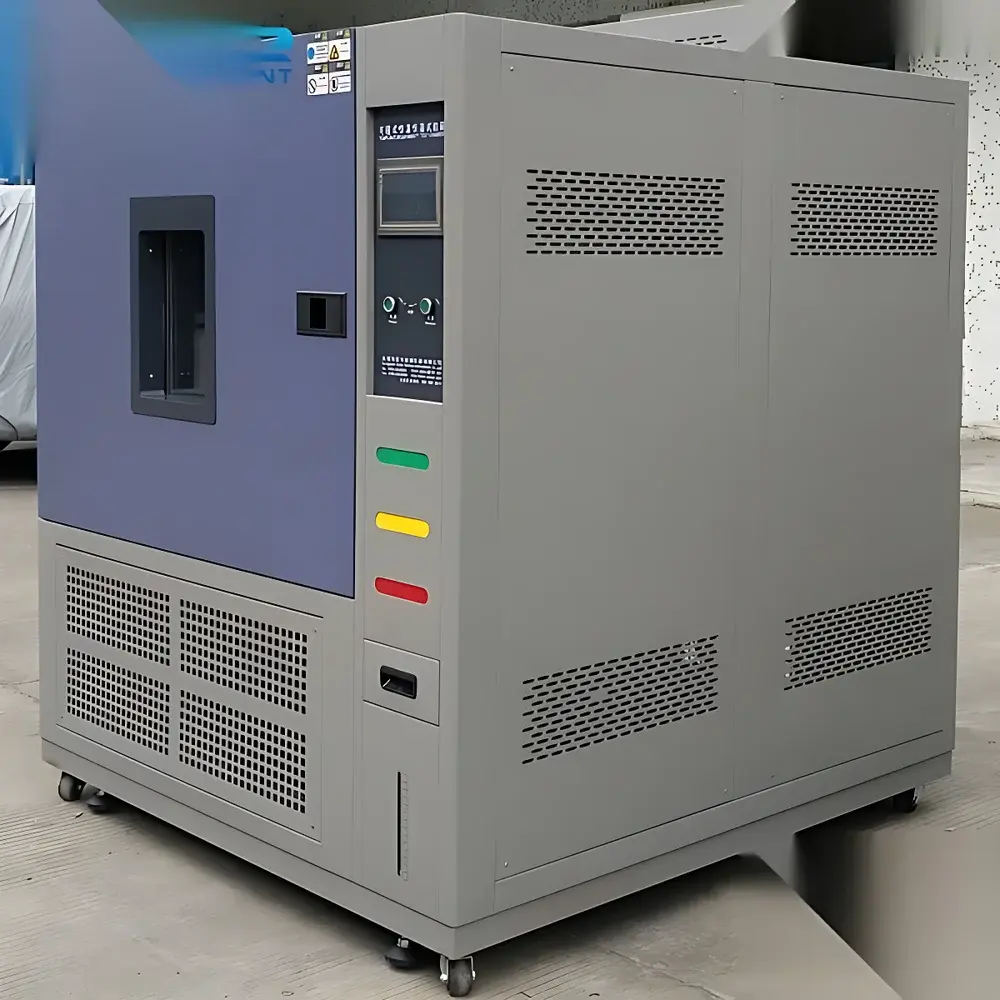

Digital Accessories Environmental Test Chamber

Overview

The Digital Accessories Environmental Test Chamber is a precision-engineered temperature and humidity controlled chamber designed specifically for reliability validation and accelerated environmental stress testing of consumer electronics components—including PCB assemblies, connectors, sensors, camera modules, battery packs, and wireless communication modules. It operates on the principle of forced-air convection with dual independent control loops for temperature and relative humidity, utilizing a balanced heating/cooling and humidification/dehumidification system (BTHC). The chamber maintains stable, repeatable test conditions across wide operational ranges while complying with fundamental thermal and hygrothermal test protocols defined in IEC 60068-2, JEDEC JESD22-A104 (Temperature Cycling), JESD22-A108 (Bias Life), and MIL-STD-810H Method 502.7 (Low Temperature), Method 501.7 (High Temperature), and Method 507.6 (Humidity). Its architecture supports both steady-state conditioning and programmable dynamic profiles—including ramp-hold cycles, step changes, and multi-segment sequences—enabling comprehensive evaluation of thermal expansion mismatch, condensation resistance, solder joint integrity, and material hygroscopic behavior.

Key Features

• Robust stainless-steel inner chamber with seamless welded construction and anti-condensation insulation to minimize thermal bridging and ensure long-term dimensional stability;
• Advanced PID-controlled BTHC (Balanced Temperature & Humidity Control) system using SSR-driven resistive heaters, high-efficiency refrigeration circuit with capillary tube expansion technology, and steam-based humidification with dehumidification via cold coil condensation;
• Intuitive 7-inch color touchscreen controller with built-in data logging (up to 10,000 points), USB export capability, and real-time graphing of chamber setpoints and actual values;
• Optional Ethernet or RS485 interface supporting Modbus RTU protocol for integration into centralized lab monitoring systems (e.g., LabVIEW, SCADA, or MES platforms);
• Comprehensive safety architecture including over-temperature protection, compressor high-pressure cut-off, water-level sensor for humidifier tank, and door interlock switch with automatic power cutoff;
• Modular design enabling customization of internal volume (from 100 L to 2,000 L), temperature extremes (down to −70 °C with cascade refrigeration), and humidity range extension (low-RH capability via dry nitrogen purge option).

Sample Compatibility & Compliance

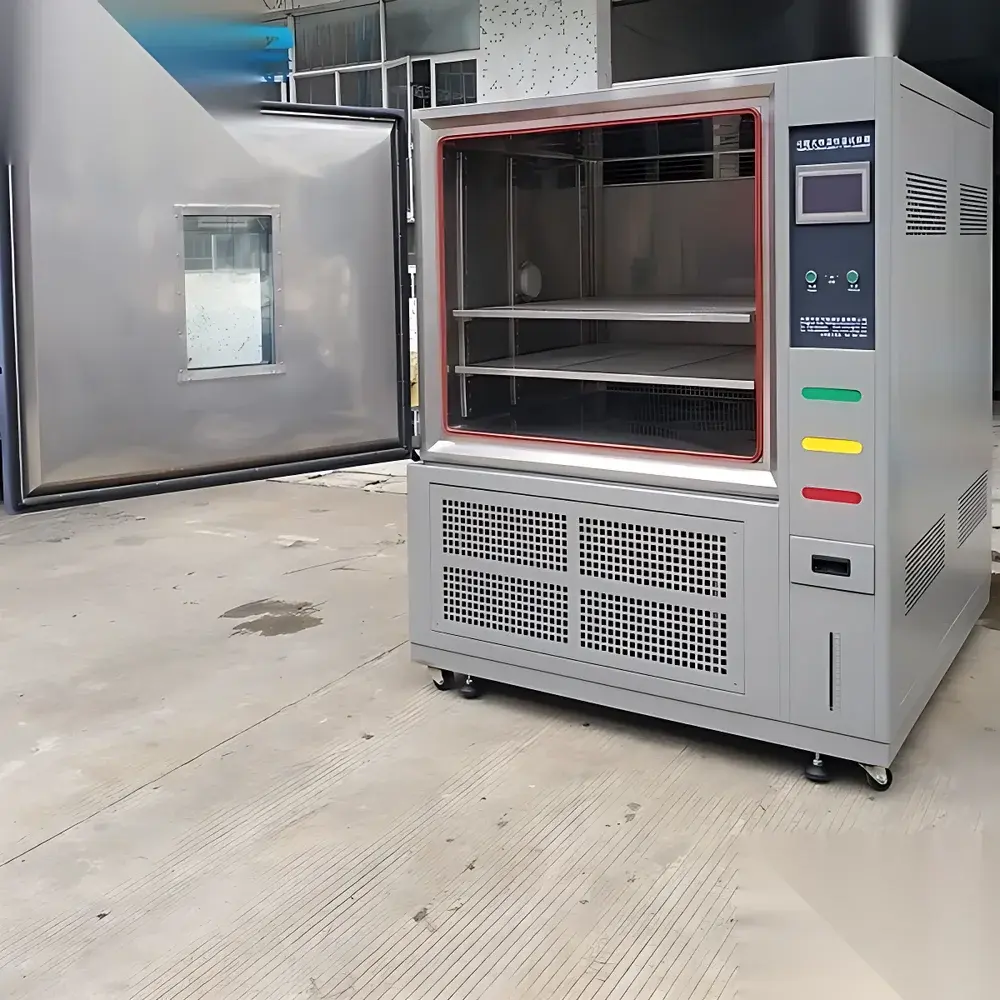

This chamber accommodates standard test specimens up to 600 mm × 600 mm × 600 mm (W×D×H), with optional interior shelves, cable ports (Φ50 mm, Φ100 mm), and non-corrosive mounting rails compatible with DIN 41612, IPC-7351, and JEDEC MO-178 footprints. All models are calibrated and verified in accordance with ISO/IEC 17025-accredited procedures and meet the metrological requirements specified in GB/T 5170.2–2017 (temperature) and GB/T 5170.5–2017 (humidity), as well as ASTM E2234–22 (Standard Practice for Calibration of Environmental Chambers). The unit is suitable for use in GLP-compliant laboratories and supports audit-ready documentation packages—including calibration certificates, uncertainty budgets, and traceability statements aligned with NIST or PTB reference standards.

Software & Data Management

The embedded controller firmware includes configurable alarm thresholds, event-triggered data capture, and password-protected user levels (Operator, Engineer, Administrator). Optional PC-based software (Windows 10/11 compatible) provides extended functionality: automated test script generation, statistical process control (SPC) charting, deviation reporting, and electronic signature support compliant with FDA 21 CFR Part 11 Annex 11 requirements. All logged data is timestamped with UTC synchronization and stored in CSV and XML formats for interoperability with LIMS and quality management systems (QMS). Audit trails record every parameter change, user login/logout, and alarm activation—ensuring full data integrity and regulatory readiness.

Applications

• Accelerated life testing (ALT) of lithium-ion battery cells under combined thermal and humidity stress;
• Thermal shock screening of flex-rigid PCBs used in foldable smartphones and AR/VR headsets;
• Moisture sensitivity level (MSL) verification per J-STD-020E for surface-mount digital ICs prior to reflow soldering;
• Environmental qualification of automotive infotainment modules per AEC-Q200 Rev D;
• Stability assessment of optical lens coatings and OLED display substrates exposed to cyclic humidity;
• Pre-compliance screening for CE, FCC, and KC mark certifications requiring climatic endurance evidence.

FAQ

What is the typical recovery time after door opening during a test?
Recovery to ±0.5 °C and ±3% RH typically occurs within 3–5 minutes for chambers ≤500 L volume under standard load conditions.
Can this chamber operate continuously at −40 °C and 95% RH?
Yes—provided the ambient cooling water supply remains within 10–28 °C and 0.1–0.3 MPa pressure; continuous operation at such extremes requires optional low-temperature humidification hardware.
Is remote monitoring supported out-of-the-box?
Standard models include RS485 Modbus; Ethernet/IP and MQTT interfaces are available as factory-installed options.
Does the chamber support automated test sequencing per IEC 60068-3-6?
Yes—the controller supports up to 99 programmable segments with dwell times, ramp rates, and loop repetitions, fully compliant with IEC 60068-3-6 Annex A.
How often does the system require recalibration?
Annual calibration is recommended; accredited service providers can perform on-site verification using NIST-traceable dry-well calibrators and chilled mirror hygrometers.
