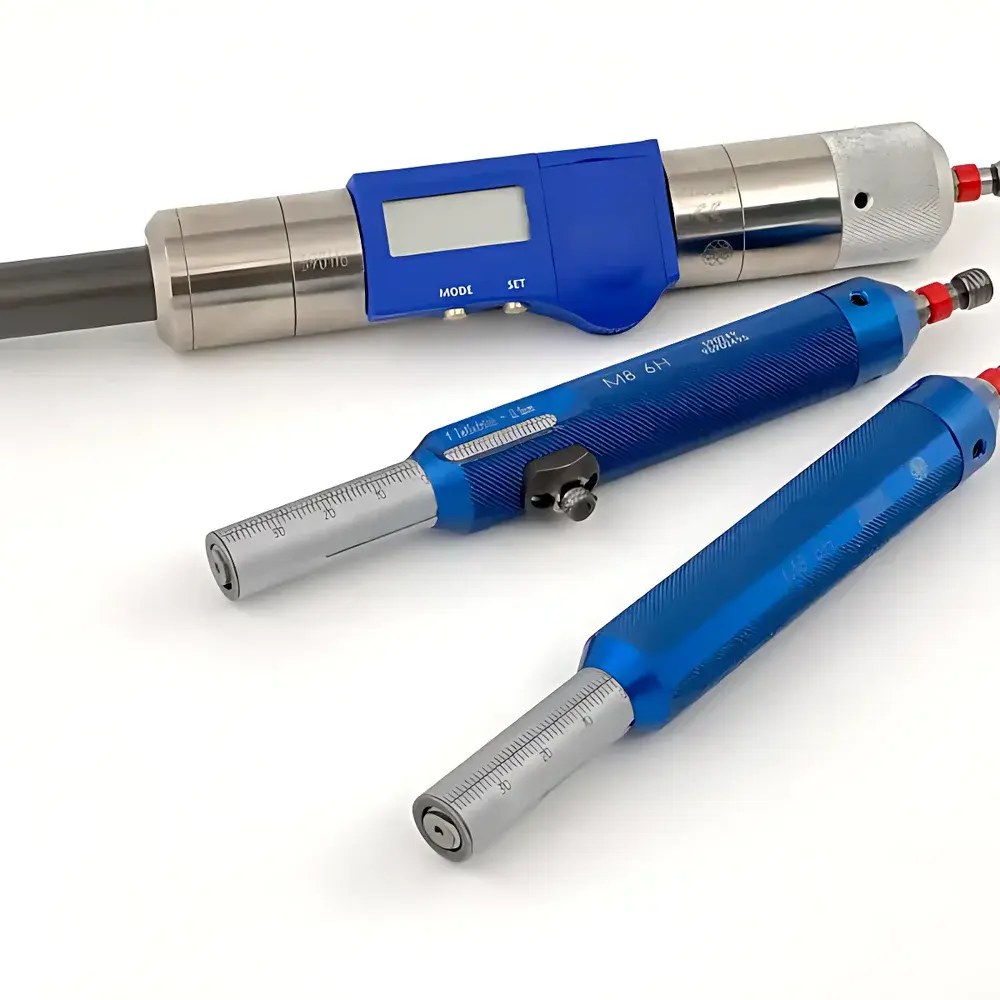

Digital Thread Depth Gauge JBO Model 0021

Overview

The JBO Model 0021 Digital Thread Depth Gauge is a precision metrology instrument engineered for deterministic, repeatable measurement of thread depth in tapped holes and internal threaded features. Designed in accordance with ISO 1502 (Metric Screw Threads — Limits of Size) and aligned with DIN EN ISO 9001 quality management requirements, this gauge employs a calibrated mechanical probe assembly coupled with a dual-resolution digital display system to deliver traceable depth readings across multiple tolerance classes. Unlike conventional depth gauges relying solely on mechanical scale interpolation, the Model 0021 integrates a zero-referenced spindle mechanism that eliminates parallax error and ensures consistent datum registration against the part’s reference surface—critical for verifying thread engagement length in aerospace fasteners, automotive powertrain components, and medical device implants where functional thread integrity directly impacts structural reliability.

Key Features

• Integrated dual-resolution measurement system: Simultaneous analog vernier scale (0.01 mm graduation) and digital LCD display (selectable 0.01 mm or 0.1 mm resolution), enabling cross-verification and redundancy in critical inspection workflows.

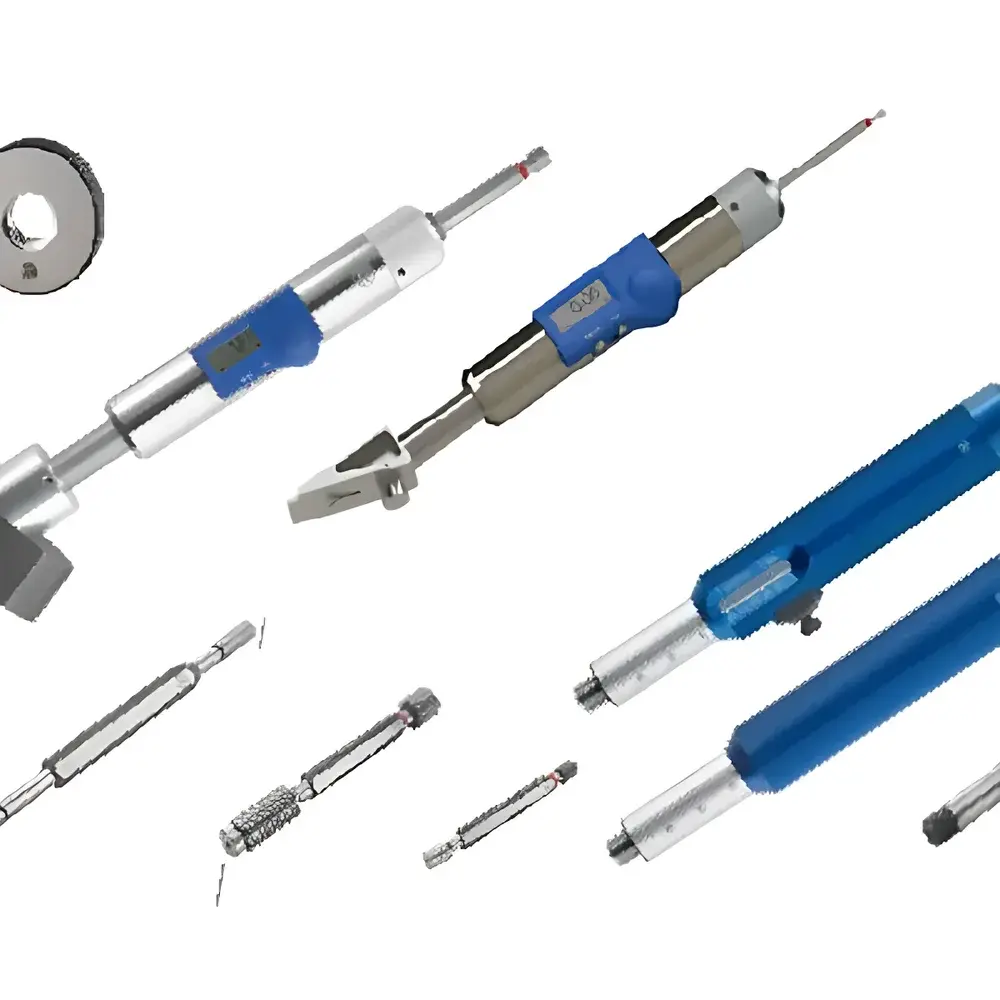

• Modular probe architecture: Interchangeable thread-specific measuring tips conforming to ISO 724 and DIN 13 standards; compatible with metric coarse (M2–M68), fine (MF), and UNC/UNF series threads without recalibration.
• Extended depth capability: Engineered for maximum measurable depth up to 4× nominal thread diameter (e.g., 50 mm at M12.5), supporting deep-hole applications in hydraulic manifolds and turbine casings.
• Reference surface compensation: Precision-ground base plate with adjustable leveling feet ensures perpendicular alignment to the workpiece surface, minimizing cosine error during angled or uneven mounting.
• Ruggedized construction: Anodized aluminum body with stainless steel measuring spindle and hardened tungsten-carbide contact surfaces—designed for sustained use in shop-floor environments compliant with IP54 particulate and moisture resistance.

Sample Compatibility & Compliance

The Model 0021 accommodates internal threads with pitch ranges from 0.35 mm to 6.0 mm and nominal diameters between M2 and M68. It supports both blind and through-hole configurations, provided minimum chamfer depth meets ISO 2768-mK general tolerances. All calibration certificates are traceable to PTB (Physikalisch-Technische Bundesanstalt) via DAkkS-accredited laboratories. The instrument satisfies dimensional verification requirements under ASME B1.1, ISO 9001:2015 Clause 7.1.5, and supports GLP-compliant audit trails when used with JBO’s optional calibration logbook module (JBO-CLM-01). No electrical safety certification (e.g., CE, UL) applies, as the device operates exclusively on passive mechanical displacement principles.

Software & Data Management

While the Model 0021 is a standalone manual instrument, its digital output interface (RS-232 serial port, optional USB adapter kit JBO-USB-02) enables direct data streaming into SPC platforms such as Minitab, InfinityQS, or custom MES systems. Raw depth values are transmitted in ASCII format with timestamp and operator ID fields (when paired with JBO’s optional RFID badge reader). All exported datasets include embedded metadata: gauge ID, calibration due date, probe type, and measurement mode (single-point or multi-point average). Audit-ready reports comply with FDA 21 CFR Part 11 requirements when deployed with JBO’s certified validation package (JBO-VP-0021), including electronic signature capture and immutable change logs.

Applications

• Aerospace: Verification of thread engagement length in titanium landing gear housings per NASM1312-7A torque-tension specifications.
• Automotive: In-process inspection of cylinder head bolt threads (M10×1.25, M12×1.5) prior to torque tightening in engine assembly lines.
• Medical devices: Depth validation of implant-grade stainless steel bone screw threads (ISO 5835) under cleanroom-controlled conditions.
• Energy sector: Field inspection of API 5L pipe coupling threads in offshore drilling equipment, where corrosion-induced thread erosion must be quantified to ≤0.05 mm deviation.
• Toolroom metrology: Calibration transfer standard for setting master thread plug gauges in accredited calibration labs (ISO/IEC 17025).

FAQ

What standards does the JBO Model 0021 comply with for thread depth measurement?
It conforms to ISO 1502, ISO 724, DIN 13, and ASME B1.1 for thread form and dimensional verification; calibration traceability follows ISO/IEC 17025 requirements.
Can the gauge measure tapered threads such as NPT or BSPT?
No—it is designed exclusively for parallel (straight) internal threads; tapered thread measurement requires dedicated taper-thread depth comparators.
Is periodic recalibration required, and what is the recommended interval?
Yes; JBO recommends annual recalibration against certified thread depth masters, or after 5,000 measurement cycles—whichever occurs first—as documented in JBO Technical Bulletin TB-0021-Rev.D.
Does the digital display require battery replacement, and what is the expected service life?
Yes; uses a single CR2032 coin cell with typical operational life exceeding 18 months under standard usage (≤100 measurements/day); low-battery indicator appears 72 hours prior to depletion.
Are replacement probes available for non-standard thread forms (e.g., Acme or Trapezoidal)?
Yes—JBO offers custom probe fabrication upon submission of thread drawing and material specification, subject to minimum order quantity and 8-week lead time.
