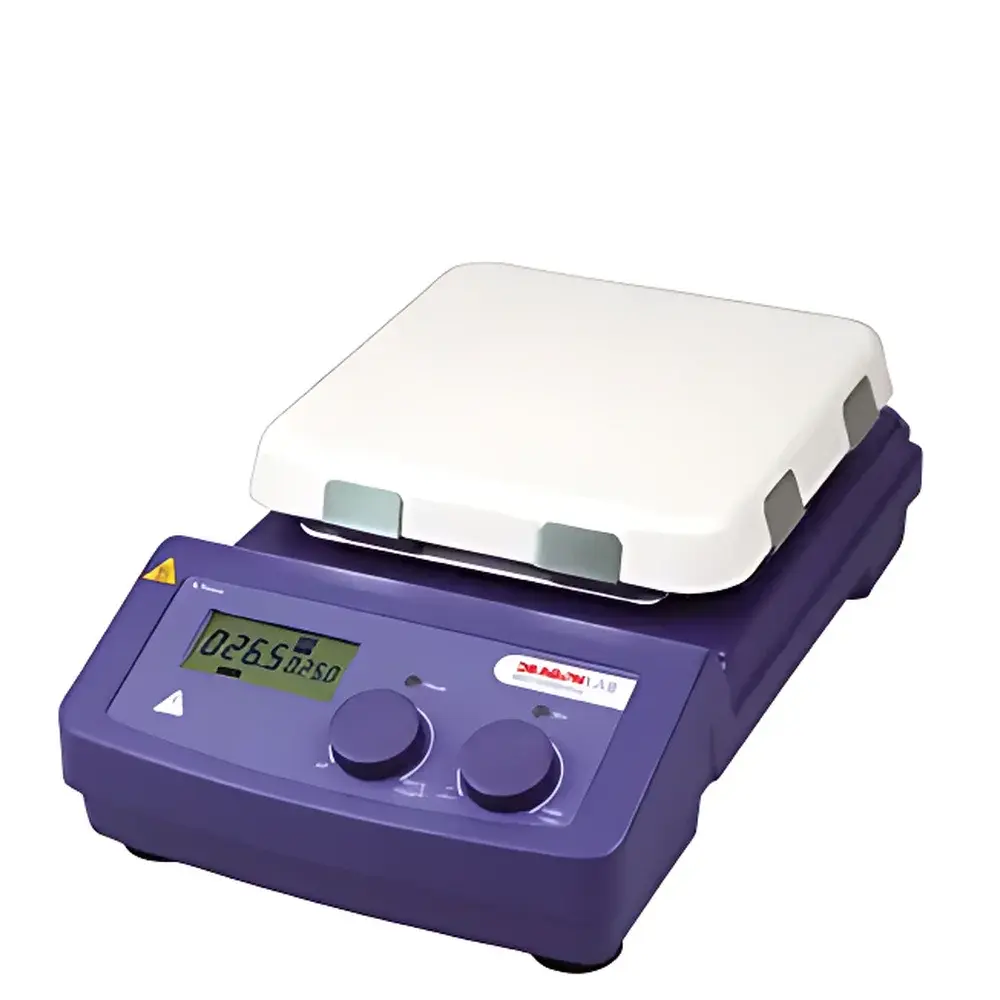

DLAB MS7-H550-Pro LCD Digital Programmable Heating Magnetic Stirrer with 7-inch Square Ceramic Plate

Overview

The DLAB MS7-H550-Pro is a high-performance, programmable heating magnetic stirrer engineered for precision thermal and mechanical control in demanding laboratory environments. Utilizing Couette flow principles, it delivers consistent rotational agitation of low-to-medium viscosity liquids and heterogeneous solid–liquid suspensions—enabling uniform heat distribution and reproducible mixing kinetics. Designed for extended unattended operation, the unit integrates PID-based digital temperature regulation with real-time feedback from either the integrated ceramic plate sensor or an optional external PT1000 probe. Its maximum heating capability of 550 °C supports applications ranging from solvent reflux in organic synthesis to high-temperature catalyst activation and polymerization studies. The device complies with fundamental safety architecture requirements defined in IEC 61010-1 and incorporates redundant thermal protection mechanisms aligned with laboratory risk mitigation protocols.

Key Features

• 7-inch square glass-ceramic top plate (184 × 184 mm) offering exceptional thermal stability, chemical inertness, and ease of decontamination—resistant to concentrated acids, alkalis, and organic solvents.
• Brushless DC motor delivering maintenance-free operation, zero carbon dust generation, and intrinsic spark-free performance—critical for use in flammable vapor environments.
• Dual-mode temperature control: plate-sensor mode (±1 °C accuracy below 100 °C; ±1% above) and external PT1000 probe mode (±0.2 °C accuracy) with plug-and-play connectivity.
• Independent safety circuitry featuring dual overtemperature cutoffs: primary cut-off at 580 °C and residual heat warning activated when surface temperature exceeds 50 °C post-shutdown—even with mains power retained.
• IP21-rated enclosed chassis per DIN EN 60529, preventing ingress of vertically falling droplets and accidental contact with internal components—enhancing operational reliability in wet or corrosive lab settings.
• Backlit LCD interface simultaneously displaying setpoint and real-time values for both speed (100–1500 rpm, ±1 rpm resolution) and temperature (ambient to 550 °C, 1 °C increment).
• RS232 serial port enabling bidirectional communication with host PCs for remote parameter setting, real-time data logging, and integration into automated lab workflows compliant with GLP documentation standards.

Sample Compatibility & Compliance

The MS7-H550-Pro accommodates standard PTFE- or glass-coated magnetic stir bars up to 80 mm in length and 10 mm in diameter, supporting homogeneous mixing of aqueous, organic, and mixed-phase systems up to 20 L volume (water-equivalent). Its inert glass-ceramic surface ensures compatibility with aggressive reagents including hydrofluoric acid (HF), aqua regia, and molten salt media—provided appropriate containment vessels (e.g., quartz, borosilicate, or PFA) are used. Certified to CE, cTUVus, and FCC standards by TÜV Rheinland, the instrument meets essential health and safety requirements under EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). While not intrinsically rated for Class I Div 1 hazardous locations, its brushless motor and sealed enclosure support safe deployment in general chemistry and pharmaceutical QC laboratories operating under ISO/IEC 17025 or FDA 21 CFR Part 11-aligned quality systems.

Software & Data Management

Via the RS232 interface, the MS7-H550-Pro supports ASCII command protocol for integration with custom LabVIEW, Python, or MATLAB scripts—enabling scheduled ramp-soak profiles, time-stamped temperature/speed logging, and export to CSV or Excel formats. No proprietary software is required; terminal emulators (e.g., PuTTY, Tera Term) suffice for basic monitoring. Audit trails generated through external logging satisfy traceability requirements for GMP-regulated processes where equipment calibration status, operator ID, and environmental parameters must be retained for ≥2 years. Firmware updates—distributed as signed HEX files via DLAB’s technical support portal—maintain long-term compatibility with evolving data integrity expectations.

Applications

• Controlled-temperature synthesis of metal–organic frameworks (MOFs) and nanomaterials requiring sustained heating above 400 °C.
• Accelerated stability testing of pharmaceutical formulations under ICH Q1A-recommended thermal stress conditions.
• Preparation of homogeneous catalyst slurries for hydrogenation or cross-coupling reactions.
• Standardized dissolution testing per USP , where precise bath temperature maintenance is critical for release profile reproducibility.
• High-temperature digestion of geological or biological samples prior to ICP-MS analysis.
• Viscosity benchmarking of thermosetting resins during cure-cycle development.

FAQ

Does the MS7-H550-Pro support external temperature feedback during heating-only (non-stirring) operation?
Yes—the PT1000 input remains active regardless of stirring state, allowing accurate sample-core temperature regulation independent of agitation.
Is the RS232 interface optically isolated?
No; it is a standard non-isolated UART interface. For electrically noisy environments, use a USB-to-RS232 adapter with galvanic isolation.
Can the unit be mounted in a fume hood without derating performance?
Yes—its convection-cooled aluminum housing and IP21 rating permit safe installation in ventilated enclosures; however, ambient temperature must remain within 5–40 °C per specification.
What calibration documentation is provided with the instrument?
A factory-issued calibration certificate (traceable to NIM, China) covering speed and plate temperature is included. External PT1000 probes require user-performed or third-party calibration.
Is firmware upgrade capability available for future feature expansion?
Yes—DLAB provides firmware updates through secure download channels, with version history and release notes published in the technical support repository.
