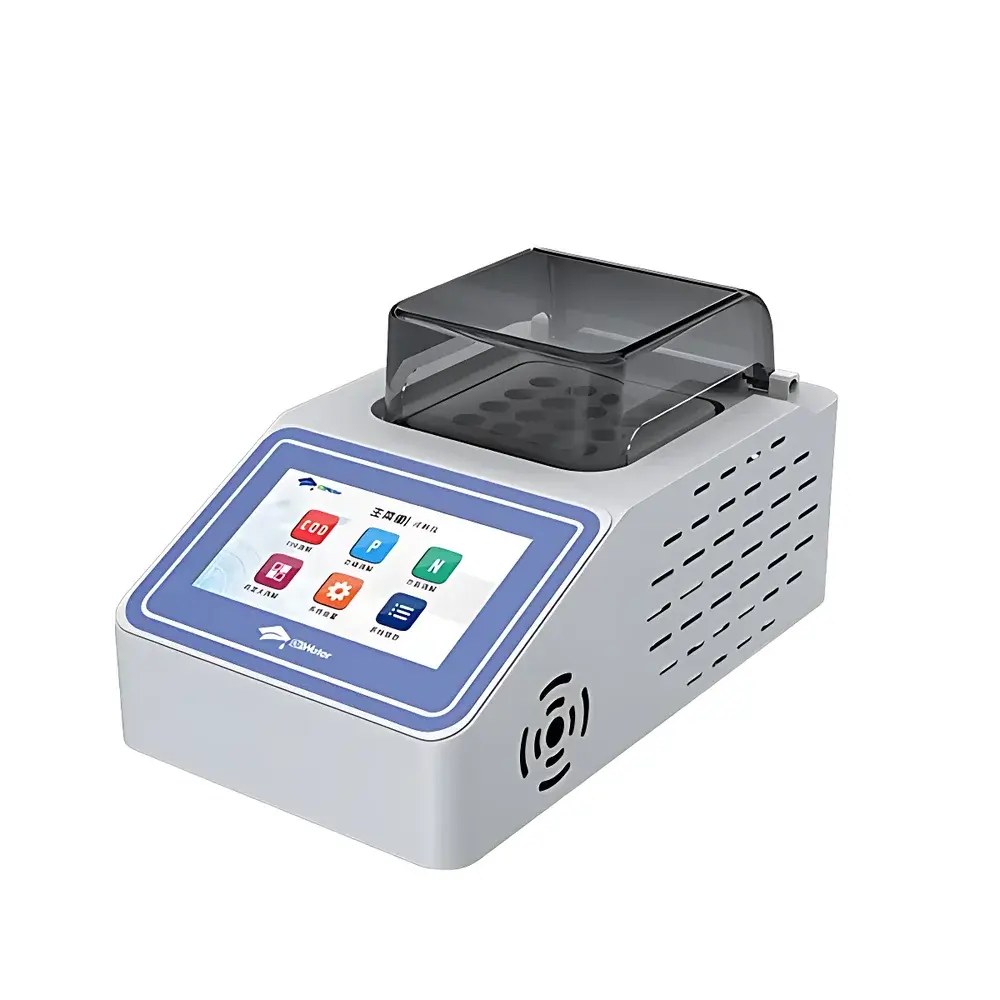

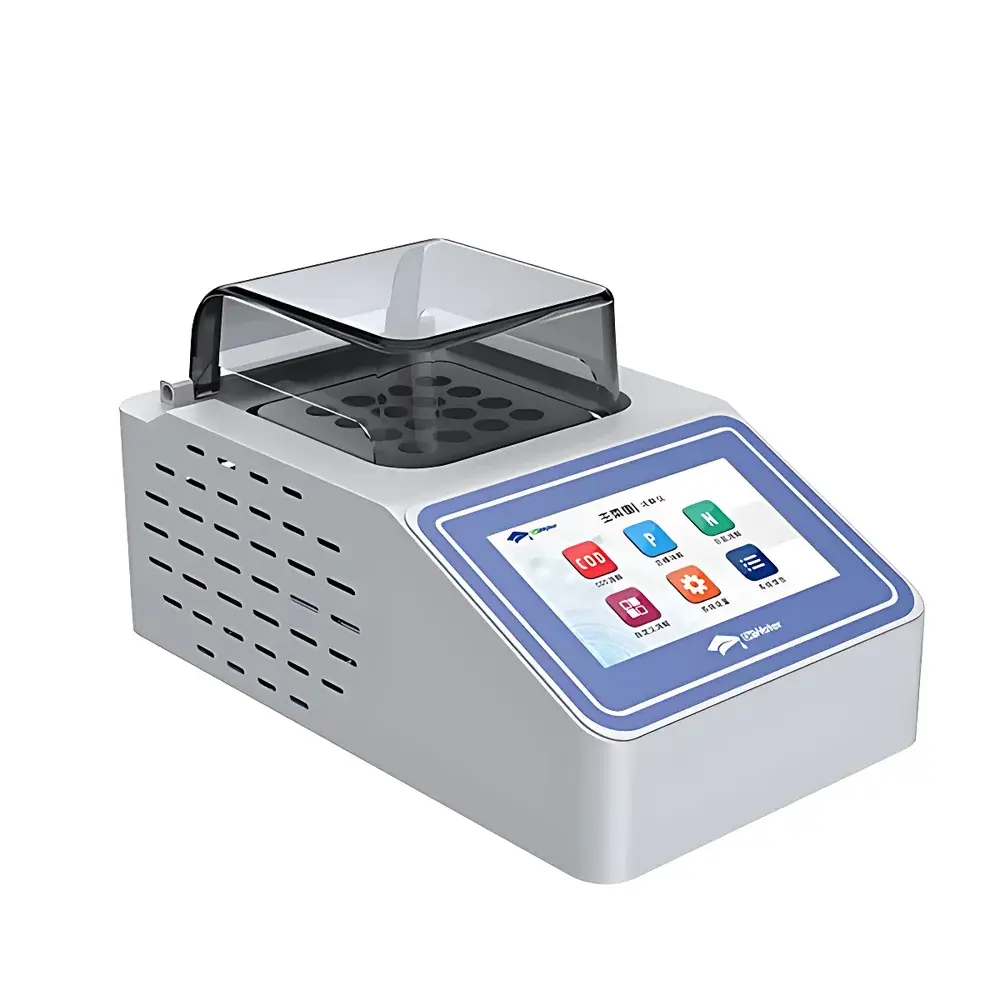

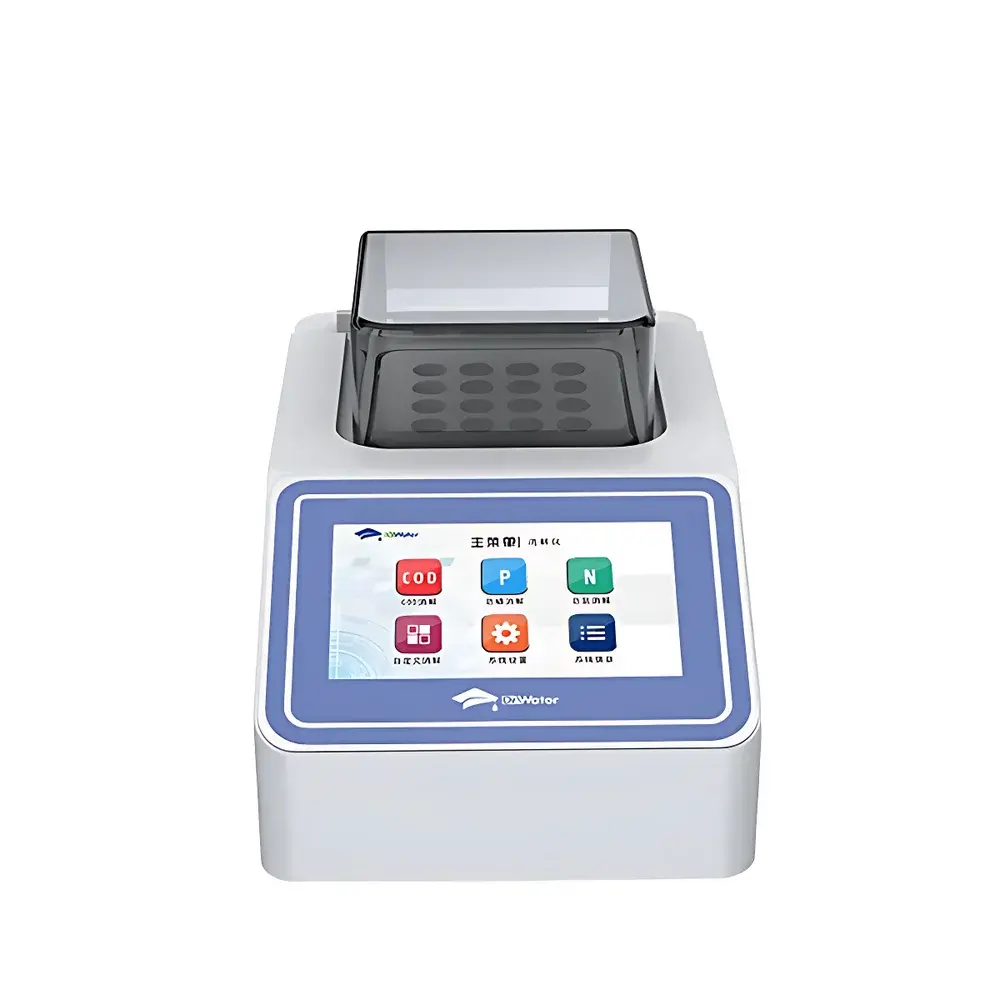

DoctorWater Dr-M16 Advanced Multi-Parameter COD Digestion System

Overview

The DoctorWater Dr-M16 Advanced Multi-Parameter COD Digestion System is a laboratory-grade, programmable thermal digestion platform engineered for reproducible, compliant sample preparation in water quality analysis. It operates on the principle of controlled high-temperature acid digestion—typically using potassium dichromate (for COD), persulfate (for TN), or ammonium molybdate–ascorbic acid (for TP)—to oxidize organic and inorganic analytes into measurable forms. Designed to meet method-specific requirements of ISO 6060 (COD), ISO 11908 (TP), and ISO 11909 (TN), the Dr-M16 delivers precise thermal profiles essential for accurate spectrophotometric or ICP-MS downstream quantification. Its rapid-heating aluminum heating block ensures uniform thermal transfer across all 16 positions, minimizing inter-sample variability—a critical factor in regulatory testing environments where data integrity under GLP or ISO/IEC 17025 frameworks is mandatory.

Key Features

• Intelligent PID temperature control algorithm ensuring stable setpoint maintenance (±2 °C accuracy) and ≤2 °C spatial uniformity across the entire 16-position heating block.

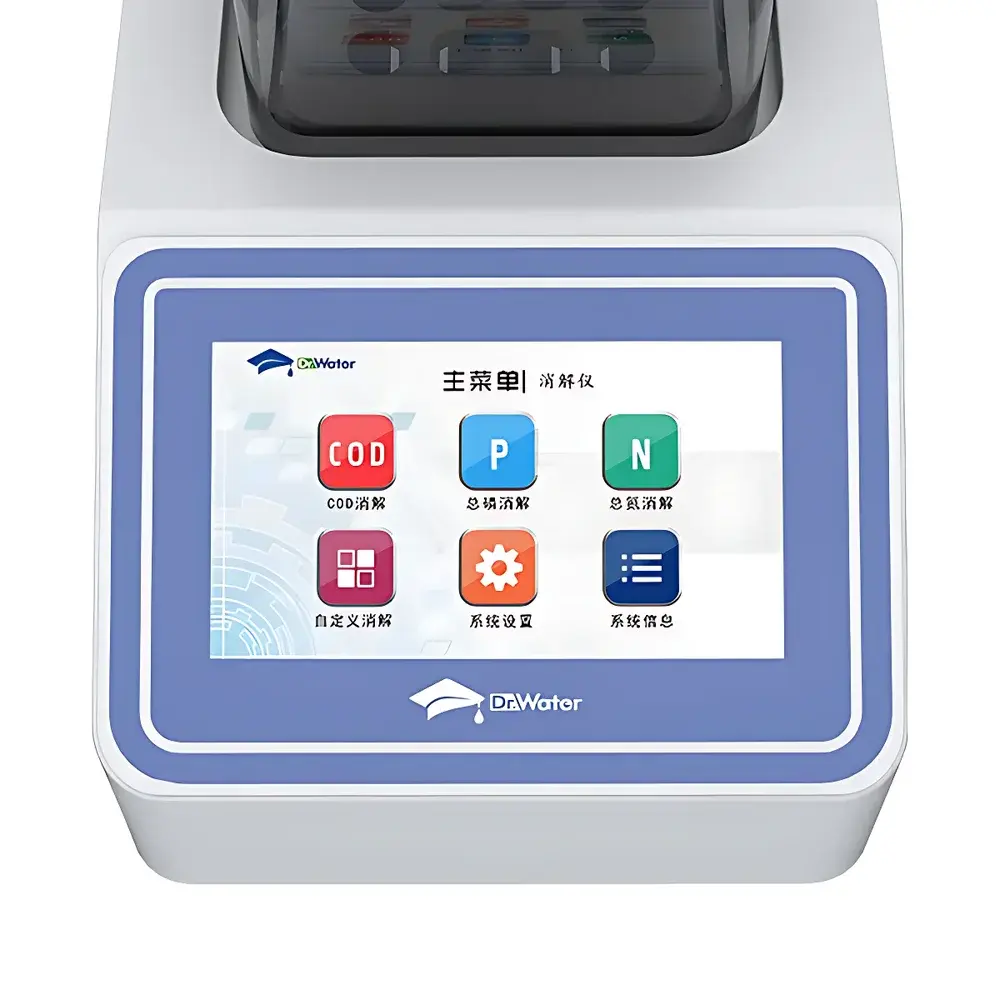

• 7-inch high-resolution color TFT touchscreen with six dedicated capacitive touch modules—enabling one-touch access to preconfigured digestion protocols (COD, TP, TN), timer settings, real-time temperature graphing, and system diagnostics.
• Full-spectrum temperature programming from ambient to 200 °C, with ramp-to-setpoint time ≤10 minutes at 165 °C—optimized for EPA 410.4, ISO 6060, and HJ 828–2017 compliance workflows.
• Dual-stage safety architecture: hardware-based overtemperature cutoff (>210 °C) combined with software-enforced timeout protection and audible/visual alarm triggers for heating completion and thermal excursions.
• Optically transparent borosilicate safety shield with integrated anti-scald insulation layer—permitting unobstructed visual monitoring while meeting IEC 61010-1 Class II electrical safety requirements.
• Modular firmware design supporting field-upgradable methods and language packs—including factory-configured English UI option for international laboratories operating under FDA 21 CFR Part 11 or EU Annex 11-aligned data governance policies.

Sample Compatibility & Compliance

The Dr-M16 accommodates standard 16-mm OD digestion tubes (0–10 mL volume range), compatible with ASTM D1252 (COD), ISO 15681-1 (TP), and ISO 11909 (TN) tube specifications. Its thermal performance has been validated against reference standards traceable to NIM (National Institute of Metrology, China) and aligns with QA/QC expectations for accredited environmental labs. The instrument supports batch processing of heterogeneous matrices—including municipal wastewater, industrial effluents, groundwater, surface water, and treated reuse water—without cross-contamination risk due to isolated tube positioning and non-porous block surface finish. All operational parameters—including temperature setpoints, ramp rates, hold durations, and alarm logs—are timestamped and exportable for audit-ready documentation per ISO/IEC 17025 clause 7.7 and EPA Contract Lab Program (CLP) reporting requirements.

Software & Data Management

While the Dr-M16 operates as a standalone instrument, its embedded firmware records complete thermal event logs—including start time, target temperature, actual block temperature every 5 seconds, timer expiration, and any triggered safety events. These logs are stored internally (≥10,000 cycles) and exportable via USB mass storage mode in CSV format for integration into LIMS or ELN systems. Optional firmware upgrades introduce enhanced data traceability features: electronic signature prompts for method selection, user ID logging per run, and configurable audit trail retention periods. The system meets foundational ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and provides technical readiness for 21 CFR Part 11 compliance when deployed with supplementary procedural controls (e.g., password-protected admin mode, defined role-based access).

Applications

The Dr-M16 serves as a core sample preparation tool across diverse water quality testing domains: routine COD monitoring in municipal wastewater treatment plants (WWTPs); nutrient load assessment (TP/TN) in watershed management programs; regulatory compliance verification for industrial discharge permits (e.g., NPDES, China’s GB 8978–1996); method validation studies in third-party environmental testing labs; and teaching applications in university analytical chemistry and environmental engineering curricula. Its robust construction and corrosion-resistant housing make it suitable for high-humidity environments such as on-site mobile labs, remote monitoring stations, and industrial process control labs in sectors including power generation, pharmaceutical manufacturing, pulp & paper, electroplating, aquaculture, and coal chemical processing.

FAQ

Does the Dr-M16 support custom digestion protocols beyond COD, TP, and TN?
Yes—the instrument allows manual temperature and timer configuration across its full 0–200 °C and 0–24 h ranges, enabling adaptation to mercury digestion (EPA 1631), chloride interference correction (HACH Method 8000), or other non-standard oxidative procedures.
Is the touchscreen interface available in English by default?
No—default firmware uses Simplified Chinese. An English-language UI package is available upon request and can be installed via USB update.
What safety certifications does the Dr-M16 carry?
It complies with IEC 61010-1:2010 for laboratory electrical equipment safety and meets CE marking requirements for EMC (EN 61326-1) and low-voltage directive (2014/35/EU). Full test reports are available under NDA.
Can the Dr-M16 be integrated into a networked lab environment?
Current hardware supports USB-based data export only. Ethernet or Wi-Fi connectivity is not built-in but may be enabled via future firmware expansion modules.
What is the expected service life and calibration interval?
Under normal use (≤8 h/day, ambient conditions), the heating block maintains ±2 °C accuracy for ≥5 years. Annual verification against NIST-traceable RTD probes is recommended per ISO/IEC 17025 Clause 6.4.6.
