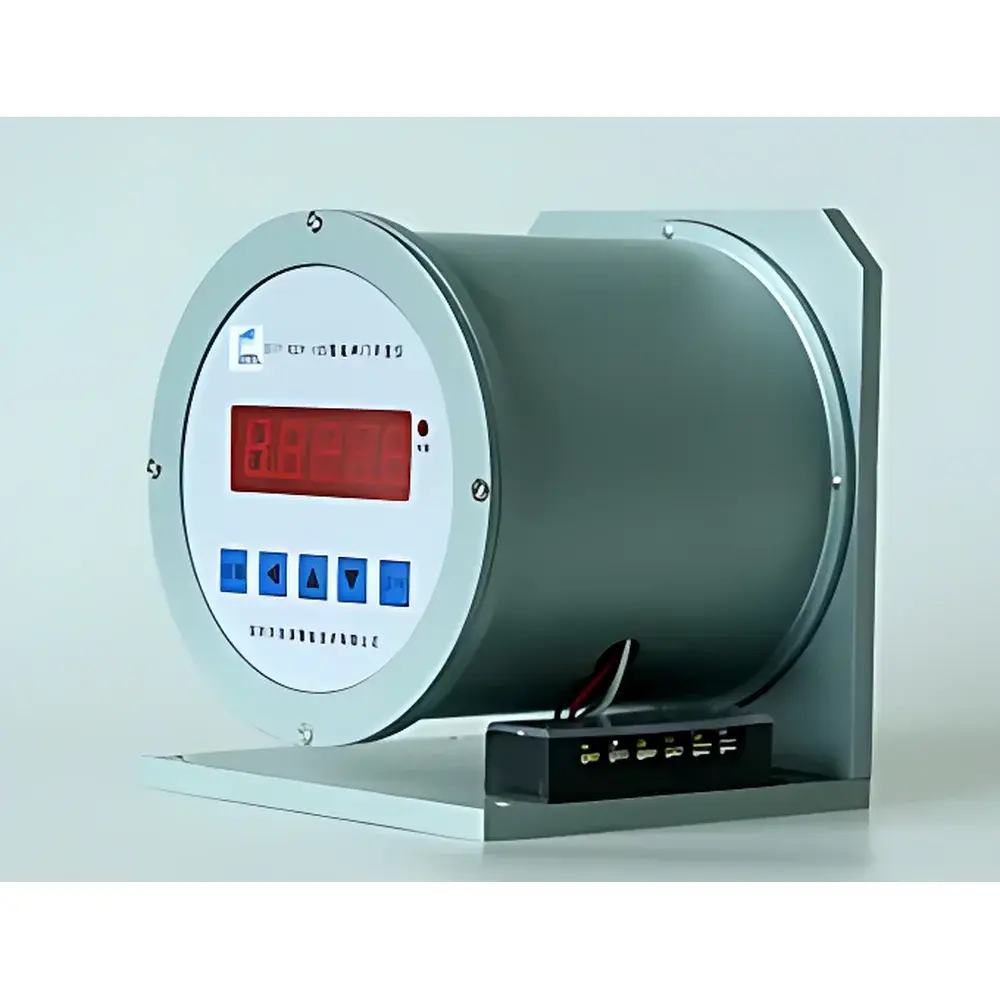

Dongshen Electronics DIT-KDY-125 Intelligent Gate Opening Indicator

Overview

The Dongshen Electronics DIT-KDY-125 Intelligent Gate Opening Indicator is an industrial-grade electromechanical displacement transducer engineered for continuous, absolute-position measurement of sluice gate travel in hydraulic infrastructure. It operates on the principle of rotary-to-linear conversion: via rigid mechanical coupling—typically through a shaft coupler—to the hoist drum or pinion shaft of gate lifting mechanisms, the device translates angular rotation into precise linear displacement data. The core sensing element is a high-reliability, imported multi-turn absolute rotary encoder (512 pulses per revolution, 128-turn capacity), delivering true absolute position without homing or battery backup. This architecture ensures deterministic position reporting at power-up—even after unexpected power loss or mechanical drift—making it suitable for unattended, mission-critical water control applications across floodgates, radial gates, mitre gates, gantry cranes, and bridge-mounted hoists.

Key Features

• True absolute position measurement with non-volatile memory: retains exact gate position during power interruption or mechanical movement
• Dual-layer heavy-duty bearing assembly and hermetically sealed metal housing rated for IP67 environmental protection
• Integrated surge suppression and optical isolation circuitry compliant with IEC 61000-4-5 (surge immunity) and IEC 61000-4-4 (fast transient burst)
• On-device configuration via intuitive keypad interface: supports zero-point assignment, full-scale calibration, direction reversal, and up to 16-segment non-linear compensation curves
• Dual independent output channels: 4–20 mA analog current loop (HART-compatible wiring) and RS-485 serial interface with standard Modbus RTU protocol
• Eight programmable solid-state position switches with adjustable hysteresis (deadband) to prevent chattering near setpoints
• Robust signal integrity design: digital filtering, CRC-based error detection, and redundant power supply rejection

Sample Compatibility & Compliance

The DIT-KDY-125 is compatible with all common gate actuation systems—including electric, hydraulic, and manual hoists—where shaft rotation correlates linearly or non-linearly with gate elevation. Its modular mounting design accommodates direct coupling to drum shafts (Ø20–Ø60 mm), gearmotor output shafts, or auxiliary sprockets. The instrument complies with GB/T 13983–2019 (Chinese national standard for hydraulic gate monitoring devices), and its electrical interfaces meet CE marking requirements for EMC (EN 61326-1) and low-voltage safety (EN 61000-6-2/6-4). While not certified to IEC 61508 SIL or ISO 13849 PL, its architecture supports integration into safety-related control systems when deployed under site-specific functional safety assessments.

Software & Data Management

No proprietary software is required for basic operation; configuration and diagnostics are performed locally via the front-panel keypad and LCD. For system-level integration, the Modbus RTU interface enables seamless connectivity to SCADA platforms (e.g., Siemens WinCC, Rockwell FactoryTalk, Ignition), PLCs (including Allen-Bradley ControlLogix, Schneider M340), and cloud-based water management dashboards. Data logging, alarm thresholds, and switch event timestamps can be retrieved remotely using standard Modbus function codes (03, 04, 06, 16). Audit trails for parameter changes are not natively supported; however, external historian systems may capture all register writes if enabled at the host controller level. The device does not implement FDA 21 CFR Part 11 or electronic signature functionality.

Applications

• Real-time gate opening feedback in flood control structures (e.g., tidal barrages, spillway radial gates)
• Closed-loop position control in automated pump station sluices and intake regulators
• Water level estimation via calibrated gate lift correlation in reservoirs and canal systems
• Condition monitoring and predictive maintenance of hoist gear trains through rotational anomaly detection
• Regulatory compliance reporting for hydropower plant dispatch (e.g., China’s DL/T 5019–2014 guidelines)
• Integration into regional water resource management platforms such as the Yangtze River Commission’s Integrated Hydrological Monitoring System

FAQ

Does the DIT-KDY-125 require periodic recalibration?

No—its absolute multi-turn encoder eliminates drift-related recalibration. However, mechanical coupling alignment and zero-point verification are recommended annually per GB/T 2423.17 salt mist test intervals.
Can it operate in submerged or high-humidity environments?

Yes—the IP67-rated enclosure and conformal-coated PCBs support continuous operation in outdoor pump stations, riverbank installations, and humid tropical climates.
Is Modbus TCP supported?

No—only Modbus RTU over RS-485 physical layer is implemented. A protocol converter is required for TCP/IP networks.
What is the maximum measurable stroke with standard configuration?

With 128-turn encoder capacity and typical gear ratios, strokes up to 10 meters are achievable with sub-millimeter resolution (e.g., 0.39 mm at 10 m range); extended stroke support requires custom gear reduction or encoder selection.
How is electromagnetic compatibility validated?

Test reports per EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) are available upon request from Dongshen Electronics’ technical documentation portal.
