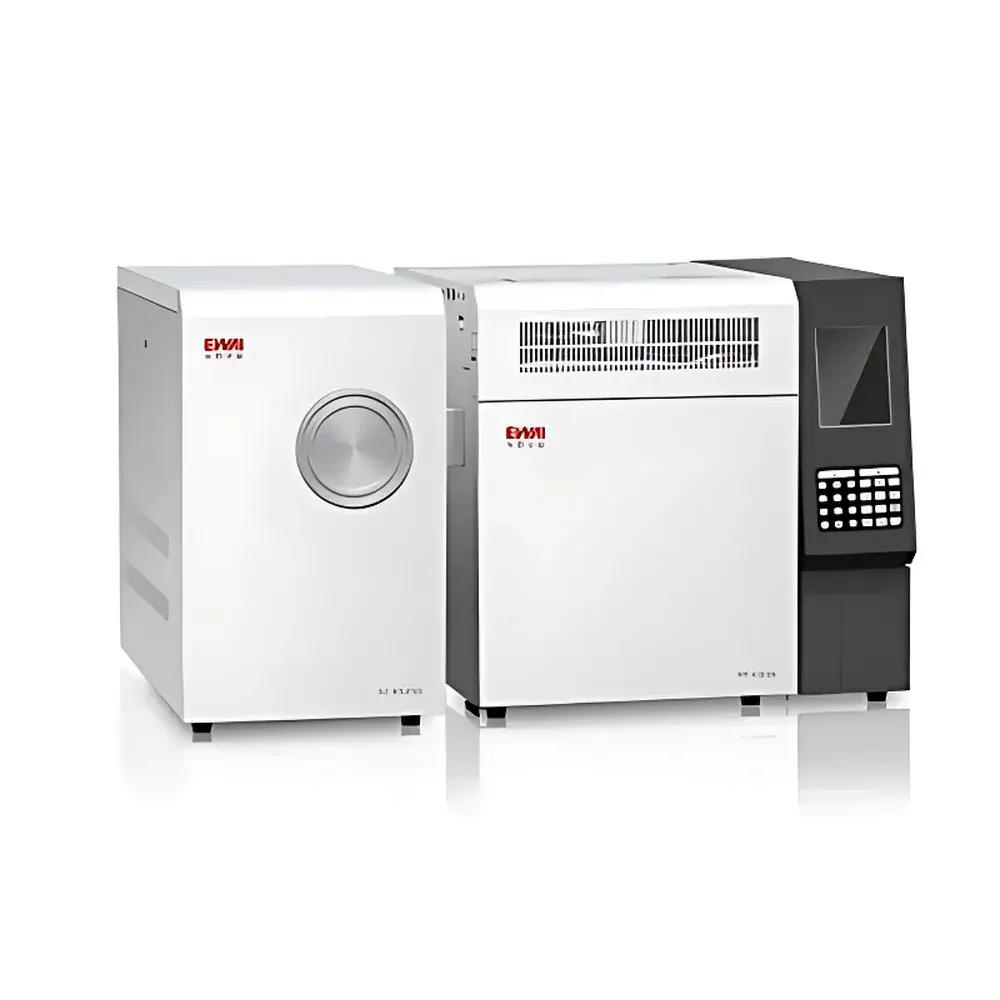

Dongxi Analysis GC-MS3100 Gas Chromatography-Mass Spectrometry System

Overview

The Dongxi Analysis GC-MS3100 is a fully integrated gas chromatography-mass spectrometry (GC-MS) system engineered for routine qualitative identification and quantitative analysis of volatile and semi-volatile organic compounds in complex matrices. As the first commercially deployed GC-MS platform developed and manufactured in China, it implements standard quadrupole mass filtering principles combined with capillary gas chromatographic separation. The system operates under electron ionization (EI) mode by default, supporting both full-scan and selected ion monitoring (SIM) acquisition strategies. Its architecture adheres to fundamental GC-MS operational requirements—including precise temperature-programmed oven control, reproducible injector operation, and stable ion source conditions—ensuring high inter-run reproducibility and method transferability across laboratories.

Key Features

• Single quadrupole mass analyzer with unit mass resolution, optimized for robustness and long-term signal stability under continuous operation.
• Electronic pressure control (EPC) modules for carrier gas (He, H₂, or N₂) delivery, enabling programmable flow/pressure profiles and improved retention time repeatability (RSD < 0.05 min).
• Modular vacuum system architecture: users may select from multiple turbo-molecular pump configurations (e.g., 200–300 L/s) paired with appropriate backing pumps to balance pumping speed, ultimate vacuum (<5 × 10⁻⁶ Torr), and operational cost.
• Ion source design compliant with ASTM E260 and ISO 17025 traceability frameworks; heated transfer line (up to 350 °C) minimizes condensation and improves transmission efficiency for higher-boiling analytes.
• Standard EI ionization with optional chemical ionization (CI) capability via field-upgradeable source module (subject to hardware revision and regulatory validation).

Sample Compatibility & Compliance

The GC-MS3100 accommodates a broad range of sample introduction techniques beyond split/splitless injection, including purge-and-trap (P&T), thermal desorption (TD), static/dynamic headspace, and direct insertion probe (DIP) analysis—enabling trace-level detection in environmental water, soil extracts, food volatiles, polymer leachables, and forensic evidence. All configurations support method development per EPA Methods 502.2, 524.4, 8260D, and 8270E. Data acquisition and processing comply with audit trail requirements aligned with FDA 21 CFR Part 11 when operated with validated software versions and appropriate user access controls. System qualification documentation supports IQ/OQ/PQ protocols required for GLP and GMP environments.

Software & Data Management

The instrument is controlled by Dongxi’s proprietary GC-MS Data System (v3.x), a Windows-based application supporting real-time data acquisition, spectral deconvolution, library searching (NIST MS Search 2.4-compatible), and quantitative report generation. Raw data files adhere to ANDI/NetCDF format for cross-platform compatibility. Software includes built-in calibration curve tools (linear, quadratic, weighted), internal standard normalization, and batch processing workflows. Audit trail logging records all parameter changes, integration edits, and user logins with timestamps. Export options include CSV, PDF, and XML formats suitable for LIMS integration and regulatory submission packages.

Applications

• Environmental testing: PAHs, PCBs, pesticides, chlorinated hydrocarbons, and VOCs in drinking water, wastewater, and solid waste.
• Food safety: Residual solvents, flavor compounds, mycotoxin metabolites, and packaging migration substances.
• Pharmaceutical QC: Residual solvents (ICH Q3C), extractables/leachables profiling, and degradation product identification.
• Forensic toxicology: Detection of drugs of abuse, accelerants, and ignitable liquid residues.
• Polymer and materials science: Monomer purity assessment, additive identification, and thermal decomposition product analysis.

FAQ

Is the GC-MS3100 compliant with international regulatory standards for laboratory accreditation?
Yes—the system supports implementation of ISO/IEC 17025:2017 requirements through documented performance verification, traceable calibration procedures, and software audit trails compatible with GLP/GMP workflows.
Can the instrument be upgraded to support tandem mass spectrometry (GC-MS/MS)?
No—the GC-MS3100 is a single quadrupole platform; GC-MS/MS functionality requires a fundamentally different mass analyzer architecture (e.g., triple quadrupole) and is not retrofittable.
What maintenance intervals are recommended for the ion source and detector?
Ion source cleaning is advised every 2–4 weeks under typical usage; detector replacement is typically required after 1–2 years of continuous operation, depending on total ion current exposure and vacuum integrity.
Does the system support automated method development tools?
It includes gradient optimization utilities for GC parameters (ramp rates, hold times, inlet temperatures) and SIM list generation based on spectral library matches, but does not feature AI-driven retention time prediction or fully autonomous method building.
Are consumables such as columns and septa supplied through global distribution channels?
Yes—standard GC columns (e.g., DB-5ms, HP-5MS), quartz liners, and OEM-certified septa are available via authorized regional distributors and meet ASTM D6299 precision criteria for inter-laboratory comparability.
