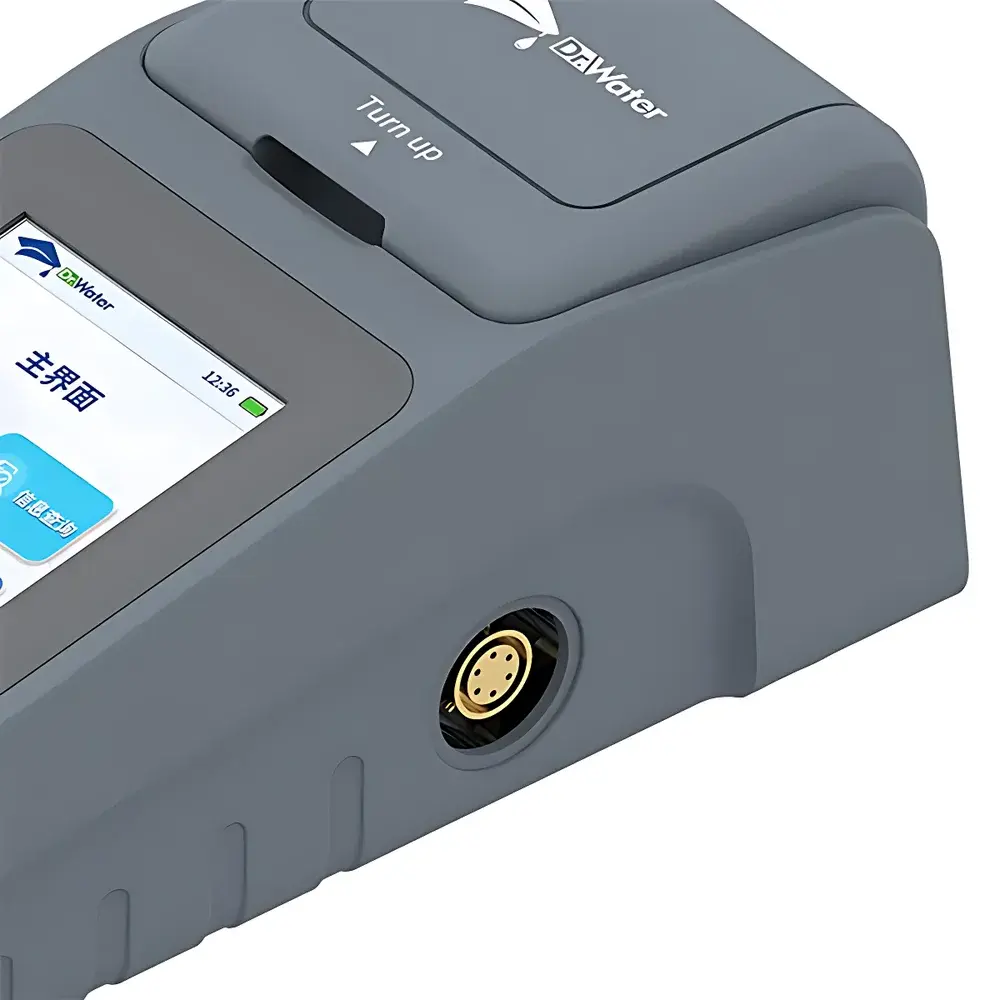

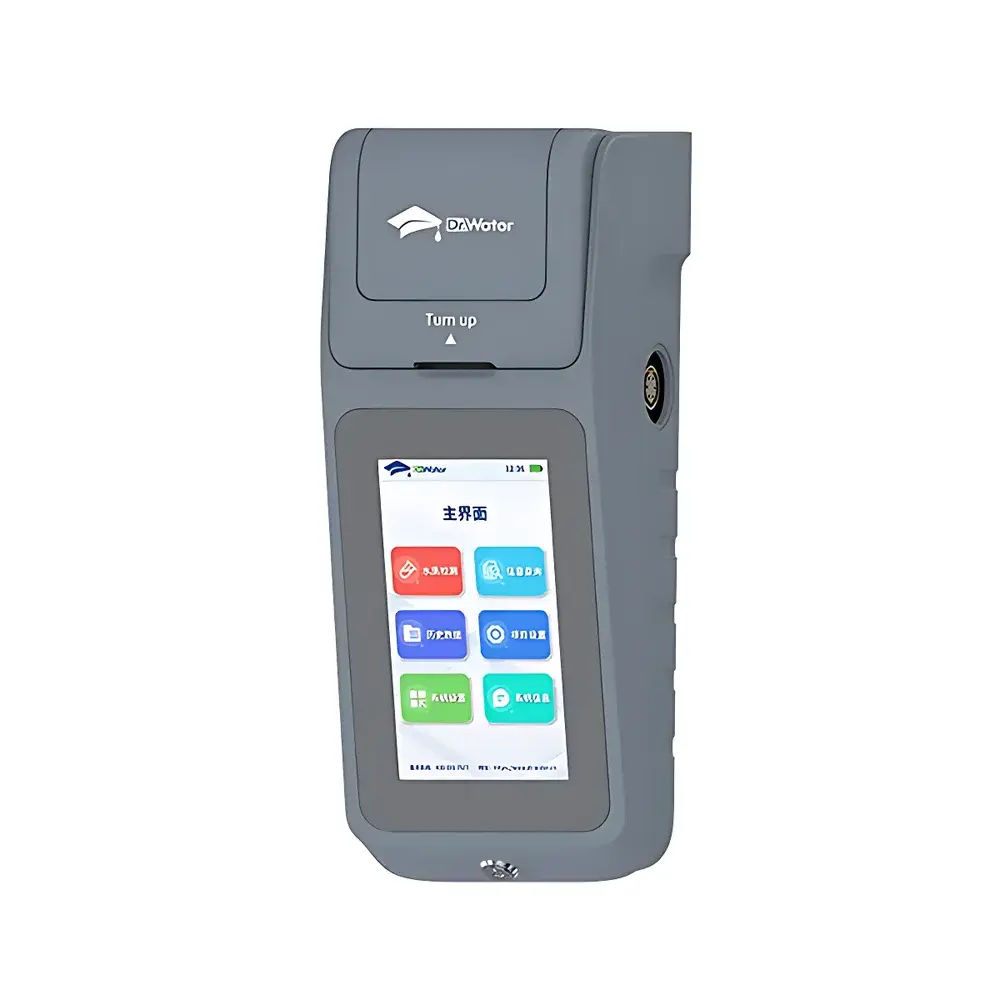

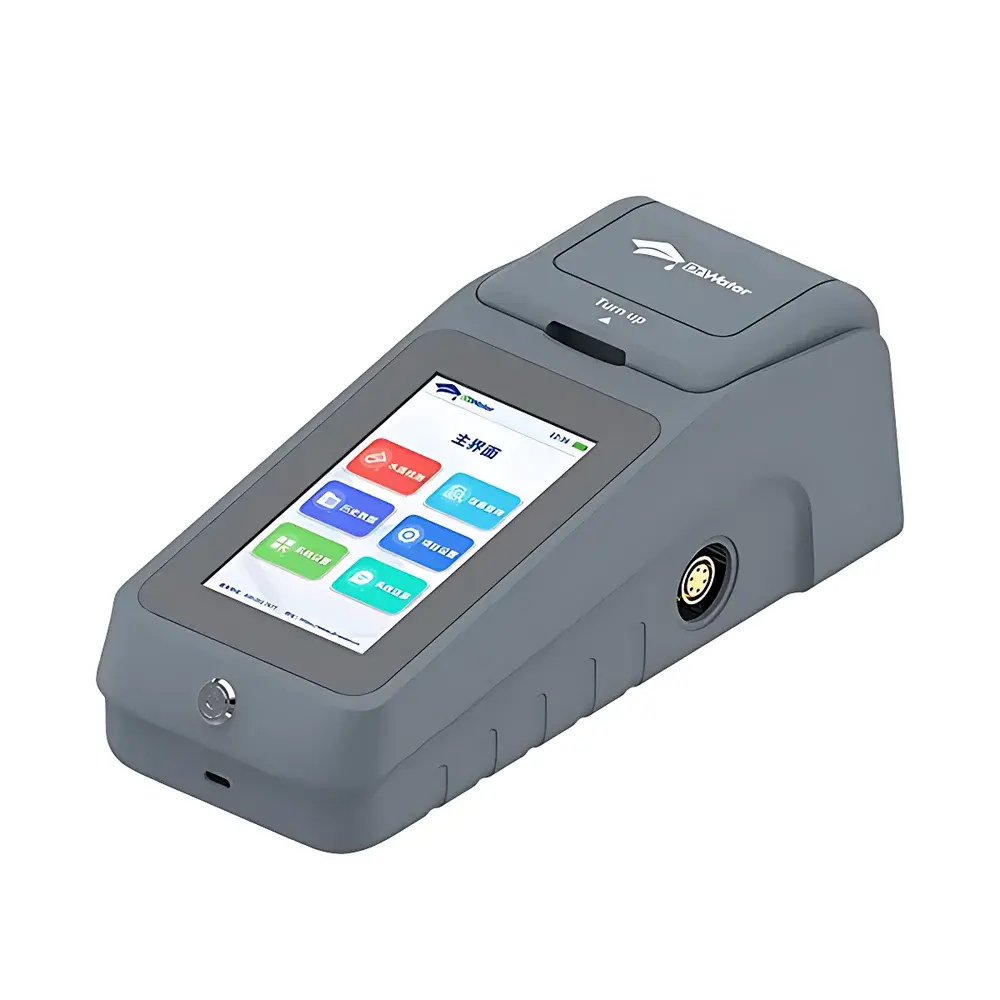

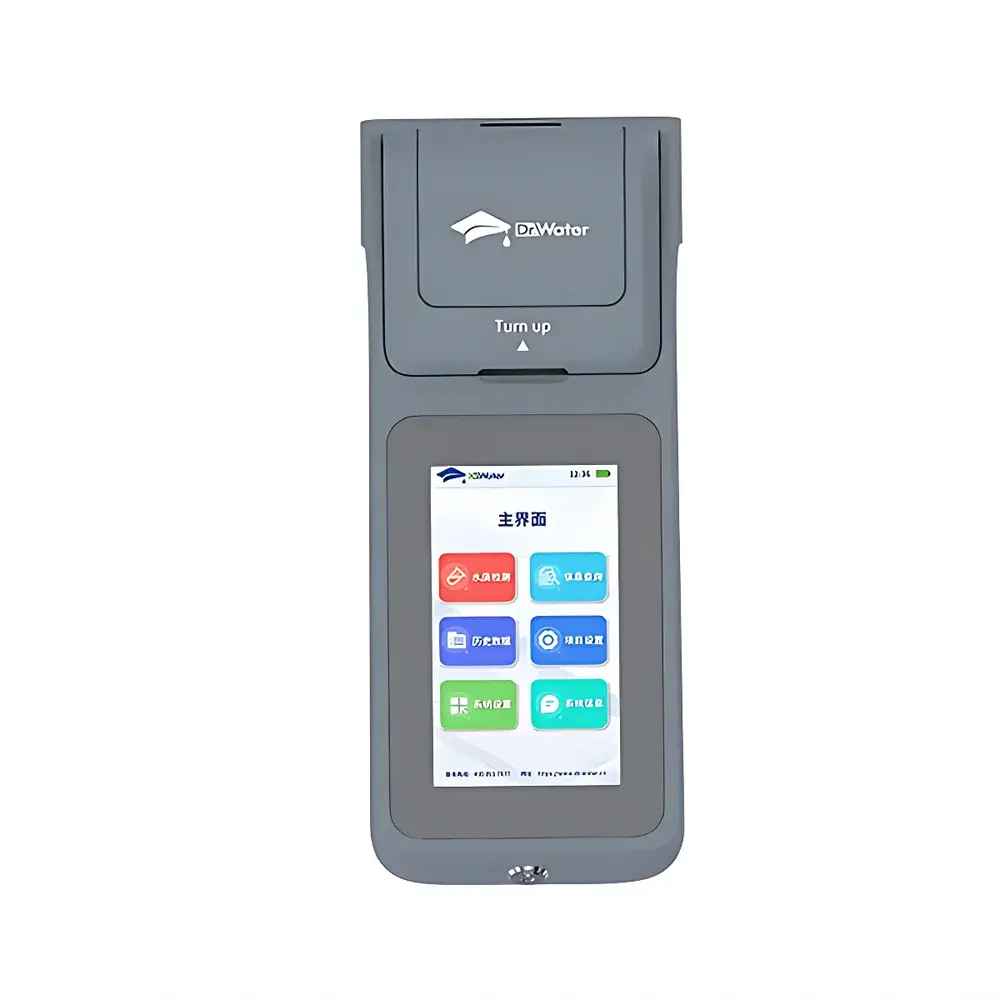

Dr-T9903 Portable Total Phosphorus & Total Nitrogen Analyzer by Doctor Water
| Brand | Doctor Water |
|---|---|
| Origin | Hunan, China |
| Model | Dr-T9903 |
| Instrument Type | Portable/HANDHELD Water Quality Analyzer |
| Detection Principles | Spectrophotometry (Molybdate Blue for Total Phosphorus |
| Measured Parameters | COD, Ammonia-N, Total Phosphorus, Total Nitrogen, Heavy Metals (e.g., Cu²⁺, Pb²⁺, Cd²⁺ via colorimetric kits), pH, Dissolved Oxygen, Conductivity, Turbidity, Temperature, ORP, TDS, Chlorophyll-a, Phycocyanin, SS, Free Chlorine, Oil-in-Water, Salinity, etc. (80+ parameters) |
| COD Range | 2–20,000 mg/L |
| Wavelength Range | 340–900 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | <0.2 nm |
| Spectral Bandwidth | 4 nm |
| Transmittance Error | ±0.5% |
| Transmittance Repeatability | ≤0.2% T |
| Absorbance Resolution | 0.001 Abs |
| Optical Stability | ≤±0.005 Abs/20 min |
| Photometric Repeatability | ≤±2% |
| Photometric Accuracy | ≤±5% |
| Pre-stored Calibration Curves | 600 |
| Data Storage Capacity | 1,000,000 records |
| Power Supply | Rechargeable Li-ion battery + AC adapter |
| Display | 5-inch HD capacitive touchscreen |
| Interface Language | Chinese (English optional) |
| Enclosure Material | Corrosion-resistant ABS |
| IP Rating | IP67-rated carry case included |
Overview
The Dr-T9903 Portable Total Phosphorus & Total Nitrogen Analyzer is an integrated field-deployable water quality testing platform engineered for regulatory compliance and operational flexibility across diverse aquatic environments. It combines dual optical detection architecture—precision spectrophotometry for nutrient quantification (total phosphorus per GB 11893-89, total nitrogen per HJ 636-2012) with electrochemical sensor integration for real-time physicochemical parameter acquisition. Unlike single-principle analyzers, the Dr-T9903 employs a hybrid measurement strategy: photometric analysis using molybdate blue complexation for orthophosphate-derived total phosphorus, and high-temperature alkaline persulfate digestion followed by UV absorption or diazotization-based colorimetry for total nitrogen determination. Simultaneously, its modular electrode interface supports interchangeable probes for pH, ORP, dissolved oxygen (Clark-type), conductivity, and temperature—enabling concurrent multi-parameter profiling without sample splitting or instrument switching. Designed to meet routine monitoring demands under ISO 5667-3, EPA Method 365.4, and China’s HJ/T 399-2007 (COD), the system delivers laboratory-grade data integrity in non-laboratory settings.
Key Features
- Dual-Mode Optical Detection: Supports both 360° rotatable tube-based cuvette measurement and fixed-cell cuvette positioning—minimizing path-length variability and improving reproducibility across heterogeneous field samples.
- Fiber-Optic Spectrophotometric Engine: Equipped with a thermally stabilized cold-light source (≥100,000-hour lifetime) and narrow-band interference filters (FWHM = 4 nm), ensuring long-term spectral fidelity and minimal drift during extended deployments.
- Modular Electrode Bay: Dedicated digital electrode port accommodates calibrated, NIST-traceable sensors with automatic recognition and firmware-matched calibration coefficients—eliminating manual coefficient entry errors.
- Regulatory Curve Library: Preloaded with 600 method-specific calibration curves—including those aligned with GB, HJ, ASTM D1253, ISO 6060, and APHA Standard Methods—enabling rapid method selection and audit-ready traceability.
- Ruggedized Field Architecture: Housed in impact-resistant, chemical-resistant ABS casing; shipped with IP67-rated waterproof transport case featuring acid-resistant foam inserts and shock-absorbing latches for transit over rough terrain or marine vessels.
- Intelligent Power Management: Dual-power operation: integrated 12,000 mAh Li-ion battery (≥12 h continuous use at 25°C) plus universal AC adapter—validated for uninterrupted operation during 48-hr unattended monitoring campaigns.
Sample Compatibility & Compliance
The Dr-T9903 accepts raw, filtered, digested, or preserved aqueous matrices without dilution pre-processing for most parameters. It is validated for direct analysis of municipal wastewater effluent, industrial discharges (textile, electroplating, pharmaceutical), groundwater, surface water (rivers, lakes, reservoirs), aquaculture ponds, and drinking water distribution systems. All optical measurements comply with GLP-aligned data handling protocols: each result includes embedded metadata (operator ID, GPS coordinates, timestamp, ambient temperature/humidity, reagent lot number, and curve version). The instrument satisfies requirements for field use under China’s “Technical Specifications for Environmental Monitoring” (HJ 168-2020), US EPA Region 9 Field Screening Guidance, and ISO/IEC 17025:2017 Clause 7.2.2 for equipment suitability assessment. Optional 21 CFR Part 11-compliant software module enables electronic signatures, audit trails, and role-based access control for regulated laboratories.
Software & Data Management
Data acquisition, visualization, and export are managed via the embedded DrLink™ OS v4.2—supporting concentration, absorbance, and transmittance readout modes with auto-zeroing and background subtraction. All measurements are timestamped and geotagged via optional Bluetooth GNSS receiver. Stored datasets (up to 1 million entries) retain full method context and raw spectral scans (340–900 nm at 1-nm intervals). Export options include CSV, PDF reports (with customizable headers/logos), and direct sync to LIMS via USB mass storage or Bluetooth thermal printer (included). Firmware updates are delivered OTA or via microSD card, with version-controlled rollback capability. Audit logs record all configuration changes, calibration events, and user logins—retained for ≥36 months per internal retention policy.
Applications
- Real-time compliance verification at wastewater treatment plant outfalls per national discharge standards (e.g., GB 18918-2002)
- Source water vulnerability assessments for drinking water utilities conducting phosphorus loading studies
- Industrial pretreatment program audits for electroplating, dyeing, and semiconductor fabrication facilities
- Environmental impact assessments (EIA) requiring spatially dense TN/TP mapping across wetland or estuarine transects
- Educational field labs in environmental science curricula where students perform APHA-standardized analyses
- Emergency response screening during algal bloom events or accidental chemical spills affecting nutrient-sensitive ecosystems
FAQ
Does the Dr-T9903 support third-party reagent kits?
Yes—the system accepts certified commercial reagents meeting ISO 15586 (phosphorus) and ISO 11905-1 (nitrogen) specifications. Users may load custom curve sets via USB, provided they include uncertainty budgets and validation documentation.
Is digestion required for total nitrogen measurement?
Yes—alkaline potassium persulfate digestion is mandatory prior to UV or colorimetric detection. The Dr-T9903 does not include an onboard digester; users must perform off-instrument digestion per HJ 636-2012 or USEPA 351.2 protocols.
Can the instrument be used underwater or submerged?
No—the analyzer itself is not submersible. However, the IP67-rated carrying case protects it during rain, splashing, or temporary immersion up to 1 m for 30 minutes—intended for transport, not operation.
What electrode calibration standards are supported?
NIST-traceable buffer solutions (pH 4.01/7.00/10.01), DO saturation standards (air-saturated water at defined T/P), and conductivity standards (KCl 0.01 M, 0.1 M) are fully compatible. Automatic slope/offset calculation is performed per ISO 7888.
How is measurement uncertainty reported?
Uncertainty is calculated per GUM (JCGM 100:2008) using combined Type A (repeatability) and Type B (calibration certificate, wavelength tolerance, reagent purity) components. Expanded uncertainty (k=2) is displayed alongside each result when enabled in advanced mode.
