Dr-W121 Portable Sulfide Analyzer by DoctorWater

Overview

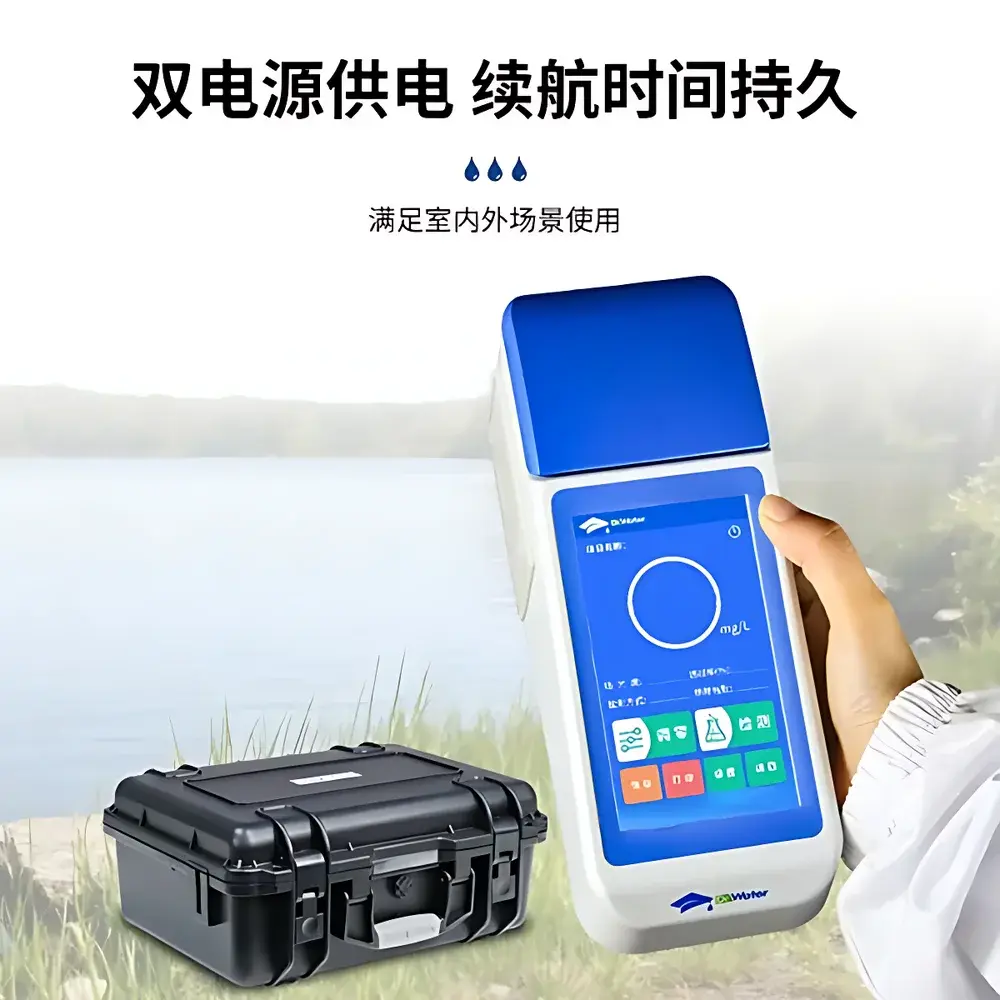

The Dr-W121 Portable Sulfide Analyzer by DoctorWater is a field-deployable photometric instrument engineered for the quantitative determination of dissolved sulfide (S²⁻) in aqueous matrices using standardized colorimetric methods—primarily aligned with Chinese national standards (e.g., HJ 1000–2018, GB/T 5750.5–2006). It operates on the principle of molecular absorption spectrophotometry: sulfide reacts with N,N-dimethyl-p-phenylenediamine under acidic conditions to form methylene blue, whose absorbance is measured at a characteristic wavelength (typically 665 nm). The analyzer integrates an automatic wavelength positioning optical detection system, enabling precise spectral alignment across its full 330–900 nm range without manual calibration drift. Designed for operational robustness in variable environmental conditions, the Dr-W121 features a corrosion-resistant ABS housing, IP67-rated enclosure compatibility (when used with its dedicated waterproof carrying case), and dual-power architecture—supporting uninterrupted operation via internal high-capacity lithium-ion battery or continuous AC supply. Its core function extends beyond sulfide quantification to include turbidity measurement across four configurable modes (standard, low-turbidity, signal averaging, and rapid sedimentation), making it a multi-parameter tool for comprehensive water quality screening in resource-constrained or mobile laboratory settings.

Key Features

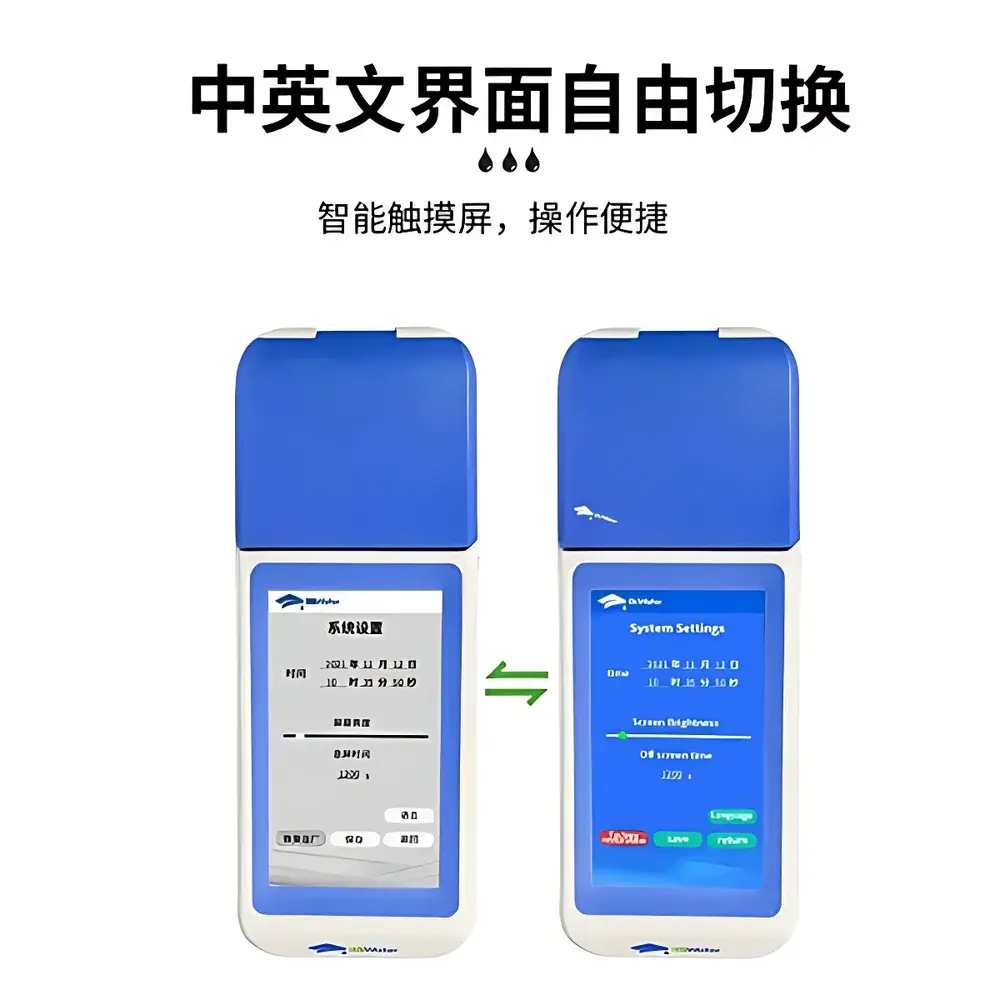

• 5-inch HD color capacitive touchscreen with intuitive UI and seamless toggle between English and Chinese language interfaces
• Integrated initialization stability monitoring: automatically suppresses early-stage photometric fluctuations during warm-up phase
• Dual-algorithm processing engine combining polynomial interpolation and linear/non-linear regression curve fitting to enhance analytical accuracy and inter-batch reproducibility

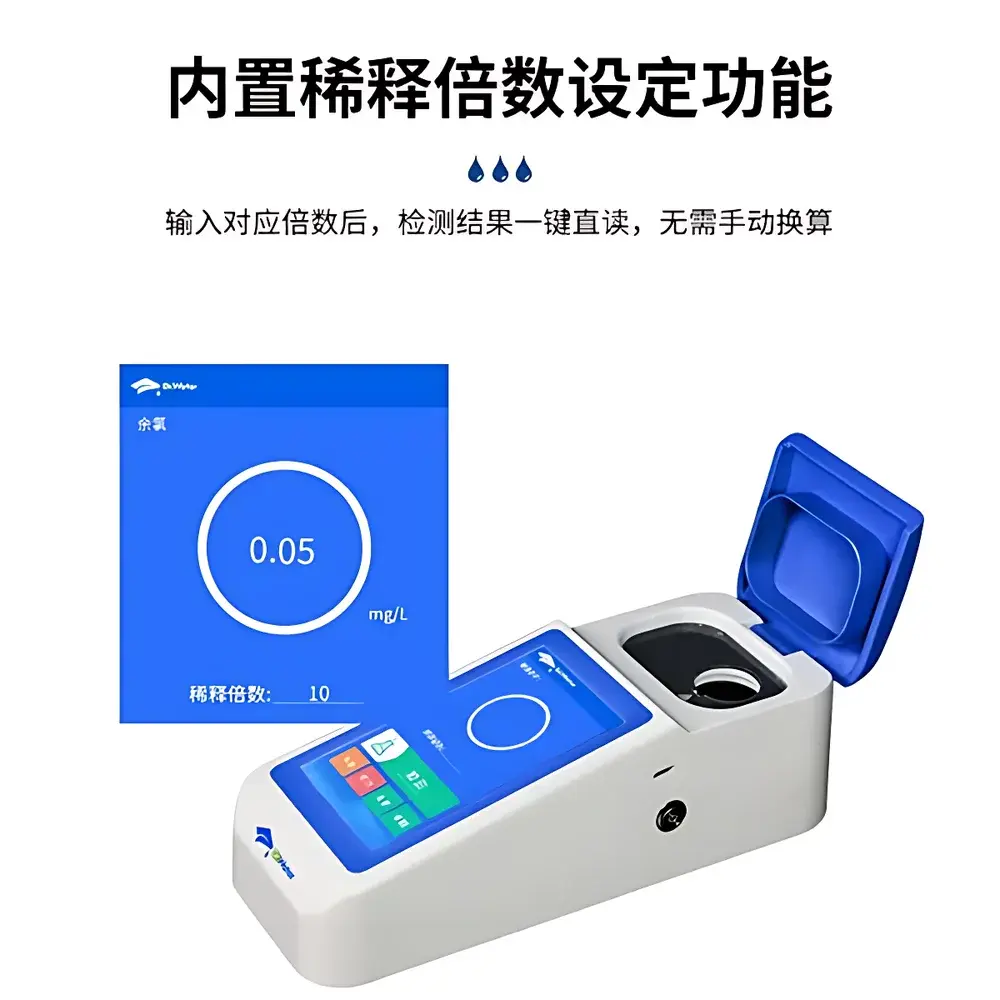

• On-device dilution factor input: direct concentration readout without manual calculation or post-processing
• Programmable timed measurement mode—ideal for unattended batch analysis in remote sampling stations or routine surveillance programs

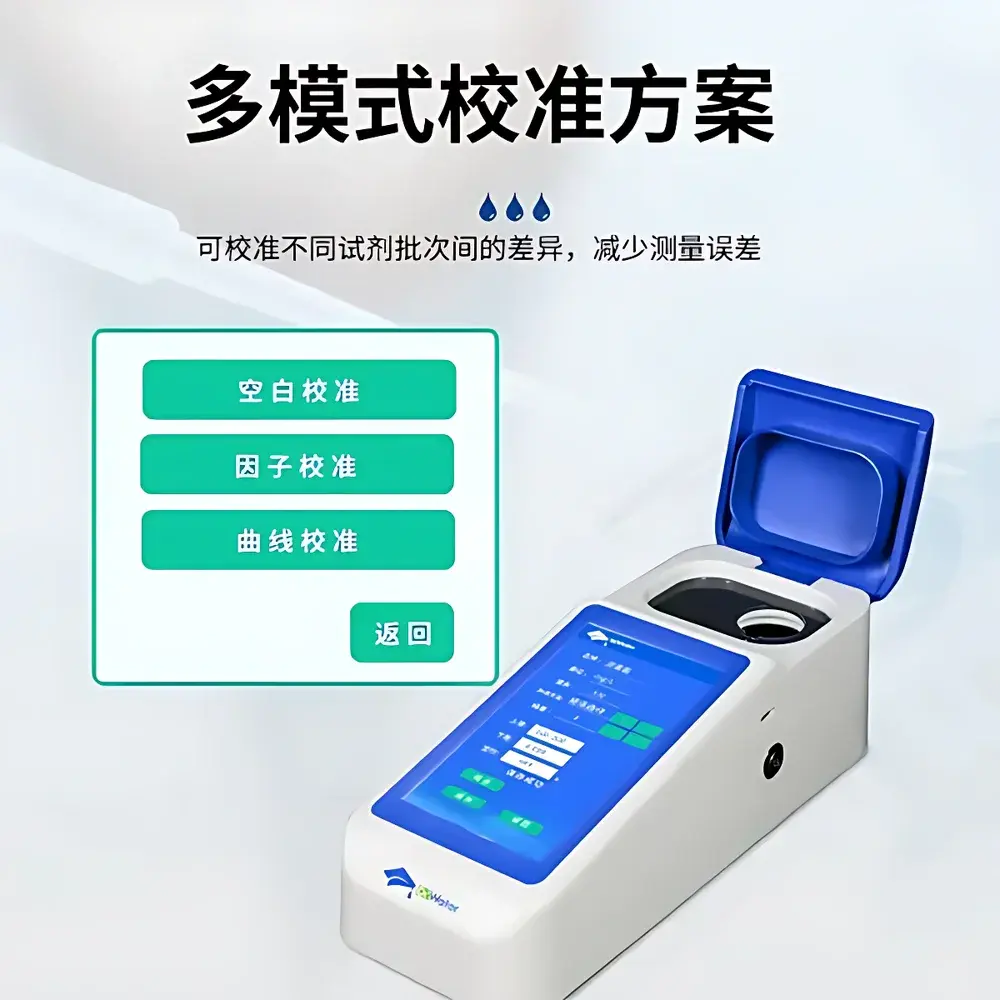

• Triple-mode calibration support: blank correction, factor-based adjustment, and multi-point calibration curve generation—critical for reagent lot traceability and method validation
• User-definable alarm thresholds with visual and audible alerts upon exceedance—enabling real-time compliance flagging per regulatory action levels
• Optical interference compensation algorithm mitigating systematic errors from sample coloration, light scattering, and photodetector signal decay
• Turbidity measurement flexibility: selectable modes optimized for clarity assessment in drinking water, wastewater effluent, and colloidal suspensions
• USB Type-C interface serving dual purpose: high-speed data export and battery charging—eliminating proprietary cable dependencies

Sample Compatibility & Compliance

The Dr-W121 accepts standard 16 mm and 25 mm round glass or quartz cuvettes, compatible with common sulfide digestion and derivatization protocols requiring acidification, distillation, or precipitation pretreatment. It supports both raw and filtered samples, with built-in turbidity correction reducing interference in moderately colored or suspended solids-laden waters. While not certified to ISO/IEC 17025 or ASTM D4129, the instrument’s optical performance parameters—including wavelength accuracy (±5 nm), photometric repeatability (≤±2%), and baseline stability (≤±0.005 Abs/20 min)—meet the technical requirements for field screening applications outlined in EPA Method 376.1 (colorimetric sulfide) and ISO 10523 (pH and related parameters in water). Its design accommodates GLP-aligned workflows through audit-trail-capable data logging, timestamped measurements, and user-accessible calibration history—facilitating documentation for internal quality reviews or regulatory audits.

Software & Data Management

The embedded firmware provides full-cycle data handling: acquisition, storage, retrieval, export, and basic statistical review. All 1,000,000 measurement records are time-stamped, tagged with operator ID (if enabled), and stored with associated calibration metadata (date, method, reference values). Data export occurs via USB Type-C to FAT32-formatted drives in CSV format—ensuring compatibility with LIMS, Excel, or statistical software packages. Internal thermal printer enables immediate hardcopy reporting for field logs or chain-of-custody documentation. No cloud connectivity or remote access is implemented; data sovereignty remains fully local—consistent with institutional cybersecurity policies governing environmental instrumentation. Firmware updates are delivered offline via encrypted USB stick, preserving integrity and traceability.

Applications

The Dr-W121 serves as a primary field tool for sulfide monitoring across municipal water utilities (intake, distribution, reservoirs), wastewater treatment plants (anaerobic digester influent/effluent, sewer network sampling), industrial process water systems (petrochemical, pulp & paper, food & beverage), and environmental agencies conducting surface water and groundwater surveys. Its portability and battery endurance (>12 h typical usage) support extended campaigns in rural or off-grid locations. In pharmaceutical and biotech manufacturing, it aids in verifying sulfide limits in purified water (PW) and water-for-injection (WFI) pre-treatment stages per USP . The turbidity module further extends utility in validating filter integrity and assessing coagulation efficiency during pilot-scale treatment trials.

FAQ

What sulfide detection method does the Dr-W121 implement?
It employs the methylene blue colorimetric method per HJ 1000–2018 and GB/T 5750.5–2006, measuring absorbance at 665 nm following reaction with N,N-dimethyl-p-phenylenediamine.
Is the instrument suitable for use in highly corrosive environments?
Yes—the housing uses chemically resistant ABS polymer, and the optical path is sealed against moisture and acid vapor when operated within its specified ambient temperature (5–40 °C) and humidity (≤85% RH non-condensing) ranges.
Can calibration curves be imported or exported?
Calibration curves are generated and stored internally; they cannot be externally imported but may be exported as part of full dataset CSV files for archival or cross-instrument verification.
Does the device comply with FDA 21 CFR Part 11 requirements?
No—it lacks electronic signature capability, role-based access control, and immutable audit trails required for Part 11 compliance; however, its data structure supports manual audit readiness for regulated environments.
What is the expected lifetime of the light source?
The imported cold LED has a rated operational lifespan exceeding 100,000 hours under nominal duty cycles, minimizing maintenance frequency and photometric drift over time.
