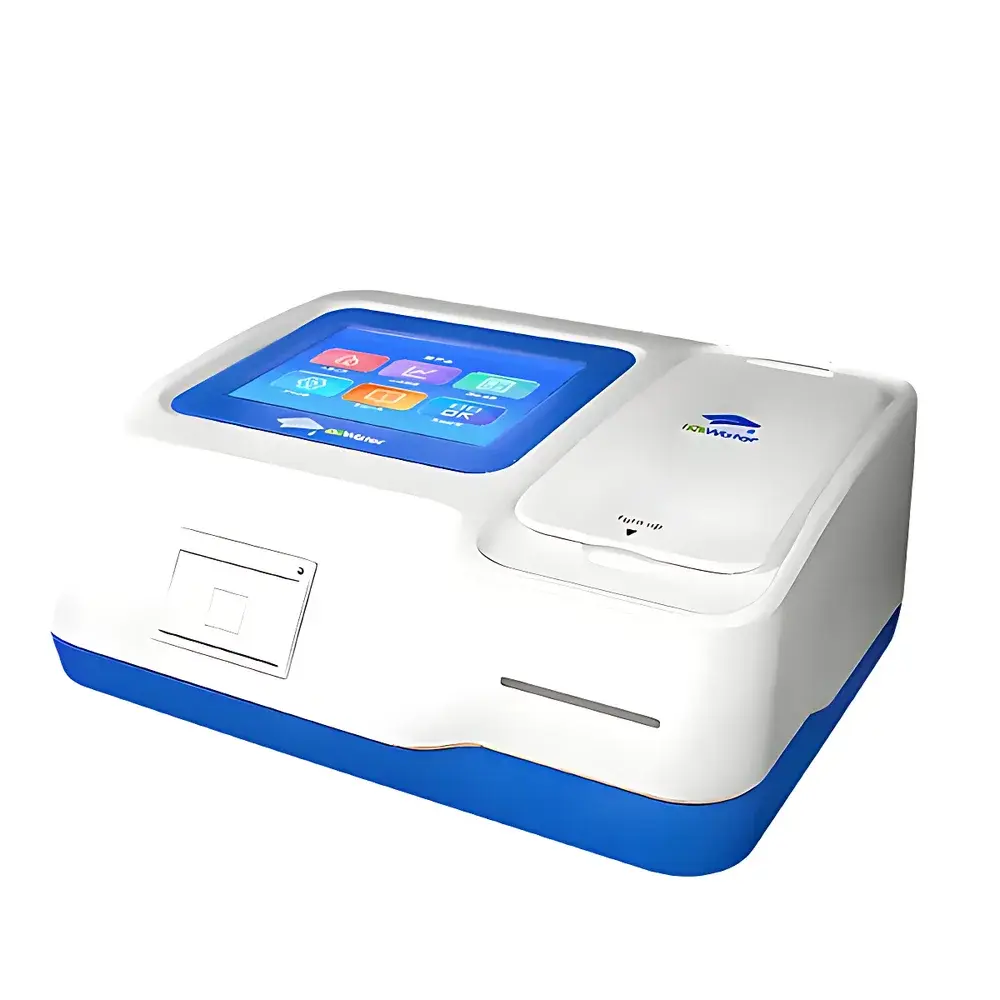

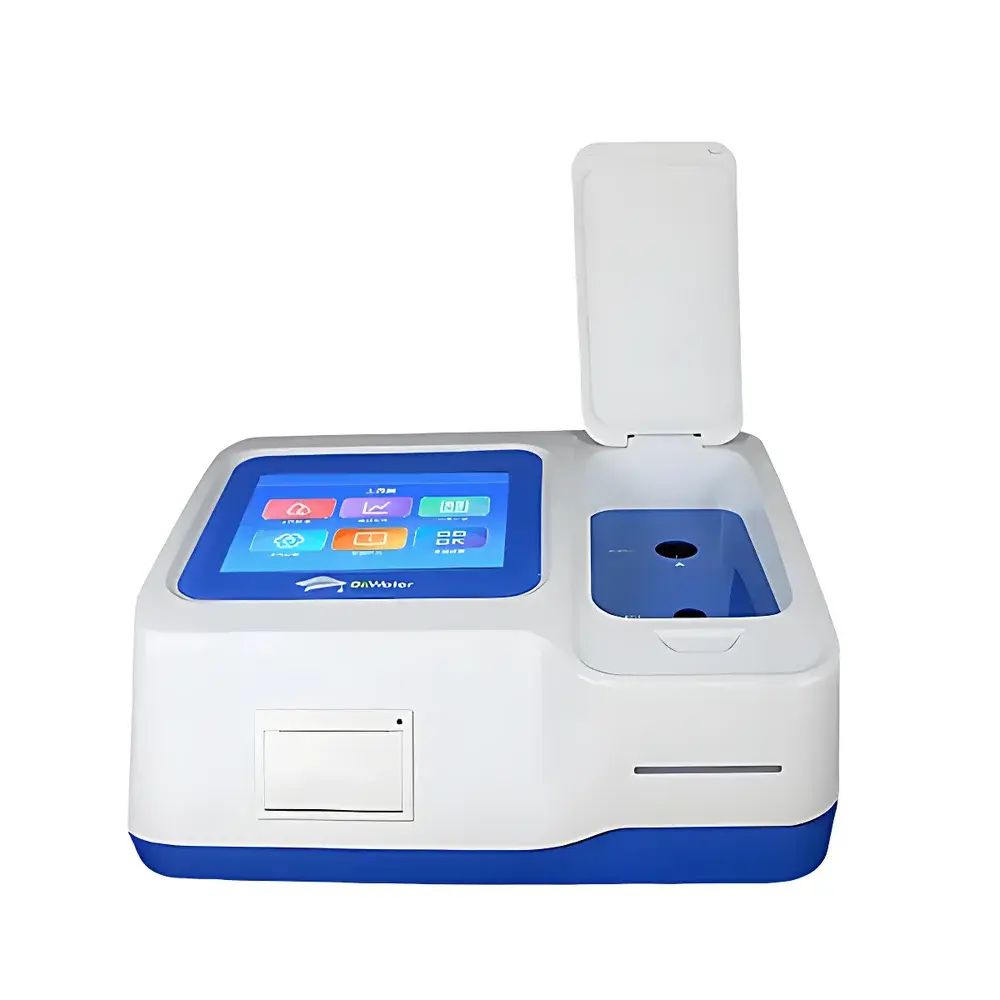

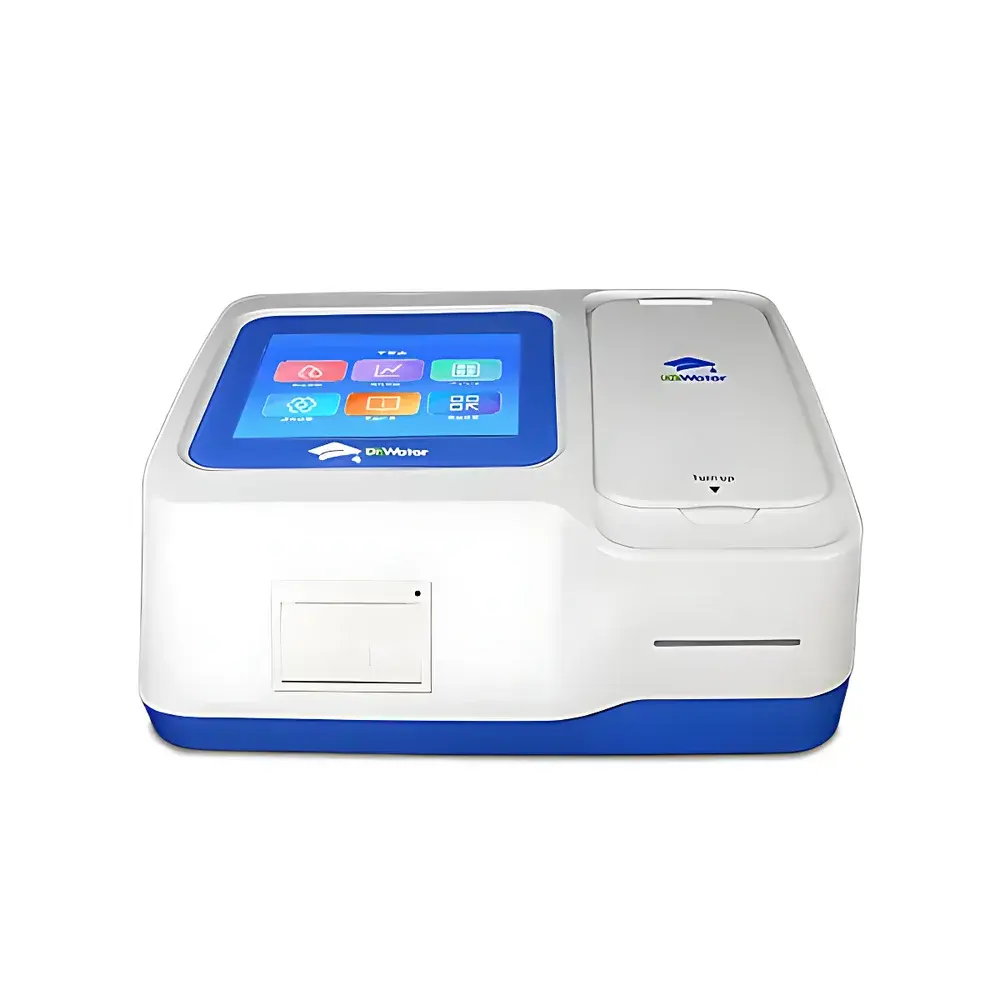

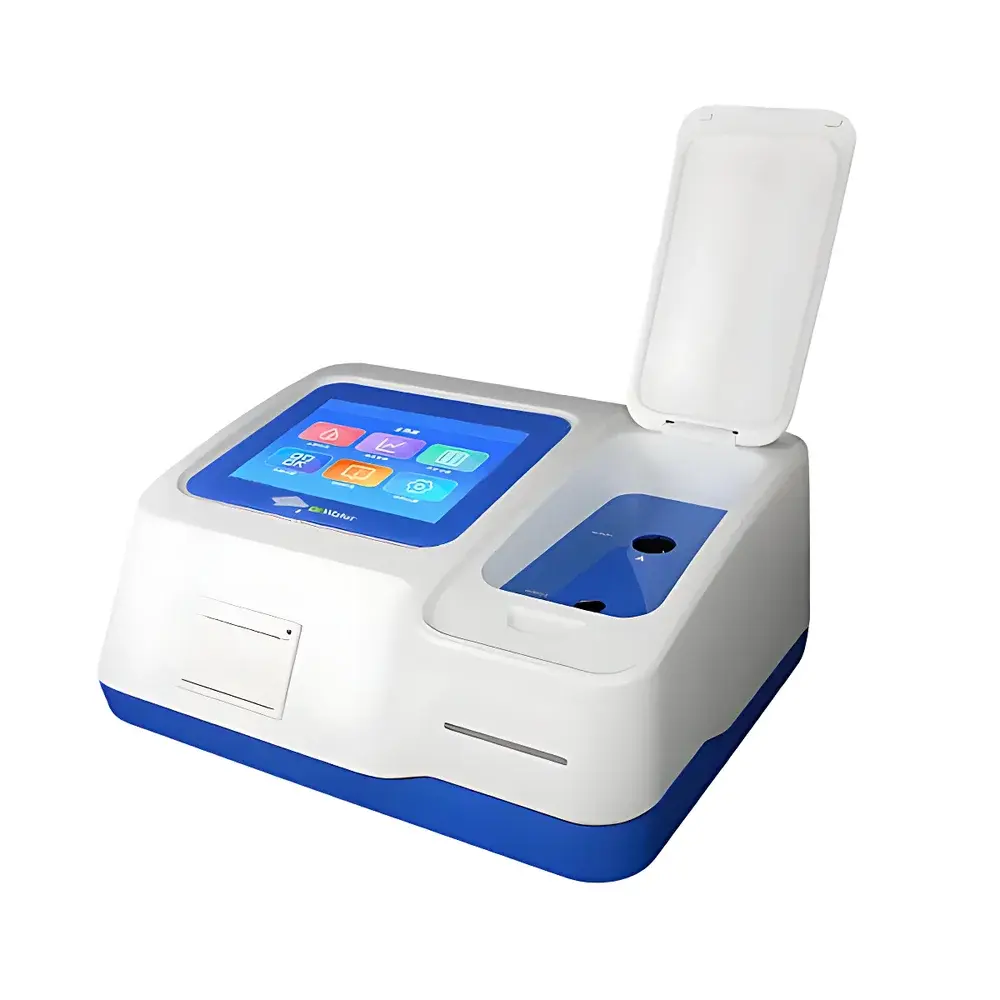

Dr-W510 Water Heavy Metals Analyzer by DoctorWater

Overview

The Dr-W510 Water Heavy Metals Analyzer is a benchtop photometric analyzer engineered for precise, rapid quantification of heavy metal contaminants—including lead (Pb), cadmium (Cd), chromium (Cr), copper (Cu), zinc (Zn), nickel (Ni), arsenic (As), and mercury (Hg)—in aqueous samples. It operates on the principle of absorption spectrophotometry, where metal ions form colored complexes with specific chromogenic reagents; absorbance intensity at defined wavelengths (330–900 nm) is measured and converted to concentration using preloaded or user-defined calibration curves. Designed in accordance with Chinese national standards (e.g., GB/T 5750.6–2023 for metals in drinking water), the instrument integrates optical, electronic, and algorithmic subsystems to deliver laboratory-grade reproducibility in routine environmental and regulatory testing environments.

Key Features

• High-stability optical architecture featuring an imported cold LED light source (rated lifetime ≥100,000 hours) and automatic wavelength positioning system ensures consistent spectral performance over extended operation cycles.
• Dual-sample detection configuration supports both 360° rotatable cuvettes (for uniform path-length alignment and reduced orientation-induced variance) and standardized 25 mm round cuvettes—enabling compatibility with widely adopted EPA, ISO, and GB-compliant test kits.
• Advanced photometric compensation algorithms mitigate interference from sample turbidity, coloration, and photometric drift—critical for real-world water matrices such as surface water, wastewater effluent, and industrial process streams.
• Triple calibration methodology—blank, factor, and full curve calibration—accommodates inter-batch reagent variability and enables traceable method validation under GLP-aligned workflows.
• Onboard dilution factor input allows direct concentration readout without manual calculation, reducing operator error and supporting compliance with ISO/IEC 17025 clause 7.7 on result reporting.
• Programmable timed analysis mode facilitates unattended batch processing; ideal for high-throughput QC labs operating under fixed shift schedules or remote monitoring protocols.
• Thermal printer integration provides immediate hard-copy documentation with timestamp, sample ID, method name, and calibration status—supporting audit readiness for environmental agencies and certified laboratories.

Sample Compatibility & Compliance

The Dr-W510 accommodates clarified, filtered, or digested aqueous samples across diverse matrices: potable water, groundwater, municipal wastewater, beverage production water, pharmaceutical process water, and industrial cooling/boiler feedwater. Its optical design meets ASTM D1293 (pH and conductivity interference mitigation), ISO 7027 (turbidity measurement modes), and GB/T 5750 series requirements for spectrophotometric metal analysis. While not FDA 21 CFR Part 11–compliant out-of-the-box, its audit trail–capable data logging (with user login, timestamped actions, and immutable record storage) aligns with foundational GMP/GLP documentation expectations for non-regulated but quality-critical applications.

Software & Data Management

The embedded firmware supports dual-language UI (English/Chinese), real-time absorbance and concentration display, and hierarchical data management: 1,000,000 measurement records are stored locally with searchable metadata (date/time, operator ID, method ID, calibration ID). USB export enables seamless transfer to LIMS or Excel-based QA review. All calibration events, blank corrections, and dilution inputs are logged with digital timestamps—providing a defensible chain of custody for internal audits or third-party accreditation assessments (e.g., CNAS, CMA).

Applications

• Drinking water safety screening in municipal utilities and rural water supply systems
• Compliance verification for discharge permits (e.g., EPA NPDES, China’s “Zero Discharge” policy)
• In-process monitoring in pharmaceutical water-for-injection (WFI) loops and clean steam condensate lines
• Raw material water qualification in food & beverage manufacturing (e.g., soft drink concentrates, dairy processing)
• Environmental field lab support for soil leachate and sediment pore-water analysis (when paired with EPA Method 3050B digestion)
• Academic research on metal speciation kinetics and adsorption isotherms in engineered treatment systems

FAQ

Does the Dr-W510 support method validation per ISO/IEC 17025?
Yes—its traceable calibration logs, repeatability metrics (≤±2%), and documented uncertainty contributors (wavelength accuracy ±5 nm, absorbance resolution 0.001 Abs) provide foundational evidence for method validation under Clause 7.2.
Can custom calibration curves be imported or edited?
Yes—users may define up to 10 independent calibration curves per parameter, including polynomial and linear regression models, with editable slope, intercept, and R² thresholds.
Is the instrument suitable for on-site use outside the lab?
It is designed as a benchtop unit requiring stable AC power and ambient temperature control (10–35°C); portable deployment is feasible only with auxiliary power conditioning and climate stabilization.
What reagent kits are compatible with the Dr-W510?
All GB/T 5750.6–2023–certified chromogenic kits for heavy metals—including dithizone (Pb, Cd), diphenylcarbazide (Cr), neocuproine (Cu), and PAN (Ni, Co)—are fully supported when used with recommended cuvette geometry and reaction timing.
How is optical drift compensated during long-term operation?
The system performs automatic baseline stabilization during startup and executes periodic dark-current correction during idle intervals, maintaining ≤±0.005 Abs optical drift over 20-minute windows.
