Dr-Water Dr-W100 Multi-Parameter Water Quality Analyzer

Overview

The Dr-Water Dr-W100 Multi-Parameter Water Quality Analyzer is a field-deployable, spectrophotometric instrument engineered for simultaneous quantification of up to 11 critical water quality parameters—including turbidity, color, free chlorine, chlorine dioxide, total hardness, permanganate index (COD_Mn), ammonia nitrogen, ozone, urea, iron, and manganese. It operates on standardized photometric principles compliant with Chinese national standards (e.g., GB/T 5750, HJ series methods), leveraging a precision optical detection system with auto-wavelength positioning across a broad spectral range (330–900 nm). Its dual-range turbidity measurement capability (0–20 NTU, 0–200 NTU, and 0–1000 NTU), combined with four dedicated turbidity acquisition modes—standard, low-turbidity, signal-averaging, and rapid sedimentation—enables methodologically appropriate analysis across diverse sample matrices, from potable water to industrial effluents. Designed for operational continuity in variable environments, the Dr-W100 integrates a high-stability cold LED light source (>100,000 h lifetime), corrosion-resistant ABS housing, and IP67-rated portable case for field resilience.

Key Features

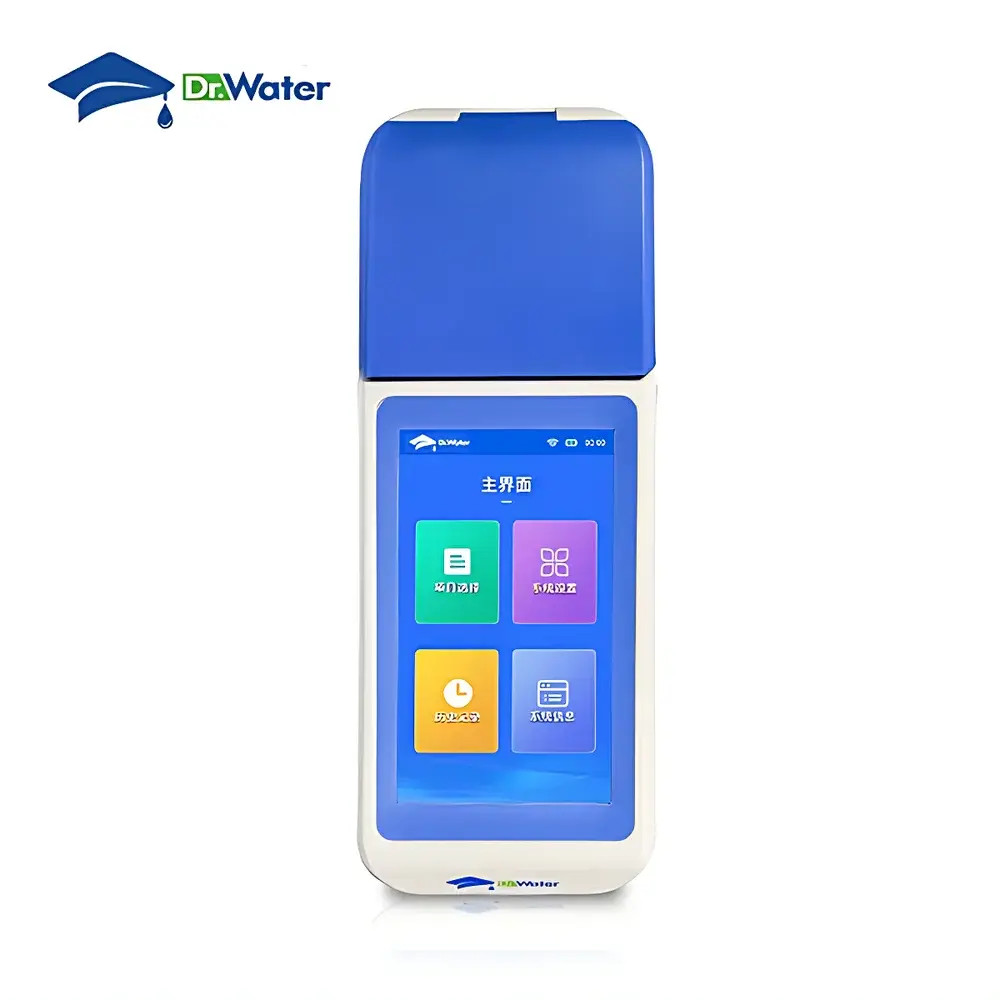

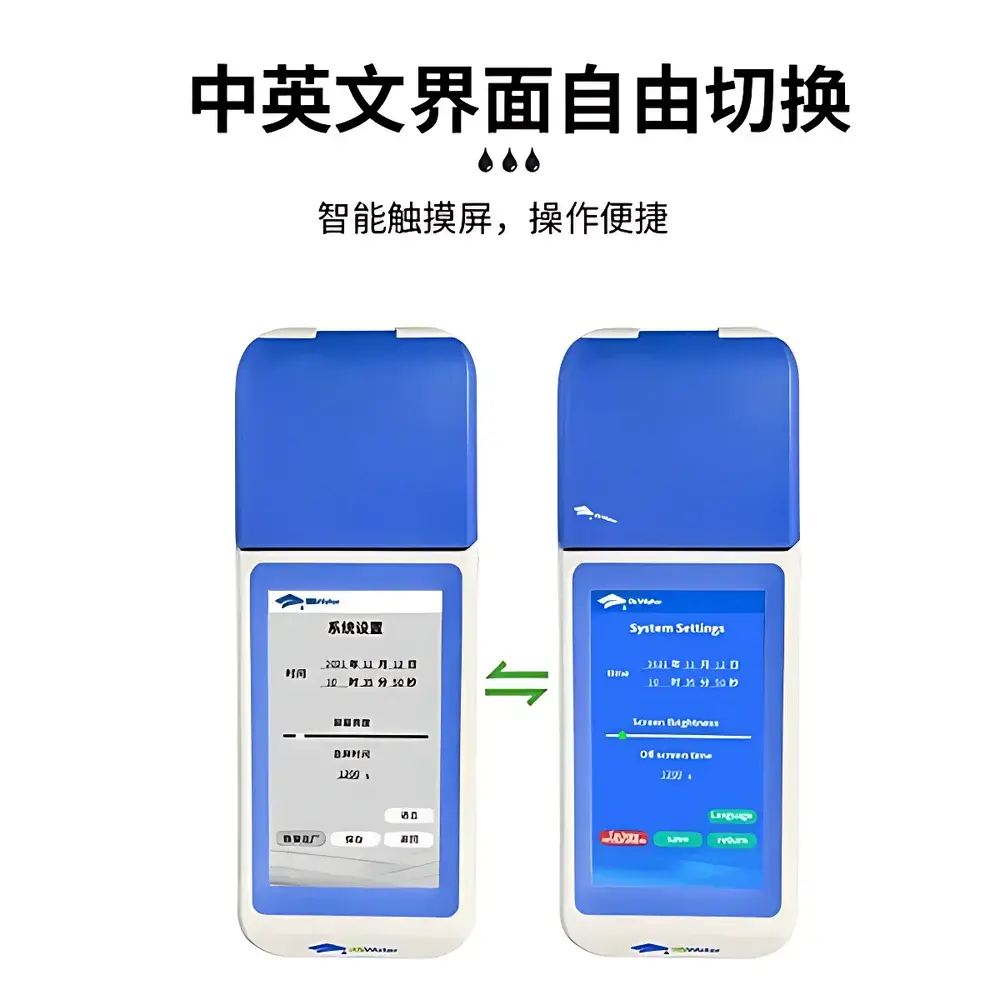

• 5-inch HD color capacitive touchscreen with intuitive UI supporting seamless switching between English and Chinese language interfaces
• Dual-core algorithm architecture combining interpolation and regression curve fitting to enhance analytical accuracy and minimize inter-batch reagent variability
• Integrated initialization stability check that suppresses transient optical drift during warm-up, ensuring reliable first-read measurements

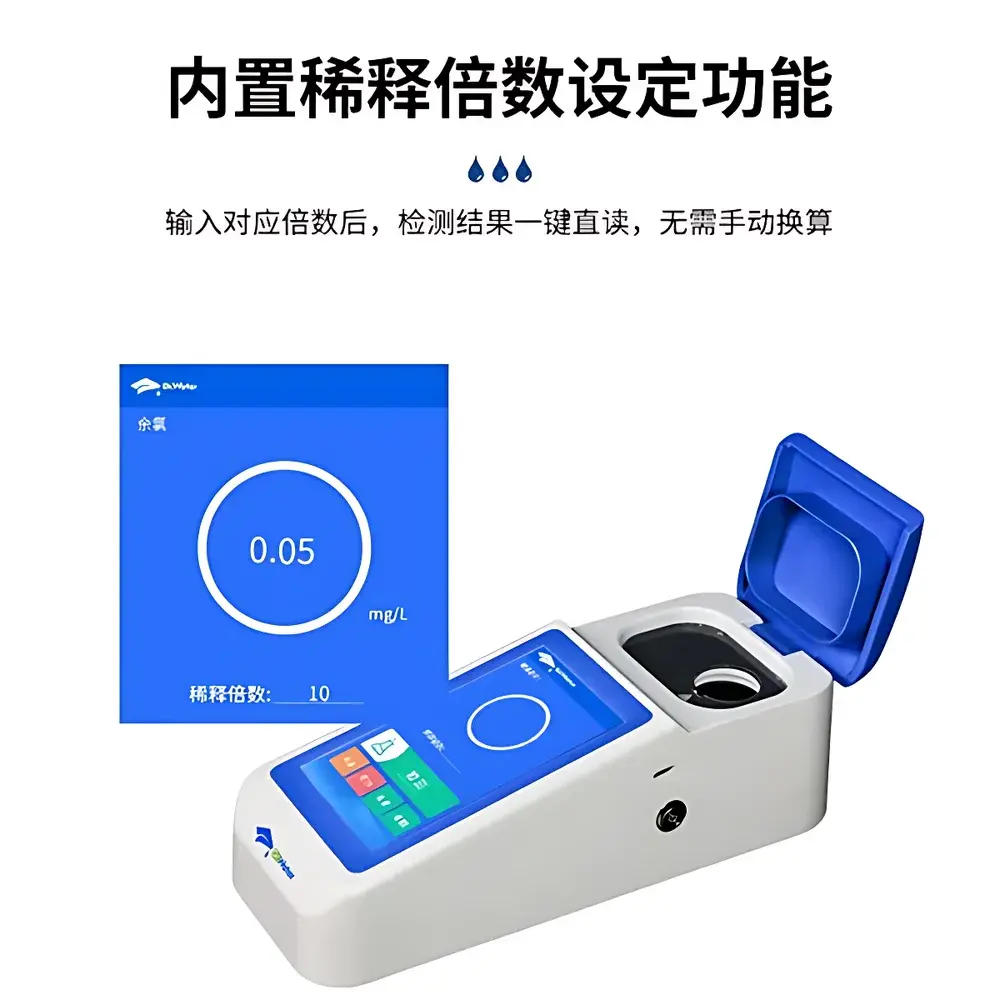

• On-device dilution factor configuration enabling direct concentration readout without manual calculation or external software
• Programmable timed measurement function for unattended operation—ideal for routine monitoring in remote or resource-constrained sites

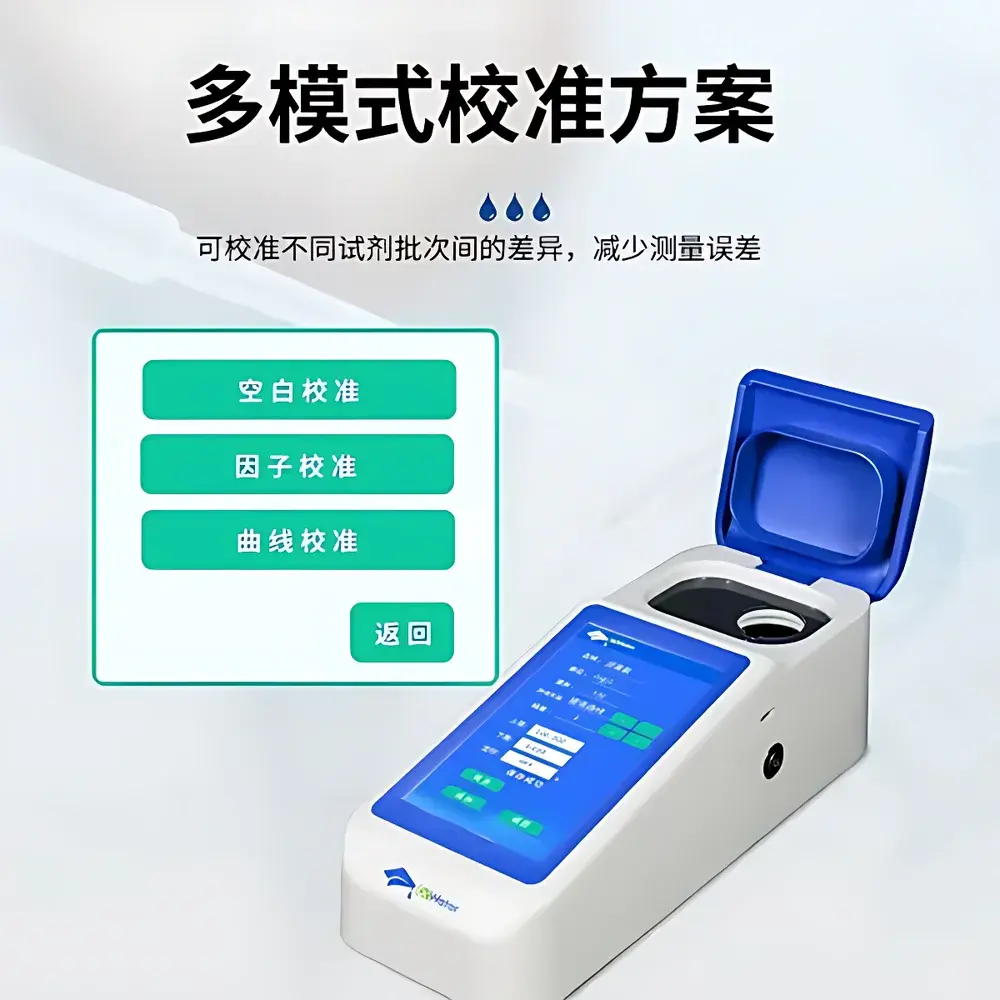

• Triple-mode calibration suite: blank, factor, and full calibration curve—compatible with certified reference materials and third-party reagents
• User-defined alarm thresholds with visual and audible alerts upon exceedance of regulatory or process limits
• Proprietary interference compensation algorithm mitigating spectral artifacts from coloration and optical attenuation, improving robustness in colored or turbid samples
• USB Type-C interface serving dual purpose: high-speed data export and battery charging—eliminating proprietary cables and streamlining logistics
• Real-time battery diagnostics and dual-power architecture (rechargeable Li-ion + AC adapter) supporting both mobile field use and continuous lab deployment

Sample Compatibility & Compliance

The Dr-W100 accommodates standard 16 mm and 25 mm round glass or quartz cuvettes, ensuring compatibility with widely available EPA, ISO, and GB-method reagent kits. Its optical performance—wavelength accuracy ±5 nm, absorbance resolution 0.001 Abs, and baseline stability ≤±0.005 Abs/20 min—meets technical requirements for routine compliance testing under ISO 7027 (turbidity), ISO 8467 (permanganate index), ISO 7150-1 (ammonia nitrogen), and GB/T 5750.11–2006 (disinfectant residuals). While not pre-certified to FDA 21 CFR Part 11, its audit-ready data logging (timestamped, user-ID tagged, non-erasable storage of 1M records), configurable calibration history, and printable thermal reports support GLP-aligned workflows in municipal water utilities, environmental monitoring stations, and food/beverage QA labs.

Software & Data Management

Embedded firmware provides full-cycle data handling: measurement execution, parameter configuration, real-time graphing, and secure local archiving. All measurements are stamped with date/time, operator ID, calibration status, and cuvette ID (if scanned). Data export via USB Type-C supports CSV format compatible with LIMS integration and statistical analysis tools (e.g., Excel, JMP, R). The built-in thermal printer delivers immediate hard-copy reports containing method ID, raw absorbance values, concentration results, pass/fail indicators, and calibration verification logs—critical for field audits and chain-of-custody documentation. No cloud dependency or vendor-specific software is required for basic operation; optional PC utility enables batch report generation and trend visualization.

Applications

The Dr-W100 serves as a primary screening tool across regulated and industrial water management domains: routine surveillance of finished drinking water at municipal treatment plants; source water assessment by environmental protection bureaus; hygiene validation in swimming pools and spas (urea, chlorine, ozone); QC release testing in bottled water and beverage manufacturing; process control in pharmaceutical water systems (PW, WFI support via hardness and chlorine residual checks); and emergency response during contamination events (e.g., post-flood turbidity spikes, disinfectant breakthrough). Its portability and battery endurance (>12 h typical use) make it suitable for mobile labs, rural water kiosks, and multi-site compliance audits.

FAQ

Does the Dr-W100 comply with international standards such as ISO or ASTM?
Yes—the optical specifications and measurement methodologies align with core requirements of ISO 7027 (turbidity), ISO 8467 (COD_Mn), and ISO 7150-1 (NH₃-N); however, formal ISO/IEC 17025 accreditation requires site-specific validation per laboratory scope.
Can the instrument store calibration curves for multiple reagent lots?
Yes—it supports independent curve storage per parameter and reagent batch, with version-controlled naming and automatic application based on selected test method.
Is the thermal printer replaceable or serviceable in the field?
The integrated thermal print head is designed for 50 km of cumulative print life and can be replaced using standard service kits without firmware reflash.
What is the recommended maintenance interval for optical alignment verification?
Dr-Water recommends quarterly verification using NIST-traceable turbidity and absorbance standards; no user-accessible optical adjustment is provided—only diagnostic reporting.
Are method updates or firmware upgrades available remotely?
Firmware updates are distributed via encrypted USB drive upon registration; no over-the-air connectivity is implemented to preserve data integrity and network security in regulated environments.
