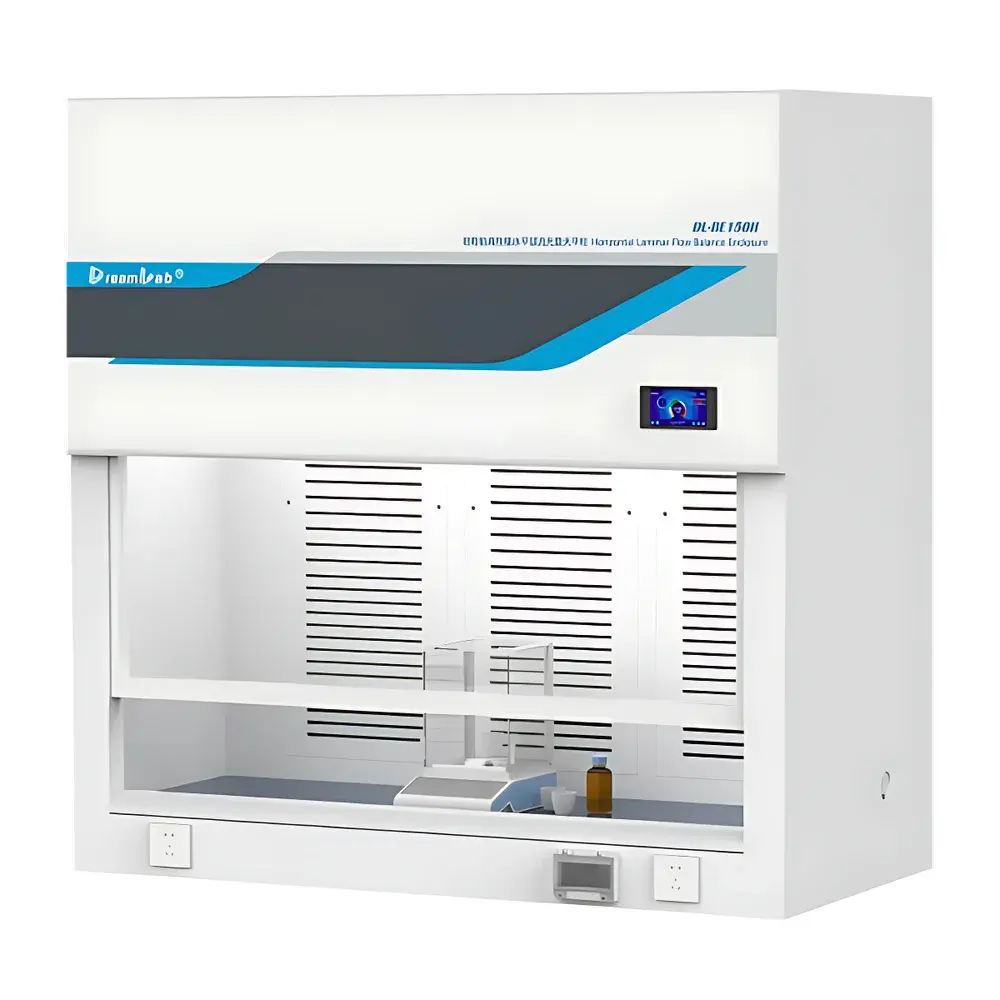

DreamLab DL-BE150H High-Performance Horizontal Laminar Flow Ductless Balance Enclosure

Overview

The DreamLab DL-BE150H High-Performance Horizontal Laminar Flow Ductless Balance Enclosure is an engineered solution for precision weighing, sample dispensing, and safe transfer of high-potency or hazardous materials in regulated laboratory environments. It operates on the principle of unidirectional horizontal laminar airflow—generated by a brushless, spark-free centrifugal fan—drawing ambient air uniformly across the work surface at a controlled face velocity (typically 0.45 ± 0.05 m/s), then directing it through a dual-zone filtration system before recirculating clean air back into the laboratory. This closed-loop, ductless architecture eliminates the need for external exhaust ductwork while maintaining a stable negative-pressure environment relative to the surrounding lab—critical for containment compliance per EU GMP Annex 1, Chinese GMP (2010), USP <1085>, and ISPE Good Practice Guides. The enclosure’s seamless polypropylene (PP) monocoque structure provides high critical mass (>120 kg) and inherent vibration damping, enabling reliable operation with analytical balances up to 1 µg resolution (7-digit display) without requiring supplemental granite vibration isolation tables—unless ambient floor vibrations exceed ISO 2631-2 Class A thresholds (e.g., proximity to heavy machinery, rail lines, or construction).

Key Features

• Horizontal laminar airflow design ensuring uniform particle removal from operator breathing zone toward rear HEPA filtration zone
• Dual-zone filtration architecture: primary rear-mounted HEPA H14 filter (≥99.995% @ 0.3 µm) paired with optional top-mounted bonded activated carbon filter for chemical vapor adsorption
• DLTouch microprocessor-based safety controller with real-time monitoring of face velocity, fan RPM, filter saturation status, and VOC concentration (via optional sensor)
• Negative-pressure filter replacement capability (CUNP™ Technology): allows safe, in-situ replacement of HEPA filters under operational negative pressure—preventing secondary aerosol release
• OEB 5-certified containment performance: measured leakage ≤0.01 µg/m³ (tested with 50 g sodium naproxen surrogate), exceeding industry-standard OEB 5 threshold (≤1 µg/m³)
• Integrated spill containment: raised perimeter lip, chemical-resistant PP base, and rear waste collection port compliant with IEC 61000-6-3 EMC standards
• CE-marked per EN 61000-6-2 (immunity) and EN 61000-6-4 (emission); meets UL 61010-1 requirements for laboratory equipment safety

Sample Compatibility & Compliance

The DL-BE150H accommodates solid (powders, granules), liquid (solutions, suspensions), and semi-solid samples under validated containment conditions. Its filtration configuration determines applicability: the standard HEPA-only setup is suitable for particulate-generating operations (e.g., API weighing, lyophilized powder handling); addition of bonded carbon filters extends compatibility to volatile organic compounds (VOCs), acids (HCl, acetic acid), aldehydes (formaldehyde), and inorganic gases (NH₃, H₂S, Cl₂). All configurations support GLP/GMP-aligned workflows, including audit-trail-capable event logging (filter change timestamps, low-flow alarms, door-open duration) compliant with FDA 21 CFR Part 11 when connected to DreamLab’s DL OS software suite. The unit satisfies ISO 14644-1 Class 5 (ISO Class 5) air cleanliness requirements within the work area during operation.

Software & Data Management

The embedded DL OS operating system delivers secure, traceable control via a capacitive touchscreen interface. It supports two operational modes: constant face velocity (CV) or variable air volume (VAV) with adaptive fan speed modulation. Filter lifetime is calculated using cumulative runtime, differential pressure delta across each stage, and optional real-time particulate/VOC sensor inputs—displayed as dynamic progress bars with configurable alert thresholds. All system events—including alarm triggers, user logins, filter swaps, and calibration actions—are time-stamped and exportable as CSV files. When integrated with enterprise LIMS or ELN platforms via RS-485 or Ethernet (Modbus TCP), the controller enables centralized monitoring across multi-unit installations while preserving data integrity per ALCOA+ principles.

Applications

• High-potency active pharmaceutical ingredient (HPAPI) weighing and dispensing in QC/QA and R&D labs
• Controlled substance handling under DEA Schedule II–V regulatory frameworks
• Reference standard preparation and dilution in metrology-grade environments
• Cell culture reagent weighing where sterility and particulate control are critical
• Environmental testing labs performing trace-metal analysis requiring ultra-low background contamination
• Academic research involving nanomaterials, cytotoxic compounds, or allergenic proteins

FAQ

Does the DL-BE150H require external ducting or civil modifications?

No. It is a fully self-contained, plug-and-play system designed for immediate deployment without HVAC integration or wall penetrations.
Can it be used with microgram-resolution balances?

Yes. Its structural rigidity, laminar airflow stability, and low-vibration fan system meet the mechanical stability requirements for balances with readability down to 1 µg.
How often must the HEPA and carbon filters be replaced?

Filter service intervals depend on usage intensity and challenge agents; typical HEPA life is 12–24 months, while bonded carbon filters last 6–18 months. The DLTouch controller provides predictive alerts based on actual loading metrics.
Is OEB 5 validation documentation provided with the unit?

Yes. Each unit ships with a Certificate of Conformance and a third-party OEB 5 test report (per ISPE TR13 methodology) conducted using sodium naproxen as surrogate.
What safety certifications does it hold?

CE marking (EMC & LVD directives), UL 61010-1 listing, and conformity to ISO 15195 for reference measurement laboratories.
