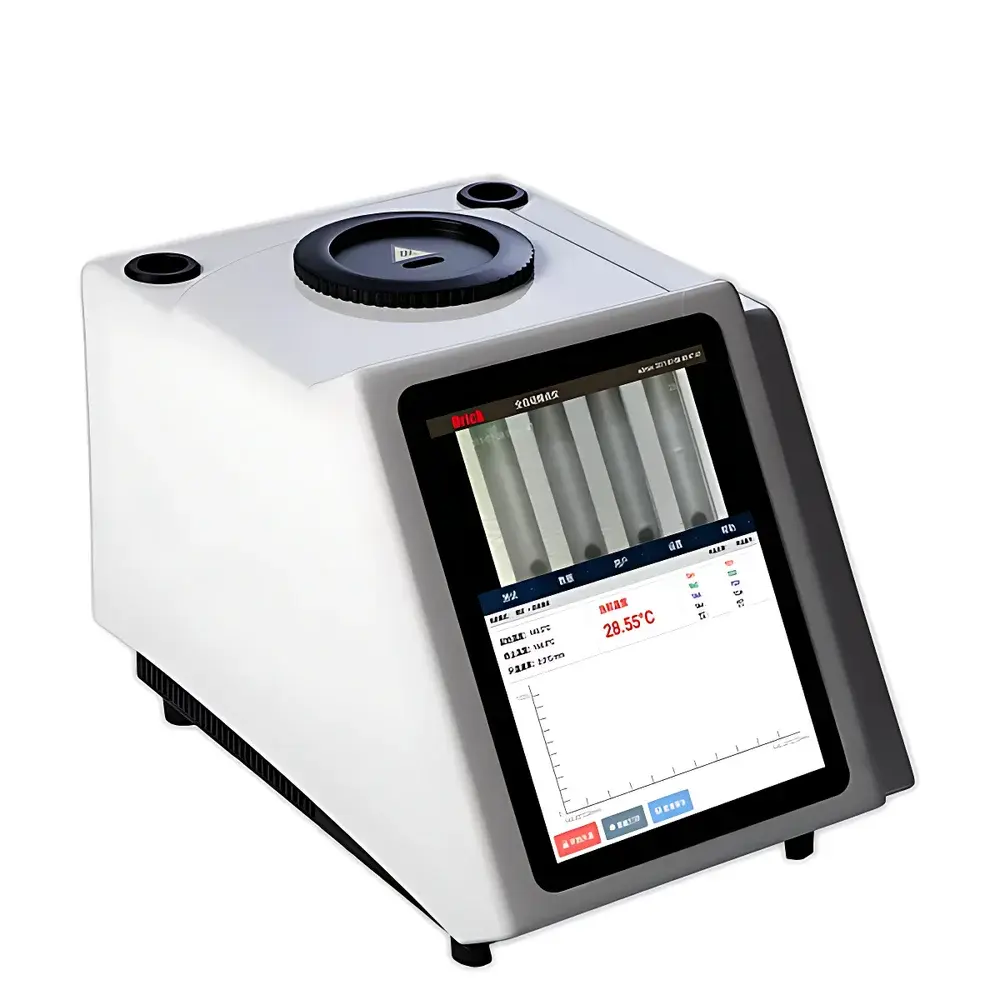

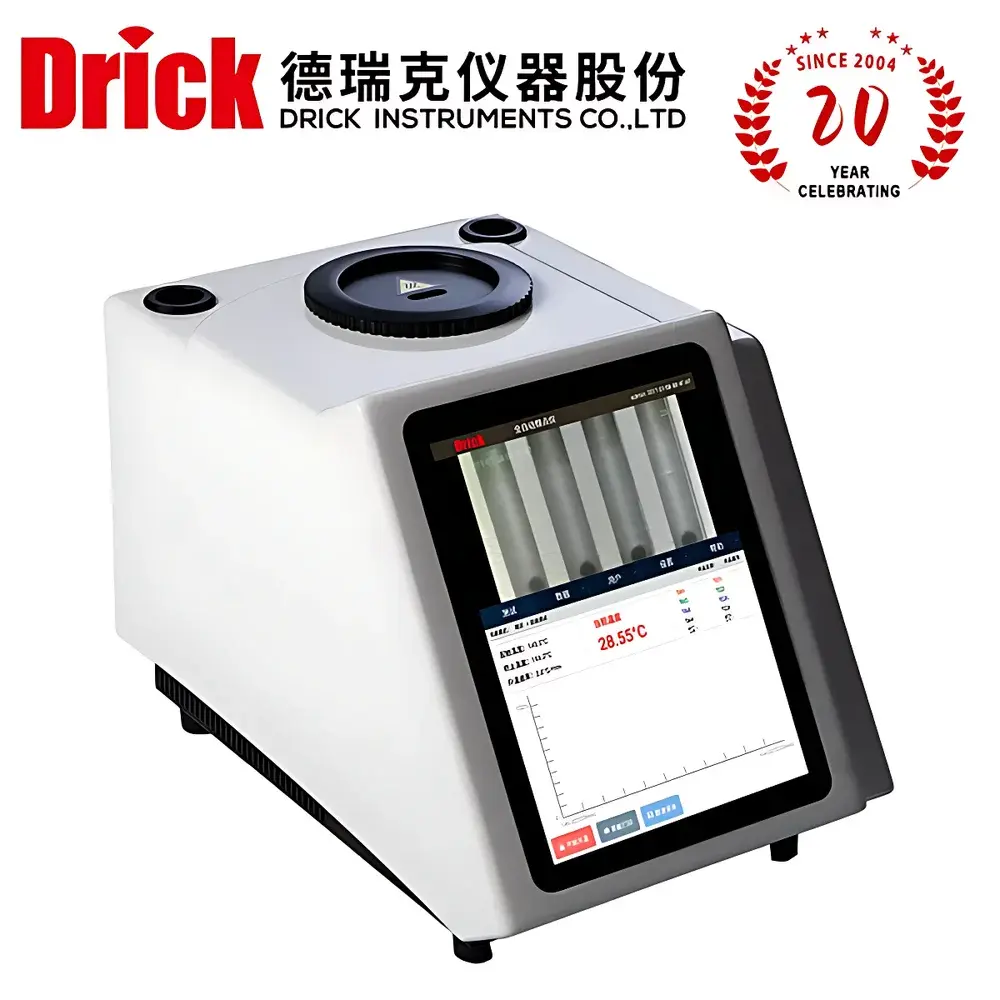

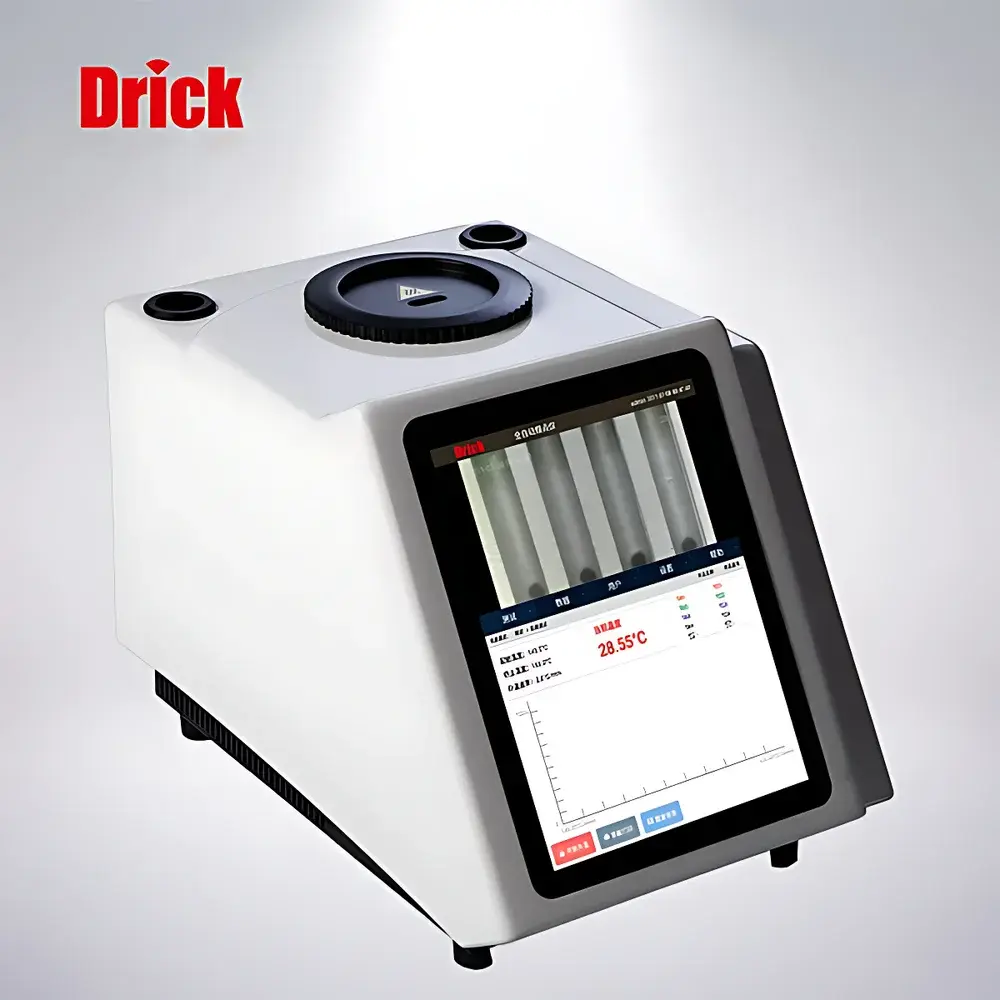

Drick DRK-R70 Automated Video Melting Point Apparatus
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | DRK-R70 |
| Temperature Range | Ambient to 360 °C |
| Heating Rate | 0.1–20 °C/min (200-step continuous adjustment) |
| Temperature Accuracy | ±0.3 °C (<250 °C) |
| Capillary Dimensions | Outer Diameter 1.3 mm, Inner Diameter 1.1 mm |
| Temperature Resolution | 0.01 °C |
Overview
The Drick DRK-R70 Automated Video Melting Point Apparatus is a precision thermal analysis instrument engineered for accurate, reproducible determination of melting points and melting ranges of crystalline organic compounds, pharmaceutical intermediates, polymers, and reference standards. It employs real-time high-resolution video imaging combined with controlled programmable heating to capture the complete phase transition process—solid-to-liquid—with synchronized thermal profiling. Unlike traditional analog or semi-automated units, the DRK-R70 integrates digital temperature sensing, motorized stage positioning, and frame-by-frame video analysis to eliminate observer bias and ensure objective endpoint detection based on pixel-intensity thresholding and morphological change recognition. Its design conforms to core principles outlined in pharmacopeial methods including USP <741>, EP 2.2.17, and JP 2.60, supporting compliance-critical workflows in QC laboratories operating under GLP or GMP frameworks.
Key Features
- Full automation of melt onset, clear point, and range calculation via embedded image-processing algorithm—no manual observation required.
- Programmable heating rate from 0.1 to 20 °C/min in 0.1 °C/min increments, enabling precise method development for thermally sensitive or high-melting materials.
- High-stability PID-controlled heating block with dual-sensor redundancy, delivering temperature accuracy of ±0.3 °C up to 250 °C and ±0.5 °C at higher setpoints.
- 0.01 °C temperature resolution coupled with real-time data logging at configurable intervals (1–10 s).
- Dedicated capillary holder accommodating standard 1.3 mm OD × 1.1 mm ID glass capillaries—compatible with ASTM D1565 and ISO 6383-1 sample preparation protocols.
- Integrated HD camera (1080p) with adjustable backlight and focus, enabling clear visualization of meniscus formation, sintering, shrinkage, and collapse events.
- Compact benchtop footprint (W320 × D350 × H280 mm) with CE-marked electrical safety and thermal shielding compliant with IEC 61010-1.
Sample Compatibility & Compliance
The DRK-R70 accepts solid crystalline or powdered samples loaded into standard one-end-sealed capillaries per pharmacopeial guidelines. It supports routine analysis of APIs, excipients, small-molecule synthetics, metal-organic frameworks (MOFs), and polymer additives. The system meets essential requirements for audit readiness under FDA 21 CFR Part 11 when paired with optional electronic signature and audit trail modules. All thermal calibration procedures align with ISO/IEC 17025 traceability pathways using NIST-traceable reference standards (e.g., indium, tin, zinc). Validation documentation—including IQ/OQ templates, uncertainty budgets, and repeatability studies—is provided to support laboratory accreditation efforts.
Software & Data Management
The instrument operates via Windows-based DRK-MPControl software, featuring intuitive method editor, multi-user account management, and encrypted database storage. Each test generates a timestamped report containing raw thermal curve, annotated video clip (AVI/MKV), derivative dT/dt plot, and calculated parameters (onset, offset, midpoint, range width). Data export options include CSV, PDF, and XML formats compatible with LIMS integration. Audit trail functionality records all user actions—including method modifications, calibration events, and result overrides—with immutable timestamps and operator IDs. Software updates are delivered via secure HTTPS channel with SHA-256 integrity verification.
Applications
- Pharmaceutical quality control: identity verification and purity assessment of active ingredients per USP monographs.
- Chemical R&D labs: monitoring reaction progress, polymorph screening, and thermal stability evaluation during salt selection.
- Academic research: teaching fundamental concepts of phase transitions, eutectic behavior, and kinetic vs. thermodynamic melting.
- Materials science: characterization of organic semiconductors, liquid crystals, and supramolecular assemblies.
- Food & cosmetics: assessing fat composition, wax melting profiles, and emulsifier performance.
FAQ
Does the DRK-R70 support automatic calibration verification?
Yes—built-in self-test routines verify sensor linearity and heating uniformity prior to each run. Optional external calibration with certified reference materials can be scheduled weekly or per batch.
Can the system store multiple user-defined methods?
Yes—up to 256 saved methods with independent heating profiles, image capture settings, and pass/fail criteria.
Is video recording exportable for regulatory review?
Yes—full-resolution video clips with synchronized temperature metadata are stored in industry-standard codecs and may be archived on network drives or exported to portable media.
What maintenance is required for long-term accuracy?
Annual verification of optical alignment and thermal sensor drift is recommended; no consumables or routine part replacements are needed beyond capillaries.
Is remote diagnostics supported?
Yes—the system includes TCP/IP connectivity for secure remote access by authorized service engineers via TLS-encrypted VNC session.
