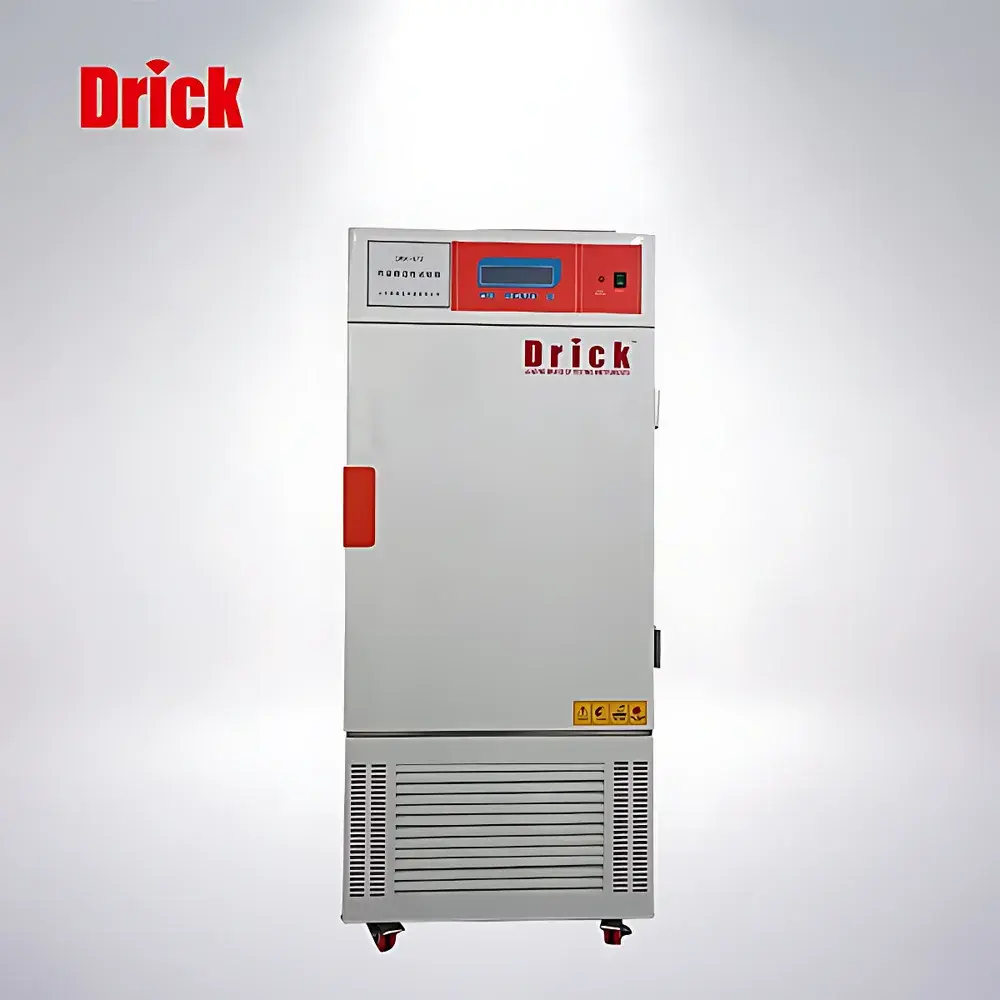

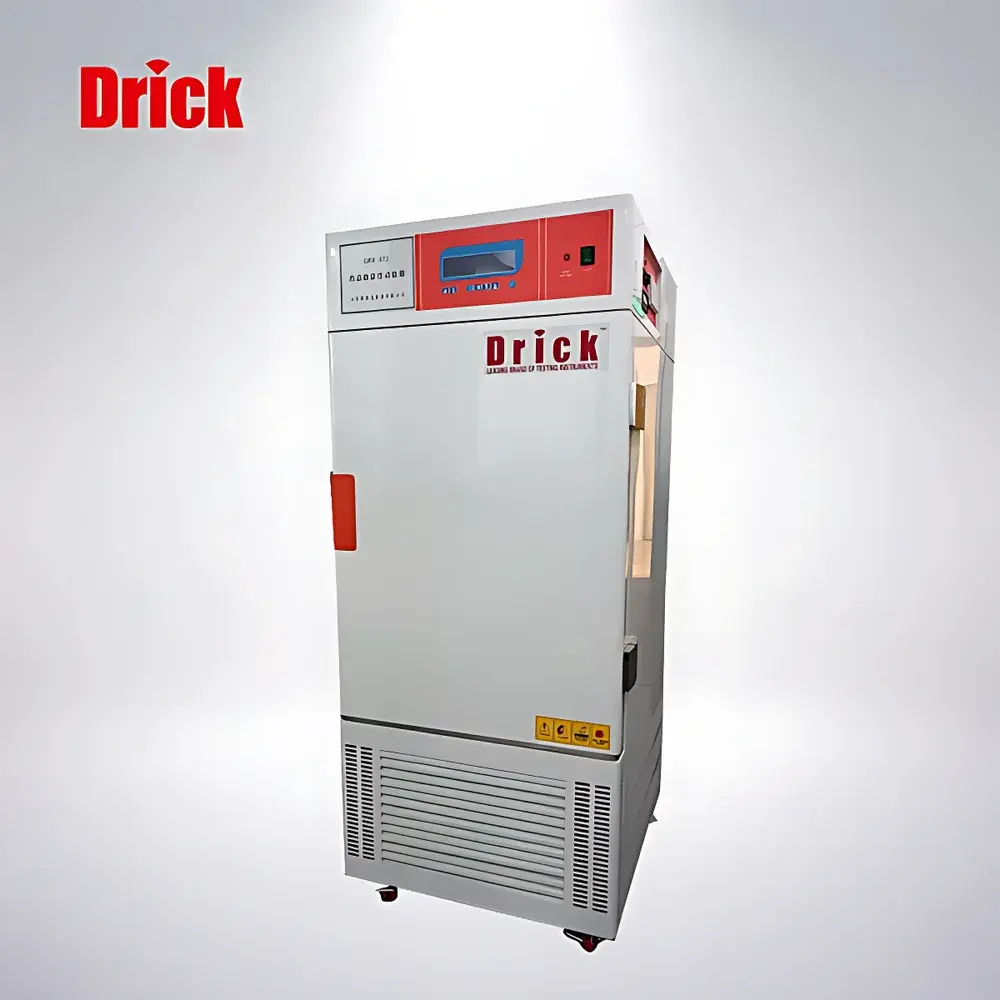

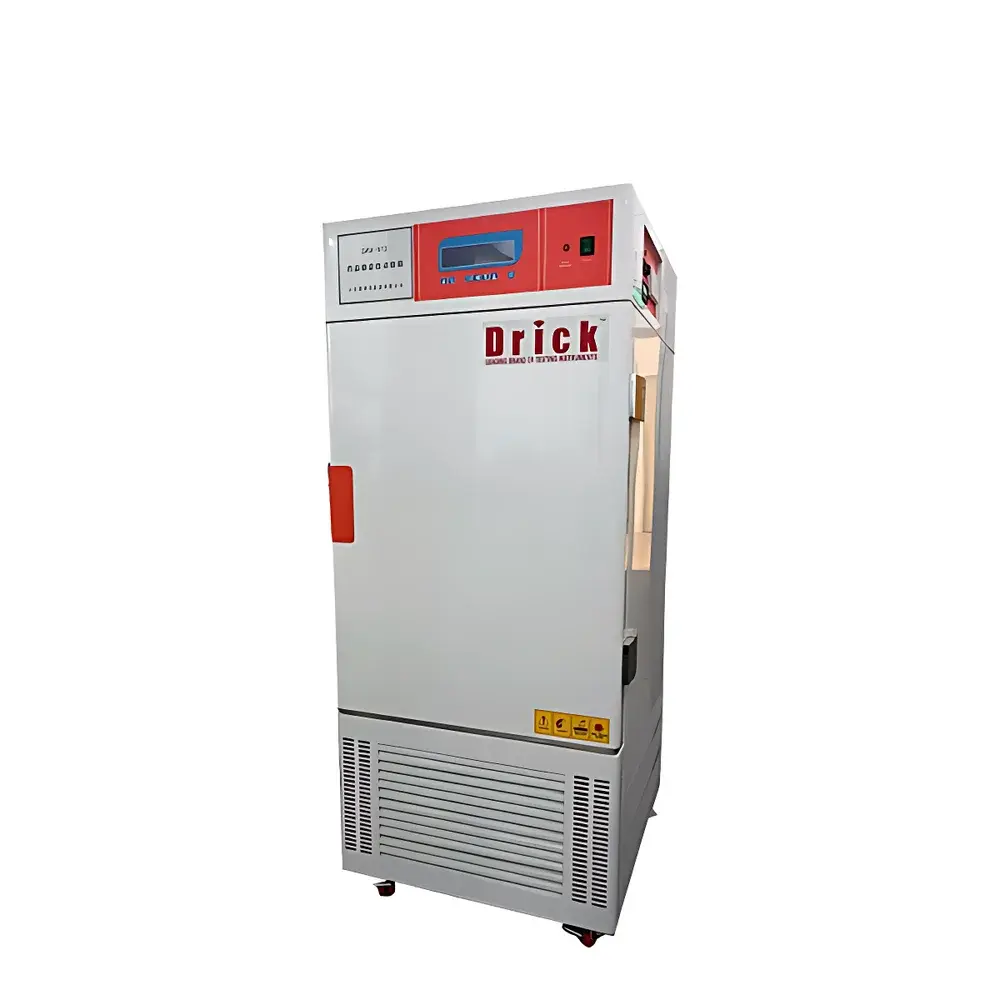

Drick DRK672 Pharmaceutical Drug Stability Testing Chamber

Overview

The Drick DRK672 Pharmaceutical Drug Stability Testing Chamber is an engineered environmental simulation system designed specifically for compliance-driven stability studies in accordance with ICH Q1–Q5 guidelines, USP <1150>, and the 2015 Chinese Pharmacopoeia’s “Guidance on Stability Testing of Drugs.” It provides precisely controlled, long-term exposure conditions—including temperature, relative humidity, and photometric irradiance—to assess chemical and physical degradation pathways of active pharmaceutical ingredients (APIs) and finished dosage forms. Unlike general-purpose climate chambers, the DRK672 integrates dual independent refrigeration circuits, capacitive humidity sensing, and traceable illuminance control to meet the functional and documentation requirements of GMP-regulated environments. Its architecture supports both accelerated (e.g., 40°C/75% RH, 6 months) and long-term (e.g., 25°C/60% RH, 12 months) storage protocols, as well as photostability testing per ICH Q1B (optionally with UV-A/B spectral filters upon request). The chamber operates under a balanced heating/cooling/humidification/dehumidification principle, minimizing thermal gradients and ensuring spatial uniformity across the 250 L test volume.

Key Features

• Dual independent hermetic compressors with automatic switchover—ensuring uninterrupted operation and extended service life during continuous 24/7 stability runs
• Programmable LCD controller with real-time logging, password-protected parameter editing, and event-triggered alarm history (timestamped)
• Pt100 platinum resistance temperature sensors and capacitive RH sensors calibrated per ISO/IEC 17025-accredited procedures
• Stepless dimmable top-mounted LED or fluorescent light arrays (configurable), delivering stable 0–6000 lx output with ≤±500 lx deviation at sensor position
• Integrated thermal printer (standard) providing hard-copy audit trails of setpoints, actual values, alarms, and operator actions—aligned with FDA 21 CFR Part 11 data integrity expectations when paired with optional electronic signature modules
• Comprehensive safety suite including compressor high-pressure cut-off, fan overheat detection, independent overtemperature limiter, low-water interlock for humidifier, and motor overload protection
• Internal stainless-steel chamber with seamless welded corners, non-porous surfaces, and removable shelves for cleaning validation per EU Annex 1

Sample Compatibility & Compliance

The DRK672 accommodates standard stability protocol packaging configurations—including blister packs, HDPE bottles, glass vials, and aluminum-laminated pouches—on three adjustable stainless-steel shelves (600 × 500 mm usable area each). Its internal geometry and airflow design comply with ICH Q5C recommendations for uniform environmental exposure. All operational parameters are traceable to national metrological standards (CNAS-accredited calibration certificates available). The system meets GB/T 10586–2006 (“Environmental Test Chambers—Technical Requirements”), and its control logic and alarm hierarchy satisfy the risk-based qualification framework outlined in ASTM E2500 and ISPE Baseline Guide Vol. 5. Documentation packages include IQ/OQ templates aligned with GAMP 5 Category 3 software classification.

Software & Data Management

While the base configuration uses an embedded programmable controller with local display and thermal printout, optional Ethernet-enabled data acquisition modules support CSV export, remote monitoring via secure HTTPS, and integration into LIMS or MES platforms. All logged data—including temperature, RH, illuminance, and alarm events—carry ISO 8601 timestamps and are stored with immutable audit trails. When deployed in regulated facilities, the system supports electronic record retention periods exceeding 15 years, consistent with FDA 21 CFR Part 11 Subpart B requirements for record authenticity and confidentiality. Optional 21 CFR Part 11-compliant user access control (role-based permissions, electronic signatures) and change control logs are available through validated firmware upgrades.

Applications

• ICH Q1A(R2) long-term and accelerated stability studies for registration dossiers (CTD Module 3)
• ICH Q1B photostability assessment under Option 1 (near-UV/visible) and Option 2 (controlled irradiance) conditions
• Bracketing and matrixing study designs for multi-strength/multi-package configurations
• Forced degradation studies supporting analytical method development (ICH Q5C)
• Storage condition verification for distribution simulation (e.g., WHO prequalification, APVMA transport testing)
• Stability-indicating assay validation per USP <1225>

FAQ

Does the DRK672 comply with ICH Q1 and Q1B requirements for photostability testing?
Yes—the chamber delivers controllable, uniform illuminance from 0 to 6000 lx with integrated light meter verification; optional UV-filtered lamps and radiometric calibration services ensure adherence to ICH Q1B spectral power distribution criteria.
Can humidity be maintained independently at elevated temperatures (e.g., 40°C/75% RH)?
Yes—its balanced refrigeration/humidification architecture enables stable RH control within ±3% tolerance even at 40°C, validated per ISO 16750-4 and GB/T 10586–2006 Annex C.
Is the embedded printer compliant with ALCOA+ data integrity principles?
The thermal printer generates time-stamped, sequentially numbered records with operator ID and parameter snapshots—serving as a contemporaneous, attributable, legible, original, accurate, complete, consistent, enduring, and available (ALCOA+) hard copy when used within defined SOPs.
What validation support is provided for GMP environments?
Drick supplies IQ/OQ protocol templates, factory acceptance test (FAT) reports, and calibration certificates traceable to CNAS-accredited labs; site-specific PQ support is available through authorized qualified partners.
How is temperature uniformity verified across the working volume?
Uniformity is confirmed using 9-point mapping (per ISO 16750-4) with NIST-traceable Pt100 probes; results demonstrate ≤±2°C spatial variation at steady state under load, meeting ICH Q1A(R2) Annex 1 acceptance criteria.
