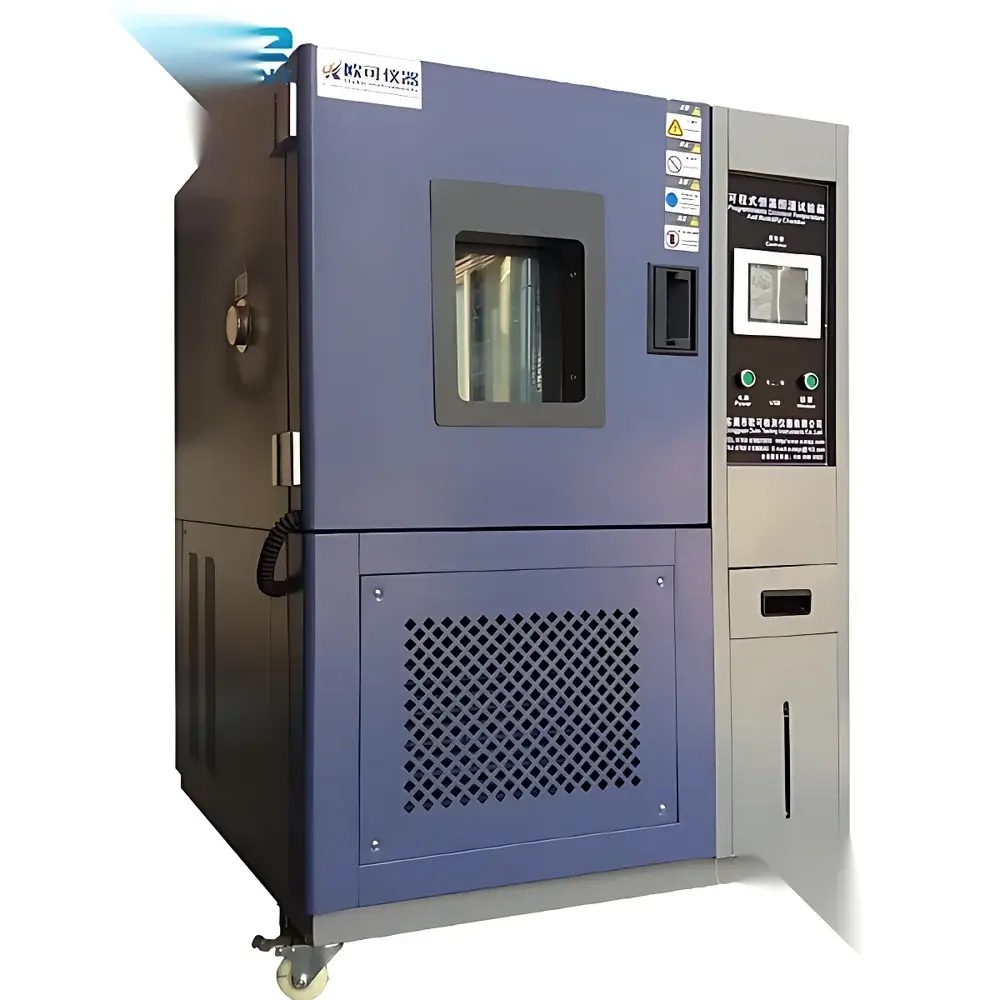

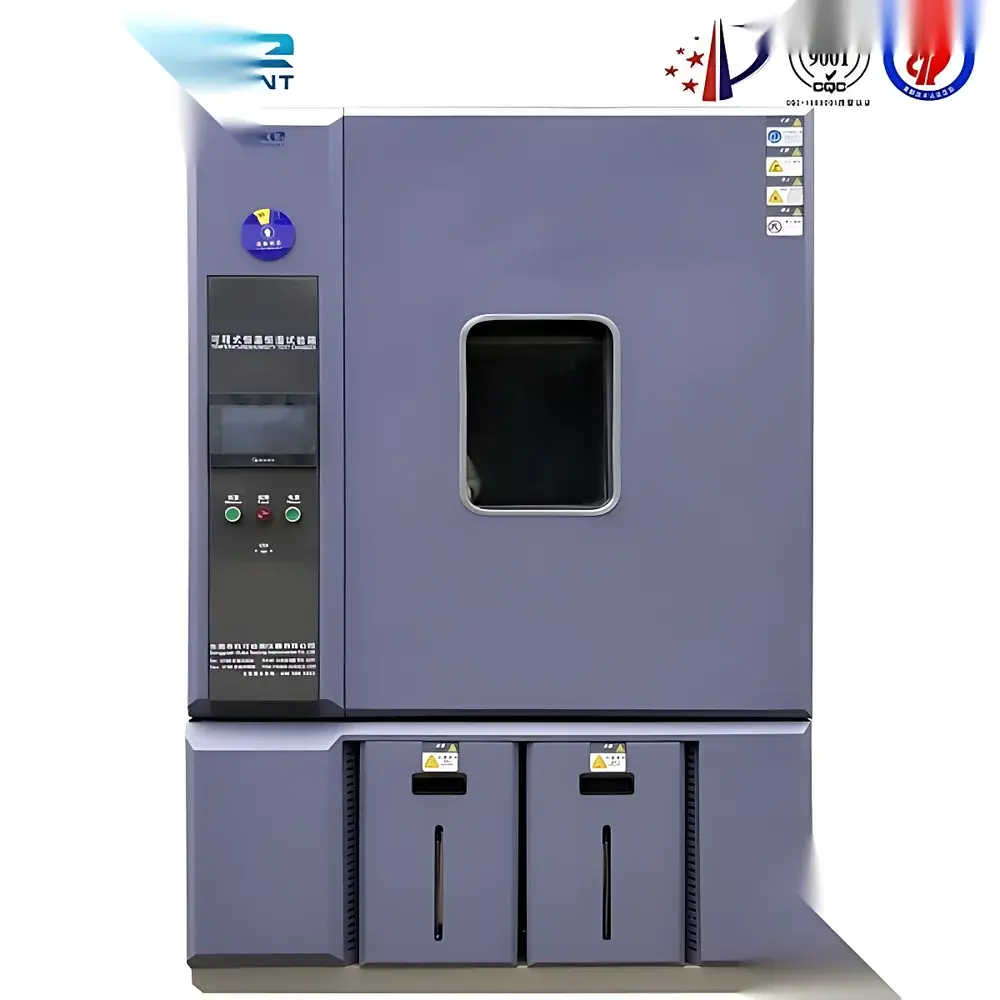

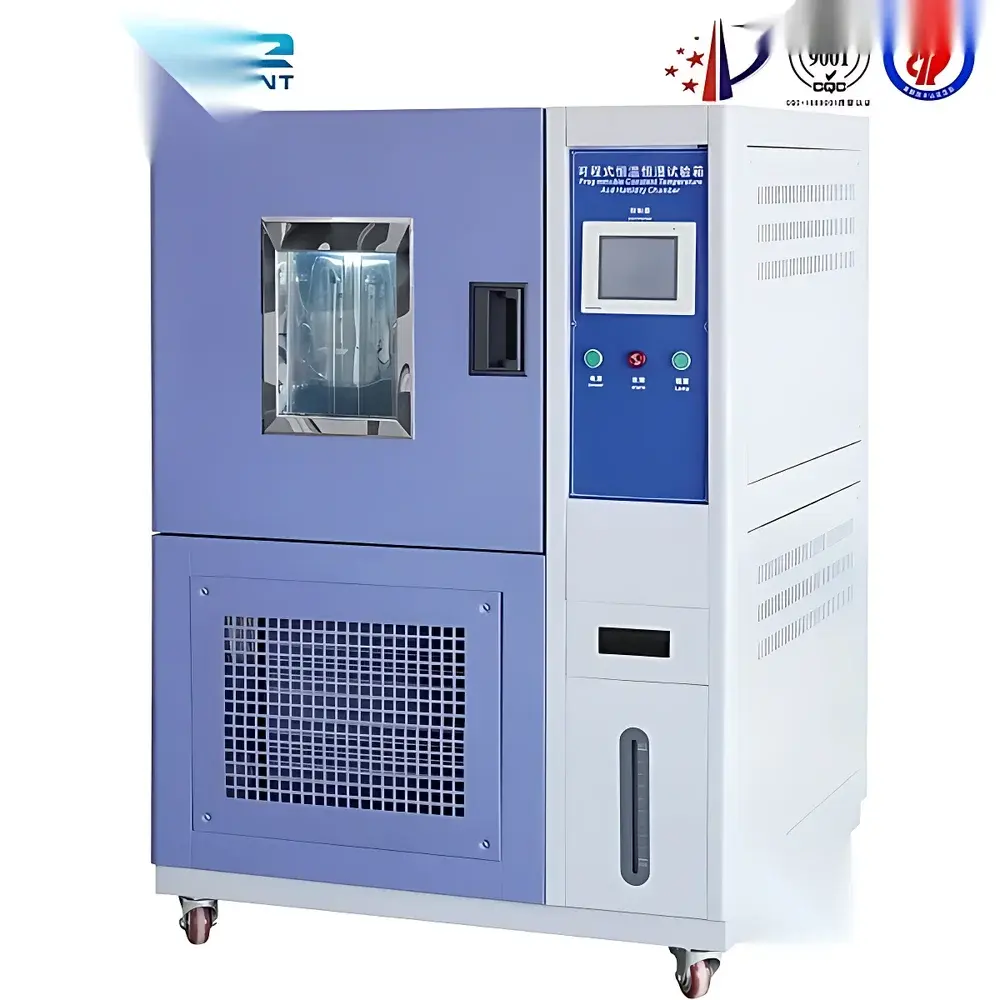

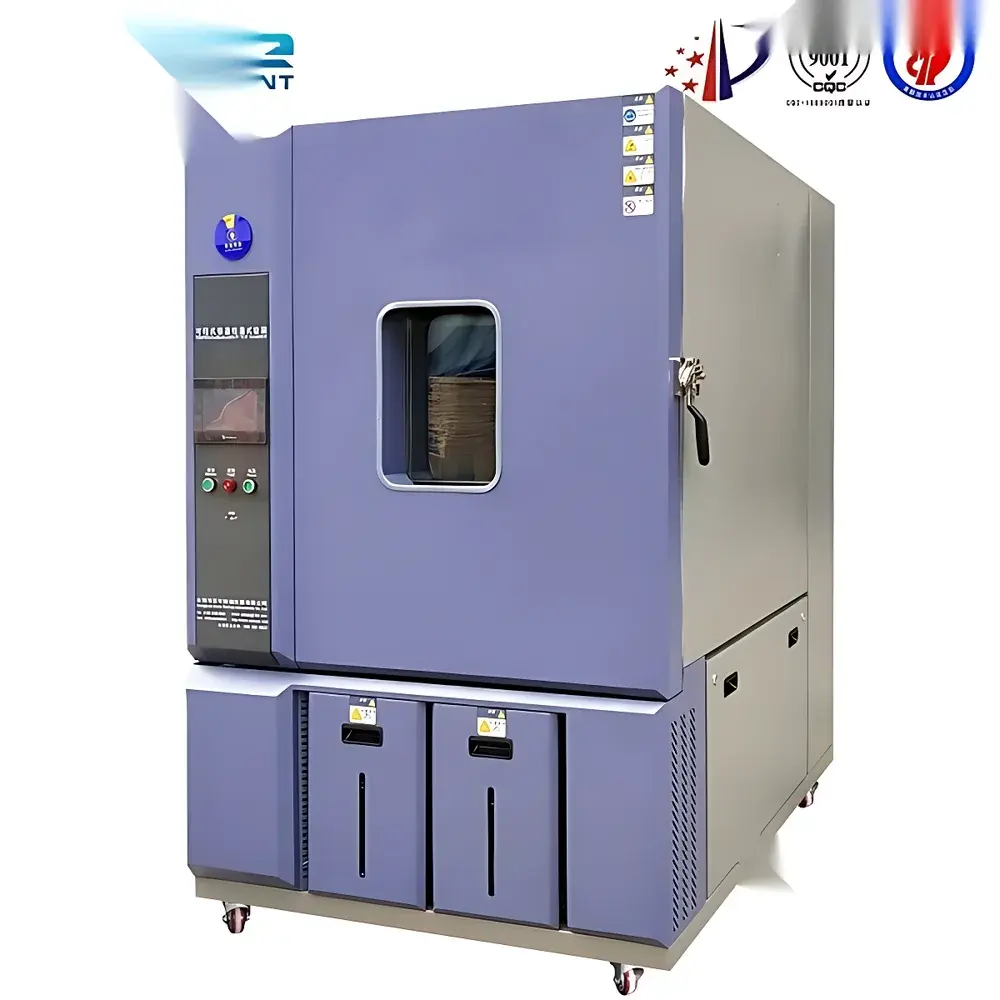

Dual-85 Thermal-Humidity Cycling Chamber – OK-FD-TH Series

Overview

The Dual-85 Thermal-Humidity Cycling Chamber (OK-FD-TH Series) is an engineered environmental test system designed to replicate accelerated stress conditions defined by the “85 °C / 85 %RH” reliability protocol—widely adopted in electronics, automotive, photovoltaic, and packaging industries for evaluating long-term material stability under combined thermal and hygroscopic stress. Unlike standard temperature-humidity chambers, this series integrates dual-stage refrigeration architecture and precision humidity control to maintain stable, repeatable exposure profiles across extended cycles (e.g., 1,000-hour or longer tests). Its operational envelope spans -40 °C to +150 °C and 20–98 %RH, enabling qualification testing per IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat cyclic), and JEDEC JESD22-A101 (steady-state damp heat). The chamber’s structural design prioritizes thermal inertia minimization, condensation management, and vapor diffusion control—critical for preventing false failures due to transient condensation or thermal lag during ramp transitions.

Key Features

• Modular dual-refrigeration system with independent high- and low-temperature circuits, enabling rapid cooling from +85 °C to -40 °C without compressor overload or oil migration issues;
• Hermetically sealed scroll compressors (Tecumseh or French OEM) paired with environmentally compliant R404A/R23 refrigerant blend (ODP = 0, GWP optimized for lab-scale use);
• 7-inch TFT color touchscreen controller with bilingual (English/Chinese) GUI, supporting up to 250 programmable test profiles, each comprising up to 12,500 time-temperature-humidity segments;
• Onboard data logger retaining 250 days of timestamped temperature/humidity curves with automatic power-fail recovery and non-volatile memory backup;
• Dual-layer insulation combining rigid polyurethane foam (≥100 mm thickness) and fiberglass barrier to reduce thermal bridging and improve energy efficiency by ≥22% vs. single-layer designs;
• Integrated safety architecture including over-temperature cutoff, humidity sensor fault detection, refrigerant leak monitoring via water-immersion verification, and electrical isolation between water circuits and control panels.

Sample Compatibility & Compliance

The OK-FD-TH series accommodates a broad range of sample geometries—from PCB assemblies and lithium-ion battery cells to polymer films and medical device packaging—within its three standard internal volumes (80 L, 150 L, and 252 L). Each model features a large-diameter observation window (tempered glass with anti-fog heating), adjustable stainless-steel shelves (SUS#304), and a 50 mm diameter cable port sealed with silicone grommet. The chamber complies with ISO/IEC 17025 requirements for calibration traceability and supports GLP/GMP documentation workflows through audit-trail-enabled data export. It meets mechanical and electrical safety standards per IEC 61010-1 and is compatible with validation protocols aligned with FDA 21 CFR Part 11 when used with optional LAN-enabled software modules that enforce user role permissions and electronic signature capture.

Software & Data Management

Data acquisition and analysis are facilitated via native USB and RS-232 interfaces, allowing direct transfer of logged temperature/humidity curves to Windows-based PCs. Exported files are auto-generated in .CSV format compatible with Microsoft Excel, MATLAB, and JMP for statistical process control (SPC) and failure mode analysis. Optional Ethernet connectivity enables integration into centralized laboratory information management systems (LIMS) or enterprise asset monitoring platforms. Firmware updates are delivered via secure HTTPS download, and controller firmware includes checksum verification to ensure integrity. All data records include ISO 8601 timestamps, sensor identification tags, and cycle status flags (e.g., “ramp”, “soak”, “transition”), facilitating root-cause correlation in accelerated life testing reports.

Applications

• Accelerated moisture ingress evaluation of conformal-coated circuit boards per IPC-J-STD-001 and IPC-A-610;
• Thermal cycling validation of EV battery modules under humid ambient conditions (SAE J2464 Annex C);
• Stability assessment of pharmaceutical blister packaging per USP and ICH Q1A(R2);
• Corrosion resistance testing of automotive connectors under combined thermal shock and high-RH exposure (GMW14872 Section 5.4.3);
• Qualification of OLED display encapsulation layers against delamination and dark spot formation;
• Material compatibility screening for adhesives, sealants, and composite laminates used in aerospace interiors.

FAQ

What does “Dual-85” refer to in this chamber’s designation?
It denotes the chamber’s primary qualification capability for the industry-standard 85 °C / 85 %RH steady-state test condition—commonly applied to assess moisture sensitivity levels (MSL) of surface-mount devices per J-STD-020.
Can the chamber perform rapid thermal transitions while maintaining humidity control?
Yes—the dual-refrigeration architecture and independently modulated steam generator allow simultaneous control of temperature and RH during ramp phases, though humidity stabilization may require additional soak time following large temperature excursions.
Is calibration certification included with shipment?
Factory calibration certificates (traceable to NIST or equivalent national metrology institutes) are provided; field recalibration services are available through authorized service partners.
What is the expected mean time between failures (MTBF) for the refrigeration system?
Based on accelerated life testing and field data, the hermetic compressor and refrigerant circuit demonstrate an MTBF exceeding 15,000 operating hours under continuous 85/85 conditions.
Does the controller support custom alarm logic or external relay triggers?
Yes—the touchscreen interface allows configuration of up to 16 user-defined alarm thresholds with configurable relay outputs (dry contact) for integration with building management systems or emergency shutdown protocols.
