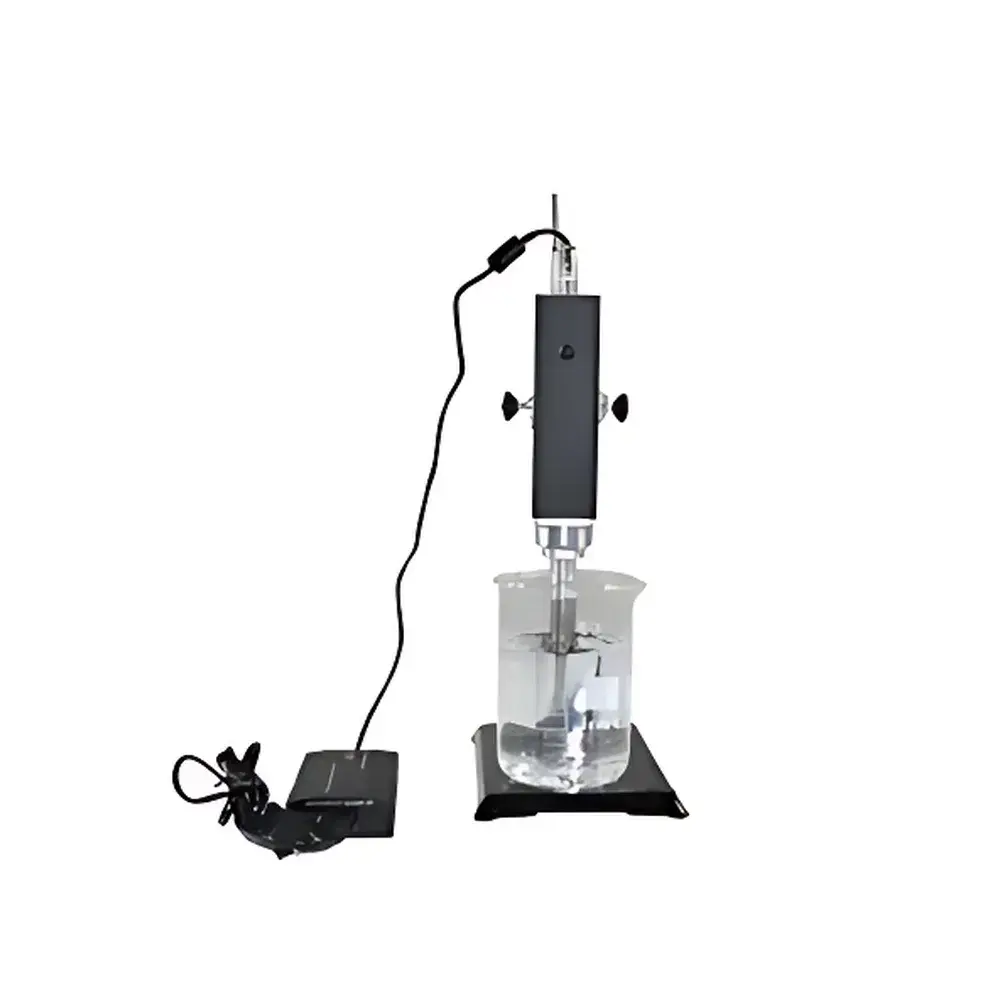

Duling DL-300S Handheld Ultrasonic Processor
| Brand | Duling |
|---|---|
| Origin | Italy |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | DL-300S |
| Ultrasonic Power | 300 W |
| Ultrasonic Frequency | 30 kHz |
Overview
The Duling DL-300S Handheld Ultrasonic Processor is an engineered solution for laboratory-scale ultrasonic-assisted extraction, cell disruption, emulsification, and homogenization. It operates on the principle of piezoelectric transduction, converting high-frequency electrical energy (30 kHz) into mechanical vibrations transmitted through a titanium alloy probe (sonotrode). These vibrations generate controlled cavitation in liquid media—forming, growing, and collapsing microbubbles that produce localized shear forces, pressure differentials exceeding 1000 atm, and transient temperatures up to 5000 K. This physical mechanism enables efficient mass transfer across phase boundaries without thermal degradation, making the DL-300S particularly suitable for thermolabile compounds in natural product isolation, pharmaceutical formulation development, and analytical sample preparation.
Key Features
- Compact handheld architecture with ergonomic grip and integrated trigger switch for precise on-demand operation
- 300 W nominal output power with real-time power regulation via front-panel digital control interface
- Fixed-frequency 30 kHz transducer system optimized for broad compatibility with aqueous and organic solvent systems
- Interchangeable titanium alloy probes (standard 3 mm and 6 mm diameter sonotrodes supplied) featuring threaded quick-lock coupling (ISO 228-1 G1/4″ thread)
- Robust aluminum-alloy housing rated IP54 for resistance to splashes and particulate ingress during routine lab use
- Dedicated low-noise switching power supply with universal AC input (100–240 VAC, 50/60 Hz) and over-temperature, over-current, and short-circuit protection circuits
- Compliance with IEC 61000-6-3 (EMI emission) and IEC 61000-6-2 (immunity) standards for electromagnetic compatibility in shared laboratory environments
Sample Compatibility & Compliance
The DL-300S supports direct immersion processing of volumes ranging from 0.5 mL to 250 mL, depending on probe geometry and vessel configuration. It is compatible with glass, stainless steel, and polypropylene containers meeting ISO 8573-1 purity class 4 requirements for cleanroom-grade applications. The instrument meets essential safety requirements under EN 61010-1:2010 for electrical equipment used in laboratory settings. While not certified for GMP production environments, its design facilitates traceable operation under GLP-compliant workflows when paired with external logging devices or validated SOPs. All accessories—including sonotrodes and adapters—are manufactured to ISO 9001-certified processes and conform to RoHS Directive 2011/65/EU material restrictions.
Software & Data Management
The DL-300S operates as a standalone analog-controlled device without embedded firmware or digital connectivity. All operational parameters—including activation duration, duty cycle, and manual amplitude modulation—are set manually via tactile controls. For auditability in regulated laboratories, users may integrate external timers, acoustic emission sensors (e.g., hydrophone-based monitoring), or video-recorded procedural logs. The absence of internal memory or network interfaces ensures full compliance with data integrity principles outlined in FDA 21 CFR Part 11 when used within documented, paper-based or LIMS-linked workflows. Calibration verification is performed annually using traceable reference standards per ISO/IEC 17025-accredited protocols.
Applications
- Accelerated extraction of polyphenols, alkaloids, and terpenoids from botanical matrices (e.g., leaves, roots, seeds) in accordance with AOAC 2005.02 and USP <2021> guidelines
- Pre-analytical lysis of bacterial, yeast, and mammalian cells for proteomic and genomic workflows (compatible with downstream SDS-PAGE, LC-MS, and qPCR)
- Preparation of nanoemulsions and liposomal suspensions for drug delivery research
- Rapid degassing of solvents prior to HPLC or GC analysis
- In-process homogenization of heterogeneous suspensions in QC testing of topical formulations (creams, ointments)
- Supporting ASTM D7499-21 methodology for ultrasonically assisted sample digestion in environmental solid-phase analysis
FAQ
Is the DL-300S suitable for continuous operation?
No—this model is designed for intermittent duty cycles. Maximum recommended continuous activation is 3 minutes, followed by a minimum 2-minute cooling interval to prevent transducer overheating.
Can the unit be used underwater or in sealed reactors?
No. The DL-300S is rated for surface-level immersion only. Submersion beyond the probe’s sealing collar or use inside pressurized vessels voids warranty and violates IEC 61010-1 safety provisions.
What maintenance is required for long-term reliability?
Routine inspection of probe threads and tip erosion every 50 hours of cumulative use; replacement of worn sonotrodes per manufacturer’s wear-limit specifications; annual calibration of power output using a calibrated calorimetric load test.
Does Duling provide application support or method development assistance?
Yes—authorized distributors offer technical documentation, peer-reviewed protocol libraries, and remote consultation for method optimization aligned with ISO 17025-compliant validation frameworks.
