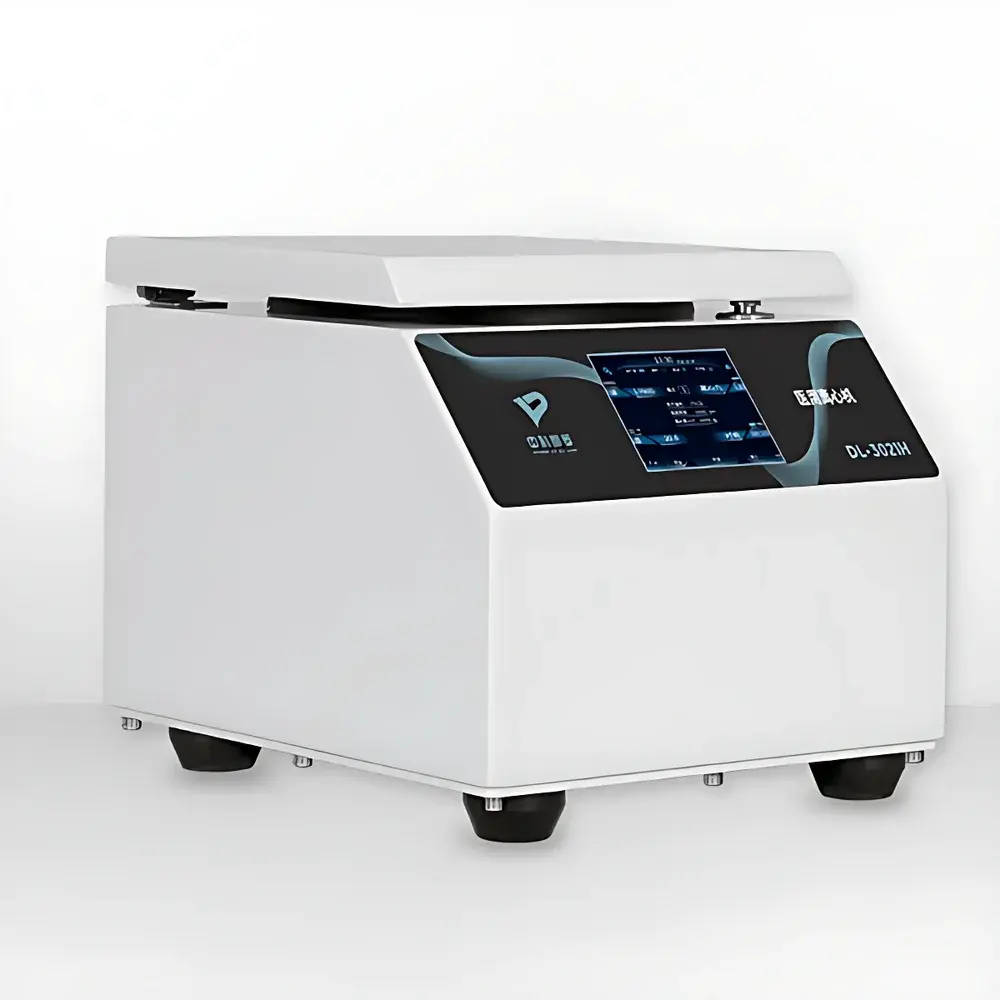

Duling DL-3021H High-Speed Benchtop Centrifuge

Overview

The Duling DL-3021H is a high-performance benchtop centrifuge engineered for precision separation of biological and chemical samples requiring high relative centrifugal force (RCF) and operational reliability. Operating on the principle of sedimentation under controlled rotational acceleration, it delivers consistent performance across diverse sample types—including mammalian cells, bacterial pellets, subcellular organelles, and macromolecular complexes—within the clinically and academically relevant RCF range up to 30,409 × g. Its microprocessor-based control architecture integrates real-time monitoring of speed, RCF, time, and acceleration/deceleration profiles, enabling reproducible protocol execution in regulated environments such as clinical diagnostics laboratories, pharmaceutical QC units, and academic research facilities conducting cell culture, nucleic acid purification, or protein fractionation workflows.

Key Features

• Microcomputer-controlled operation with full-color TFT LCD touchscreen interface supporting intuitive, glove-friendly navigation and simultaneous display of rotor identification, set parameters, and real-time operational status.
• Brushless AC frequency-conversion motor paired with dedicated drive module ensures stable torque delivery, low electromagnetic interference, and extended service life under continuous duty cycles.
• Dual mechanical/electronic interlocked door system engages automatically upon rotor spin-up, preventing accidental opening during operation and complying with IEC 61010-2-020 safety requirements for laboratory centrifuges.
• 20 programmable protocols with user-defined storage; each includes independent settings for speed (rpm), RCF (×g), time (0–99 min 59 s), acceleration ramp, deceleration ramp, and timer mode (start-at-speed or start-at-timer).
• 15-step acceleration and 15-step deceleration selection allows optimization for shear-sensitive samples—e.g., intact nuclei or exosome preparations—minimizing resuspension via the integrated SOFT braking function.
• Magnetic rotor recognition eliminates manual rotor ID entry; system auto-detects geometry and enforces speed/RCF limits per rotor specification, providing built-in overspeed protection.
• Stainless-steel centrifuge chamber and double-layer reinforced steel housing resist corrosion from common reagents including ethanol, acetone, and diluted acids—supporting long-term use in demanding extraction and purification applications.
• Dynamic imbalance detection triggers audible/visual alarm and immediate shutdown if mass distribution exceeds tolerance thresholds, meeting ISO 15195:2019 recommendations for analytical centrifuge safety integrity.

Sample Compatibility & Compliance

The DL-3021H accommodates standard 100 mL conical tubes (6-position horizontal rotor configuration) and supports routine processing of whole blood, cultured adherent or suspension cells, bacterial cultures, and clarified lysates. All rotors are validated for autoclaving at 121 °C for ≥120 minutes, ensuring compliance with biosafety Level 2 (BSL-2) containment protocols and facilitating decontamination between runs. The instrument conforms to key international safety and electromagnetic compatibility standards including IEC 61010-1 (electrical safety), IEC 61326-1 (EMC for laboratory equipment), and ISO 13485-aligned manufacturing practices. While not certified for GMP production environments out-of-the-box, its audit-ready parameter logging, non-volatile memory retention, and optional RS-485 serial interface support integration into GLP-compliant workflows requiring traceability and electronic record retention.

Software & Data Management

No external software is required for basic operation; all control logic resides onboard the embedded controller. Parameter history—including run date/time, rotor ID, speed, RCF, duration, and fault codes—is stored in non-volatile memory for retrieval via the touchscreen menu. The optional RS-485 interface enables remote command transmission (e.g., start/stop, parameter update) and real-time data streaming to laboratory information management systems (LIMS) or SCADA platforms. Timestamped event logs meet minimum documentation expectations for FDA 21 CFR Part 11–aligned environments when paired with appropriate access controls and audit trail configuration on the host system.

Applications

• Preparative isolation of peripheral blood mononuclear cells (PBMCs) using Ficoll density gradients.
• Harvesting E. coli and yeast cultures prior to plasmid DNA extraction or protein expression analysis.
• Clarification of cell lysates in recombinant protein purification pipelines.
• Concentration and pelleting of extracellular vesicles (exosomes) from conditioned media.
• Routine sedimentation of precipitated nucleic acids or antibody-antigen complexes in immunoassay development.
• Processing of environmental water samples for microbial enumeration and pathogen enrichment.

FAQ

Is the DL-3021H suitable for BSL-3 or higher containment labs?

No—the unit is designed for BSL-2 applications. For higher containment, sealed, aerosol-tight rotors with secondary containment must be used in conjunction with certified biosafety cabinets or specialized centrifuge enclosures.
Can I export run logs to CSV or PDF format?

Log data can be reviewed on-screen and manually transcribed; native export functionality is not supported. Integration via RS-485 allows third-party software to capture and format logs externally.
What maintenance intervals are recommended?

Visual inspection of rotor threads and chamber integrity before each use; annual calibration verification of speed and timer accuracy by an accredited service provider is advised per ISO/IEC 17025 guidelines.
Does the centrifuge support fixed-angle rotors?

The standard configuration includes a 6 × 100 mL horizontal rotor. Fixed-angle rotor compatibility depends on mechanical interface alignment and must be confirmed with Duling technical documentation prior to procurement.
How does the SOFT brake function differ from standard deceleration?

SOFT mode applies graded, low-torque resistance to minimize inertial disturbance during stoppage—critical for preserving pellet integrity in low-density or loosely packed sediments such as mitochondrial fractions or viral particles.
