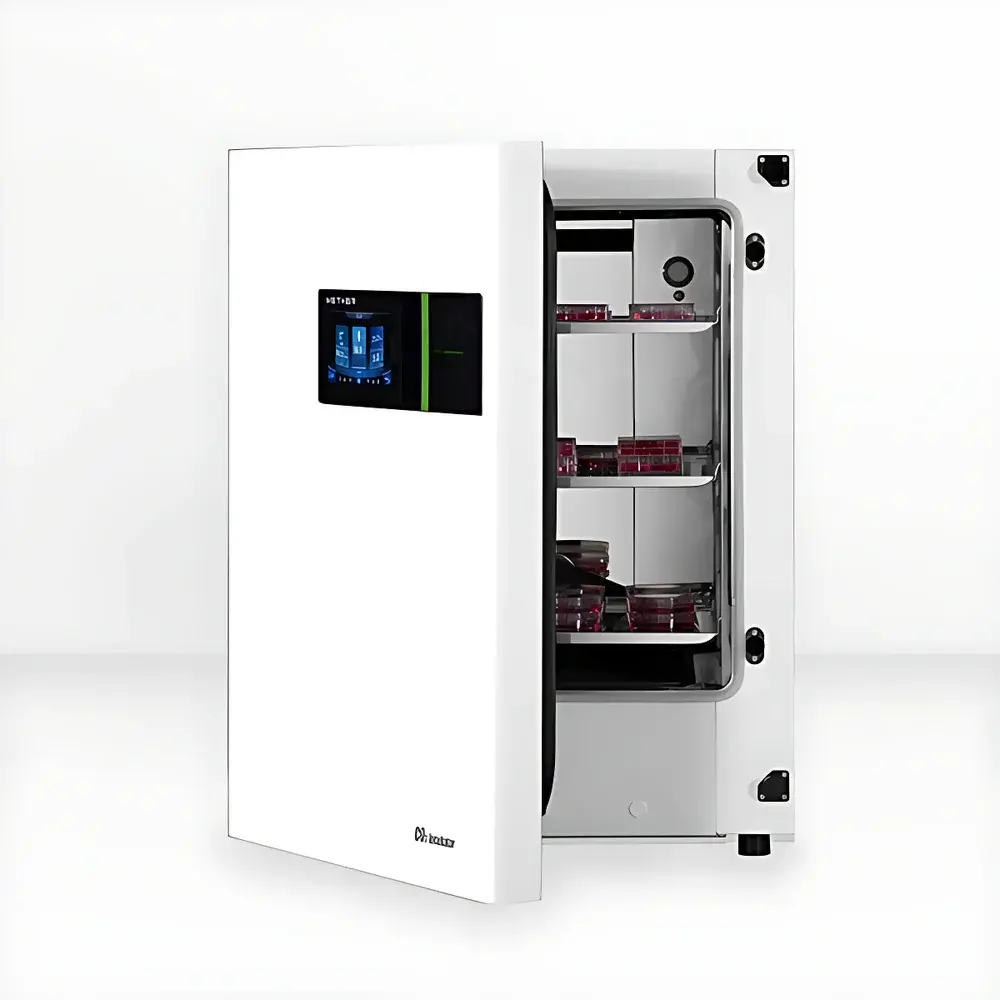

Duling MCP-170G Tri-Gas Incubator

Overview

The Duling MCP-170G Tri-Gas Incubator is an engineered environmental control system designed for hypoxic, normoxic, and hyperoxic cell culture applications requiring precise, independent regulation of oxygen (O₂), carbon dioxide (CO₂), and temperature. Unlike standard CO₂ incubators, the MCP-170G integrates dual-gas modulation—leveraging zirconia-based electrochemical O₂ sensing and non-dispersive infrared (NDIR) CO₂ detection—to maintain stable, traceable gas atmospheres across a broad operational range (O₂: 1–20.7%; CO₂: 0–20%). Its direct-heated air jacket architecture ensures rapid thermal equilibration and exceptional uniformity (≤ ±0.3°C), while the stainless steel electropolished interior minimizes surface adhesion and supports routine sterilization protocols including moist heat (121°C, 30 min) and hydrogen peroxide vapor (HPV) decontamination. The system is calibrated and validated in accordance with ISO 13485-aligned manufacturing practices and meets essential performance criteria for GLP-compliant cell expansion, stem cell differentiation, tumor spheroid modeling, and primary tissue culture.

Key Features

• Independent Tri-Gas Regulation: PID-controlled mixing of medical-grade N₂, CO₂, and ambient air enables dynamic O₂ setpoint adjustment without compromising CO₂ stability—critical for physioxia studies (e.g., 1–5% O₂ mimicking tissue microenvironments).
• Zirconia O₂ Sensor: High-selectivity, cross-interference-free detection with built-in heating element to prevent condensation-induced drift; operational up to 95% RH and 55°C.
• IR-Based CO₂ Monitoring: Dual-beam NDIR sensor with automatic baseline correction ensures long-term accuracy (±0.1%) and resistance to contamination from volatile organic compounds.
• ISO Class 5 Air Management: Continuous HEPA filtration (0.3 µm @ 99.99%) combined with laminar airflow design restores chamber cleanliness to ISO 5 (100) within 5 minutes following a 30-second door opening event.
• Intuitive Human-Machine Interface: 7-inch capacitive touchscreen display with multilingual support (English, Chinese, Spanish), real-time graphing of all controlled parameters, and user-configurable alarm thresholds.
• Integrated Humidification System: 3-L internal reservoir with auto-refill detection and anti-evaporation sealing; maintains >95% RH at 37°C without external water pans or manual topping.

Sample Compatibility & Compliance

The MCP-170G accommodates standard T-flasks (up to 175 cm²), multiwell plates (6–96-well), Petri dishes, and roller bottles across seven configurable stainless steel shelves (standard: three). Its electropolished 316L inner chamber resists corrosion from repeated ethanol wiping, 70% isopropanol exposure, and low-concentration hydrogen peroxide treatments. The unit complies with IEC 61010-1:2010 for laboratory equipment safety and incorporates fail-safe mechanisms—including redundant temperature cutoffs, gas shutoff valves, and audible/visual alarms for low water level, out-of-spec gas concentration, and ambient temperature excursions. While not FDA 510(k)-cleared as a medical device, its operational documentation supports 21 CFR Part 11–compliant data integrity when paired with validated third-party audit trail software.

Software & Data Management

The incubator logs all critical parameters (temperature, O₂, CO₂, humidity, door status, alarm events) at user-defined intervals (1–60 min) to internal flash memory (≥30 days retention). Data export is supported via USB 2.0 port in CSV format for integration into LIMS or ELN platforms. Optional Ethernet connectivity enables remote monitoring through Duling’s proprietary LabLink™ client—featuring role-based access control, email/SMS alerting, and synchronized time-stamping aligned with NTP servers. All firmware updates are digitally signed and verified to ensure traceability under GLP/GMP audit requirements.

Applications

• Hypoxia research in cancer biology (e.g., HIF-1α stabilization assays)
• Stem cell maintenance and directed differentiation under physiological O₂ (2–5%)
• Primary neuronal and cardiomyocyte culture requiring strict gas homeostasis
• Microbiological studies involving microaerophilic pathogens (e.g., Helicobacter pylori, Campylobacter jejuni)
• 3D organoid development where oxygen diffusion gradients influence morphogenesis
• Biomanufacturing process development for monoclonal antibody-producing CHO cells

FAQ

What O₂ sensing technology does the MCP-170G employ, and why is it suitable for long-term culture?
The system uses a heated zirconia electrochemical sensor, which provides high specificity for O₂, minimal drift over time, and immunity to CO₂ or humidity interference—enabling stable setpoints across multi-week experiments.
Can the incubator be validated for IQ/OQ/PQ protocols?
Yes. Duling supplies factory calibration certificates (traceable to NIST standards), temperature mapping templates, and gas verification procedures compatible with ASTM E2500 and EU Annex 15 guidelines.
Is the internal chamber compatible with vaporized hydrogen peroxide (VHP) decontamination?
Yes. The electropolished 316L stainless steel construction and sealed electronics housing meet the material compatibility requirements for standard VHP cycles (≤1000 ppm, 60% RH, 25–35°C).
How is data integrity ensured during power interruption?
All logged data is written to non-volatile memory with battery-backed real-time clock; unsaved entries are preserved and timestamped upon reboot without loss.
Does the system support external CO₂ supply monitoring or alarm interlocks?
The MCP-170G includes dry-contact relay outputs for integration with central gas monitoring systems, enabling facility-wide alarm escalation and supply line pressure validation.
