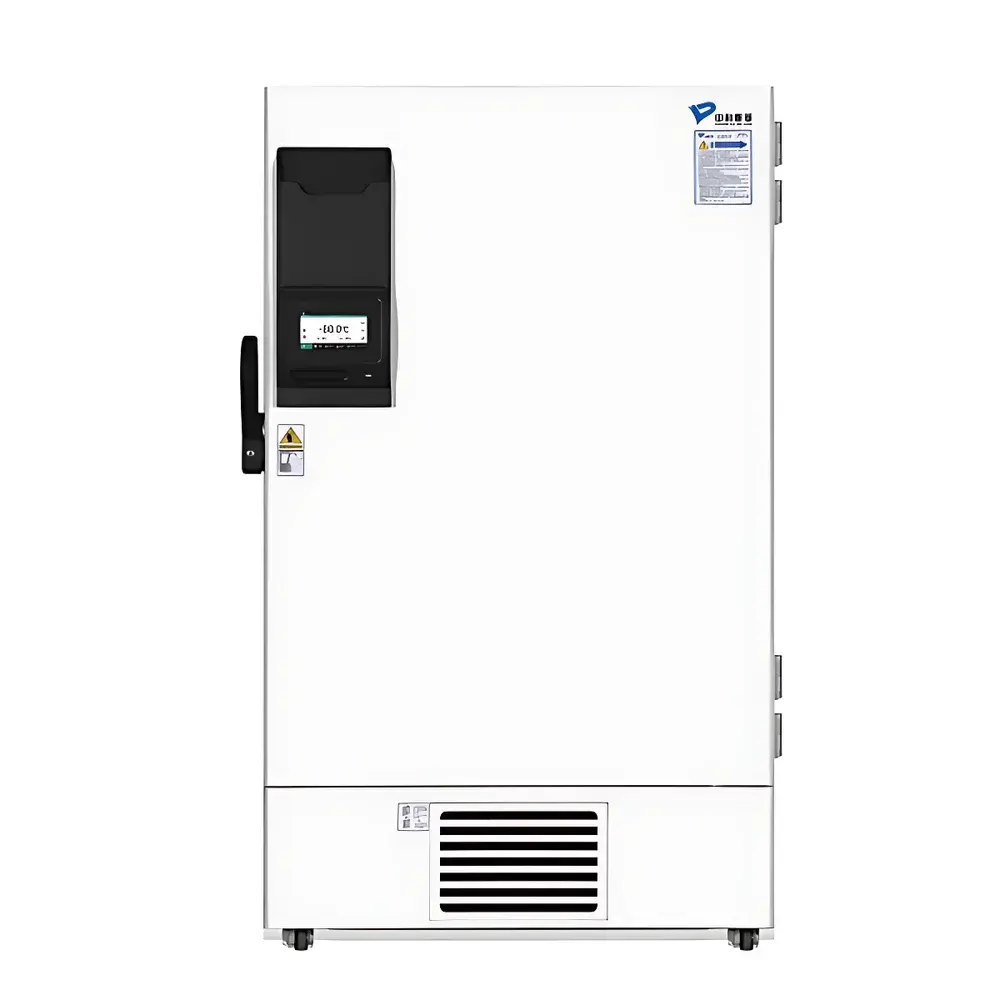

Duling MDF-86V728E Ultra-Low Temperature Medical Freezer

Overview

The Duling MDF-86V728E is an upright ultra-low temperature (ULT) medical freezer engineered for reliable long-term cryopreservation of sensitive biological materials—including human tissue samples, stem cells, primary cell lines, serum, vaccines, and diagnostic reagents—at sustained operating temperatures down to –86 °C. Designed in accordance with ISO 13485-aligned manufacturing practices and validated for clinical laboratory use, this unit employs a cascade refrigeration system with dual compressors and environmentally compliant refrigerants (R404A/R23), ensuring thermal stability, low temperature drift (< ±0.5 °C over 24 h), and minimal frost accumulation in the chamber. Its microprocessor-based control architecture continuously monitors and regulates evaporator superheat, condenser subcooling, and chamber air distribution—enabling consistent temperature uniformity (±2.5 °C across all zones, per IEC 61000-4-2 validation protocols) even under frequent door access or ambient fluctuations between 10–32 °C.

Key Features

• High-precision digital temperature control with ±0.1 °C setpoint resolution and real-time display on a backlit LCD interface
• Comprehensive multi-layer alarm system covering high/low temperature excursions, sensor failure, condenser fouling, ambient temperature deviation, power interruption, door-open duration (>30 s), low backup battery voltage, and mains voltage anomaly
• Acoustic-optic alert activation with auto-reset suppression logic: if silenced manually, the buzzer automatically re-engages if the fault condition persists beyond 60 seconds
• Remote alarm output via dry-contact relay (NO/NC) compatible with BMS, SCADA, or centralized lab monitoring platforms; optional GSM module supports SMS alerts to up to three preconfigured numbers
• Non-volatile memory retains all setpoints, alarms, and event logs during power loss; supports retrieval of ≥1000 historical entries with timestamps
• Stainless steel interior (304 grade) with seamless welded corners and rounded edges for easy decontamination and compliance with CLSI GP35-A4 cleaning guidelines
• Double-pane vacuum-insulated glass door with anti-condensation heater and magnetic gasket seal achieving ≤0.8 W/m²·K thermal transmittance

Sample Compatibility & Compliance

The MDF-86V728E accommodates standard cryogenic storage configurations including 2-inch and 5-inch box racks (up to 300 boxes), cryovials (0.5–5.0 mL), and cryo-bags (up to 500 mL). Internal shelving is fully adjustable and load-rated to 25 kg per shelf. The unit complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), IEC 60335-2-24 (Particular Requirements for Refrigerating Appliances), and EN 60601-1 (Medical Electrical Equipment Safety). It supports GLP/GMP documentation workflows through configurable audit trails and meets data integrity requirements outlined in FDA 21 CFR Part 11 when paired with validated third-party data logging software.

Software & Data Management

While the onboard controller does not include embedded network connectivity, it provides RS-485 Modbus RTU and USB host interfaces for integration with external environmental monitoring systems (e.g., DicksonOne, SensiML, or LabVantage). Event logs—including alarm triggers, temperature deviations, door openings, and maintenance prompts—are exportable as CSV files via USB flash drive. Optional firmware upgrades enable time-stamped log encryption and password-protected configuration changes, aligning with Annex 11 (Computerized Systems) expectations for regulated biobanking environments.

Applications

This ULT freezer serves critical roles in hospital blood banks, academic biorepositories, contract research organizations (CROs), and pharmaceutical QC laboratories. Typical use cases include: long-term archiving of peripheral blood mononuclear cells (PBMCs) and induced pluripotent stem cells (iPSCs); cold-chain storage of mRNA vaccine intermediates; preservation of FFPE tissue blocks prior to genomic analysis; and secure holding of reference standards used in ISO/IEC 17025-accredited testing. Its stable –86 °C environment minimizes ice recrystallization and protein denaturation kinetics, supporting sample integrity over multi-year storage horizons.

FAQ

What is the recommended ambient operating temperature range?
The unit is rated for continuous operation in ambient conditions between 10 °C and 32 °C, with relative humidity ≤80% non-condensing.
Does the MDF-86V728E support 21 CFR Part 11-compliant electronic records?
The base unit provides tamper-evident audit logs; full Part 11 compliance requires integration with a validated third-party data management platform that enforces electronic signatures, role-based access control, and record retention policies.
Can the freezer be installed in a non-ventilated room?
No. Minimum rear clearance of 150 mm and side clearance of 100 mm are required for condenser airflow; installation in enclosed cabinets or unventilated spaces voids warranty and compromises thermal performance.
Is calibration certificate included with shipment?
A factory-issued temperature mapping report (per IQ/OQ protocol) is provided; NIST-traceable calibration certificates require separate purchase and on-site verification by accredited metrology service providers.
What maintenance intervals are recommended?
Condenser coil cleaning every 3 months (more frequently in dusty environments), door gasket inspection quarterly, and annual verification of compressor oil level and refrigerant charge by authorized service technicians.
