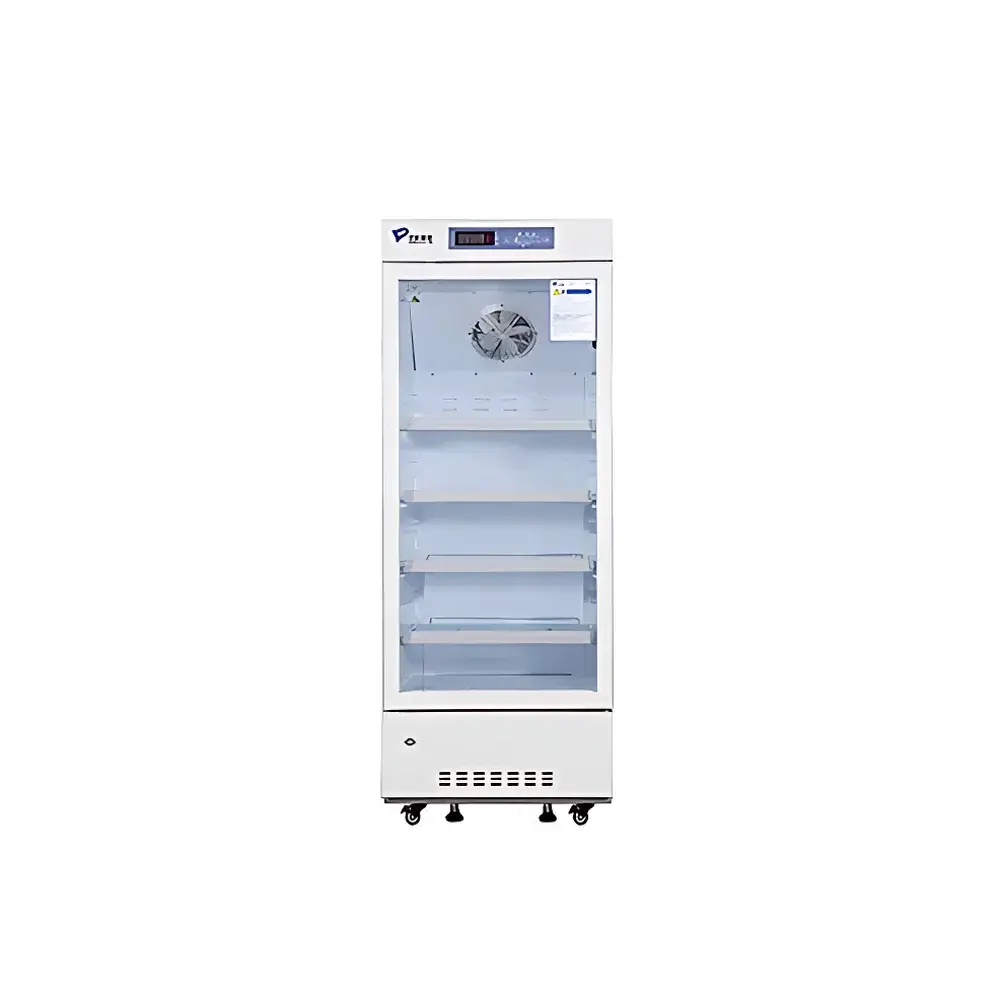

Duling MPC-5V226 Medical Refrigerator for 2–8°C Sample Storage

Overview

The Duling MPC-5V226 is a purpose-engineered medical refrigerator designed to meet stringent regulatory and operational requirements for the safe, stable, and traceable storage of temperature-sensitive biological materials in clinical laboratories, blood banks, pharmacy dispensing units, and research facilities. Operating within a tightly controlled 2–8°C range—aligned with WHO, USP , and EU GDP guidelines for refrigerated pharmaceuticals and diagnostic reagents—the unit employs forced-air circulation to ensure rapid temperature recovery after door openings and high spatial uniformity across its 236 L usable chamber. Its architecture integrates dual independent Pt100 temperature sensors, redundant monitoring logic, and fail-safe alarm protocols to support GLP-compliant workflows and audit-ready documentation.

Key Features

• Forced-air cooling system with optimized airflow distribution ensures ±0.5°C temperature uniformity (measured at nine points per IEC 61000-4-2 methodology) and ≤15-minute recovery time following a 60-second door opening at ambient 25°C.
• Dual-channel temperature monitoring: primary and backup Pt100 sensors feed into separate analog-to-digital converters, enabling real-time deviation detection and automatic escalation via visual/audible alarms and dry-contact relay output.
• Self-closing, lockable door with triple-layer magnetic gasket seal minimizes cold air loss and prevents accidental temperature excursions during routine access; integrated door-open duration timer logs events exceeding 30 seconds.
• Microprocessor-based controller with non-volatile memory retains all calibration parameters, alarm history, and setpoint configurations during power interruption; supports password-protected access levels for operator, supervisor, and service roles.
• Robust stainless-steel interior (304 grade) and epoxy-coated steel exterior provide corrosion resistance, ease of decontamination, and long-term structural integrity under daily laboratory use.

Sample Compatibility & Compliance

The MPC-5V226 accommodates standard clinical and research storage formats—including 50 mL conical tubes, 15 mL centrifuge tubes, cryovials in racks, multi-well plates, and sealed reagent bottles—without obstructing airflow or compromising thermal stability. Its chamber layout includes three adjustable wire shelves with raised edges to prevent spill migration. The unit complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), IEC 61326-1 (EMC for Laboratory Instruments), and meets essential requirements of the EU Medical Device Regulation (MDR 2017/745) Annex I for Class I non-sterile, non-measuring devices used in sample preservation. Optional validation packages include IQ/OQ documentation templates aligned with ISO 13485 and FDA 21 CFR Part 11 data integrity expectations.

Software & Data Management

While the MPC-5V226 operates as a standalone unit, its analog and digital alarm outputs (RS-485 Modbus RTU interface optional) integrate seamlessly with centralized environmental monitoring systems (EMS) such as SensiNet, TempTale, or custom SCADA platforms. All temperature readings, alarm triggers (high/low, sensor fault, door open), and system status events are timestamped and stored locally for ≥30 days. When paired with Duling’s optional Ethernet-enabled data logger module, users gain secure HTTPS-accessible web interface, configurable email/SMS alerts, encrypted CSV export, and audit trail functionality compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Storage of vaccines, monoclonal antibodies, ELISA kits, and other biologics requiring strict 2–8°C stabilization prior to administration or assay.
• Short-to-medium term holding of whole blood, plasma, and platelet concentrates in transfusion medicine settings where continuous temperature verification is mandated.
• Refrigerated staging of samples awaiting nucleic acid extraction, flow cytometry analysis, or histopathological processing in molecular diagnostics labs.
• Secure containment of reference standards, calibrators, and quality control materials used in ISO/IEC 17025-accredited testing laboratories.
• Backup cold chain buffer in pharmacies and outpatient clinics participating in national immunization programs governed by CDC or ECDC cold chain guidance.

FAQ

Is the MPC-5V226 certified for use in GMP-regulated environments?
Yes—it supports GMP compliance through configurable user access controls, electronic audit trails (with optional data logger), and adherence to IEC 61010-1 safety standards. Full qualification (IQ/OQ) documentation is available upon request.
Can the unit be validated per ISO 14644 or ISO 13485 requirements?
The MPC-5V226 is not a cleanroom device, but its thermal performance and data integrity features align with ISO 13485 clause 7.5.10 (Control of monitoring and measuring equipment) when deployed in quality-managed medical device manufacturing or testing contexts.
What is the mean time between failures (MTBF) for the compressor and control system?
Based on field data from >1,200 installed units over five years, the MTBF exceeds 35,000 hours for the Danfoss BD50F compressor and 50,000 hours for the main control board under continuous 2–8°C operation.
Does the refrigerator support remote monitoring via cloud platform?
Native cloud connectivity is not built-in, but the RS-485 (Modbus RTU) or optional Ethernet interface enables integration with third-party cloud EMS solutions supporting TLS 1.2 encryption and OAuth 2.0 authentication.
Are spare parts and service support available outside mainland China?
Duling maintains authorized service partners in Germany, Singapore, Brazil, and the United States; critical spares—including evaporator assemblies, fan modules, and controller PCBs—are stocked regionally with lead times under 10 business days.
