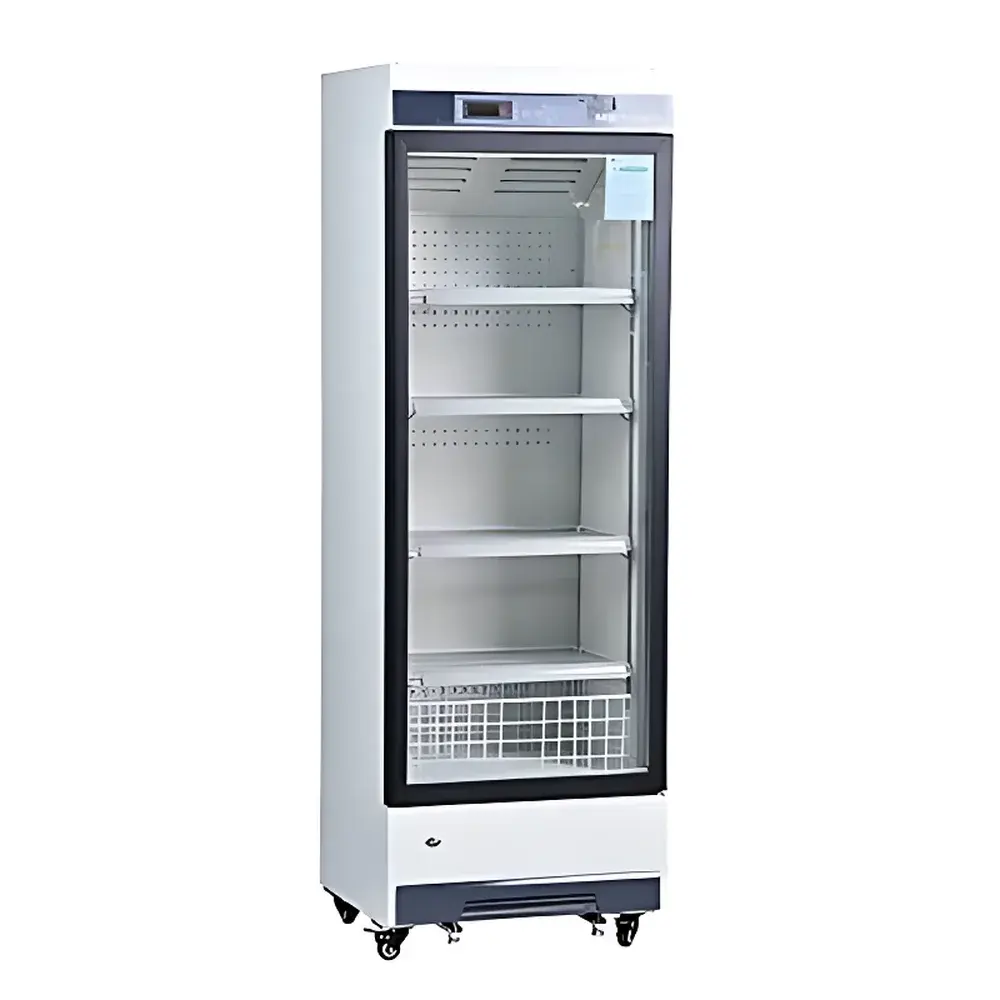

Duling MPC-5V306 Medical Refrigerator

Overview

The Duling MPC-5V306 Medical Refrigerator is a vertically oriented, microprocessor-controlled pharmaceutical cold storage unit engineered for precise, stable, and compliant storage of temperature-sensitive biologicals, vaccines, reagents, and clinical specimens at 2°C to 8°C. Designed in accordance with international medical device quality management standards—including ISO 13485 and China’s NMPA regulatory requirements—the MPC-5V306 employs forced-air convection cooling with back-blow air duct architecture to ensure uniform thermal distribution across the entire 306 L chamber. Its copper-tube finned evaporator, imported hermetic compressor, and eco-friendly refrigerant deliver consistent performance under ambient conditions ranging from 10°C to 32°C (SN/N climate class), while maintaining temperature stability within ±1.5°C fluctuation—critical for preserving the integrity and efficacy of biologics subject to pharmacopeial specifications (e.g., USP , EP 2.2.42). The unit operates at low acoustic emission (≤50 dB[A]) and energy efficiency (3.9 kWh/24h), making it suitable for continuous operation in hospital pharmacies, clinical laboratories, and GMP-aligned biobanking environments.

Key Features

• Double-glazed tempered glass door with inert gas fill and integrated anti-frost heating film—ensures unobstructed visibility while preventing surface condensation in humid environments.
• Auto-retracting door mechanism with soft-close damping—eliminates risk of inadvertent door omission and maintains thermal integrity during high-frequency access.
• Four adjustable powder-coated wire shelves with molded identification strips—optimized for modular organization of vials, trays, and primary packaging without compromising airflow.
• Intelligent LED lighting system—activates automatically upon door opening and deactivates after 60 seconds; includes dimmable cold-light strip for glare-free interior inspection.
• Comprehensive alarm architecture with dual-output notification (audible + visual)—covers 8 critical failure modes including door-open duration, condenser fouling, ambient temperature excursion, and controller sensor fault.
• Robust electrical safety suite—includes GSM SMS alert module (standard), remote alarm dry-contact interface, 48-hour backup battery for alarm continuity during power outage, and programmable delayed restart to prevent grid surge on recovery.
• USB data port supporting long-term temperature logging (up to 5 years internally stored); time-stamped min/max temperature history for past 24 hours accessible via front-panel interface.

Sample Compatibility & Compliance

The MPC-5V306 accommodates standard clinical and pharmaceutical storage formats—including 2 mL cryovials, 15 mL and 50 mL conical tubes, vaccine carriers, and multi-dose vial trays—without airflow obstruction, thanks to its rear-mounted centrifugal fan and optimized vertical air channel design. All internal surfaces are constructed from electrophoretically coated steel, resistant to corrosion from repeated disinfection with ethanol, quaternary ammonium compounds, or low-concentration sodium hypochlorite solutions. The unit conforms to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and carries full CE marking under the EU Medical Device Regulation (MDR 2017/745) Annex II Class IIa classification. Regulatory documentation includes valid NMPA Medical Device Registration Certificate (Class II), ISO 13485:2016 certification for design and manufacturing, and ISO 9001:2015 for quality management systems—ensuring audit readiness for GLP, GCP, and GDP inspections.

Software & Data Management

Temperature monitoring is managed via an embedded 32-bit microcontroller with real-time clock and non-volatile memory. The system records temperature readings every minute and stores them in a tamper-resistant internal database compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Data export is supported via standard USB-A interface using FAT32-formatted drives; exported CSV files include timestamps, sensor ID, and status flags—facilitating integration with LIMS or electronic batch record (EBR) platforms. Optional RS-485 Modbus RTU output enables connection to building management systems (BMS) or centralized environmental monitoring systems (EMS) meeting FDA 21 CFR Part 11 requirements when paired with validated third-party software.

Applications

• Hospital pharmacy cold chain storage for vaccines (e.g., mRNA, viral vector, and live-attenuated formulations requiring strict 2–8°C maintenance).
• Clinical trial material storage in phase I–IV investigational sites, ensuring adherence to ICH-GCP Annex 13 cold chain validation protocols.
• Biorepository pre-sorting and staging zones where short-term holding of biospecimens precedes ultra-low temperature transfer.
• QC/QA laboratories storing reference standards, calibration materials, and stability study samples under defined pharmacopeial conditions.
• Point-of-care diagnostic centers requiring reliable, auditable refrigeration for enzyme-linked immunoassay (ELISA) kits, rapid antigen tests, and molecular assay reagents.

FAQ

What is the temperature uniformity specification across the chamber?
The MPC-5V306 maintains ±1.5°C temperature uniformity (measured per ISO 10554:2021 Annex B) at all designated test points within the loaded chamber under steady-state conditions.
Is the unit suitable for use in cleanroom environments?
Yes—the cabinet meets ISO 14644-1 Class 8 particulate limits when operated with closed doors and installed with appropriate HVAC air balancing; no internal fans generate recirculated aerosols.
Can the temperature logging data be password-protected?
Yes—access to configuration menus, data export, and alarm reset functions requires administrator-level authentication via 4-digit PIN; user-level access permits only temperature readout and alarm acknowledgment.
Does the unit support 21 CFR Part 11 compliance?
The hardware supports Part 11 readiness when deployed with validated third-party EMS software; built-in features include electronic signatures, audit trails, and role-based access control.
What is the warranty coverage scope?
Three-year comprehensive warranty covers parts, labor, and on-site service for all components—including compressor, control board, sensors, and door mechanisms—subject to proper installation and routine maintenance per manufacturer guidelines.
