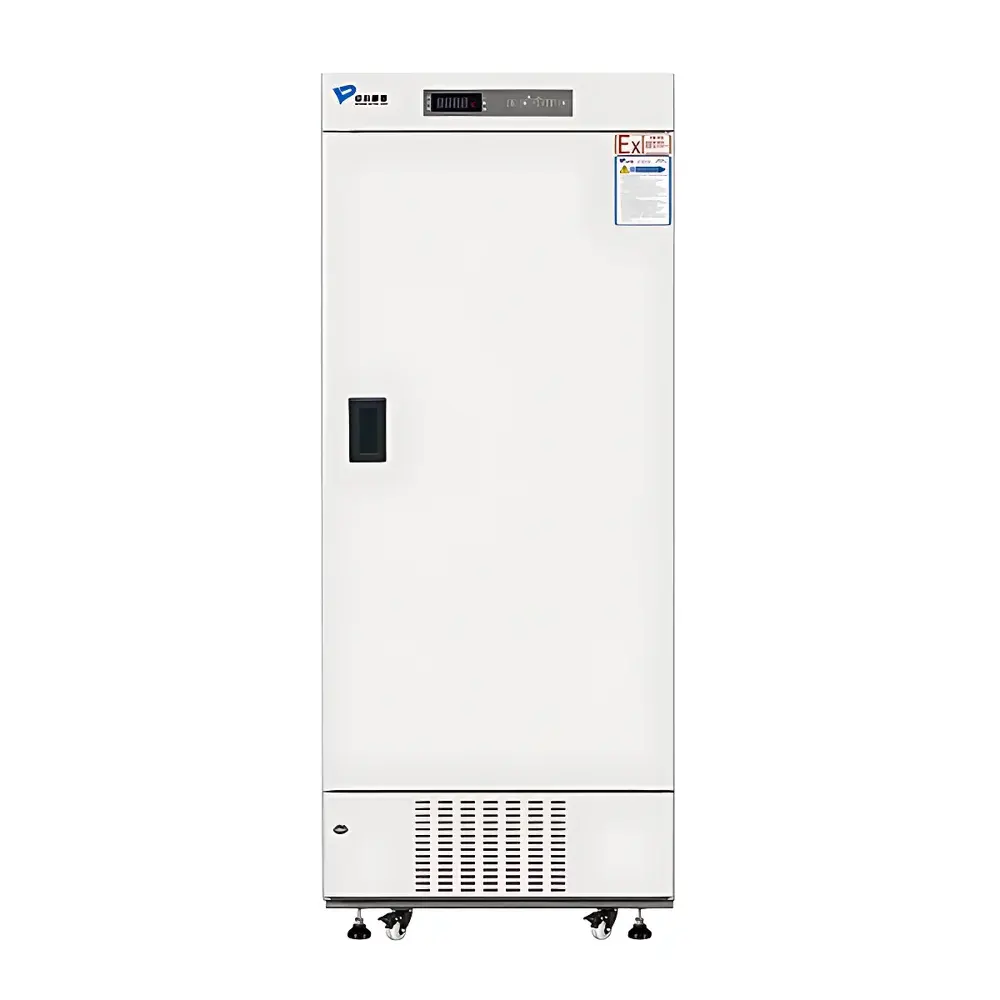

Duling MPC-5V416EX Explosion-Proof Laboratory Refrigerator

Overview

The Duling MPC-5V416EX Explosion-Proof Laboratory Refrigerator is an engineered solution for the safe, temperature-stable storage of volatile, flammable, or chemically sensitive materials in regulated laboratory, pharmaceutical, and industrial environments. Designed in strict accordance with IEC 60079-0 and IEC 60079-15 standards for non-sparking (Ex nA) equipment, this upright refrigerator integrates intrinsically safe temperature control architecture, sealed electrical components, and spark-resistant interior construction to eliminate ignition risks in hazardous locations classified as Zone 2 (Class I, Division 2). Its forced-air cooling system ensures uniform temperature distribution across the full 416 L storage volume, maintaining a tightly controlled operating range of 2–8 °C—compliant with WHO, USP , and EU GDP guidelines for cold-chain integrity of reagents, reference standards, biological samples, and stability test materials.

Key Features

• Intrinsically safe design certified for use in Zone 2 hazardous areas (IEC 60079-0, IEC 60079-15); no internal sparking pathways or exposed high-energy circuits.
• Forced-air (fan-cooled) refrigeration system with dual evaporator airflow management, delivering ±0.5 °C temperature uniformity throughout the chamber at 5 °C setpoint.
• Microprocessor-based PID temperature controller with real-time digital display, adjustable in 0.1 °C increments, and configurable high/low temperature alarms with visual and audible alerts.
• Stainless steel interior (304 grade) and aluminum-coated exterior cabinet; all internal lighting uses low-voltage LED fixtures with explosion-proof enclosures.
• Robust mechanical lock with dual-key access control; optional electronic access log module available for audit-ready user tracking (GLP-compliant).
• Energy-optimized operation at 2.94 kWh/24h (tested per ISO 15502), supporting sustainability goals without compromising thermal stability or safety compliance.

Sample Compatibility & Compliance

The MPC-5V416EX accommodates standard laboratory storage configurations—including stacked polypropylene or glass sample racks, multi-tier shelving (adjustable height), and cryobox-compatible trays—while maintaining unobstructed airflow. It supports long-term storage of organic solvents (e.g., acetone, ethanol, ether), flammable reagents (perchloric acid solutions, alkyl lithium compounds), and temperature-sensitive diagnostics under continuous monitoring. The unit meets requirements for ISO/IEC 17025-accredited labs performing calibration traceability of storage conditions, and its temperature performance is validated per ASTM E2739 for stability testing of pharmaceuticals. Documentation includes factory calibration certificate (NIST-traceable probe), Ex certification report, and full CE marking dossier.

Software & Data Management

While the base configuration operates via embedded hardware controls, optional connectivity modules enable integration into centralized environmental monitoring systems (EMS). A USB data logging port supports export of time-stamped temperature records (CSV format) with timestamps accurate to ±1 second. When equipped with the optional Ethernet interface, the unit complies with FDA 21 CFR Part 11 requirements through role-based user authentication, electronic signature capability, and immutable audit trails for all setpoint changes, alarm events, and door-open durations. All firmware updates are digitally signed and installed via secure HTTPS protocol to ensure data integrity and regulatory defensibility.

Applications

• Storage of flammable chemical inventory in university chemistry departments and contract research organizations (CROs).
• Cold-chain holding of clinical trial materials in GCP-compliant biorepositories.
• Controlled-temperature staging of raw materials prior to GMP manufacturing processes in API and formulation facilities.
• Secure backup storage for quality control reference standards requiring both thermal stability and explosion risk mitigation.
• Compliance-driven archiving of forensic evidence where chain-of-custody documentation and environmental integrity are legally mandated.

FAQ

Is the MPC-5V416EX certified for use in Class I, Division 2 environments in North America?

Yes—the unit carries cULus certification (UL 60079-0, UL 60079-15) for Class I, Division 2, Groups A, B, C, and D, enabling deployment in U.S. and Canadian hazardous locations without additional field modifications.
Can the temperature setpoint be locked to prevent unauthorized adjustment?

Yes—administrator-level password protection is enabled by default, restricting setpoint changes, alarm thresholds, and system configuration to authorized personnel only.
Does the unit include a validation-ready IQ/OQ protocol package?

Duling provides a vendor-qualified IQ/OQ template aligned with ASTM E2500 and Annex 15 of the EU GMP Guide; site-specific execution and PQ support are available through authorized service partners.
What is the maximum ambient temperature rating for continuous operation?

Rated for continuous operation at ambient temperatures up to 32 °C (89.6 °F) under climate class SN/N, per ISO 15502 test conditions.
Are replacement shelves and accessories available separately?

Yes—standardized stainless steel shelves, wire baskets, and labeled rack inserts are stocked globally and shipped with serialized part numbers for full traceability.
