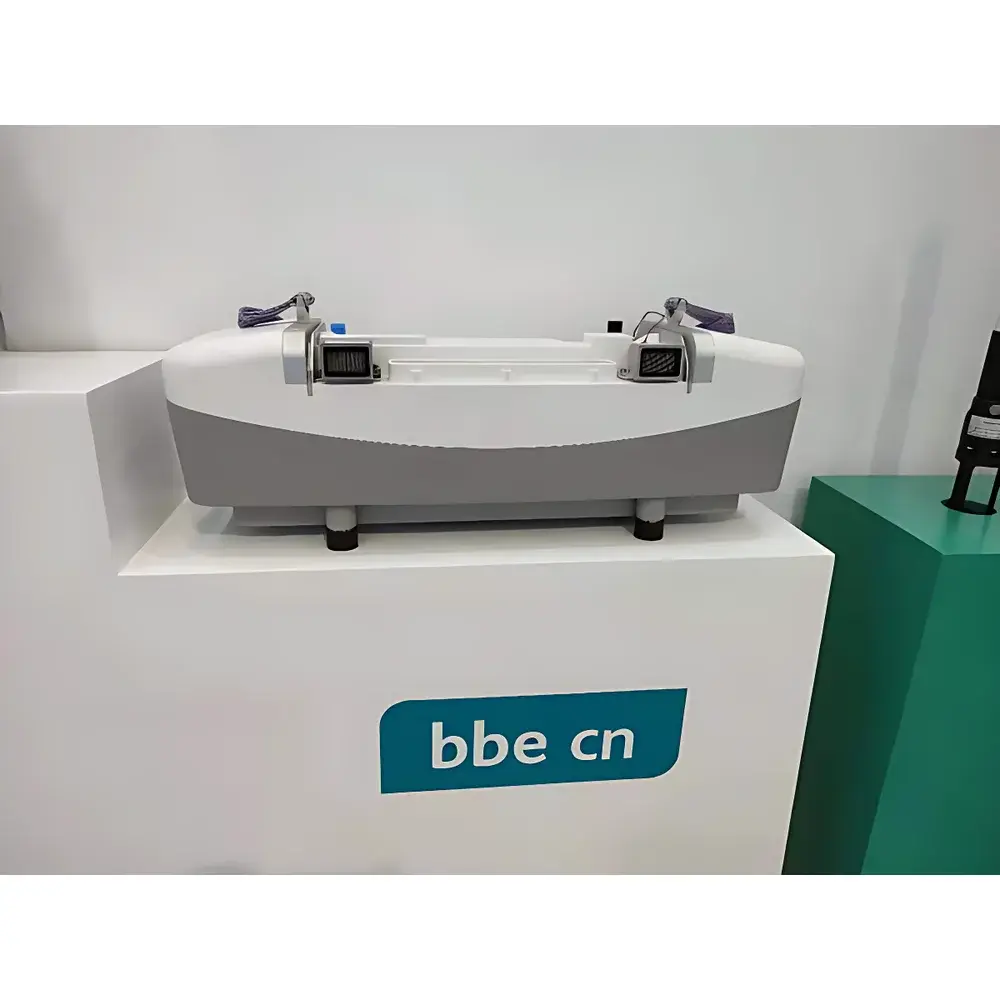

DV3000 UV Differential Optical Absorption Spectroscopy (DOAS) Multi-Gas Analyzer

Overview

The DV3000 UV Differential Optical Absorption Spectroscopy (DOAS) Multi-Gas Analyzer is a high-sensitivity, open-path optical instrument engineered for real-time, simultaneous quantification of trace-level gaseous pollutants in ambient air and industrial emission plumes. Leveraging ultraviolet (UV) absorption spectroscopy with differential spectral analysis, the DV3000 resolves overlapping absorption features across the 190–420 nm wavelength range to deliver selective, interference-resistant detection of multiple analytes without chemical conversion or consumables. Its core measurement principle relies on Beer–Lambert law-based retrieval of concentration from path-integrated absorbance, calibrated against NIST-traceable reference spectra. Designed for deployment flexibility—portable emergency response, fixed-site continuous monitoring, and vehicle-mounted mobile surveying—the DV3000 serves as a field-deployable air quality station compliant with regulatory monitoring paradigms for ozone precursors, hazardous air pollutants (HAPs), and volatile organic compound (VOC) speciation.

Key Features

• UV-DOAS optical architecture with dual-beam reference compensation for enhanced photometric stability
• High-flow sampling system (≥100 L/min) enabling rapid atmospheric exchange and reduced residence time artifacts
• Compact optical path length (~14 m) optimized for portability while maintaining sub-ppb detection limits for key species
• 8-ms spectral acquisition rate supporting true second-by-second data resolution and transient event capture
• Simultaneous quantification of up to 14 target gases—including O₃, SO₂, NO, NO₂, NH₃, HCHO, benzene, toluene, ethylbenzene, xylene (BETX), styrene, 1,3-butadiene, H₂S, and Cl₂
• Modular configuration options: handheld portable kit (with integrated battery and GPS), rack-mounted continuous monitoring unit, or vehicle-integrated mobile platform with inertial navigation coupling
• Onboard spectral library with >200 reference cross-sections, regularly updated per JPL and MPI-Mainz databases

Sample Compatibility & Compliance

The DV3000 is validated for direct analysis of ambient air, stack effluent (diluted or conditioned), and fugitive emission plumes without pre-concentration or catalytic oxidation. It meets performance criteria outlined in EN 14625:2012 (ambient O₃ monitoring), EPA Method TO-15 (VOC speciation), and ISO 12039:2000 (SO₂/NO_x in flue gas). For regulatory reporting, raw spectral data and processed concentration time series are timestamped, GPS-georeferenced, and stored with full audit trail metadata. The system supports GLP-compliant operation through optional 21 CFR Part 11–enabled software modules, including electronic signatures, user access controls, and immutable data archiving.

Software & Data Management

The proprietary DOASView™ software suite provides real-time spectral fitting, baseline correction, and multi-component deconvolution using least-squares minimization algorithms. Field operators can configure measurement cycles, define alarm thresholds per analyte, and export data in NetCDF, CSV, or EPA AQS-compatible formats. The mobile mapping module integrates live GPS coordinates with concentration heatmaps, generating georeferenced contour plots for leak localization and plume dispersion modeling. All raw interferograms and fitted spectra are retained for retrospective reprocessing—critical for method validation and inter-laboratory comparison studies.

Applications

• Industrial fence-line monitoring of VOCs (e.g., benzene, styrene) and reactive nitrogen compounds at petrochemical, pharmaceutical, and semiconductor facilities
• Mobile source characterization along roadways and ports via vehicle-mounted surveys, correlating NO_x/BETX gradients with traffic density and meteorological parameters
• Photochemical smog precursor mapping in urban AQI networks, especially during high-ozone episodes requiring rapid O₃/NO_x/VOC ratio diagnostics
• Emergency response to chemical releases: real-time identification and quantification of unknown plumes using spectral pattern matching against toxic gas libraries
• Unmanned aerial vehicle (UAV)-compatible deployment for vertical profiling when integrated with lightweight optical retroreflectors

FAQ

What calibration standards are required for routine operation?

The DV3000 operates on absolute spectroscopic calibration; no span gas cylinders are needed for daily use. Zero checks are performed using synthetic air or filtered ambient air. Optional NIST-traceable permeation tubes or dynamic dilution systems may be used for periodic verification per ISO/IEC 17025 requirements.
Can the DV3000 distinguish isomeric VOCs such as o-, m-, and p-xylene?

While individual xylene isomers exhibit highly similar UV absorption profiles, the DV3000 reports total C₈H₁₀ aromatic signal. For isomer-resolved analysis, GC-PID or GC-MS coupling is recommended—though the DV3000’s real-time screening capability enables targeted deployment of confirmatory lab methods.
Is the system suitable for indoor air quality (IAQ) monitoring?

Yes—its ppb-level sensitivity and fast response make it appropriate for IAQ assessments in laboratories, cleanrooms, and occupational health settings, provided sampling inlets are positioned to avoid localized turbulence or surface adsorption artifacts.
