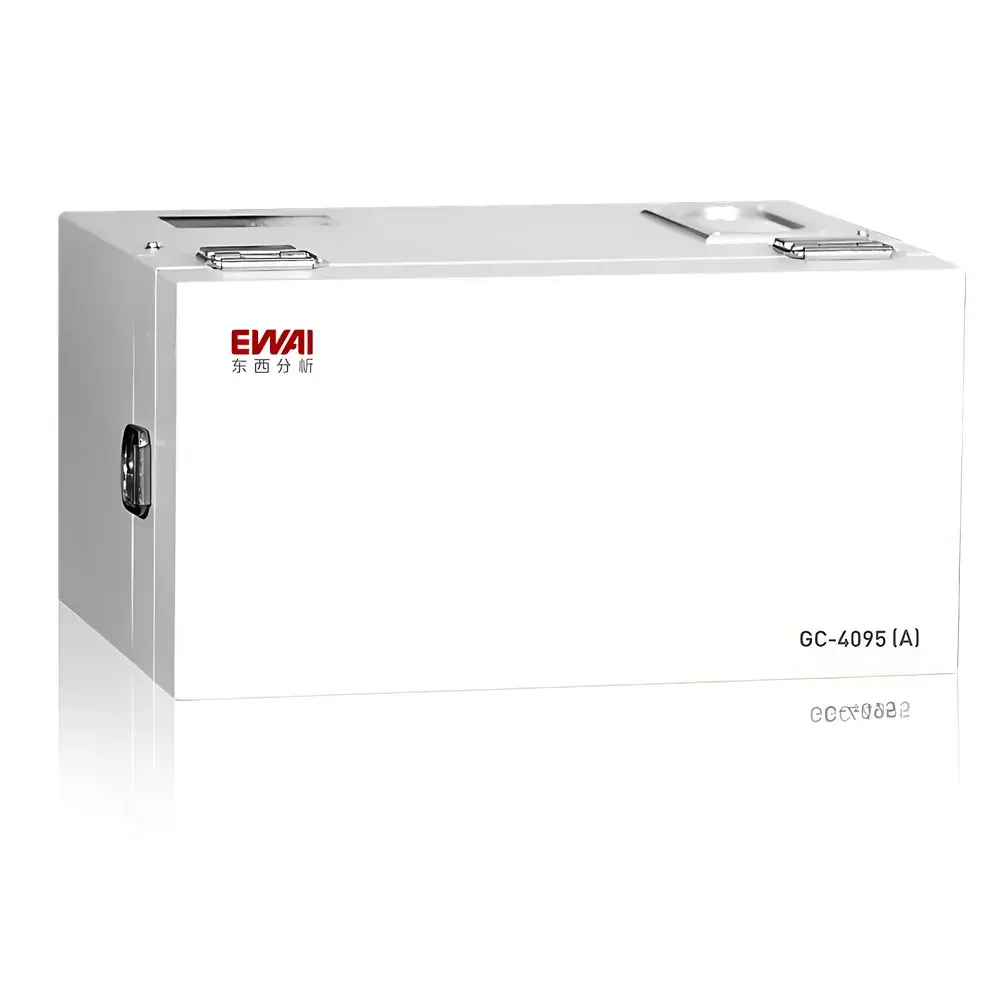

Eastern Analytical GC-4095(A) Portable Mine Gas Chromatograph

Overview

The Eastern Analytical GC-4095(A) Portable Mine Gas Chromatograph is a field-deployable, dual-channel gas chromatographic system engineered for real-time, multi-component analysis of mine atmosphere gases. It operates on the principle of gas-phase separation via capillary or packed column chromatography, coupled with thermal conductivity detection (TCD), enabling quantitative determination of permanent and light hydrocarbon gases without flame-based detection. Designed specifically for underground coal mining environments, the instrument supports proactive fire risk assessment by monitoring dynamic concentration trends of key pyrolysis markers—including CO, C₂H₄, C₂H₆, and C₂H₂—in accordance with established coal spontaneous combustion prediction protocols. Its compact architecture integrates carrier gas supply, power management, and automated valve sequencing into a single portable unit, eliminating dependency on external sampling pumps or laboratory infrastructure.

Key Features

• Dual-channel TCD configuration: Channel A resolves O₂, N₂, CH₄, and CO; Channel B resolves CO₂, C₂H₄, C₂H₆, and C₂H₂—enabling simultaneous quantification of eight critical gases in one run.
• Integrated 10-port rotary valve with manual actuation: Enables direct, contamination-free sample introduction from mine air without auxiliary sampling devices; valve switching initiates full analytical sequence automatically.
• Micro-machined silicon-based TCD sensors: Deliver stable baseline performance across −10 °C to +50 °C ambient operating range, with sub-ppm detection capability for CO and C₂H₂ under standard conditions.
• Self-contained operation: Includes rechargeable Li-ion battery pack (≥8 h continuous runtime) and integrated high-purity helium or nitrogen carrier gas cylinder (30 MPa, 120 L water capacity).
• No external utilities required: Operates at ambient temperature without oven heating; achieves full chromatographic separation in ≤18 minutes per sample.
• Non-destructive sampling mode: Preserves residual gas for re-injection or secondary validation analysis.
• Onboard data storage: Retains up to 2,000 finalized reports and the most recent 56 raw chromatograms in non-volatile memory.

Sample Compatibility & Compliance

The GC-4095(A) accepts direct grab samples from mine air via stainless-steel sampling probe or Tedlar® bag interface. It complies with mandatory Chinese coal mine safety regulations, holding the official MA safety certification (MAK150037), which verifies intrinsic safety (Ex ib I Mb), explosion-proof enclosure integrity, and electromagnetic compatibility in Class I explosive atmospheres. While not certified to ATEX or IECEx standards, its design aligns with functional safety principles referenced in ISO 8573-1 (compressed air purity) and ASTM D1946 (standard test method for analysis of natural gas). Data acquisition meets GLP traceability requirements through time-stamped audit logs and immutable result files.

Software & Data Management

Raw chromatograms and quantitative reports are exportable via USB 2.0 to the optional EW-GC-95 Mine Gas Data Processing Workstation. This Windows-based application supports peak integration using tangent skim and valley-to-valley algorithms, calibration curve generation (linear, quadratic, or multi-point), and automated calculation of fire index parameters—including CO/CH₄ ratio, C₂H₄/C₂H₆ ratio, and O₂ depletion rate. The workstation includes an embedded explosion triangle visualization module compliant with DIN 51649 and EN 1839 methodologies, plotting CH₄/O₂/CO₂ ternary diagrams to assess ignition risk thresholds. All exported data are saved as plain-text (.txt) or CSV files, ensuring interoperability with LIMS, ERP, and regulatory reporting systems.

Applications

• Real-time monitoring of goaf and return airways for early-stage spontaneous combustion indicators.
• Verification of sealed area integrity via periodic gas composition trending (e.g., rising C₂H₄ preceding CO surge).
• Post-blast atmosphere assessment following blasting operations.
• Validation of ventilation efficiency through O₂/N₂ ratio deviation analysis.
• Field calibration support for fixed-location gas detection networks.
• Forensic analysis of fire origin and progression in post-incident investigations.

FAQ

Does the GC-4095(A) require external power or compressed air sources during field operation?
No. It operates autonomously using its internal rechargeable battery and integrated high-pressure carrier gas cylinder.
Can the instrument be used for quantitative analysis without the EW-GC-95 workstation?
Yes. Onboard firmware performs automatic peak identification and concentration calculation using pre-loaded calibration factors; however, advanced statistical modeling and regulatory reporting require the workstation.
What is the minimum detectable concentration for ethylene (C₂H₄) under typical mine air conditions?
The system achieves a practical detection limit of 0.5 ppm for C₂H₄ when using helium carrier gas and optimized column temperature programming.
Is the ten-port valve serviceable in the field?
Yes. The valve assembly is modular and designed for tool-free replacement using factory-supplied spare kits, with documented maintenance intervals of ≥10,000 cycles.
How is data integrity ensured during transfer from instrument to workstation?
All transfers use CRC-32 checksum verification; raw chromatogram files include embedded metadata (operator ID, GPS coordinates if enabled, ambient pressure/temperature, and valve cycle count).
