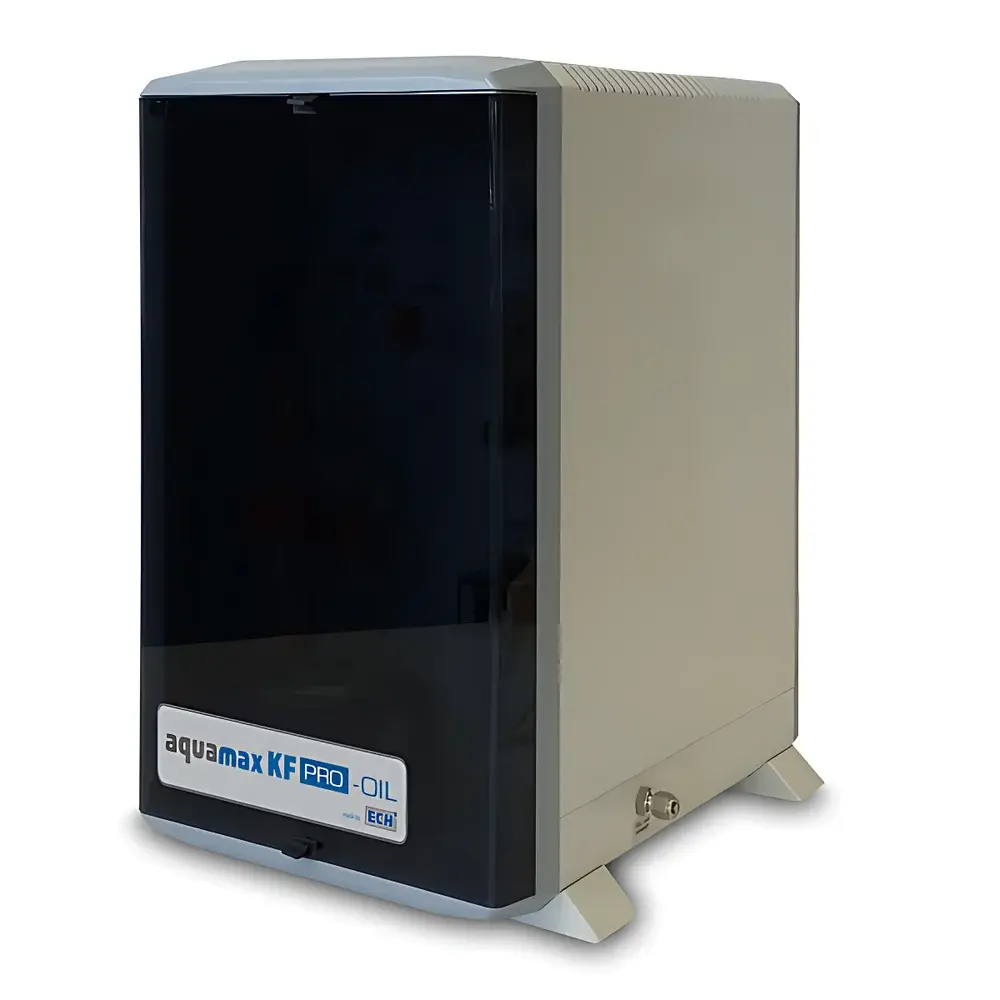

ECH Aquamax KF PRO OIL Karl Fischer Moisture Analyzer

Overview

The ECH Aquamax KF PRO OIL is a fully automated coulometric and volumetric Karl Fischer (KF) moisture analyzer engineered specifically for the precise quantification of trace water content in petroleum-based samples—including lubricating oils, diesel fuels, jet fuels, transformer oils, and crude fractions. Unlike conventional KF titrators that rely on open-cell electrolysis or external carrier gas purging, this instrument implements a patented closed-loop thermal extraction and titration architecture. In this configuration, the sample is introduced directly into a temperature-controlled furnace where water—whether present as free, emulsified, or chemically bound species—is liberated quantitatively under inert conditions. The evolved water vapor is swept exclusively through a sealed KF reaction cell, eliminating atmospheric moisture ingress, solvent evaporation (e.g., methanol loss), and interference from volatile additives or sulfur-containing compounds (e.g., mercaptans, sulfides). This design ensures metrological integrity at sub-ppm detection levels while maintaining full compliance with ASTM D6304 “Standard Test Method for Determination of Water in Petroleum Products by Coulometric Karl Fischer Titration” and GB/T 11133 “Petroleum Products—Determination of Water—Karl Fischer Method”.

Key Features

• True blank-free operation: No pre-titration or blank subtraction required due to hermetic system design and zero-background reagent delivery.
• Closed-loop thermal extraction: Eliminates dependency on external nitrogen or dry air supply; reduces operational cost and infrastructure complexity.
• Programmable heating profile: Adjustable temperature ramping (35–250 °C) enables differentiation between free water, loosely adsorbed water, and strongly bound water (e.g., hydrates, hydroxyl adducts).
• High-throughput capability: A single KF reagent cartridge supports over 1,000 consecutive analyses without manual intervention or reagent replacement.
• Dual-speciation reporting: ECH proprietary software calculates and displays both free water concentration and total chemically bound water content based on thermal release kinetics.
• Benchtop-portable hybrid form factor: Ruggedized chassis with integrated power management allows deployment in fixed laboratories or at remote sampling points (e.g., refinery manifolds, storage tank farms, marine engine rooms).
• Robust interference mitigation: Engineered suppression of side reactions induced by antioxidants, metal deactivators, sulfur compounds, and organic acids commonly found in aged or contaminated oils.

Sample Compatibility & Compliance

The Aquamax KF PRO OIL is validated for use with a broad spectrum of petroleum matrices, including but not limited to mineral and synthetic lubricants, hydraulic fluids, turbine oils, gasoline, kerosene, biodiesel blends (B5–B20), and insulating oils per IEC 60814 and ASTM D1533. It meets regulatory and quality assurance requirements for routine QC testing in ISO/IEC 17025-accredited laboratories and supports audit-ready documentation for GLP and GMP environments. Full traceability is maintained via time-stamped method logs, user authentication, and electronic signatures aligned with FDA 21 CFR Part 11 data integrity principles.

Software & Data Management

The embedded ECH AquaSoft KF PRO platform provides real-time titration curve visualization, automatic endpoint recognition, thermal profile overlay, and customizable report generation (PDF/CSV). All analytical parameters—including temperature program, titrant strength, drift compensation, and speciation thresholds—are stored with version control. Audit trails record operator ID, method revision, calibration events, and raw sensor outputs. Data export supports LIMS integration via secure FTP or OPC UA protocols. Software updates are delivered via encrypted firmware packages with SHA-256 signature verification.

Applications

• Monitoring moisture accumulation in turbine and compressor lubricants to prevent bearing corrosion and varnish formation.
• Verifying dryness specifications for transformer oil prior to energization (IEC 60429 limits).
• Assessing hydrolytic stability of ester-based synthetic lubricants during accelerated oxidation testing.
• Quantifying water ingress in fuel systems affected by microbial growth or phase separation.
• Supporting root-cause analysis in field failures linked to hydrogen embrittlement or low-temperature filter plugging.
• Validating dehydration efficiency of vacuum dehydration units and coalescer filters.

FAQ

Does the Aquamax KF PRO OIL require carrier gas?

No—its closed-loop thermal extraction system operates without external nitrogen or dry air supply.
Can it distinguish between free and bound water?

Yes—via programmable temperature ramps and kinetic analysis of water release profiles, the system reports both fractions independently.
Is method validation support available?

Yes—ECH provides IQ/OQ documentation templates, ASTM D6304 verification protocols, and on-site installation qualification services.
What maintenance is required beyond reagent replacement?

Annual verification of furnace temperature accuracy, electrode calibration, and seal integrity inspection—no routine solvent line cleaning or purge valve servicing.
How is data security ensured in regulated environments?

Role-based access control, electronic signatures, immutable audit trails, and encrypted local storage comply with 21 CFR Part 11 and EU Annex 11 requirements.
