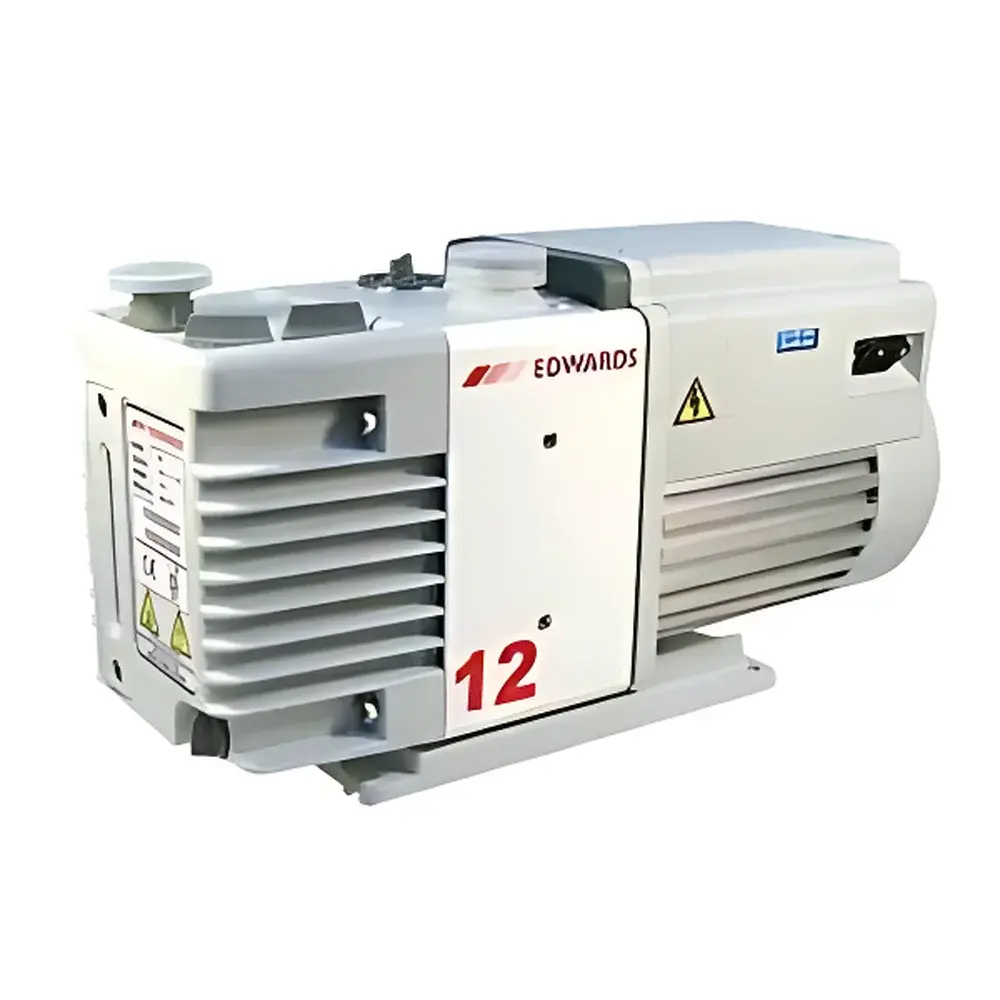

Edwards Vacuum Pump Repair Services

Overview

Edwards Vacuum Pump Repair Services deliver certified, factory-informed maintenance and restoration for the full spectrum of Edwards vacuum technologies—including scroll, dry screw, turbomolecular, cryogenic, and oil-sealed rotary vane pumps—deployed across semiconductor R&D labs, pharmaceutical cleanrooms, analytical instrumentation suites (e.g., mass spectrometry, electron microscopy), and high-vacuum physics experiments. Unlike generic third-party repair providers, our service methodology is grounded in Edwards’ original engineering documentation, thermal and mechanical failure mode analysis, and vacuum integrity validation protocols. Each repair cycle begins with a comprehensive diagnostic assessment using calibrated leak detectors (Helium Mass Spectrometer, ASTM E1514 compliant), ultimate pressure verification (per ISO 21360-1), and vibration spectrum analysis to isolate root causes—not just symptoms. All work adheres to Edwards’ published torque specifications, bearing preload tolerances, and rotor dynamic balancing thresholds, ensuring restored performance meets original equipment manufacturer (OEM) functional benchmarks.

Key Features

• Factory-trained engineers with ≥3 years’ hands-on Edwards pump servicing experience—certified in Edwards’ proprietary disassembly sequences, rotor alignment techniques, and stator gap calibration procedures
• Dedicated Shanghai-based repair facility equipped with Edwards-approved test benches, vacuum chamber validation rigs (1×10⁻⁹ mbar base pressure capability), and ISO Class 5 cleanroom assembly zones for turbomolecular pump rebuilds
• OEM-equivalent spare parts sourced directly from Edwards UK distribution channels or licensed regional partners—no counterfeit or reconditioned components
• Preventive maintenance programs aligned with Edwards’ recommended service intervals (e.g., every 6,000 operating hours for nXDS dry pumps; every 12 months for turbomolecular units under continuous operation)
• Full-service logistics: secure pump pickup/delivery via temperature- and shock-monitored transport; real-time service status tracking via encrypted client portal
• Documentation package includes pre-repair diagnostic report, post-repair performance validation certificate (with measured ultimate pressure, pumping speed curve, and noise/vibration metrics), and traceable component serial numbers

Sample Compatibility & Compliance

Our repair scope explicitly covers all Edwards vacuum pump families used in regulated laboratory environments: Edwards nXDS, iXR, GV, E2M, RV, and STP series. All maintenance workflows comply with ISO 9001:2015 quality management requirements and support GLP/GMP audit readiness. Critical repairs—especially those affecting vacuum integrity in USP <1058> analytical instrument qualification or FDA 21 CFR Part 11 data integrity contexts—are documented with full audit trails, including technician ID, timestamped calibration records for test instruments, and deviation logs. We do not service pumps contaminated with radioactive, pyrophoric, or polymerizing process gases without prior chemical hazard assessment and client-approved containment protocols.

Software & Data Management

Diagnostic and performance validation data are captured via Edwards’ official Pump Manager software (v4.2+) and integrated into our secure, ISO 27001-certified service database. Clients receive encrypted PDF reports containing raw sensor outputs (pressure vs. time decay curves, motor current harmonics, bearing temperature profiles), annotated with pass/fail determinations against Edwards’ published specification limits. For laboratories requiring electronic record retention, we support CSV export compatible with LIMS systems and provide optional 21 CFR Part 11-compliant digital signatures upon request. Historical service data—including cumulative runtime, fault code history, and lubricant analysis results—is archived for up to 10 years and accessible via client login.

Applications

• Restoration of Edwards turbomolecular pumps (e.g., STP-XR series) used in ultra-high vacuum (UHV) surface science chambers requiring ≤1×10⁻¹⁰ mbar base pressure
• Reconditioning of Edwards nXDS dry scroll pumps supporting GC-MS and ICP-MS sample introduction systems—verified for hydrocarbon-free operation per ASTM D2622
• Emergency repair of Edwards E2M oil-sealed rotary vane pumps in pharmaceutical lyophilizer primary condensers, validated for non-volatile residue (NVR) compliance
• Preventive overhaul of Edwards iXR hybrid pumps deployed in semiconductor metrology tools, including rotor dynamic balancing and stator coating inspection per Edwards Technical Bulletin TB-027
• On-site troubleshooting and temporary pump replacement for Edwards GV series backing pumps in synchrotron beamline vacuum manifolds

FAQ

Do you use genuine Edwards spare parts?
Yes. All components—including bearings, seals, rotors, stators, and control boards—are sourced exclusively through Edwards-authorized distribution channels or direct UK factory supply. Counterfeit or “compatible” parts are strictly prohibited.
What is your typical turnaround time for a standard Edwards nXDS pump repair?
Standard bench repair (diagnostic + mechanical refurbishment + validation) requires 5–7 business days from receipt. Emergency 48-hour turnaround is available for critical applications, subject to parts availability and technical feasibility assessment.
Can you calibrate vacuum gauges as part of the pump service?
Yes. Capacitance manometers and Pirani gauges are calibrated traceably to NIST standards using Edwards-certified reference standards (e.g., MKS 627B), with full calibration certificates issued per ISO/IEC 17025.
Do you offer remote diagnostics for Edwards pumps with integrated Ethernet/RS485 interfaces?
Yes. Using Edwards Pump Manager and our secure remote access gateway, we perform real-time parameter analysis (motor load, temperature gradients, vibration FFT spectra) to triage faults before dispatching field engineers.
Is your repair documentation accepted for FDA or EMA regulatory inspections?
Yes. Our service reports include all elements required for 21 CFR Part 11 and Annex 11 compliance: electronic signatures, audit trails, version-controlled templates, and evidence of technician training records—all maintained for 10 years.
