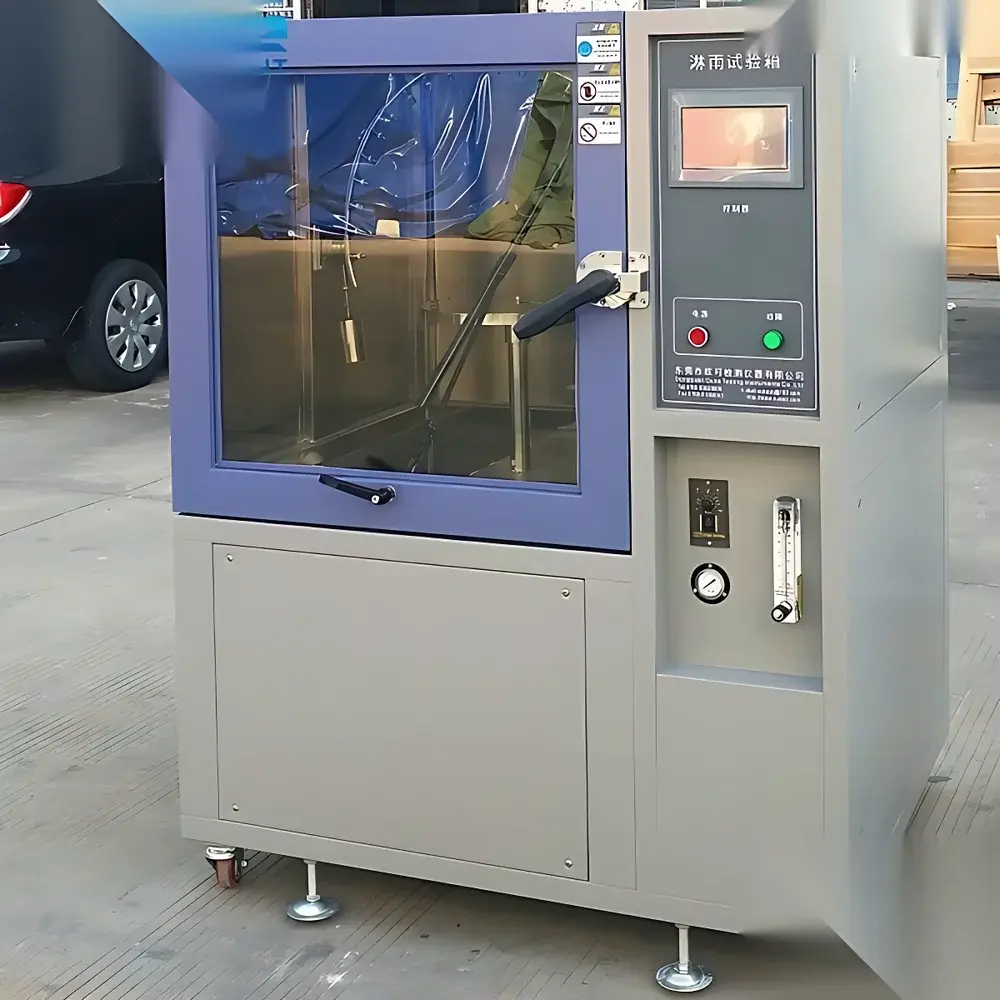

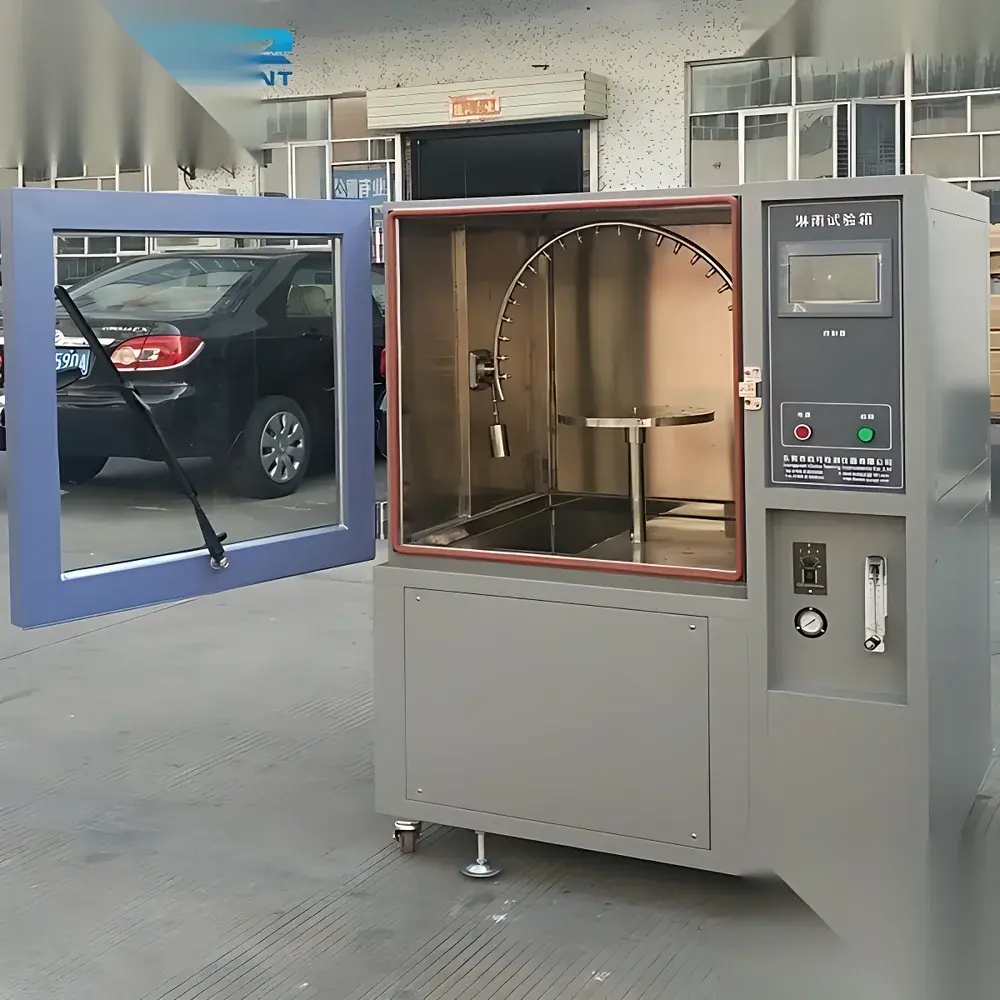

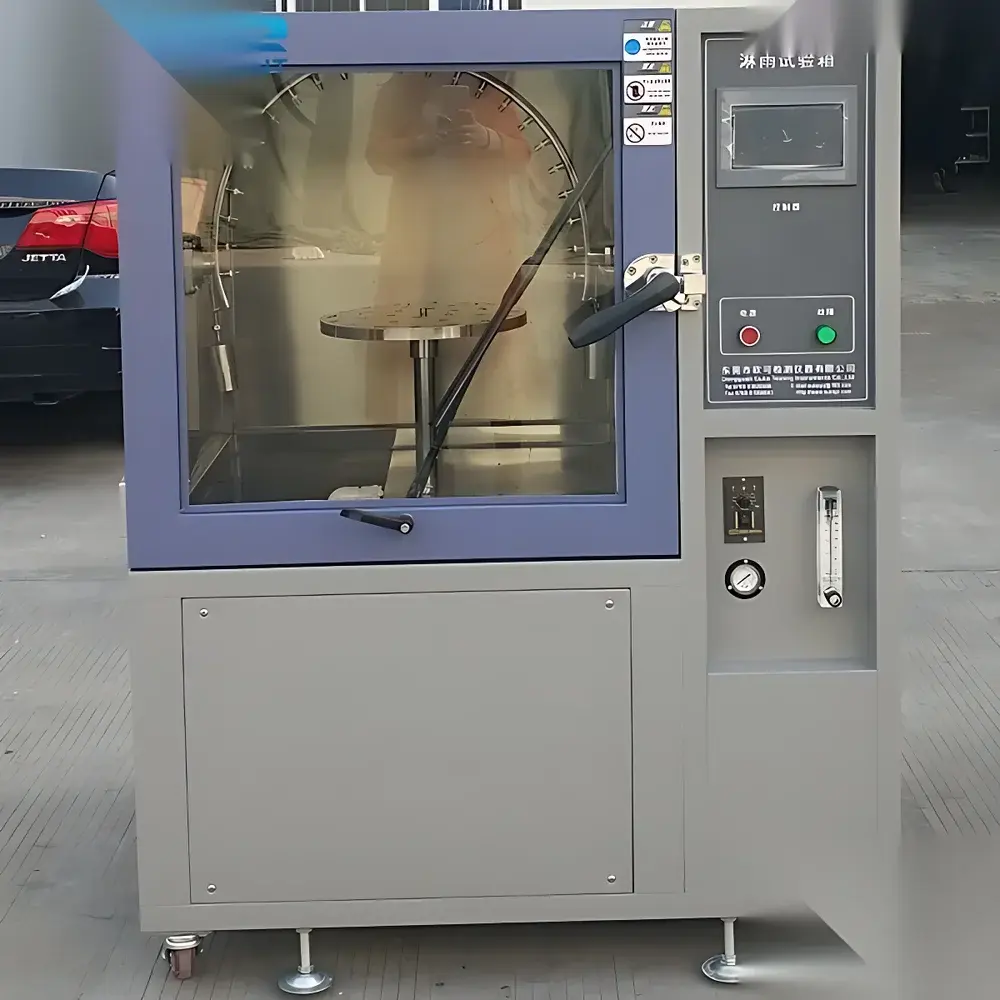

Electric Vehicle IPX3/IPX4 Rain Resistance Test Chamber – LS-1000 Model

Overview

The LS-1000 Electric Vehicle IPX3/IPX4 Rain Resistance Test Chamber is an engineered environmental simulation system designed to evaluate the ingress protection (IP) performance of electric vehicle components—including battery enclosures, motor housings, charging ports, lighting assemblies, and electronic control units—under standardized simulated rainfall conditions. It operates in strict accordance with international and national test standards including IEC 60529 (IPX3 and IPX4), GB/T 4208–2017 (equivalent to IEC 60529), GB/T 2423.38–2008 (IEC 60068-2-18), GB/T 2423.23–1995, GB/T 10485–2007, and GB/T 4857.9–1992. The chamber employs a precisely controlled oscillating spray pipe mechanism to replicate calibrated rain exposure angles and intensities, enabling reproducible assessment of water resistance under dynamic wetting conditions. Its robust mechanical architecture and corrosion-resistant construction ensure long-term stability during repeated high-humidity, high-flow testing cycles typical in automotive validation labs and Tier-1 supplier quality assurance environments.

Key Features

• Oscillating spray arm with adjustable swing amplitude (±45° to ±90°) and radius (375 mm), enabling accurate replication of IPX3 (oscillating 60° arc) and IPX4 (full 180° oscillation) test profiles.
• Interchangeable nozzles (Ø0.4 mm and Ø0.8 mm) spaced at 50 mm intervals along the stainless-steel spray pipe, supporting variable rainfall intensity from 600 mm/h to 3600 mm/h via flow-regulated pumping.
• Motor-driven turntable (1–10 rpm) with precision speed control, facilitating uniform exposure of vertically mounted or angled EV components during extended test durations.
• Seamless inner chamber fabricated entirely from SUS304 stainless steel using TIG welding—eliminating seam leakage pathways and ensuring compliance with ISO 8502-3 surface cleanliness requirements for post-test inspection.
• Integrated water management subsystem featuring ultra-fine stainless-steel mesh filtration, automatic low-level detection, centrifugal water lift, and electromechanical flow regulation to maintain consistent nozzle output over multi-hour tests.
• Dual-layer safety architecture: electrical protection includes RCD (residual current device), thermal-magnetic circuit breakers, grounding continuity monitoring (≤4 Ω), and real-time water-level interlock shutdown.

Sample Compatibility & Compliance

The LS-1000 accommodates full-size EV subassemblies up to 1000 mm in height, width, and depth—including traction inverters, DC-DC converters, onboard chargers, and sealed junction boxes. Mounting fixtures and custom brackets can be integrated without modification to the chamber’s structural integrity. All operational parameters are traceable to NIST-traceable flow calibration procedures. The system supports audit-ready documentation workflows compliant with ISO/IEC 17025 laboratory accreditation requirements, and its timer and cycle controls meet GLP data integrity prerequisites for regulated automotive validation (e.g., UN ECE R100, ISO 26262 ASIL-B component qualification). Test reports generated with external logging systems may be structured to satisfy FDA 21 CFR Part 11 electronic record requirements when paired with validated timestamped data acquisition.

Software & Data Management

While the LS-1000 operates via a dedicated industrial-grade PLC controller with tactile membrane keypad and LED display, it provides RS-485 Modbus RTU interface for integration into centralized lab management platforms (e.g., LabVantage, Siemens Desigo CC, or custom SCADA). All timing parameters—including total test duration, individual rain-on/off intervals, turntable rotation rate, and swing angle presets—are programmable and stored with non-volatile memory retention. Optional analog output (4–20 mA) enables real-time monitoring of pump pressure and water temperature. For full digital traceability, third-party data loggers can capture timestamped event logs (start/stop, alarm triggers, manual overrides) aligned to internal system clock—supporting root-cause analysis during failure investigations per AIAG CQI-11 guidelines.

Applications

• Validation of IP rating claims for EV battery pack housings per ISO 16750-4 and GB/T 31467.3.
• Functional reliability testing of high-voltage connectors and service disconnects under sustained rain exposure.
• Corrosion resistance screening of aluminum die-cast enclosures subjected to cyclic wet-dry stress.
• Verification of gasket compression set and sealant adhesion integrity after thermal cycling + rain exposure sequences.
• Pre-certification testing for OEM-specific water intrusion specifications (e.g., Tesla SP-001, BYD Q/BYD Q 01.001).
• Supporting Design Failure Mode and Effects Analysis (DFMEA) by correlating observed leakage paths with FMEA severity rankings.

FAQ

Does the LS-1000 comply with IEC 60529 for IPX3 and IPX4 certification testing?
Yes—the oscillating pipe geometry, angular range, nozzle configuration, and rainfall intensity range are fully aligned with Clauses 13.2.2 (IPX3) and 13.2.3 (IPX4) of IEC 60529:2013.
Can the chamber be used for IPX5 or IPX6 testing?
No—IPX5/IPX6 require directed water jets from a 6.3 mm or 12.5 mm nozzle at defined pressures; the LS-1000 is purpose-built for oscillating spray only.
Is stainless-steel filtration sufficient for deionized or softened water supply?
The ultra-fine mesh filter prevents particulate clogging but does not replace upstream water softening or reverse osmosis; users must supply water meeting ASTM D1193 Type IV purity if mineral scaling is a concern.
What is the recommended maintenance interval for the pump and nozzles?
Inspect nozzles weekly for blockage; clean with ultrasonic bath and 0.2 µm filtered solvent. Service the centrifugal pump every 500 operating hours per manufacturer’s lubrication schedule.
Can test parameters be exported for audit submission?
Yes—via RS-485, all setpoints, runtime logs, and alarm timestamps can be streamed to external databases with time-stamped CSV export capability when interfaced with compliant DAQ software.
