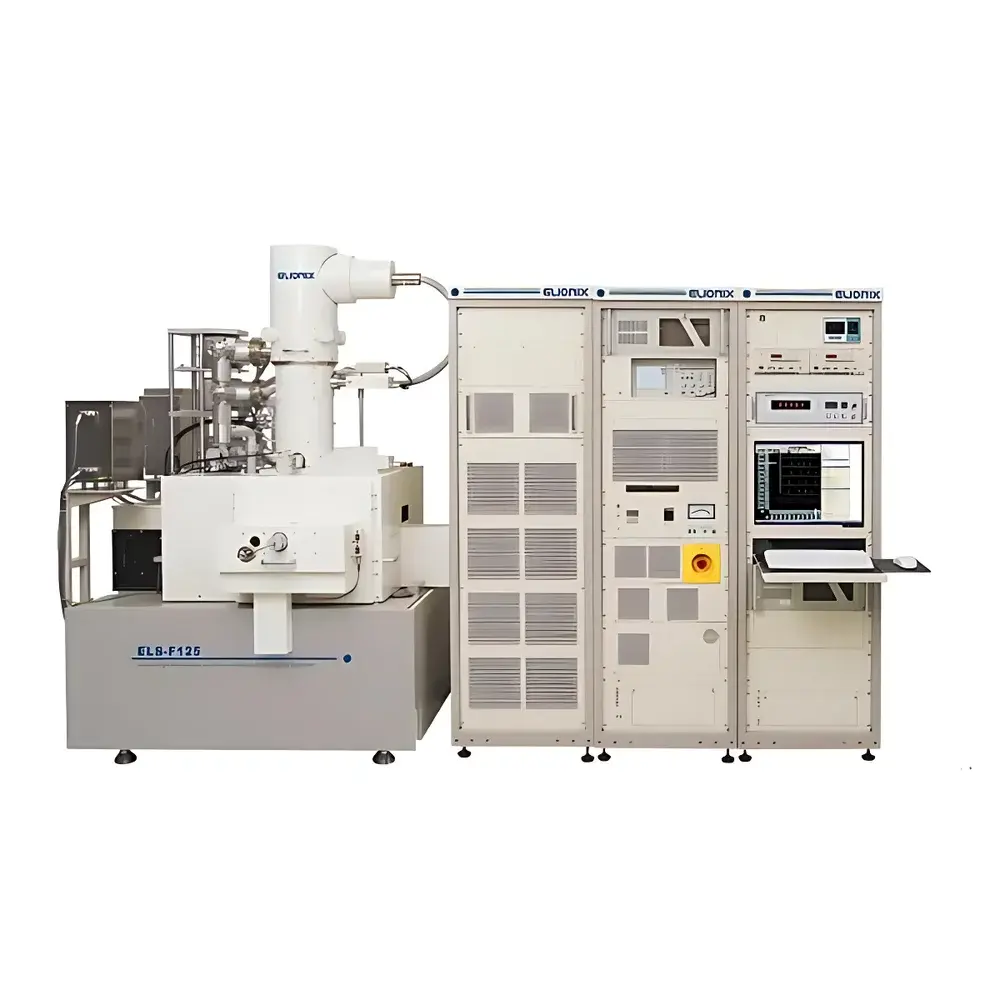

Elionix ELS-F150 High-Precision Electron Beam Lithography System

Overview

The Elionix ELS-F150 is a high-voltage, high-precision electron beam lithography (EBL) system engineered for sub-10 nm nanofabrication in advanced semiconductor R&D, quantum device prototyping, and photonic integrated circuit development. Operating at a maximum acceleration voltage of 125 kV, the ELS-F150 leverages high-energy electron optics to minimize Coulomb scattering and chromatic aberration—enabling direct-write patterning with exceptional placement accuracy and minimal proximity effect. Its design adheres to the fundamental principles of scanning electron beam lithography: a finely focused beam scans across an electron-sensitive resist-coated substrate under vacuum, inducing localized chemical changes that, after development, yield high-fidelity nanostructures. The system is purpose-built for maskless lithography workflows requiring deterministic feature placement, critical dimension (CD) control below 5 nm, and long-term beam stability essential for multi-layer alignment and overlay-critical processes.

Key Features

• 125 kV High-Voltage Column: Delivers superior penetration depth and reduced forward scattering in thick resists (e.g., HSQ, ZEP, PMMA), enabling high-aspect-ratio nanostructure fabrication with minimized line-edge roughness (LER).
• Sub-5 nm Resolution Capability: Achieves verified 5 nm line-width resolution at 125 kV; electron probe diameter ≤1.7 nm under optimal conditions—validated via calibrated cross-sectional SEM metrology.
• Large-Field Writing with Metrological Stability: Supports 500 µm × 500 µm field size at 10 nm CD uniformity; equipped with real-time stage calibration and interferometric position feedback for <±2 nm intra-field registration accuracy.
• High-Throughput Beam Delivery: Maintains ≤2 nm probe diameter even at beam currents up to 1 nA—enabling accelerated writing speeds without compromising resolution, critical for research-scale mask fabrication and iterative device optimization.
• Integrated Windows-Based Control Architecture: Combines CAD pattern editing (GDSII/OASIS import), SEM-style real-time imaging, and parameter scripting in a single GUI—designed for rapid transition between alignment, inspection, and exposure modes.

Sample Compatibility & Compliance

The ELS-F150 accommodates standard semiconductor substrates including Si, SOI, GaAs, InP, and quartz wafers up to 200 mm diameter (with optional chuck upgrade). It supports industry-standard e-beam resists (positive/negative tone), bilayer stacks, and conductive anti-charging coatings. The system conforms to ISO 14644-1 Class 5 cleanroom integration requirements and meets IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. Vacuum subsystem complies with ISO 27893 for residual gas analysis compatibility. Full traceability logs—including beam parameters, stage coordinates, exposure dose, and timestamped operator actions—are retained per session, supporting GLP-compliant documentation and internal audit readiness.

Software & Data Management

The proprietary Elionix E-Beam Suite v5.x provides full workflow integration from layout import (GDSII, OASIS, CIF) to dose modulation, proximity effect correction (PEC), and hierarchical pattern stitching. Real-time dose calibration is performed using on-chip dosimetry markers and Faraday cup monitoring. All exposure data—including raw scan vectors, dose maps, and stage trajectory logs—are stored in vendor-neutral HDF5 format with embedded metadata (sample ID, resist type, developer recipe, ambient temperature/humidity). Audit trail functionality satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with network authentication and role-based access control.

Applications

• Fabrication of photonic crystal cavities, plasmonic nanoantennas, and silicon nitride waveguide couplers requiring <10 nm CD fidelity.
• Prototyping of NEMS/MEMS devices with suspended nanostructures, ultra-thin membranes, and sub-20 nm gap electrodes.
• Direct-write fabrication of high-resolution photomasks for EUV and DUV stepper lithography—particularly for non-repetitive or low-volume mask sets.
• Production of nanoimprint lithography (NIL) templates with deep etch-ready topographies and sidewall verticality >89°.
• Quantum device research: gate-defined quantum dots, superconducting qubit test structures, and topological insulator edge-state patterning.

FAQ

What is the minimum achievable line width on the ELS-F150 under standard process conditions?

Under optimized conditions (125 kV, HSQ resist, 200 µC/cm² dose, post-bake at 180°C), verified line widths of 5 nm are routinely achieved on silicon substrates.
Does the system support automated multi-layer alignment?

Yes—the ELS-F150 integrates optical and electron-beam fiducial recognition with sub-5 nm overlay repeatability across three or more layers using its dual-mode (optical/SEM) alignment module.
Is remote operation supported for secure off-site access?

Remote desktop access is enabled via TLS-encrypted VNC with two-factor authentication; however, live beam operation requires local physical interlock verification per IEC 60204-1 safety standards.
What vacuum level does the column maintain during exposure?

The electron optical column operates at ≤5 × 10⁻⁷ Pa, maintained by a combination of turbomolecular and ion pumps with continuous pressure monitoring and automatic venting protocols.
Can the system be integrated into a fab’s MES or SECS/GEM environment?

SEMI E30 (GEM) and E40 (Equipment Data Acquisition) interfaces are available as optional modules, enabling bidirectional communication with factory host systems for job dispatch, status reporting, and fault logging.
