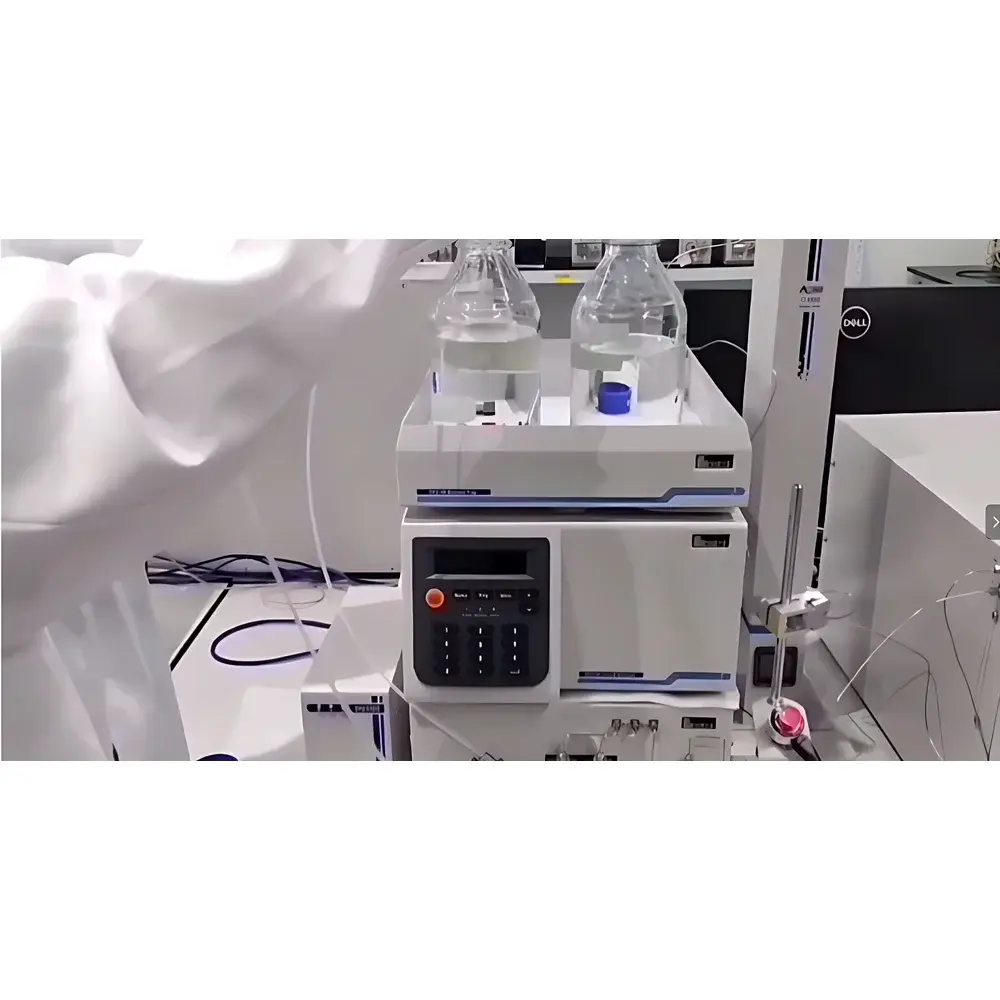

Elite 3100 Low-Pressure Liquid Chromatography System (Configurable with Isocratic, Binary, or Quaternary Solvent Delivery)

Overview

The Elite 3100 Low-Pressure Liquid Chromatography System is an engineered platform for robust, reproducible, and modular high-performance liquid chromatography (HPLC) analysis. Designed around a low-pressure solvent delivery architecture, it supports isocratic, binary, and quaternary gradient configurations—enabling flexible method development across diverse analytical workflows. Unlike ultra-high-pressure systems (UHPLC), the 3100 operates within a validated pressure envelope up to 70 MPa, balancing column compatibility, system longevity, and operational safety while maintaining precision at low flow rates (down to 0.001 mL/min). Its core measurement principle relies on precise piston-driven solvent metering, coupled with real-time pressure feedback via a direct-mount piezoresistive transducer featuring minimal dead volume. This architecture minimizes dwell volume (< 600 µL in quaternary configuration), reducing gradient delay and improving retention time reproducibility—critical for method transfer between laboratories and long-term QC monitoring.

Key Features

• Microstepping motor control with 64-step subdivision ensures exceptional volumetric accuracy and stability at sub-mL/min flow rates, minimizing pulsation and enhancing baseline consistency.
• Integrated solvent selection valve and online degassing module support unattended mobile phase switching and continuous bubble removal—reducing manual intervention and mitigating baseline noise from dissolved gas artifacts.
• Direct-mount pressure transducer with <10 µL internal dead volume enables rapid, high-fidelity pressure response and improved system diagnostics during method ramping or column clogging events.
• Optimized thermal management architecture—including laminar airflow routing and thermally isolated optical path—maintains detector baseline drift below 1.5 × 10⁻⁴ AU/h at 254 nm over 8 hours (typical, ambient-controlled lab).
• Modular design allows field-upgradable integration of optional components: autosamplers (100-position tray capacity), column ovens (±0.1 °C stability), and multi-wavelength UV-Vis detectors (190–800 nm range, 1 nm resolution).

Sample Compatibility & Compliance

The Elite 3100 accommodates standard 3.9–4.6 mm ID analytical columns (up to 250 mm length) and is compatible with reversed-phase (C18, C8), normal-phase, ion-exchange, and size-exclusion chemistries. It meets fundamental performance criteria outlined in ASTM E2635-21 (Standard Practice for Calibration of HPLC Systems) and supports compliance with ISO/IEC 17025:2017 requirements for calibration traceability and uncertainty estimation. When configured with audit-trail-enabled software and electronic signatures, the system aligns with FDA 21 CFR Part 11 data integrity expectations for regulated environments—including pharmaceutical QC, food safety testing, and environmental residue analysis. All wetted surfaces are constructed from stainless steel 316L and PEEK, ensuring chemical resistance to common HPLC solvents (acetonitrile, methanol, aqueous buffers pH 2–8).

Software & Data Management

Control and data acquisition are managed through EliteChrom™ v3.x—a Windows-based chromatography data system (CDS) compliant with GLP/GMP documentation standards. The software provides full ICH Q2(R2)-aligned validation support packages, including IQ/OQ/PQ protocols, electronic signature implementation per 21 CFR Part 11, and configurable audit trails that log user actions, parameter changes, and raw data modifications. Peak integration follows AIA/ANDI format standards, enabling seamless export to LIMS platforms (e.g., Thermo Fisher SampleManager, LabVantage) and third-party statistical tools (e.g., JMP, SIMCA). Method templates, sequence scheduling, and automatic report generation (PDF/CSV) reduce routine operational overhead without compromising analytical rigor.

Applications

The Elite 3100 serves as a foundational HPLC platform for quality control laboratories requiring method flexibility and long-term reliability. Typical use cases include assay quantification of active pharmaceutical ingredients (APIs) per USP , residual solvent analysis in polymers (ICH Q3C), pesticide screening in agricultural commodities (AOAC 2007.01), and organic acid profiling in fermented beverages (AOAC 986.19). Its broad wavelength detection range (190–800 nm) supports dual-wavelength ratioing for co-elution correction and enables simultaneous detection of chromophores with disparate absorption maxima—such as flavonoids and anthocyanins in botanical extracts.

FAQ

What gradient configurations does the Elite 3100 support?

The system offers factory-configurable isocratic, binary (two-solvent), and quaternary (four-solvent) pump modules—all sharing identical flow accuracy specifications and pressure rating.
Is the system compatible with UHPLC columns?

While rated to 70 MPa, the 3100’s dwell volume and pump dynamics are optimized for conventional 3–5 µm particle columns; sub-2 µm UHPLC columns may exhibit reduced efficiency due to system dispersion.
Can the column oven accommodate multiple columns simultaneously?

Yes—the optional dual-zone oven supports independent temperature control for two columns (e.g., analytical + guard), with programmable ramp rates up to 10 °C/min.
Does the UV-Vis detector support spectral scanning?

No—the detector operates in fixed-wavelength or time-programmed single/multi-wavelength mode; full-spectrum scanning requires optional diode-array upgrade (Elite DAD-3100).
What validation documentation is included?

Each shipment includes a Factory Acceptance Test (FAT) report, Certificate of Conformance, and instrument-specific performance verification data (flow accuracy, pressure stability, wavelength accuracy per NIST SRM 2034).
