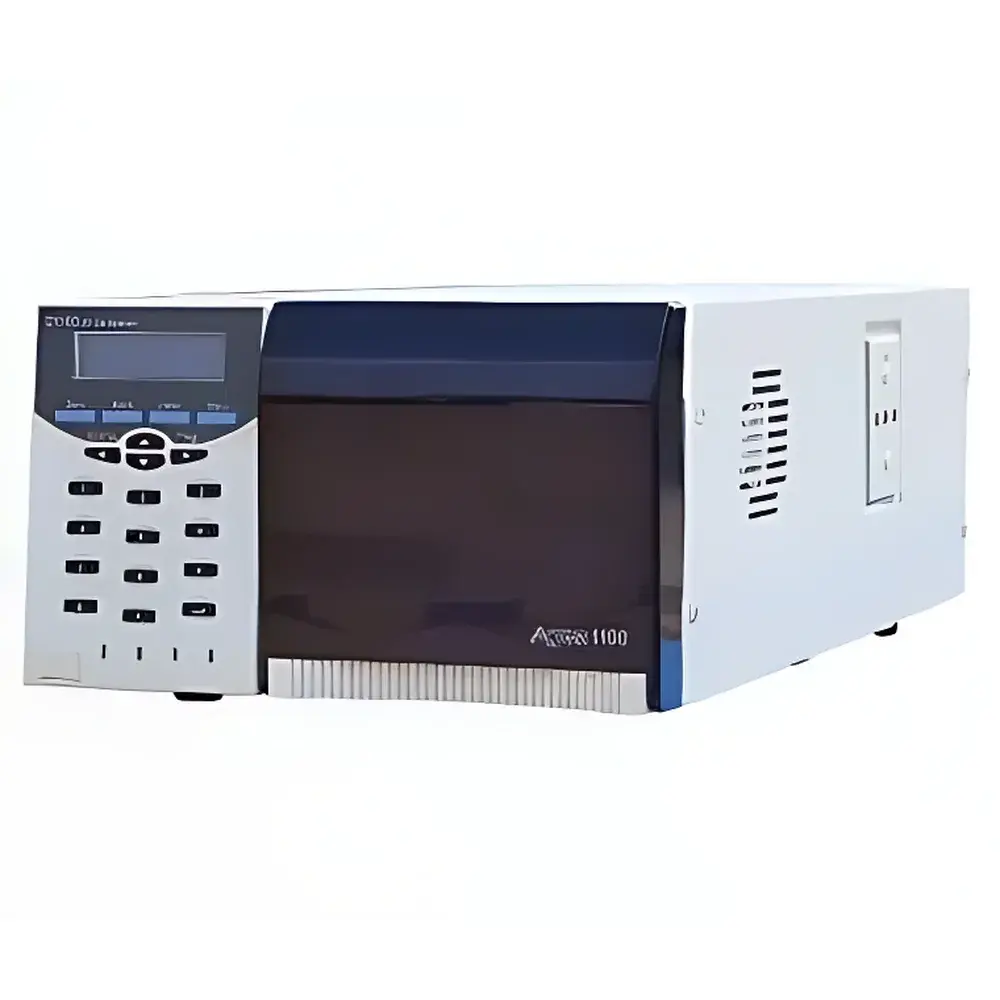

Elite D1100 UV-Vis Detector

Overview

The Elite D1100 UV-Vis Detector is a benchtop absorbance-based chromatographic detector engineered for integration with high-performance liquid chromatography (HPLC) systems. It operates on the principle of Beer–Lambert law-based photometric measurement, utilizing a deuterium lamp as its primary broadband ultraviolet light source to deliver stable, continuous spectral output from 190 nm to 400 nm, supplemented by a tungsten-halogen lamp (not specified in base configuration but implied for visible extension up to 700 nm per system design). The detector employs a precision cast-aluminum monochromator housing to ensure optical path stability, thermal inertia, and long-term wavelength reproducibility—critical for method transfer across laboratories and regulatory environments. Designed for routine QC/QA labs, academic core facilities, and contract research organizations requiring robust, cost-optimized detection without compromising baseline integrity, the D1100 supports three operational modes: fixed-wavelength detection, time-programmed wavelength switching, and stop-flow spectral scanning—enabling qualitative peak identification and method development within a single hardware platform.

Key Features

• Deuterium lamp illumination with integrated warm-up monitoring and automatic energy-level alert at power-on—reducing downtime through proactive lamp health assessment.
• Cast-metal monochromator architecture providing enhanced mechanical rigidity, reduced thermal drift, and improved sealing against ambient humidity and dust ingress—extending optical component service life.
• Dedicated front-panel shortcuts for wavelength program initiation and real-time energy monitoring—streamlining daily instrument verification and reducing operator dependency on software interfaces.
• Baseline noise performance ≤ ±1.0 × 10⁻⁵ AU (measured at 254 nm, 1 s time constant, 10 mm flow cell) and drift ≤ 2.0 × 10⁻⁴ AU/h—meeting typical requirements for pharmacopeial assays (e.g., USP & EP monographs) and stability-indicating methods.
• Fixed 10-mm pathlength flow cell (standard), compatible with standard 1/16″ stainless steel or PEEK capillary tubing; optional high-sensitivity microflow cells available upon request.

Sample Compatibility & Compliance

The D1100 is optimized for use with reversed-phase, normal-phase, ion-exchange, and size-exclusion HPLC separations where analytes exhibit characteristic π→π* or n→π* electronic transitions in the UV-Vis region. It supports mobile phases containing water, acetonitrile, methanol, tetrahydrofuran, and common buffer systems (e.g., phosphate, acetate, ammonium formate) at flow rates up to 5 mL/min. The detector conforms to IEC 61010-1:2010 safety standards for electrical equipment for measurement, control, and laboratory use. While not pre-certified for 21 CFR Part 11 compliance out-of-the-box, its firmware architecture supports audit-trail-enabled software upgrades and user-access logging when paired with Elite’s ChromaLink CDS (Chromatography Data System), facilitating alignment with GLP and GMP documentation requirements during validation.

Software & Data Management

The D1100 communicates via RS-232 or USB virtual COM port protocols, enabling seamless integration with third-party chromatography data systems—including OpenLab CDS, Chromeleon, Empower, and custom LabVIEW or Python-based acquisition platforms. Elite’s native ChromaLink CDS v3.x provides full support for wavelength programming, spectral library matching, peak purity analysis, and automated calibration report generation. All raw absorbance data are stored in vendor-neutral ASCII format (.txt) or industry-standard .cdf (NetCDF) containers, ensuring long-term archival compatibility and interoperability with statistical process control (SPC) and multivariate analysis tools.

Applications

• Pharmaceutical impurity profiling and assay quantitation per ICH Q2(R2) guidelines.
• Food additive and pesticide residue analysis in accordance with AOAC and ISO 17025-accredited workflows.
• Environmental water testing for nitrate, benzene derivatives, and polycyclic aromatic hydrocarbons (PAHs).
• Quality control of natural product extracts, including flavonoids, alkaloids, and polyphenols.
• Academic teaching labs conducting fundamental HPLC method development and detector characterization experiments.

FAQ

Is the D1100 compatible with gradient HPLC systems?

Yes—the detector supports rapid wavelength switching during gradient runs and maintains stable baseline response under varying solvent composition and pressure conditions.
Does it support dual-wavelength ratioing or peak purity assessment?

Not natively in standalone mode; however, post-run spectral data from stop-flow scans can be exported for offline purity evaluation using third-party chemometric software.
What is the recommended maintenance interval for the deuterium lamp?

Lamp lifetime is rated at ≥1,000 hours under typical usage; Elite recommends recording cumulative operating hours and verifying energy output every 200 hours via the built-in diagnostic function.
Can the D1100 be used with UHPLC systems?

It is designed for conventional HPLC flow rates and dwell volumes; while functional with UHPLC, optimal performance requires matching to low-dispersion flow cells and minimizing extra-column band broadening.
Is firmware upgrade capability available?

Yes—firmware updates are distributed via Elite’s secure customer portal and installed using the ChromaLink Utility Tool, with version history and checksum verification provided for audit readiness.
