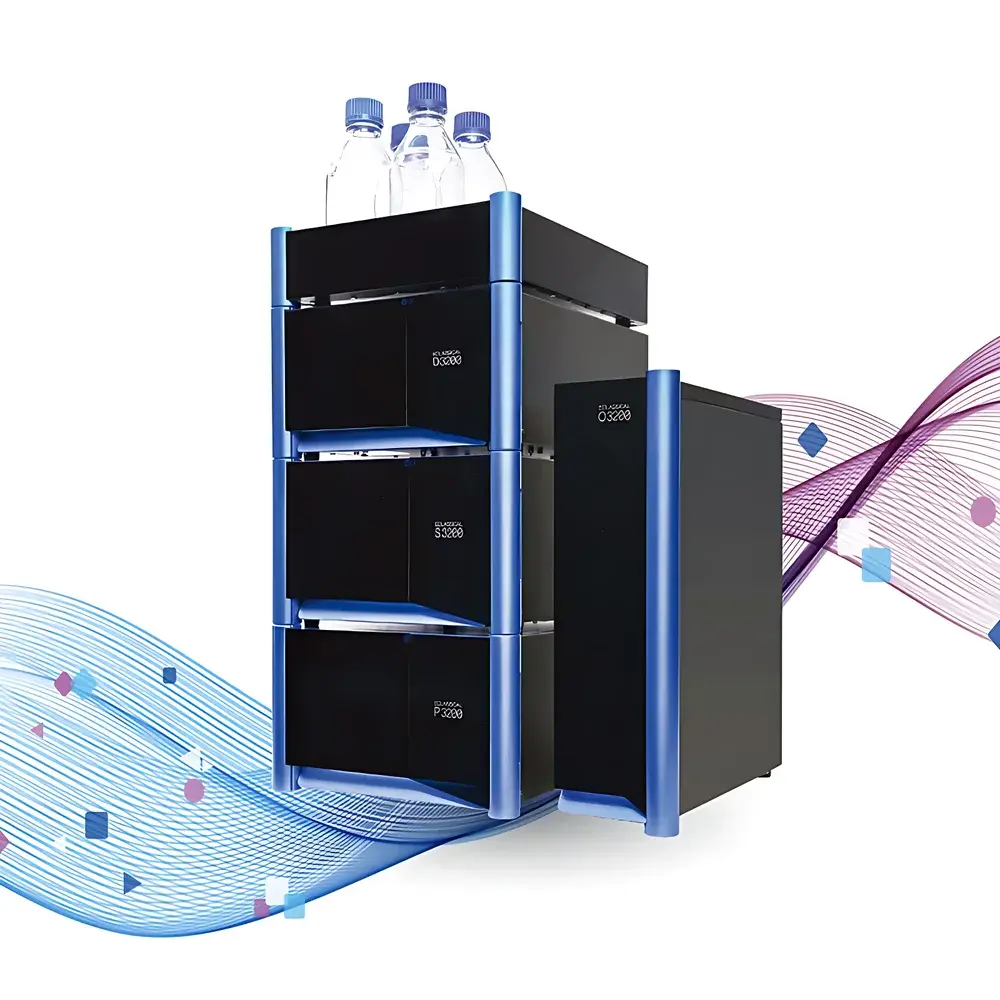

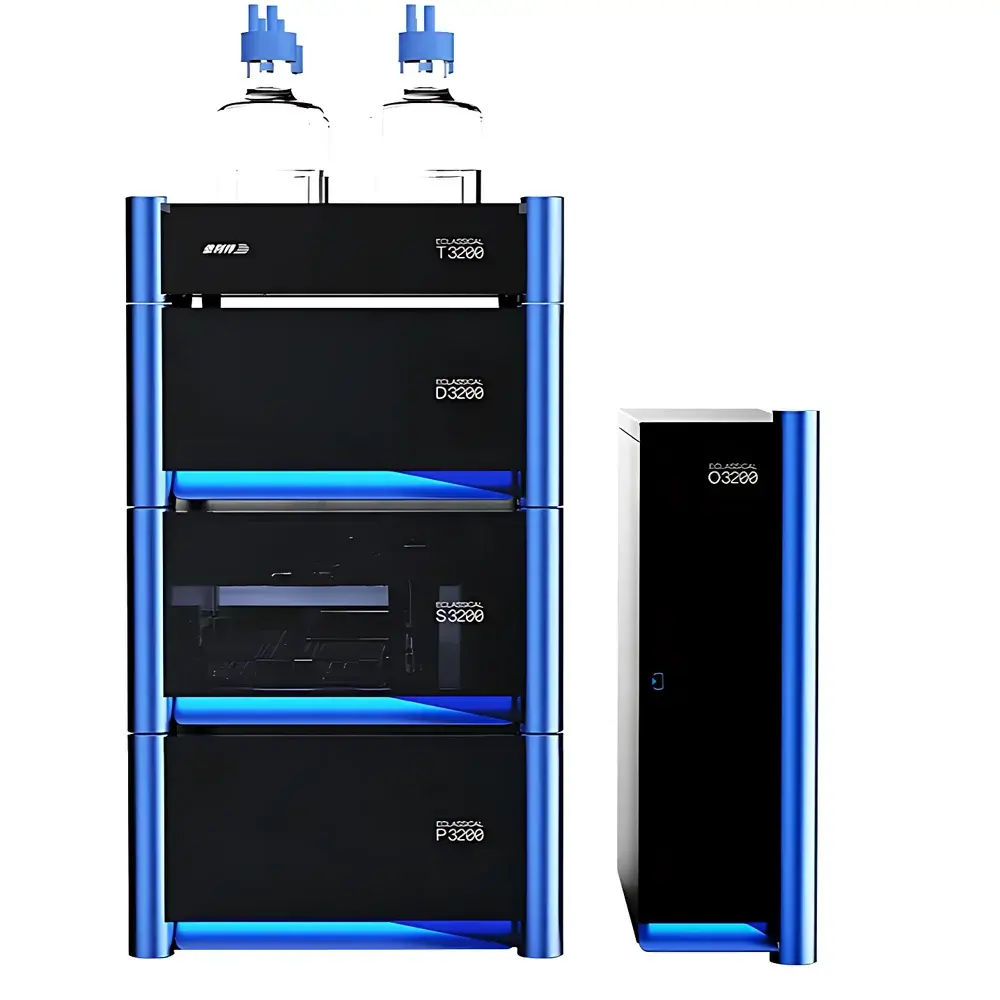

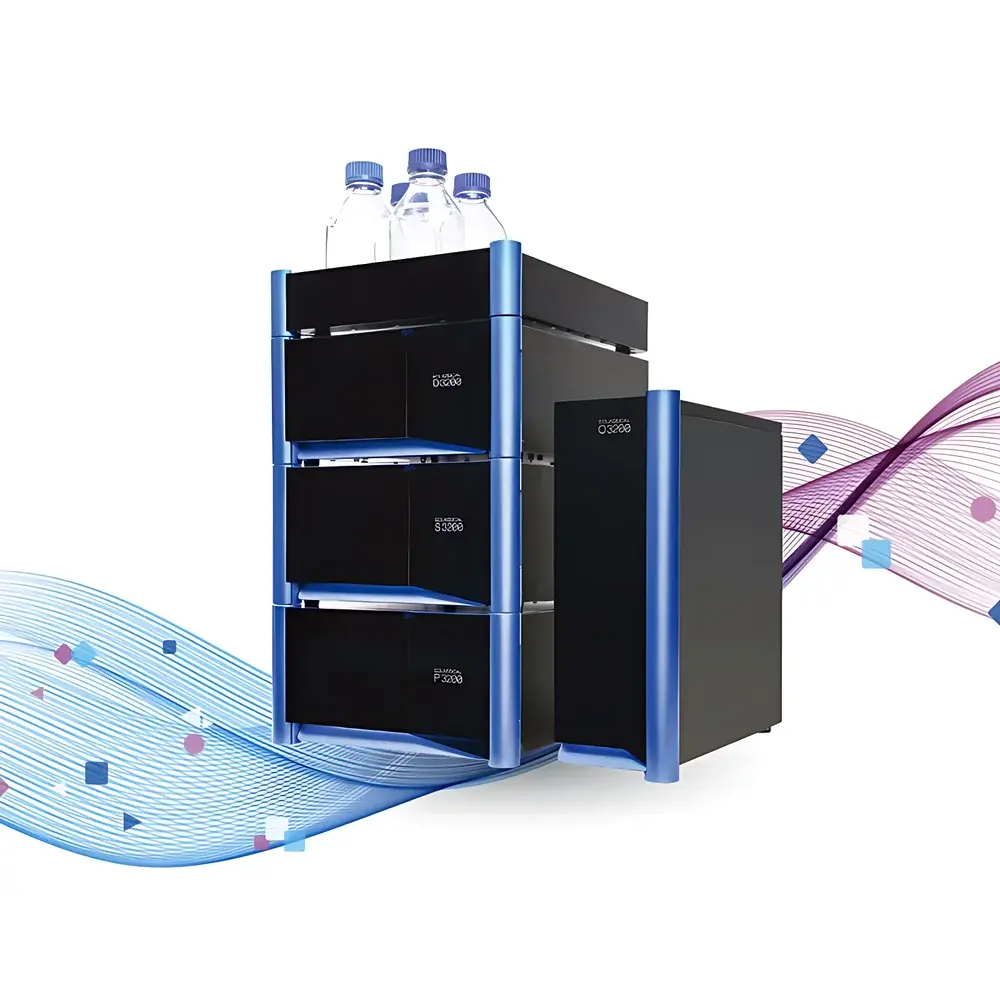

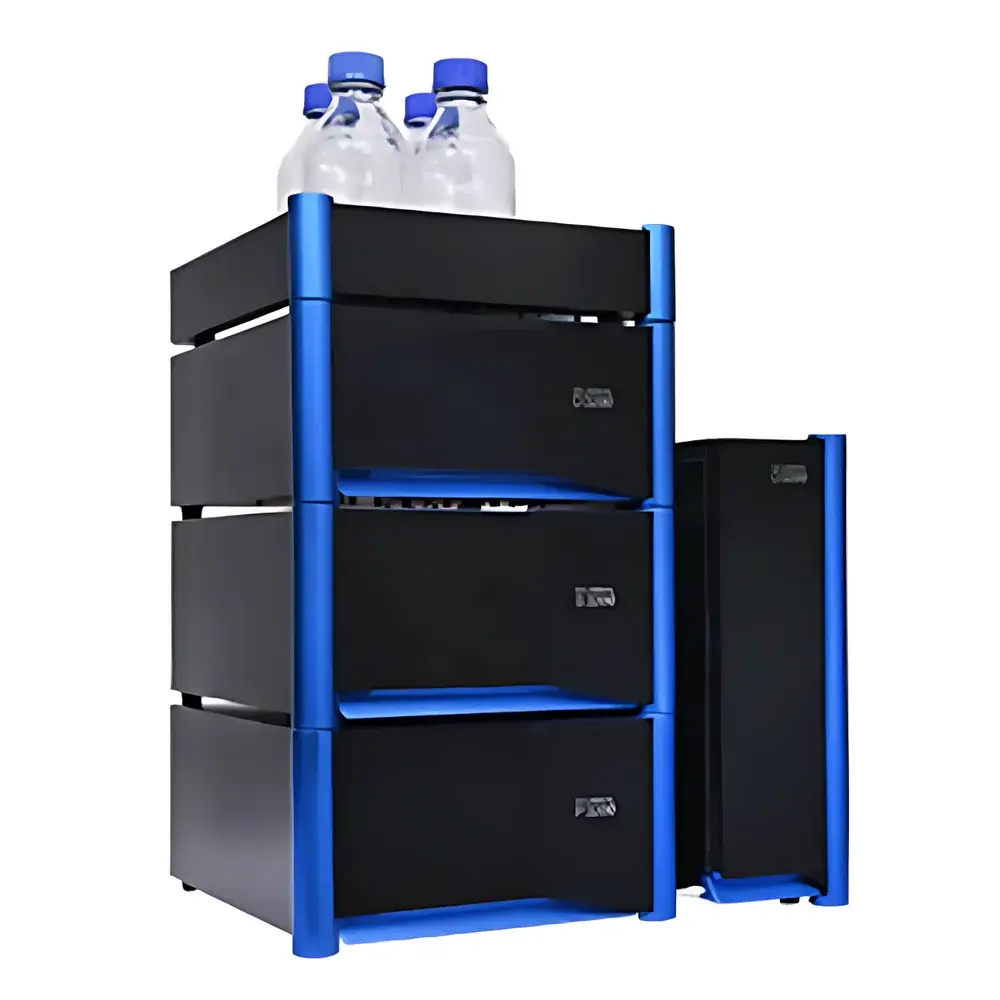

Elite E3200L2D-LC Two-Dimensional Liquid Chromatography System

Overview

The Elite E3200L2D-LC is a fully integrated two-dimensional liquid chromatography (2D-LC) system engineered for high-resolution, orthogonal separation of complex biological matrices—particularly in clinical therapeutic drug monitoring (TDM) and neuropharmacological analysis. Built upon the modular EClassical3200L HPLC/UHPLC platform, the E3200L2D-LC implements comprehensive heart-cutting (HC) and comprehensive (LC×LC) modes via synchronized valve switching, precise flow control, and pressure-stable gradient delivery. Its architecture adheres to the fundamental principles of multidimensional chromatography: first-dimension (¹D) separation provides coarse fractionation based on one physicochemical property (e.g., hydrophobicity), while the second dimension (²D) performs rapid, high-efficiency re-separation using an orthogonal mechanism (e.g., ion-exchange or HILIC), thereby dramatically increasing peak capacity and resolving power beyond conventional 1D-LC limits. The system operates within a validated framework compatible with GLP-compliant laboratories and supports method transfer across clinical, QC, and research environments.

Key Features

• Integrated solvent selection and blending module with real-time flow proportioning—enabling dynamic, on-the-fly mobile phase modulation without manual intervention.
• Proprietary pulse-dampening mixer and low-dead-volume gradient manifold—reducing baseline ripple to 1,000 consecutive injections.
• Autosampler with optional refrigerated compartment (4°C), programmable dilution, and post-injection derivatization capability—designed for thermolabile analytes and pre-column reaction workflows (e.g., dansylation, o-phthalaldehyde).
• UV-Vis detector featuring a temperature-stabilized fused-silica flow cell and static-angle optical path alignment—achieving < 0.5 mAU noise (254 nm, 1 s response), LOD < 0.1 ng on-column for benzodiazepines under standard conditions.
• Optional diode array detector (DAD) with 1024-pixel linear array and 100 Hz spectral acquisition—supporting peak purity assessment, spectral library matching, and deconvolution of co-eluting impurities in multi-analyte assays.
• Column oven accommodating up to six 150 mm × 4.6 mm columns simultaneously, with dual independent temperature zones; integrated with two 2-position/6-port or 2-position/10-port switching valves for flexible 2D configuration (e.g., ¹D-RP / ²D-HILIC or ¹D-SEC / ²D-RP).

Sample Compatibility & Compliance

The E3200L2D-LC is routinely deployed for plasma, cerebrospinal fluid (CSF), urine, and tissue homogenate extracts containing neuroactive compounds—including antipsychotics (e.g., risperidone, quetiapine), antidepressants (e.g., sertraline, venlafaxine), antiepileptics (e.g., lamotrigine, levetiracetam), and endogenous neurotransmitters (e.g., dopamine, serotonin metabolites). All hardware modules comply with IEC 61010-1 safety standards. Data acquisition and processing meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support audit trail generation per FDA 21 CFR Part 11 requirements when used with Kromstation v3.2 or later. Method validation protocols align with USP , ISO/IEC 17025:2017, and CLIA guidelines for clinical laboratory testing.

Software & Data Management

Kromstation Chromatography Data System (CDS) serves as the unified control and analysis interface. It provides method editor templates for 2D-LC synchronization (valve timing, ¹D fraction collection windows, ²D injection triggers), automated peak tracking across dimensions, and retention time normalization algorithms (e.g., linear retention index mapping). Raw data files (.kro) are stored in vendor-neutral HDF5 format with embedded metadata (instrument parameters, calibration history, user ID, timestamp). Batch processing supports IQ/OQ/PQ documentation export in PDF/A-2b and CSV formats. Integration with LIMS via ASTM E1384-compliant HL7 messaging enables seamless result forwarding to electronic health records (EHRs).

Applications

• Clinical TDM of narrow-therapeutic-index psychotropic agents with simultaneous quantification of parent drugs and active metabolites (e.g., clozapine/N-desmethylclozapine).
• Impurity profiling of generic CNS drug formulations per ICH Q3B(R2), including identification of oxidative degradation products.
• Metabolomic screening of CSF biomarkers in Alzheimer’s disease and major depressive disorder cohorts.
• Pharmacokinetic studies requiring ultra-trace detection of unconjugated vs. glucuronidated drug species in serial plasma samples.
• Stability-indicating assay development for biodegradable prodrugs undergoing enzymatic hydrolysis in physiological matrices.

FAQ

What 2D-LC configurations does the E3200L2D-LC support?

It natively supports both heart-cutting (LC-HC) and comprehensive (LC×LC) modes via configurable valve sequencing and software-defined modulation periods.
Is the system compliant with regulatory data integrity requirements?

Yes—when operated with Kromstation CDS v3.2+ and appropriate access controls, it fulfills FDA 21 CFR Part 11 and EU Annex 11 expectations for electronic records and signatures.
Can the autosampler accommodate 96-well plates and perform online dilution?

Yes—the tray accepts ANSI/SLAS-standard microplates; dilution factors from 1:2 to 1:100 are programmable with sub-microliter precision.
Does the column oven support independent temperature control for two separate LC channels?

Yes—dual-zone operation allows differential thermal management of ¹D and ²D columns, critical for optimizing orthogonality in mixed-mode separations.
What level of technical support and method development assistance is available?

Elite provides application-specific method transfer services, on-site qualification (IQ/OQ), and remote troubleshooting via secure TeamViewer sessions with certified LC specialists.
