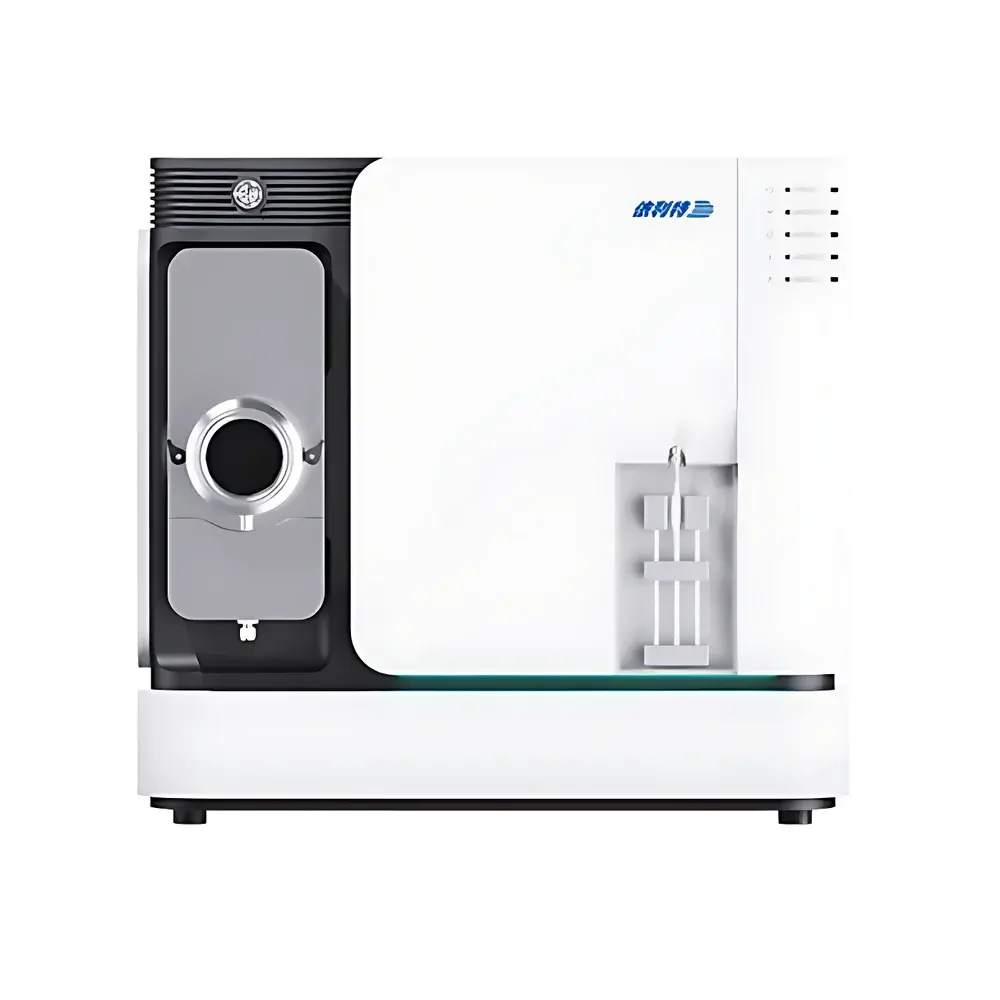

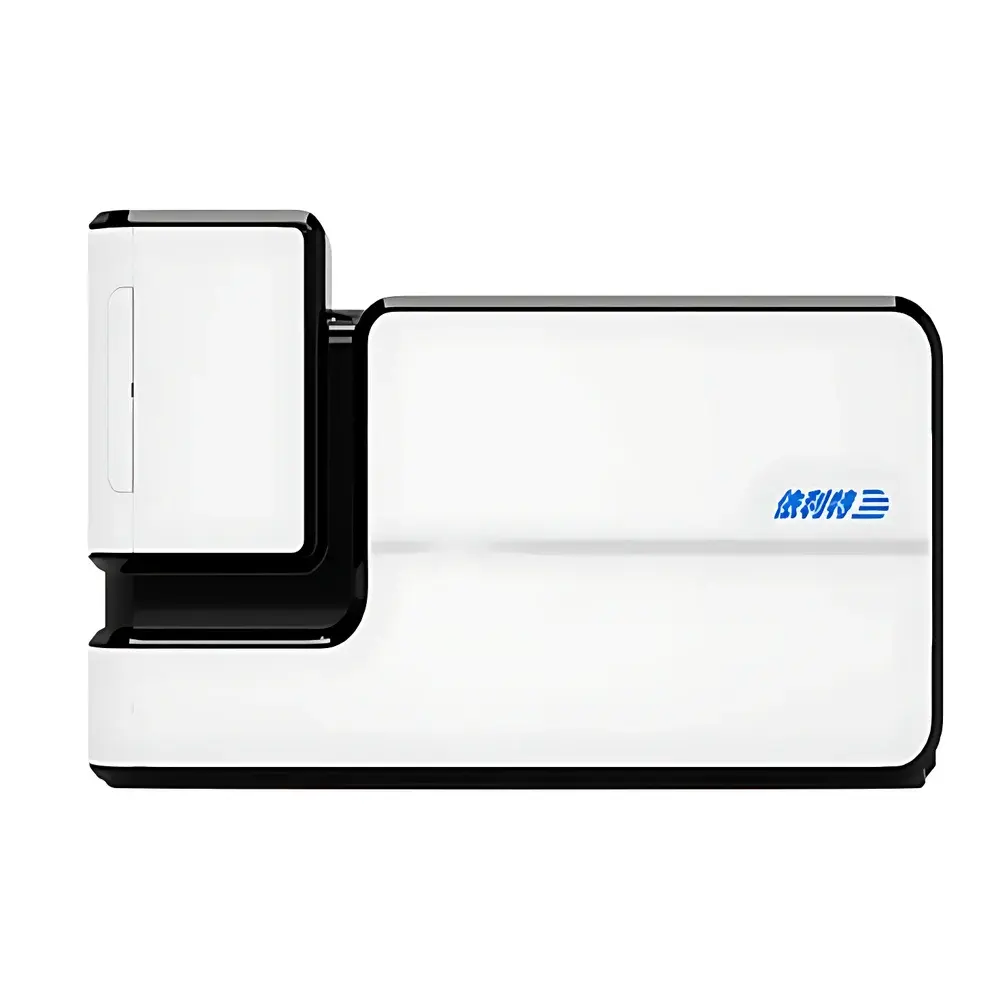

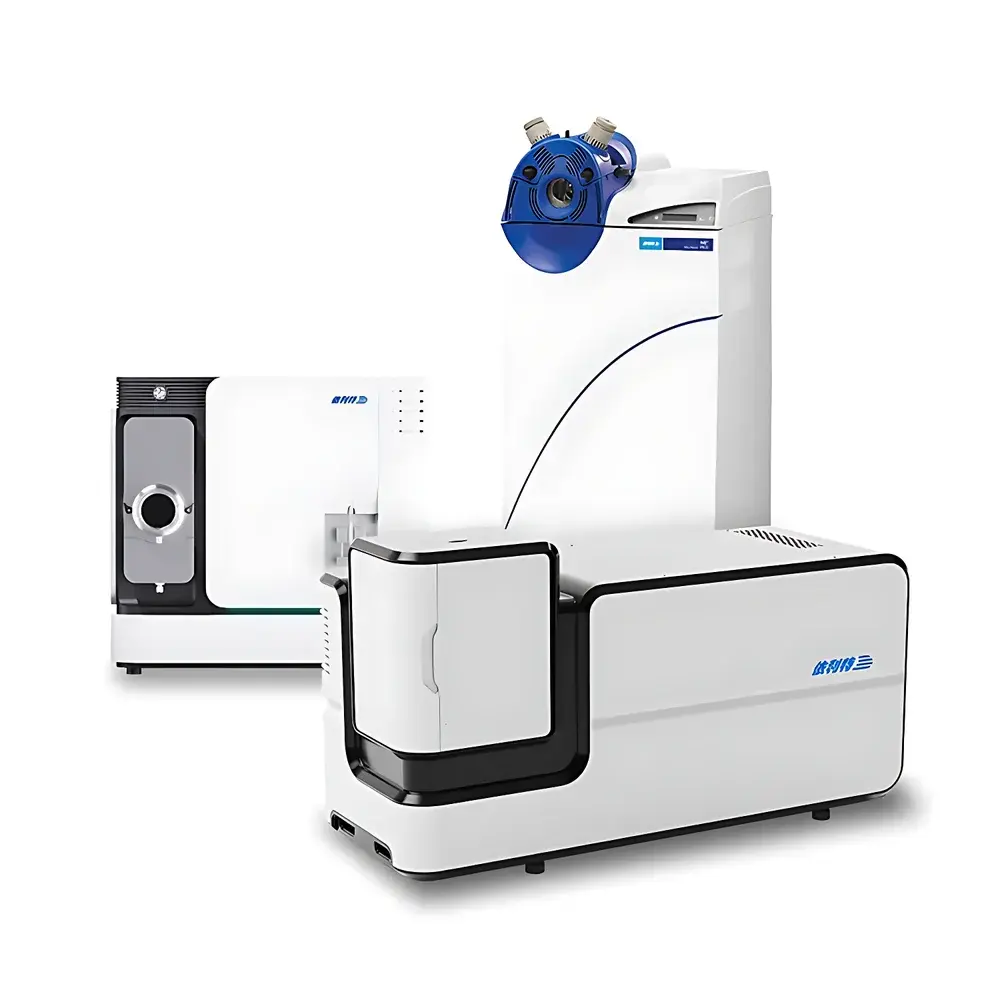

Elite MS²Vertical 9100 Triple Quadrupole Liquid Chromatography Mass Spectrometry System

Overview

The Elite MS²Vertical 9100 is a high-performance triple quadrupole liquid chromatography mass spectrometry (LC-MS/MS) system engineered for robust, reproducible quantitative analysis in demanding laboratory environments. Based on the well-established QqQ mass filtering architecture—where the first quadrupole (Q1) selects precursor ions, the second (q2) acts as a collision cell for controlled fragmentation via collision-induced dissociation (CID), and the third (Q3) analyzes selected product ions—the MS²Vertical 9100 delivers exceptional specificity, sensitivity, and dynamic range. Its vertical ion path design minimizes ion transmission losses and enhances signal stability across extended acquisition periods. The system integrates seamlessly with UHPLC platforms and supports electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) sources, enabling broad analyte coverage from small molecules to moderately polar metabolites.

Key Features

• Triple quadrupole mass analyzer with RF-only q2 collision cell and high-transmission ion optics optimized for low-abundance target detection
• Vertical ion path architecture reducing neutral interference and improving duty cycle efficiency
• Dual-mode ion source (ESI/APCI) with rapid polarity switching (< 20 ms) and automated source parameter optimization
• Real-time mass calibration using internal reference lock-mass correction for long-term mass accuracy (≤ 0.1 Da over 48 h)
• Integrated vacuum system with dual-stage turbomolecular pumps and intelligent pressure regulation for stable operation under variable flow conditions
• Modular hardware design supporting field-upgradable detectors, collision gases (Ar/N₂), and optional high-resolution TOF or Q-TOF add-ons

Sample Compatibility & Compliance

The MS²Vertical 9100 accommodates diverse sample matrices—including plasma, urine, tissue homogenates, food extracts, environmental water, and polymer leachates—when coupled with appropriate sample preparation workflows (e.g., protein precipitation, SPE, QuEChERS). It meets essential performance criteria outlined in ASTM D7622 (for pesticide residue quantification), ISO 17025:2017 (for testing laboratory competence), and USP (validation of analytical procedures). Data acquisition and processing comply with ALCOA+ principles; audit trail functionality, electronic signatures, and user-access controls are embedded within the EliteMass software suite to facilitate FDA 21 CFR Part 11 compliance during regulatory submissions.

Software & Data Management

EliteMass v3.2 is a Windows-based, GxP-ready platform featuring method editor, real-time monitoring dashboard, peak integration engine with retention time alignment, and customizable report templates. It supports batch processing of MRM transitions, automatic dwell time optimization, and post-acquisition spectral deconvolution. All raw data files adhere to open mzML format (Proteomics Standards Initiative), ensuring interoperability with third-party tools such as Skyline, Compound Discoverer, and OpenMS. Audit trails record every user action—including method modification, result reprocessing, and report export—with timestamps, operator ID, and IP address metadata. Backups are configurable via network-attached storage (NAS) or cloud-synced repositories meeting ISO/IEC 27001 security benchmarks.

Applications

The MS²Vertical 9100 serves as a primary quantitative workhorse in multiple regulated domains: pharmacokinetic and toxicokinetic studies (PK/TK) in preclinical drug development; targeted metabolomics profiling in clinical diagnostics; multi-residue screening of veterinary drugs and mycotoxins in food safety programs; trace-level detection of PFAS, pharmaceuticals, and endocrine disruptors in wastewater and soil extracts; forensic toxicology workflows involving amphetamines, opioids, and novel psychoactive substances (NPS); and impurity profiling of advanced polymers and battery electrolyte components. Its MRM sensitivity enables sub-pg/mL detection limits for steroids in human serum when operated under optimized SRM conditions.

FAQ

What ionization modes does the MS²Vertical 9100 support?
ESI (positive/negative) and APCI (positive/negative), with fully automated source switching and independent temperature/gas flow control for each mode.
Is the system compatible with third-party LC systems?
Yes—it accepts standard analog/digital I/O signals (TTL, RS-232, Ethernet) and supports vendor-neutral trigger protocols for synchronization with Agilent, Waters, Shimadzu, and Thermo UHPLC modules.
Does Elite provide IQ/OQ/PQ documentation packages?
Yes—comprehensive installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) protocols are supplied with each system, aligned with ISO/IEC 17025 and GAMP5 guidelines.
Can the MS²Vertical 9100 be upgraded to include high-resolution capabilities?
The base QqQ platform supports future integration of an optional time-of-flight (TOF) module via shared front-end interface and vacuum manifold—enabling hybrid QqQ-TOF operation without hardware replacement.
What level of technical support is available outside China?
Elite maintains certified service partners in North America, EU, and Southeast Asia offering remote diagnostics, on-site maintenance contracts, and application-specific training delivered in English by ASE-certified scientists.
