Elite O3100 HPLC Column Oven

Overview

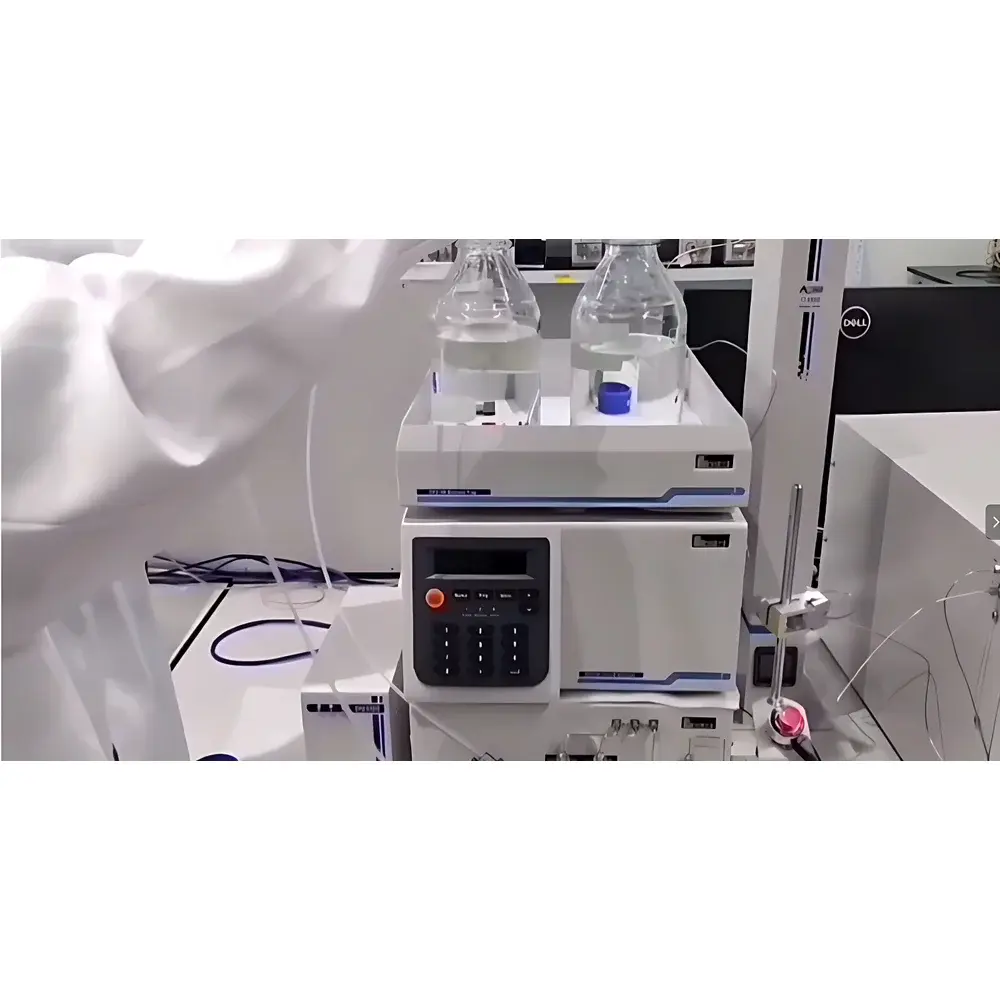

The Elite O3100 HPLC Column Oven is a precision-engineered thermal management module designed specifically for high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) systems. It operates on the principle of active resistive heating with closed-loop digital temperature regulation, enabling consistent column temperature control—a critical parameter influencing retention time reproducibility, peak shape symmetry, resolution, and method robustness. As an integral component of the Elite EClassical 3100 HPLC platform, the O3100 is fully interoperable with third-party HPLC modules including UV-Vis detectors, autosamplers, and high-pressure solvent delivery pumps. Its compact footprint and modular interface support both integrated system deployment and standalone operation in QC labs, research facilities, and method development environments.

Key Features

• 32-bit ARM-based main controller delivering enhanced computational throughput, real-time thermal response, and deterministic firmware execution.
• Digital PID temperature regulation algorithm embedded in firmware—optimized for minimal overshoot (<0.5°C), rapid stabilization (<30 minutes from ambient to setpoint), and long-term drift compensation.
• AC phase-angle modulation heating control combined with factory-calibrated temperature response curves and single-point user calibration capability—ensuring traceable accuracy across the full 5–80°C operating range.
• Thermal uniformity optimized via internal airflow distribution and insulated chamber geometry; achieves ±0.3°C stability over time and ±0.2°C spatial variation across standard 150 mm × 4.6 mm ID columns.
• Rugged aluminum alloy chassis with powder-coated steel enclosure—designed for continuous 24/7 operation in regulated laboratory environments.
• Front-panel LED display with intuitive keypad navigation; supports dual-unit temperature readout (°C/°F) and real-time status indicators for heater activity, error conditions, and setpoint confirmation.

Sample Compatibility & Compliance

The O3100 accommodates standard analytical and semi-preparative HPLC columns (up to 300 mm length, 9.4 mm OD), including stainless steel, PEEK, and fused-silica tubing configurations. Column mounting is tool-free via adjustable spring-loaded clamps compatible with 1/4″ and 1/8″ tubing routing. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets electromagnetic compatibility (EMC) requirements per EN 61326-1:2013. While not intrinsically rated for hazardous locations, its design aligns with Good Laboratory Practice (GLP) and current Good Manufacturing Practice (cGMP) documentation expectations—including audit-ready temperature log export capability when interfaced with compliant data systems. It supports method validation protocols per USP , ISO 17025, and ASTM D7097 where column temperature control is a critical process parameter.

Software & Data Management

The O3100 operates as a standalone instrument without mandatory PC connectivity; however, RS-232 serial interface (optional USB-to-serial adapter) enables integration into LIMS or CDS platforms for remote setpoint adjustment, temperature logging, and alarm event capture. When used with Elite’s ChromaLink software suite (v3.2+), the oven supports synchronized method loading, temperature ramp profiling, and electronic lab notebook (ELN) metadata tagging. All temperature logs include timestamped records with millisecond-resolution acquisition, supporting FDA 21 CFR Part 11 compliance when deployed with appropriate access controls, electronic signatures, and audit trail configuration. Firmware updates are performed via secure UART bootloader protocol with version rollback protection.

Applications

• Retention time stabilization in gradient and isocratic HPLC methods—particularly for temperature-sensitive analytes such as chiral compounds, peptides, and thermolabile pharmaceuticals.
• Method transfer between laboratories where ambient temperature fluctuations may compromise inter-lab reproducibility.
• Column equilibration acceleration during method development cycles—reducing system downtime between mobile phase changes.
• Supporting pharmacopeial monographs requiring strict column temperature specifications (e.g., USP general chapters , ).
• Enabling robustness testing per ICH Q2(R2) guidelines by evaluating temperature as a critical method variable.
• Integration into automated QC workflows for raw material release testing in API and finished dosage form manufacturing.

FAQ

Does the O3100 support sub-ambient or refrigerated operation?
No. The O3100 is a heating-only column oven with a minimum operating temperature of 5°C above ambient. For sub-ambient applications, Elite recommends the O3200 dual-mode (heating/cooling) variant.
Can the O3100 be used with UHPLC systems operating at 1000 bar?
Yes. The chamber design imposes no pressure constraints; it interfaces exclusively with the column hardware—not the fluidic path—and is compatible with all commercially available UHPLC columns housed in standard fittings.
Is NIST-traceable calibration documentation available?
Yes. Factory calibration certificates (including as-found/as-left data against platinum RTD reference standards) are provided with each unit. Optional annual recalibration services are available through Elite’s ISO/IEC 17025-accredited service center in Dalian.
What is the maximum column length supported inside the chamber?
The internal cavity accommodates columns up to 300 mm in length with standard ferrule-based fittings. Extended-length columns (>300 mm) may be partially externalized using the rear cable/port cutouts while maintaining thermal contact over the active separation zone.
How is temperature uniformity verified during qualification?
Per IQ/OQ protocols, users perform multi-point mapping using calibrated PT100 probes placed at defined axial and radial positions within the chamber while holding at 25°C, 40°C, and 70°C. Elite provides a PQ template aligned with ASTM E2251-22 for thermal performance verification.
