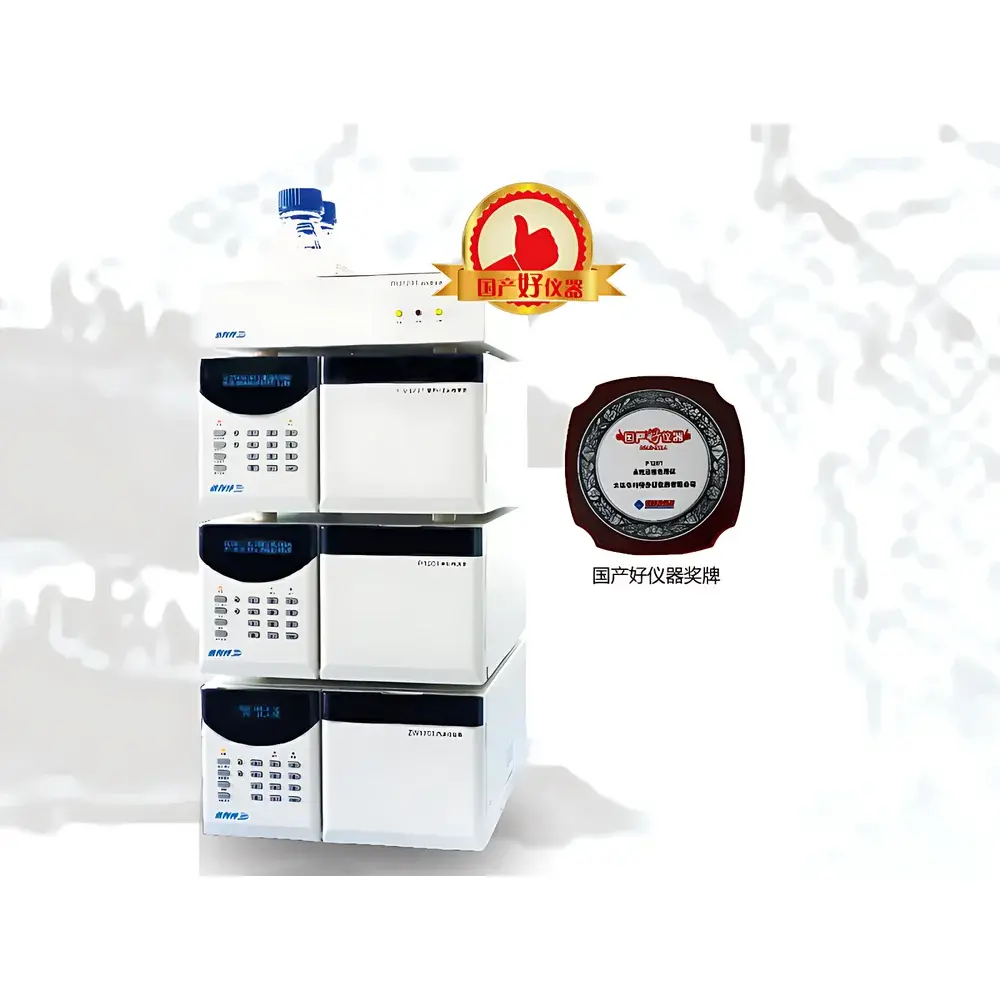

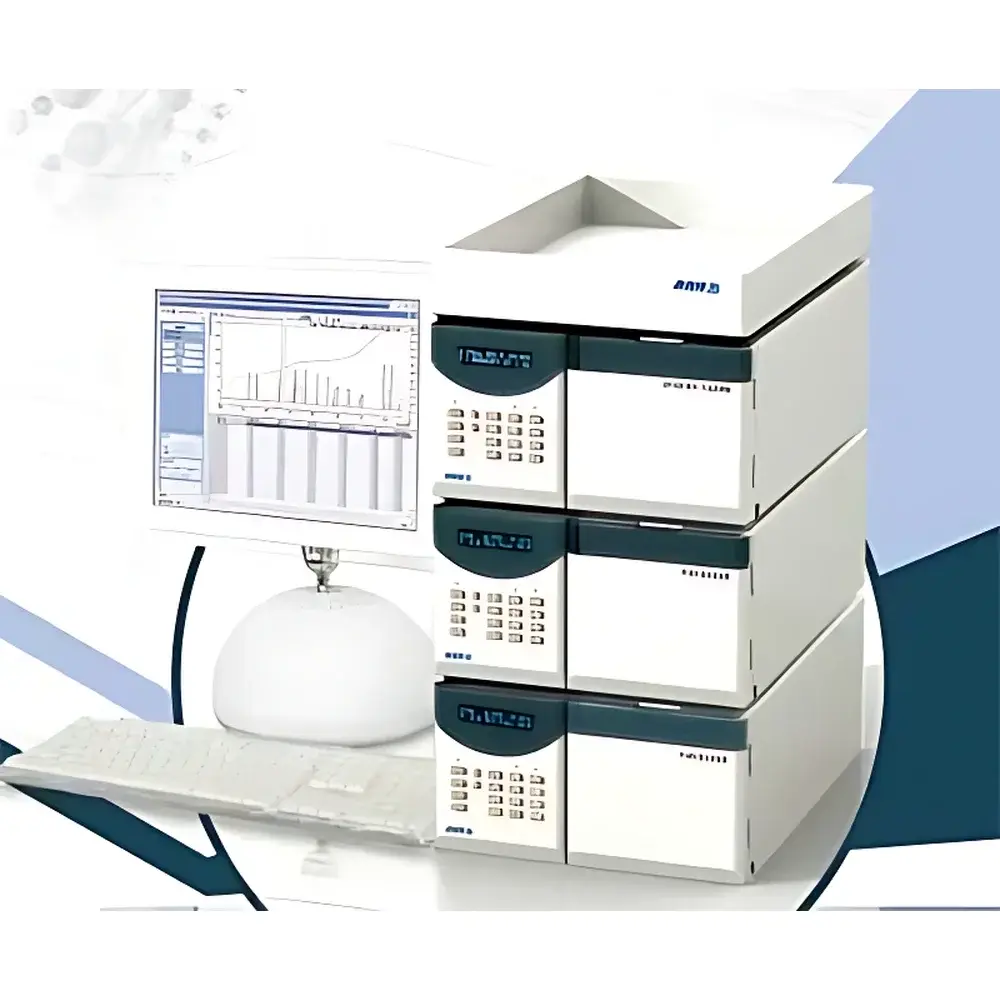

Elite P1201 High-Performance Liquid Chromatograph

Overview

The Elite P1201 High-Performance Liquid Chromatograph is a modular, benchtop HPLC system engineered for precision, long-term stability, and operational flexibility in routine analytical laboratories. Built upon proven liquid chromatographic principles—specifically high-pressure pump-driven mobile phase delivery, precise sample introduction via loop-based or autosampler injection, and UV-Vis absorbance detection—the P1201 supports isocratic, binary high-pressure gradient, and quaternary low-pressure gradient configurations. Its architecture follows a “building-block” design philosophy, enabling seamless integration of core modules—including the P1201 high-pressure constant-flow pump, UV1201 variable-wavelength UV-Vis detector, manual injection valve (or optional 120-position autosampler), and EC2006 chromatography data system—without proprietary interlock constraints. The system operates within a validated pressure envelope up to 42 MPa (6090 psi), compatible with sub-2-µm particle-packed columns for enhanced resolution and throughput when paired with appropriate column hardware and method parameters.

Key Features

• Modular configuration supporting isocratic, binary high-pressure gradient, and quaternary low-pressure gradient operation
• High-precision dual-piston reciprocating pump with flow accuracy ≤ ±0.2% RSD and pulse dampening optimized for baseline stability
• UV1201 UV-Vis detector featuring a 190–700 nm spectral range, 20 Hz data acquisition rate, and programmable wavelength scanning
• Column oven with temperature control from ambient +5°C to 160°C (±0.2°C stability), accommodating reversed-phase, HILIC, and high-temperature applications
• VFD (vacuum fluorescent display) interface with tactile keypad and full local instrument control—complemented by bidirectional communication with EC2006 software
• Robust mechanical design using corrosion-resistant materials and long-life seals validated through extended production-cycle testing
• Comprehensive expandability: optional integrated degasser, column switching valves, solvent manager, and auxiliary detectors including DAD, FLR, RID, ELSD, and amino acid-specific modules (AAK/AAP)

Sample Compatibility & Compliance

The P1201 accommodates standard 1/16″ OD stainless steel or PEEK capillary tubing, industry-standard 4.6 mm and 3.0 mm ID analytical columns, and custom-packed columns up to 250 mm length. It meets fundamental requirements for GLP-compliant environments when deployed with audit-trail-enabled EC2006 software (v3.2+), supporting electronic signatures, method versioning, and raw data integrity per FDA 21 CFR Part 11 guidelines. While not pre-certified to ISO/IEC 17025 or ASTM E2623, its performance specifications align with common validation protocols used in pharmaceutical QC (e.g., USP , ICH Q2(R2)), food safety testing (AOAC, ISO 13877), and environmental analysis (EPA Method 8330B). All wetted parts are chemically inert to common HPLC solvents (acetonitrile, methanol, water, buffers pH 2–8), and pressure transducers are calibrated traceable to national standards.

Software & Data Management

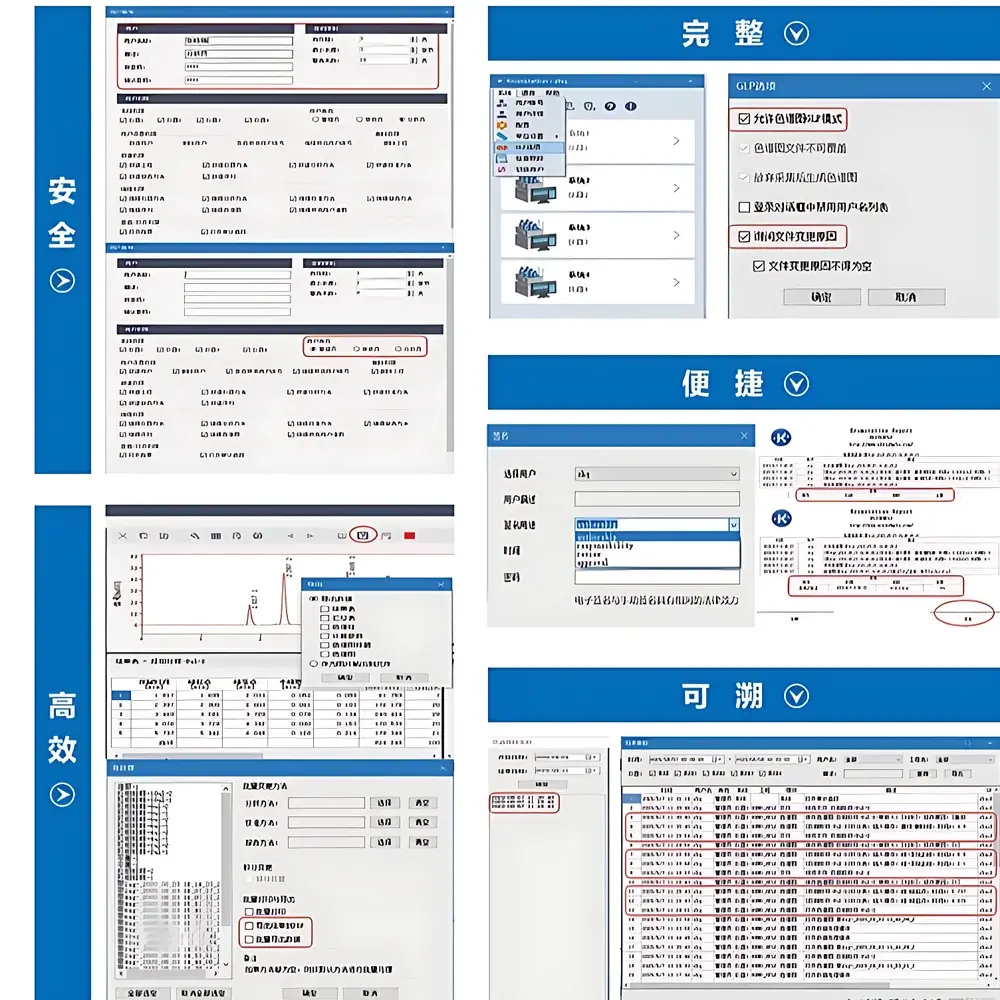

EC2006 Chromatography Data System serves as the primary control and processing platform, offering real-time instrument monitoring, method development tools, peak integration with customizable baselines and retention time windows, and report generation compliant with laboratory documentation practices. The software supports dual-control architecture: direct instrument operation via front-panel VFD interface or remote command via USB/Ethernet connection. Raw data files (.ecd) are stored in vendor-neutral formats compatible with third-party processing tools. Audit trail functionality records user actions, parameter changes, and sequence modifications with timestamps and operator IDs—enabling full traceability during internal audits or regulatory inspections. Data export options include CSV, PDF, and XML formats for LIMS integration.

Applications

The P1201 is routinely deployed across quality control laboratories for assay quantification of active pharmaceutical ingredients (APIs), residual solvents, and degradation products; food testing labs for pesticide residue screening, mycotoxin analysis, and vitamin profiling; environmental labs for PAHs, phenols, and endocrine disruptors in water and soil extracts; and academic research settings for natural product isolation, polymer molecular weight distribution (GPC mode), and chiral separations. Its gradient accuracy and retention time reproducibility (<0.15% RSD over 24 h) make it suitable for method transfer between R&D and QC environments. Optional AAK/AAP modules enable standardized amino acid analysis per ISO 13903 and AOAC 994.12.

FAQ

What gradient configurations does the P1201 support?
The system natively supports isocratic, binary high-pressure gradient, and quaternary low-pressure gradient modes—configurable via EC2006 software or front-panel programming.
Is the UV1201 detector capable of spectral scanning?
Yes—the detector provides full-spectrum scanning across 190–700 nm at user-defined intervals, enabling peak purity assessment and library matching.
Can the P1201 be integrated into an existing LIMS environment?
Yes—via EC2006’s configurable ODBC and ASCII export functions, supporting structured data exchange with major LIMS platforms.
What is the maximum column temperature supported, and how is thermal uniformity ensured?
The column oven maintains 160°C with ±0.2°C stability; forced-air circulation and insulated chamber design minimize axial and radial gradients.
Does the system comply with FDA 21 CFR Part 11 requirements?
When operated with EC2006 v3.2+ and enabled audit-trail settings, the P1201 meets technical prerequisites for electronic records and signatures under Part 11.
