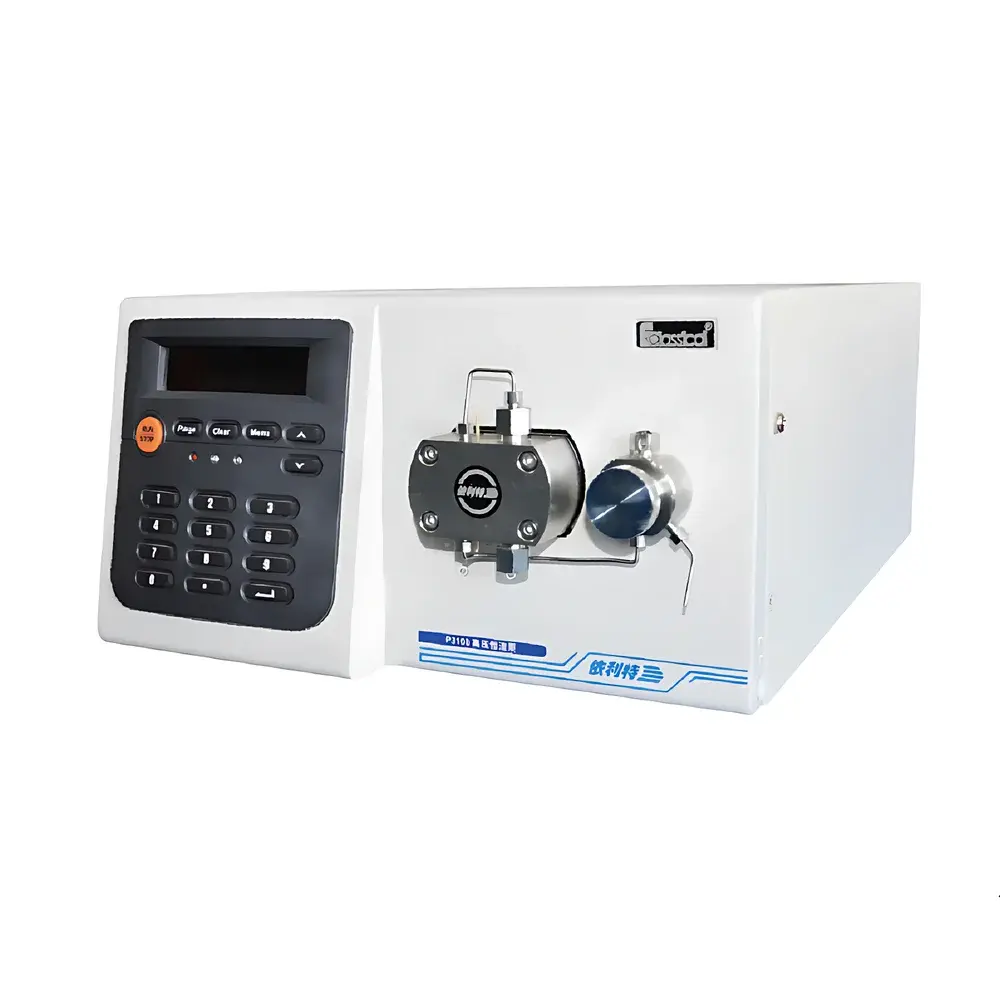

Elite P3100 High-Pressure Solvent Delivery Pump

Overview

The Elite P3100 High-Pressure Solvent Delivery Pump is an isocratic liquid chromatography pump engineered for precision, long-term stability, and seamless integration into HPLC and UHPLC-ready systems. Designed and manufactured in-house by Dalian Elite Analytical Instrument Co., Ltd., the P3100 implements a dual-piston, serially coupled pump head architecture with a minimal cam stroke of 2 mm—effectively minimizing pulsation across the entire flow range. Its operation is based on positive displacement principles, utilizing high-tolerance ceramic-plated plungers and sapphire-hardened check valves to ensure consistent solvent delivery under sustained backpressures up to 45 MPa (6,525 psi). The pump supports both standalone operation as a precision fluid delivery module and synchronized use within modular LC systems—including compatibility with UV/Vis, fluorescence, and mass spectrometric detectors; autosamplers; and column ovens. It complies with fundamental mechanical and electrical safety standards for laboratory instrumentation (IEC 61010-1), and its firmware architecture supports traceable operation under GLP-aligned workflows.

Key Features

• Dual-piston, serial pump head design with 2 mm cam stroke—optimized to suppress pressure ripple and enhance baseline stability in chromatographic applications.
• Microstepping motor control enabling accurate low-flow delivery down to 0.001 mL/min (1 µL/min), with resolution and repeatability validated per ISO 11607-2 and ASTM D3418 protocols.
• Critical wetted components sourced from Tier-1 international suppliers—including chemically inert sapphire seat check valves and ceramic-coated stainless-steel plungers—ensuring >10,000 hours of maintenance-free operation with common HPLC solvents (acetonitrile, methanol, water, buffer solutions).
• Real-time pressure monitoring with programmable high/low pressure alarm thresholds and automatic shutdown logic—meeting essential safety requirements for unattended overnight runs.
• Embedded microcontroller platform leveraging SPI bus architecture—reducing PCB footprint, minimizing signal noise, and improving electromagnetic compatibility (EMC) in shared lab environments.
• VFD (Vacuum Fluorescent Display) user interface with 20×2 character matrix—supporting intuitive parameter entry, status feedback, and diagnostic codes without reliance on external software.
• Redesigned pump head housing and purge valve geometry—improving ergonomics during maintenance, enhancing leak resistance, and supporting IP20-rated enclosure integrity.

Sample Compatibility & Compliance

The P3100 is compatible with standard HPLC mobile phases including aqueous buffers (e.g., phosphate, acetate), organic modifiers (acetonitrile, methanol, THF), and low-viscosity ion-pair reagents. It is not rated for halogenated solvents (e.g., chloroform, carbon tetrachloride) or strong oxidizers (e.g., perchloric acid). All wetted materials conform to USP Class VI biocompatibility testing. While the P3100 itself does not carry FDA 21 CFR Part 11 certification, its firmware supports audit-trail-enabling communication modes (RS-232/RS-485) when integrated with compliant chromatography data systems (CDS) such as Chromeleon, Empower, or OpenLab CDS—facilitating GxP-aligned validation documentation per ICH Q2(R2) and Annex 11 guidelines.

Software & Data Management

The P3100 operates via front-panel controls and accepts remote commands via ASCII-based serial protocol (ASCII/CR-LF termination). It supports basic command sets for flow rate setting, pressure threshold configuration, purge initiation, and status polling. No proprietary PC software is required for operation; however, OEM-level integration kits—including DLL libraries and LabVIEW VIs—are available for custom system builders. All operational events (start/stop, pressure alarms, error resets) are timestamped and stored in non-volatile memory for up to 1,024 entries—enabling retrospective review during instrument qualification (IQ/OQ/PQ) and internal audit preparation.

Applications

• Isocratic method development and routine QC analysis in pharmaceutical, food, and environmental laboratories.
• Mobile phase delivery in preparative HPLC systems operating below 20 mL/min and ≤45 MPa.
• Use as a precision syringe pump alternative in microfluidic interfacing and reaction monitoring setups.
• Integration into custom-built hyphenated systems (e.g., LC-FTIR, LC-ICP-MS) where deterministic flow control and pulse-free output are critical.
• Education and training platforms in analytical chemistry curricula—due to its transparent architecture and hands-on serviceability.

FAQ

What is the maximum backpressure rating of the P3100?

The P3100 is rated for continuous operation at up to 45 MPa (6,525 psi) at ambient temperatures between 10–35°C.
Does the P3100 support gradient elution?

No—the P3100 is an isocratic pump. Gradient capability requires integration with a low-pressure mixing module or a separate quaternary pump system.
Can the P3100 be used with aggressive solvents like TFA or HFBA?

Yes, provided stainless-steel wetted parts are selected and system flushing protocols follow manufacturer-recommended procedures for acid-containing mobile phases.
Is firmware upgrade supported in the field?

Yes—firmware updates are delivered via RS-232 using a dedicated utility provided under NDA to authorized service partners.
What is the warranty coverage for the P3100?

Elite offers a 24-month limited warranty covering material and workmanship defects, excluding consumables (seals, check valves) and damage from improper solvent use or overpressure events.
