EMU Selective Wafer Elevator
| Brand | EMU |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Selective Wafer Elevator |
| Wafer Diameters Supported | 75 mm, 100 mm, 125 mm, 150 mm, 200 mm |
| Operation Mode | Manual Actuation with Indexed Slot Selection (e.g., slots 1, 6, 11, 16, 21) |
| Construction Materials | Cleanroom-Compatible Organic Polymers and Non-Shedding Structural Components |
| Compliance | Designed for ISO Class 1–5 Cleanroom Environments |
| Substrate Compatibility | Silicon (Si), Silicon Carbide (SiC), Gallium Nitride (GaN), Sapphire, SOI |
Overview

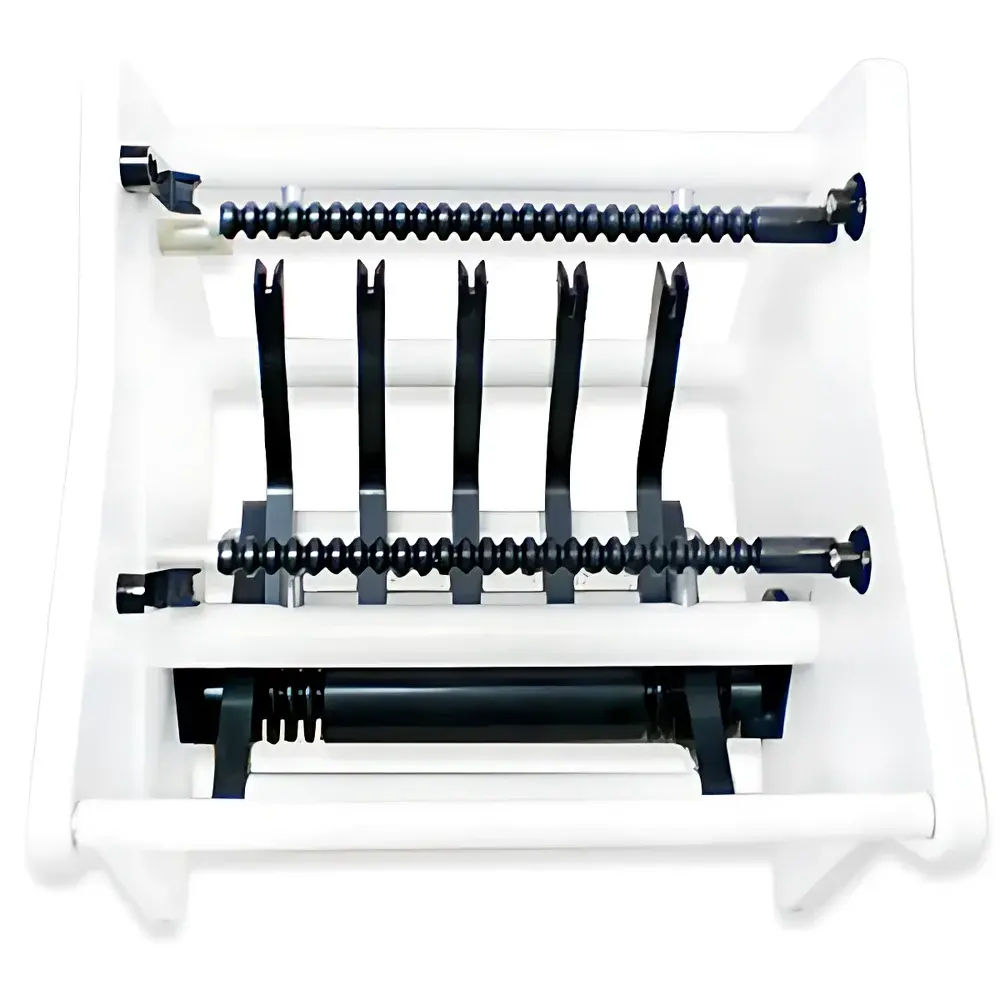

The EMU Selective Wafer Elevator is a precision-engineered, manually operated mechanical handling tool designed for controlled, non-contact elevation of semiconductor wafers from standardized or semi-standardized carriers—such as FOUPs (Front Opening Unified Pods), SMIF pods, or open cassette-style load ports—within cleanroom environments. Unlike automated wafer handlers or robotic end-effectors, this device operates on a purely mechanical indexing principle: it lifts wafers selectively—typically one per every five slots (e.g., slots 1, 6, 11, 16, 21)—to minimize cross-contamination risk and enable targeted inspection, metrology, or manual transfer without disturbing adjacent substrates. Its operation relies on calibrated spring-loaded lift mechanisms and tactile-position feedback, eliminating electrical components, pneumatic lines, or vacuum sources that could introduce particle generation or electrostatic discharge (ESD) hazards. The elevator is engineered for compatibility with standard wafer carrier geometries across multiple diameters (75 mm to 200 mm), supporting both legacy and advanced wide-bandgap substrate platforms.
Key Features
- Mechanically actuated, zero-power operation ensures intrinsic ESD safety and eliminates electromagnetic interference in sensitive metrology zones.
- Selective slot indexing mechanism enables precise, repeatable wafer selection without requiring visual alignment or digital programming—ideal for low-volume R&D, failure analysis, or qualification labs.
- Open-frame architecture with minimal surface contact area reduces particle entrapment and facilitates rapid laminar airflow recovery in ISO Class 1–5 cleanrooms.
- Non-metallic, ultra-low-outgassing structural components—including fluoropolymer-coated polymer guides and static-dissipative composite lift fingers—prevent scratching, metal contamination, and triboelectric charging on fragile SiC and GaN wafers.
- Modular base plate design allows quick adaptation to different carrier footprints (e.g., 25-slot vs. 30-slot cassettes) via interchangeable alignment inserts.
- Calibrated lift height repeatability of ±0.15 mm ensures consistent z-positioning for optical inspection tools, probe stations, or manual micro-manipulation workflows.
Sample Compatibility & Compliance
The EMU Selective Wafer Elevator supports full-diameter wafers ranging from 75 mm to 200 mm, including those fabricated on silicon, silicon carbide (SiC), gallium nitride (GaN), sapphire, and silicon-on-insulator (SOI) substrates. Its mechanical interface has been validated against SEMI Standard E164 (Specification for Wafer Carrier Interfaces) for dimensional tolerances and load distribution. All materials comply with SEMI F57 (Standard Practice for Cleanroom-Compatible Materials) and pass ASTM D257 surface resistivity testing (<1 × 10⁹ Ω/sq) for static control. The device is suitable for use in facilities operating under ISO 14644-1 Class 1–5 environments and meets baseline requirements for GLP-aligned wafer handling protocols where audit-trail-free manual intervention is permitted.
Software & Data Management
This is a standalone mechanical tool with no embedded electronics, firmware, or software interface. It requires no drivers, calibration logs, or network connectivity—making it inherently compliant with air-gapped lab networks and eliminating cybersecurity or FDA 21 CFR Part 11 validation overhead. Usage records (e.g., lot ID, operator ID, timestamped lift events) must be documented externally via lab notebook entries or LIMS-integrated manual log sheets. For traceability-critical applications, optional QR-code-labeled base plates can be integrated to support barcode-scanned workflow initiation within existing MES systems.
Applications
- Pre-probe visual inspection of individual wafers in front-end process development labs.
- Targeted defect review at specific die locations without removing entire cassettes from load ports.
- Manual transfer of high-value SiC/GaN wafers to analytical TEM or XRD sample holders.
- Calibration verification of automated handler gripper heights using reference wafers elevated at known intervals.
- Low-throughput reliability testing setups where intermittent wafer access is required between thermal cycling cycles.
- Educational semiconductor fabrication training modules emphasizing contamination control fundamentals.
FAQ
Is the EMU Selective Wafer Elevator compatible with FOUPs?
Yes—it interfaces with standard FOUP load ports when used with optional adapter brackets; however, direct FOUP integration requires custom mounting hardware not included in the base configuration.
Does it require compressed air or electrical power?
No. It is fully mechanical and manually actuated; no utilities are needed for operation.
Can it handle warped or bevel-edge wafers?
It accommodates wafers with up to 30 µm total indicator reading (TIR) warp and standard SEMI bevel profiles (e.g., 0.5 mm radius); extreme warpage (>50 µm) may reduce lift stability.
What maintenance is required?
Annual visual inspection of lift finger wear and spring tension calibration; no lubrication is permitted in cleanroom zones—dry polymer-on-polymer interfaces are self-maintaining.
Is it suitable for Class 1 cleanrooms?
Yes—its particle generation rate, measured per ISO 14644-1 Annex B protocols, is <1 particle ≥0.1 µm per cubic meter per hour during actuation.
